Cornwell Tools CAT4000SDR Operating Instructions

Operating Instructions • Warning Information
ALWAYS READ INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR SAFETY GOGGLES
ALWAYS WEAR HEARING PROTECTION
AVOID PROLONGED EXPOSURE TO VIBRATION
SPECIFICATIONS
Maximum Torque . . . . . . . . . . . . . . . . . . . . . . .42 ft .-lbs .
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 RPM
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 .36"
Average Air Consumption . . . . . . . . . . . . . . . . . .3 .5 CFM
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"-18 NPT
Recommended Hose Size . . . . . . . . . . . . . . . . . .3/8" I .D .
Recommended Air Pressure . . . . . . . . . . . . . . . . 90 psig
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . .95 dbA
Vibration Level . . . . . . . . . . . . . . . . . . . . . . . 4 .23m/sec²
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .34 lbs .
CAT4000SDR
• Parts Breakdown
WARNING WARNING
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples
of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to filter out microscopic particles.

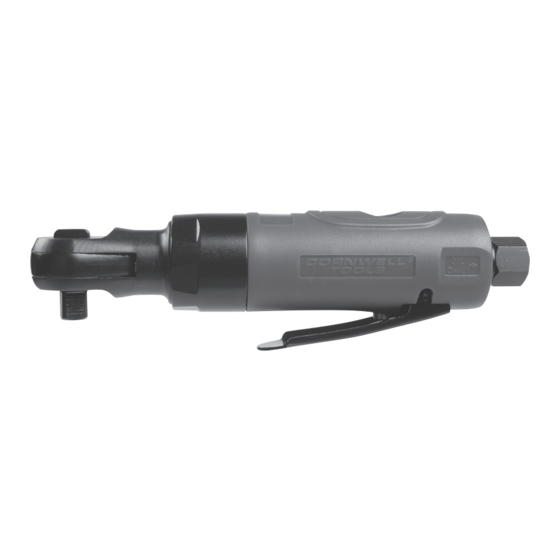

CAT4000SDR
1/4" Mini
Air Ratchet
(High Torque)
Copyright © Professional Tool Products, 2015
All rights reserved
Rev. 11/10/15
