Operating Instructions • Warning Information • Parts Breakdown
Accuracy
. . . . . . . . . . . . . . . . . (CW ±2%) (CCW ±3%)
(*1)
Angle Accuracy
Data Memory Values. . . . . . . . . . . . . . . . . . . . . . . . . . 50
Number of Presets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation Modes . . . . . . . . . . . . . . . . . .Peak Hold/Track
Unit Selection . . . . . . N-m, in-lb, ft-lb, kg-cm & Degrees
Head Type . . . . . . . . . . . . . . . . . . . . . . . . . . . Flex Ratchet
Gear teeth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 AA
Battery Life-Continuous Operation
Battery Life-Standby
Operating Temperature . . . . . . . . . . . . . . . .14ºF ~ 140ºF
Storage Temperature . . . . . . . . . . . . . . . . . . -4ºF ~ 158ºF
Humidity . . . . . . . . . . . . . . . Up to 90% non-condensing
See Notes on Page 2
*
Model
Square
Number
Drive
1/4"
CTG2000ANG
3/8"
CTG3000ANG
1/2"
CTG5000ANG
CTG2000ANG/CTG3000ANG/CTG5000ANG
SPECIFICATIONS
. . . . . . . . . . . . . .±2º for 90º rotation
(*2)
. . . . . . . . . 60 Hrs
(*3)
. . . . . . . . . . . . . . . . . . . . . 1 Year
(*3)
MIN.
MAX.
Operating
Operating
Torque
Torque
1.1 ft-lbs
22.1 ft-lbs
5 ft-lbs
99.5 ft-lbs
15.1 ft-lbs
302.3 ft-lbs
CTG2000ANG
Length
CTG3000ANG
15.4"
16.75"
CTG5000ANG
25.75"
1/4", 3/8", & 1/2"Dr.
Copyright © Professional Tool Products, 2017
1
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
TOOLS
ALWAYS WEAR
SAFETY GOGGLES
NOT
WATERPROOF

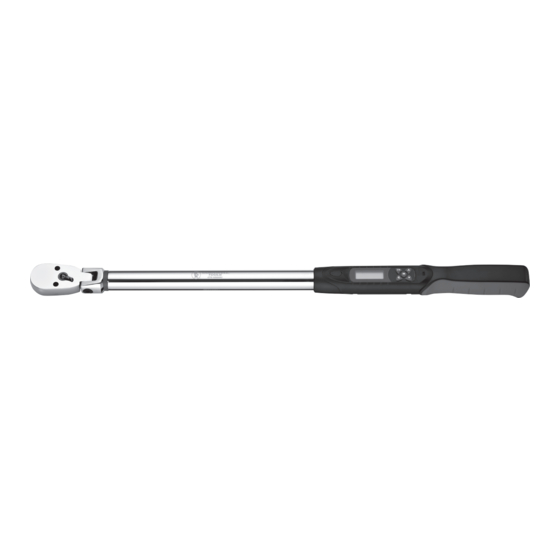

Digital Torque
Wrench with
Angle Indicator
All rights reserved
Rev. 03/15/17
Advertisement
Table of Contents
Related Manuals for Cornwell Tools CTG2000ANG
Summary of Contents for Cornwell Tools CTG2000ANG
- Page 1 Storage Temperature ....-4ºF ~ 158ºF Humidity ....Up to 90% non-condensing WATERPROOF See Notes on Page 2 CTG2000ANG MIN. MAX. Model...
-
Page 2: Specifications
State of California to cause cancer and birth for all to see and read. If the manual or product defects or other reproductive harm. Wash hands labels are lost or not legible, contact Cornwell Tools thoroughly after handling. for replacements. If the operator is not fluent in •... -
Page 3: Features And Functions
7. Battery Compartment 14. Peak Hold/Track Indicator REPLACEMENT PARTS AVAILABLE AS: RS2HRP 1/4” HEAD REPAIR KIT RSCTG2000CS MOLDED CASE FOR CTG2000ANG RS3HRP 3/8” HEAD REPAIR KIT RSCTG3000CS MOLDED CASE FOR CTG3000ANG RS4HRP 1/2” HEAD REPAIR KIT RSCTG4000CS MOLDED CASE FOR CTG5000ANG... -
Page 4: Sleep Mode
2 minutes to save power. Press to wake from "Sleep" mode. LOW BATTERY VOLTAGE PROTECTION • If the battery voltage is below 2.3 volts, the wrench will highlight the battery symbol and after a few moments turn off. Battery Indicator CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17... -
Page 5: Selecting Units Of Measure
The torque wrench will stay at the new memory location and will be ready for immediate use. B. Press the button to go to the next memory location in sequence. This is useful if you are wanting to change/store multiple values. Pre-Set Memory Indicator: M9 CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17... -
Page 6: Track Mode
When 99.5% of the desired torque has been reached, the alarm will change to a steady tone and the green lights will stop flashing and stay on. The red light will also illuminate. Solid lights and steady tone at 99.5% of desired torque CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17... -
Page 7: Peak Hold Mode
4. To display a different torque value stored in the Peak Hold memory, use the buttons to navigate to the desired location. 5. To exit, press button four (4) times CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17... - Page 8 "dEL" appears in the display followed quickly by "no-0" alternating with "0000". 5. Press the button "ConU" appears in the display 6. Press the button again to return to the opening/ start display screen. OPENING/START DISPLAY CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17...
- Page 9 After setting the Angle mode and assigning a Memory Pre-Set value to use the operator should start by selecting the desired corresponding unit of measure. This operation is necessary in order to ensure that the proper unit of measure for the related torque will be displayed after the load is applied. CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17...
- Page 10 4 . Repeat steps 1 through 2 until the desired number of torque values have been stored. NOTE: A maximum of 50 values can be stored in memory. The word "FULL" appears in the display when an attempt is made to store more than the allotted maximum. CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17...
-
Page 11: Troubleshooting
If the torque wrench is shut down while in angle mode, then restarted while not horizontal, four flashing zeros may appear in the display . Follow the same steps listed above for ER4 error code. See also "Angle Mode Warning" on page 4 of the manual to review correct procedures for changing the angle values. CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17... - Page 12 " Viewing Peak Hold Values" and "Deleting Peak Hold Values" on pages 7 and 8 NOTES Memory Prest Newton meters inch/pounds foot/pounds kilogram/centimeters angle Location # (N-m) (in - lb) (ft - lb) (kg -cm) (degree º) CTG2000ANG/CTG3000ANG/CTG5000ANG Rev. 03/15/17...
-
Page 13: Warranty
This warranty gives you specific rights. You may also have other rights which vary from state to state. The foregoing obligation is Cornwell Tools' sole liability under this or any implied warranty and under no circumstances shall Cornwell Tools be liable for any incidental or consequential damages.
