OPERATING INSTRUCTIONS
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . (CW ±2%) (CCW ±3%)
Data Memory Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Number of Presets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . Peak Hold/Track
Unit Selection . . . . . . . . . . . . . . . . . . . . . . .ft-lb, in-lb, N-m, & kg-cm
Head Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flex Ratchet
Gear teeth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
PLEASE NOTE
1:
The accuracy of the readout is guaranteed from 20% to 100% of maximum range + /- 1 increment. The torque accuracy is a typical
value. Calibration point is at the middle line of the five anti-slip lines on the rubber handle. To maintain the accuracy of the
torque wrench, calibration should be performed once a year or every 5,000 cycles, whichever comes first. Accuracy is based on
the zero degree of offset from perpendicular drive.
2:
Use two AA batteries
CTG2000 / CTG3000 / CTG5000
SPECIFICATIONS
Model
Square
Number
Drive
CTG2000
1/4"
CTG3000
3/8"
CTG5000
1/2"
CTG2000 / CTG3000 / CTG5000

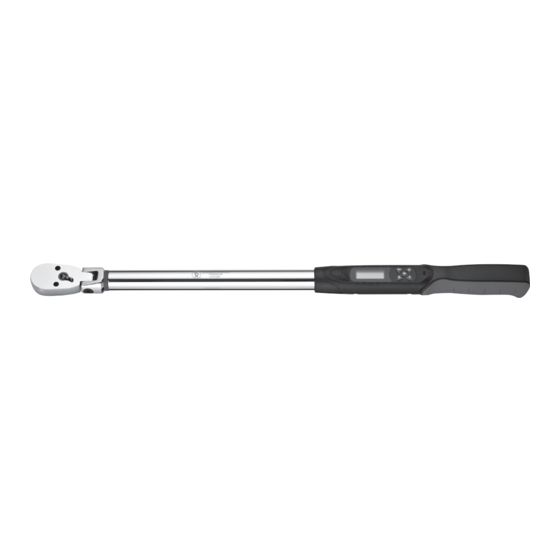

1/4", 3/8", & 1/2" Digital Torque Wrench
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 AA
Battery Life-Continuous Operation . . . . . . . . . . . . . . . . . . . . . 110 Hrs
Battery Life-Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Year
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . 14ºF ~ 140ºF
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . -4ºF ~ 158ºF
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . Up to 90% non-condensing
MIN.
MAX.
Operating
Operating
Torque
Torque
1.1 ft-lbs
22.1 ft-lbs
5 ft-lbs
99.5 ft-lbs
15.1 ft-lbs
302.3 ft-lbs
1
CTG2000
CTG3000
CTG5000
Length
15½"
16¾"
25¾"
Copyright © Professional Tool Products,
2019 All rights reserved
09/20/19
Advertisement
Table of Contents
Related Manuals for Cornwell Tools CTG2000
Summary of Contents for Cornwell Tools CTG2000
- Page 1 CTG2000 / CTG3000 / CTG5000 1/4", 3/8", & 1/2" Digital Torque Wrench OPERATING INSTRUCTIONS CTG2000 CTG3000 CTG5000 SPECIFICATIONS Accuracy ......(CW ±2%) (CCW ±3%) Buttons .
- Page 2 If the manual or product labels are lost or not legible, contact Cornwell Tools for replacements. If the operator is not fluent in English, the product and safety instructions shall be read and discussed with the operator in the operator's native language by the purchaser/owner or his designee, making sure that the operator comprehends its contents.
-
Page 3: Features And Functions
CTG2000 / CTG3000 / CTG5000 1/4", 3/8", & 1/2" Digital Torque Wrench FEATURES AND FUNCTIONS 1. Reversible Ratchet Head 8. Battery Cover 15. LED Indicator Lights 2. Direction Lever 9. Ratchet Drive 16. Unit/Setting Button 3. Communication Port 10. Anti-Slip Handle 17. -
Page 4: Sleep Mode
Note: The displays for CTG3000 3/8" Dr. and CTG5000 1/2" Dr. Ft-lb models show one less decimal place in the display. CTG2000 - 1/4" Dr. Display CTG2000 / CTG3000 / CTG5000 09/20/19... - Page 5 CTG2000 / CTG3000 / CTG5000 1/4", 3/8", & 1/2" Digital Torque Wrench SETTING TORQUE VALUES Increases Decreases Torque Value Torque Value Torque Value Use the Up arrow to increase torque value. Use the Down arrow to decrease torque value. Note: The displays for CTG3000 3/8"...
-
Page 6: Track Mode
CTG2000 / CTG3000 / CTG5000 1/4", 3/8", & 1/2" Digital Torque Wrench SELECTING TRACK AND PEAK MODES At start up either a (P) or (T) will show in the lower right hand corner of the display depending on the last time the wrench was used. -
Page 7: Peak Hold Mode
3. To display a different torque value stored in the Peak Hold memory, use the buttons to navigate to the desired location. CTG2000 / CTG3000 / CTG5000 09/20/19... - Page 8 CTG2000 / CTG3000 / CTG5000 1/4", 3/8", & 1/2" Digital Torque Wrench PEAK HOLD MODE CONT'D Deleting a Peak Hold Value: 1. Repeat steps above to view and navigate to the location you wish to delete. 2. Press the button.
-
Page 9: Warranty Coverage
This warranty gives you specific rights. You may also have other rights which vary from state to state. The foregoing obligation is Cornwell Tools' sole liability under this or any implied warranty and under no circumstances shall Cornwell Tools be liable for any incidental or consequential damages.
