OPERATING MANUAL
SPECIFICATIONS
Maximum Capacity .......................... 22-Ton
Overall Frame Height .............................59"
Throat Height ..................................0" - 38"
Throat Width .................................... 21-1/4"
Ram Stroke ........................................ 7-1/4"
Distance Between Bed Rails ............. 4-1/4"
Frame Width ..................................... 25-1/4"
Base Depth ...................................... 27-1/2"
Shipping Weight ............................ 246-Lbs.
CSESP22T
•
-Save these instructions-

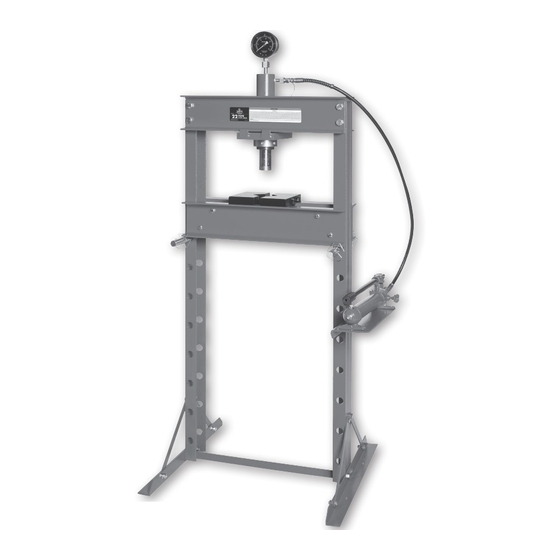

22-Ton Capacity Shop Press
Manufactured to comply with the
•
ASME PASE-2019 Safety Standard
Copyright © Professional Tool Products, 2020
1
CSESP22T
ASME PASE-2019
All rights reserved
02/27/20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CSESP22T
Summary of Contents for Cornwell Tools CSESP22T
- Page 1 CSESP22T 22-Ton Capacity Shop Press OPERATING MANUAL WARNING INFORMATION PARTS LIST Manufactured to comply with the • • ASME PASE-2019 Safety Standard SPECIFICATIONS Maximum Capacity ......22-Ton Overall Frame Height ......59" Throat Height ........0" - 38" ASME PASE-2019 Throat Width ........21-1/4"...
- Page 2 CSESP22T 22-Ton Capacity Shop Press WARNING INFORMATION This is the safety alert symbol. It is used to alert you WARNING: Indicates a hazardous situation WARNING to potential personal injury hazards. Obey all safety which, if not avoided, could result in death messages that follow this symbol to avoid possible or serious injury.
- Page 3 CSESP22T 22-Ton Capacity Shop Press CONSEQUENCES OF NOT AVOIDING HAZARDOUS SITUATIONS WARNING Failure to read this manual completely and thoroughly, understand its OPERATING INSTRUCTIONS, SAFETY WARNINGS, MAINTENANCE INSTRUCTIONS and not comply with them, and neglecting the METHODS TO AVOID HAZARDOUS SITUATIONS could cause accidents resulting in serious or fatal personal injury and/or property damage.
- Page 4 CSESP22T 22-Ton Capacity Shop Press OPERATION WARNING Failure to follow these Operating Instructions may result in serious injury or death, and/or property damage. CHECK YOUR LOCAL, STATE AND FEDERAL REGULATIONS REGARDING THE SAFE USE OF THIS PRESS. 1. Prior to use, the press feet (#21) shall be firmly anchored to a concrete floor to prevent movement and tipping of the press while it is being used.
- Page 5 CSESP22T 22-Ton Capacity Shop Press INSPECTION WARNING Failure to follow these Inspection instructions may result in serious injury or death, and/or property damage. Visual inspection should be made before each use of the press, checking for damaged, loose or missing parts. Each press must be in- spected by a manufacturer’s repair facility immediately if subjected to an abnormal load or shock.
- Page 6 CSESP22T 22-Ton Capacity Shop Press PARTS LIST 13 12 11 15 14 23 24 -Save these instructions- CSESP22T 02/27/20...
- Page 7 CSESP22T 22-Ton Capacity Shop Press PARTS LIST Index No. Part No. Description Qty. Index No. Part No. Description Qty. Foot Base RS6361901 Pressure Gauge RS6361902 Nylon Ring Washer Spring Washer RS22T03BK Ram Assembly - Black Screw Bolt RS6361905 Adapter Lower Cross Member...
- Page 8 CSESP22T 22-Ton Capacity Shop Press WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants against defects on this product for a period of TWO (2) YEARS from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials.
