OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Maximum Free Speed . . . . . . . . . . . . . . . . . . . . . . . . 8,500 RPM
Maximum Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 ft-lb
Breakaway Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .450 ft-lb
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . . 96.7 dBA
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.39 m/2²
Air Con . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4cfm (1,13l/min)
Maximum Air Pressure . . . . . . . . . . . . . . . . . . . 90 psig, 6.2 bar
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.37"
Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.51"
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.55"
CAT4580
WARNING INFORMATION
•
WARNING
SPECIFICATIONS
bluePOWER

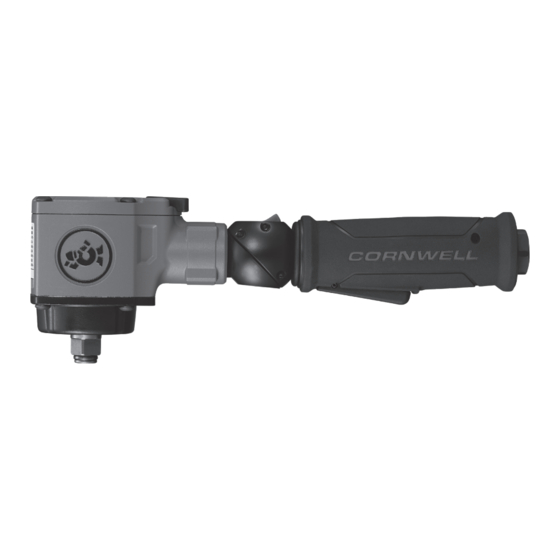

1/2" Flex Head Impact Wrench
®
PARTS LIST
•
Copyright © Professional Tool Products, 2022
WARNING
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
ALWAYS WEAR HAND
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
All rights reserved
CAT4580
12/08/2022
Advertisement
Table of Contents
Related Manuals for Cornwell Tools bluePOWER CAT4580
Summary of Contents for Cornwell Tools bluePOWER CAT4580
- Page 1 CAT4580 bluePOWER 1/2" Flex Head Impact Wrench ® OPERATING MANUAL WARNING INFORMATION PARTS LIST • • WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth WARNING defects or other reproductive harm. Some examples of these chemicals are: •...
- Page 2 CAT4580 bluePOWER 1/2" Flex Head Impact Wrench ® FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY • Keep away from rotating end of tool. Do not wear jewelry or THIS INSTRUCTION MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. loose clothing. Secure long hair. Scalping can occur if hair is not kept away from tool and accessories.
-
Page 3: Operation
CAT4580 bluePOWER 1/2" Flex Head Impact Wrench ® OPERATION Air Supply Whip Hose Do Not Install Filter Quick Coupling Nipple OPERATION NOTE: Always shut off air supply, drain hose of air Nipple Here pressure and disconnect tool from air supply when not in use, before changing accessories or when making repairs. -
Page 4: Warranty Coverage
CAT4580 bluePOWER 1/2" Flex Head Impact Wrench ® WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials. -
Page 5: Parts List
CAT4580 bluePOWER 1/2" Flex Head Impact Wrench ® PARTS LIST Item Part No Parts Name Item Part No Parts Name RS458001 FRONT COVER RS458029 SPRING PIN (EACH) RS458002 SOCKET RETAINER RS458030 HANDLE RS458003 O-RING RS458031 HANDLE GRIP RS458004 ANVIL RS458032 SCREW RS458005 HAMMER PIN...
