EVM User's Guide: TPS7A15EVM-096
TPS7A15EVM-096 Evaluation Module
Description
The TPS7A15 evaluation module (EVM) helps design
engineers evaluate the operation and performance
of the TPS7A15 linear regulator for use in their
own circuit application. The configuration of the
TPS7A15EVM-096 contains a single low-noise, small-
size, linear regulator for a wide range of applications.
The regulator is capable of delivering up to 400 mA
to the load with low V
-to-V
IN
stability, use a minimum de-rated output capacitance
of 1.5 µF (or larger). An added high-performance
load transient circuit is included to improve the
measurement capability of the low-dropout (LDO)
regulator.
Get Started
1. Order the
TPS7A15EVM-096 Evaluation Module
2. Download the
TPS7A15EVM-096 User's Guide
SBVU082 – JUNE 2023
Submit Document Feedback
dropout voltage. For
OUT

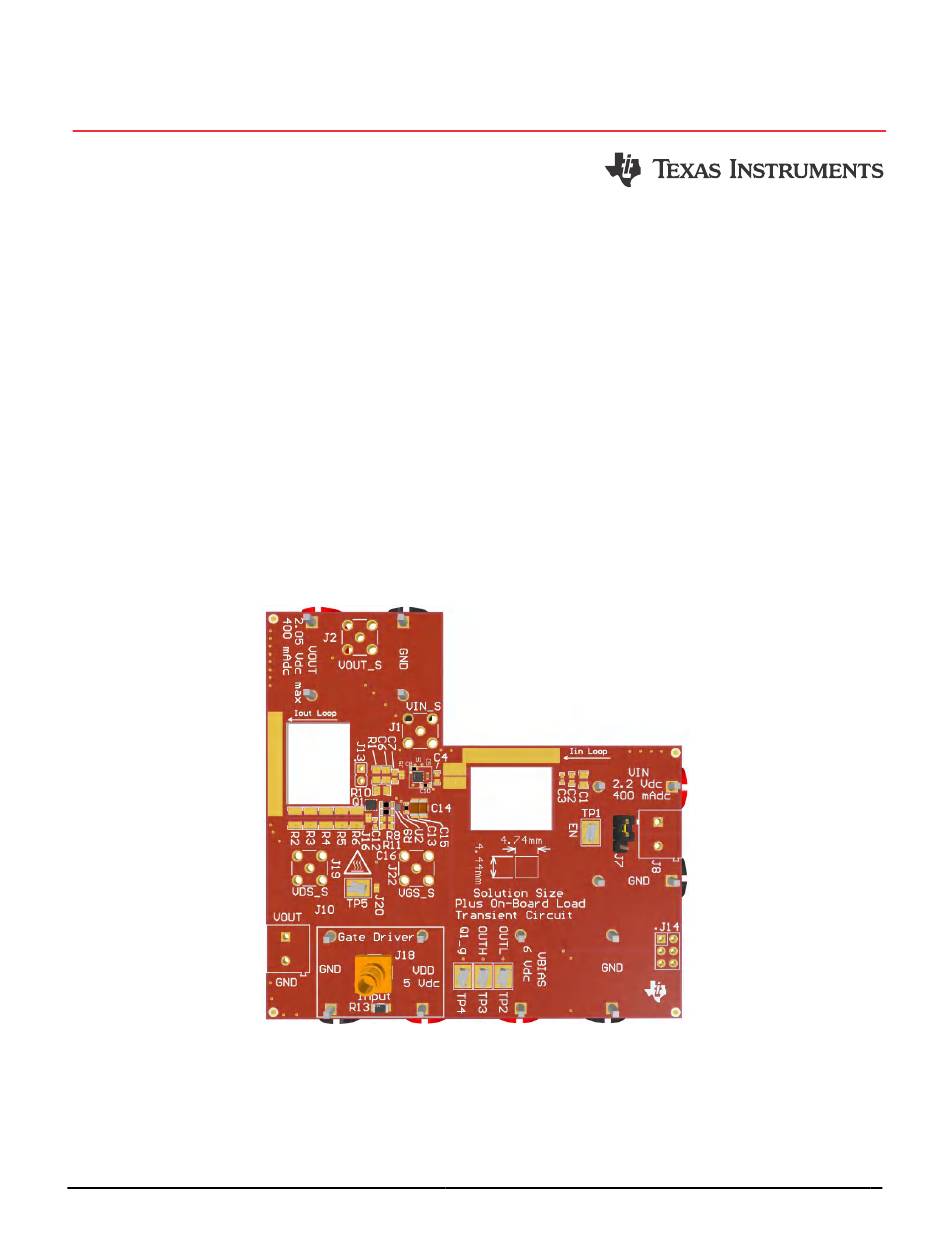

TPS7A15EVM-096 Hardware Board
Copyright © 2023 Texas Instruments Incorporated
Features
Ultra-low input voltage range: 0.6 V to 2.2 V
1% accuracy over load, line and temperature
High power-supply rejection ration (PSRR): 73 dB
at 1 kHz (V
= 0.8 V, I
OUT
Available in fixed-output voltages: 0.5 V to 2.05 V
(in 25-mV steps)
V
range: Greater of 2.2 V or V
BIAS
5.5 V
Active output discharge
Applications
Camera modules
Wireless headphones and ear buds
Smart watches, fitness trackers
Smart phones
and
tablets
Portable medical devices
Solid state drives (SSDs)
TPS7A15EVM-096 Evaluation Module
Description
= 400 mA)
OUT
+ 1.4 V to
OUT
1
