Texas Instruments TPSM8287B30LAPEVM User Manual

www.ti.com
EVM User's Guide: TPSM8287B30LAPEVM

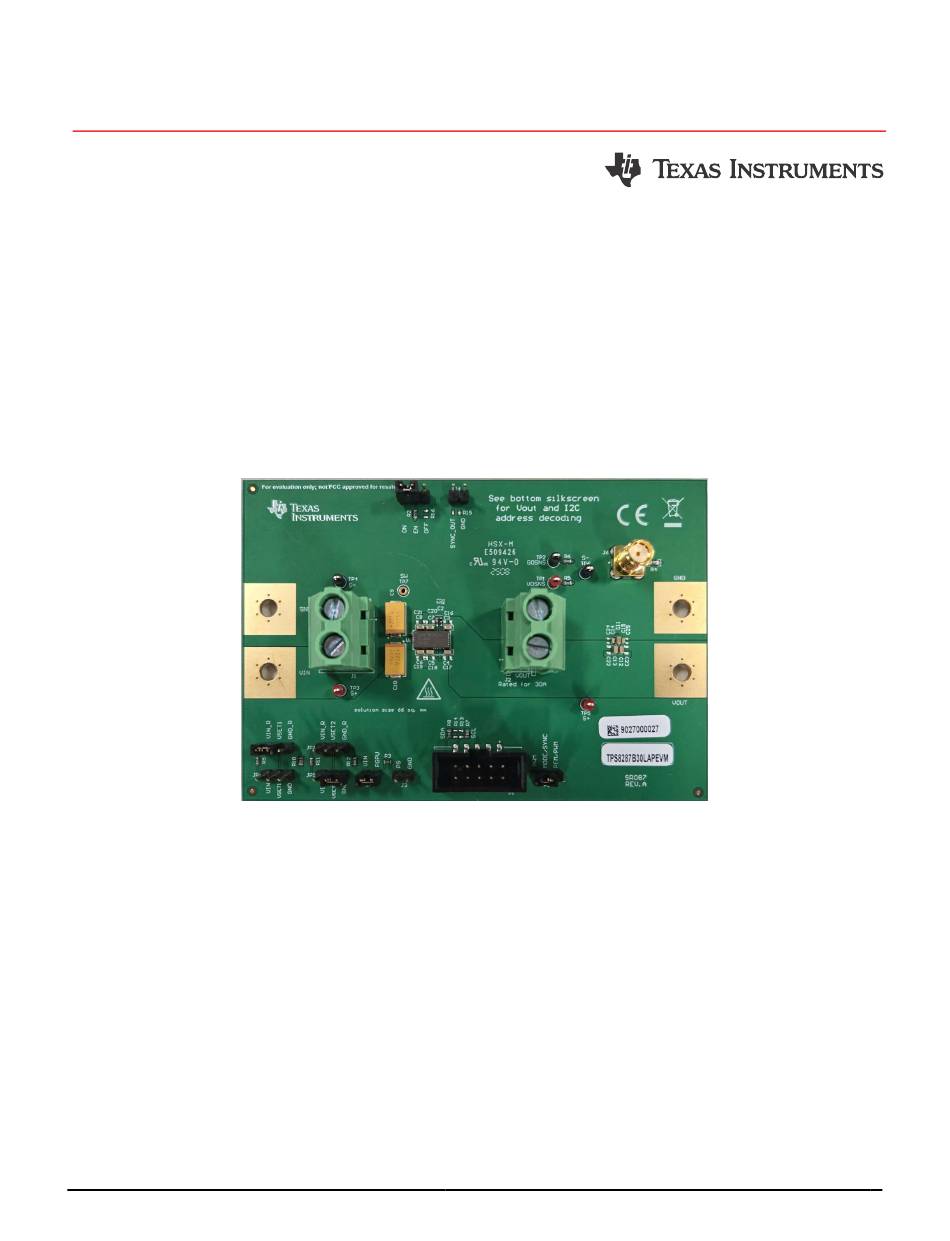

TPSM8287B30LAPEVM Evaluation Module
Description
The TPSM8287B30LAPEVM evaluation module
(EVM) facilitates the evaluation of the TPSM8287B30.
The device supports up to 30A load current in
a pin-to-pin compatible, step-down power module
2
with an I C interface, remote sense, and frequency
synchronization in a 3.75mm × 8mm MagPack
package. The EVMs provide an I
voltage, with 0.8% accuracy, between 0.4V and
1.675V from input voltages from 2.7V to 6V.
SLUUD89 – MARCH 2025
Submit Document Feedback
™
2
C adjustable output
Copyright © 2025 Texas Instruments Incorporated
Features
• 30A output current power module with integrated
inductor, input capacitors, and output capacitors in
a MagPack package
• Excellent thermal performance (θ
• 3.75mm × 8mm × 2mm power module provides
2
66mm total design size
• Start-up output voltage adjustable through jumpers
to 1 of 16 values
• Highly accurate output voltage with remote sense
and adjustable control loop compensation
TPSM8287B30LAPEVM Evaluation Module
Description
= 8.8°C/W)
JA
1
