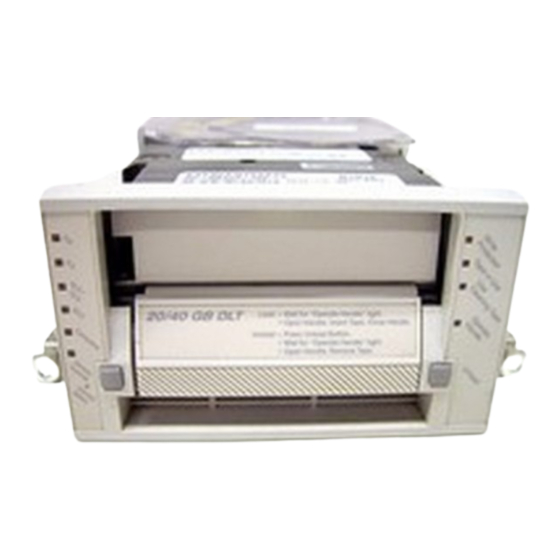

Quantum DLT 4000 Product Manual

Cartridge tape subsystem
Hide thumbs Also See for DLT 4000:
Table of Contents

Advertisement

Quick Links

Download this manual
TM
TM
TM
DLT
4000/DLT
4500/DLT
4700
Cartridge Tape Subsystem
Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLT 4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quantum DLT 4000

Summary of Contents for Quantum DLT 4000

  • Page 1 4000/DLT 4500/DLT 4700 Cartridge Tape Subsystem Product Manual...
  • Page 3 4000/DLT 4500/DLT 4700 Cartridge Tape Subsystem Product Manual March 10, 1996 81-60043-01...
  • Page 4 Quantum reserves the right to make changes and improvements to its products, without incurring any obligation to incorporate such changes or improvements in units previously sold or shipped. You can request Quantum publications from your Quantum Sales Representative, or order them directly from Quantum.
  • Page 5 The following FCC Notice applies to the DLT FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installation.
  • Page 6 The following FCC Notice applies to the DLT 4500 and DLT 4700 mini-libraries: FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class A device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 7: Table Of Contents

    Chapter 1: Overview and Features of the DLT4000/DLT4500/DLT4700 Product 1.1 In This Chapter ... 1-1 1.2 Product Overview ... 1-1 1.3 Fast Data Transfer Rate ... 1-2 1.4 High-Capacity... 1-2 1.5 Compaction ... 1-2 1.6 Strong Media... 1-3 1.7 Compatibility... 1-3 1.8 Firmware Update Capability ...
  • Page 8 Contents 2.5.2 Connect the SCSI Signal Cable ... 2-7 2.5.3 Terminate the SCSI Bus... 2-8 2.5.4 Connect the Power Cord... 2-8 2.6 Test the Installation ... 2-9 2.6.1 Run POST... 2-9 2.6.2 What to Do after POST ... 2-10 2.7 DLT4000 Troubleshooting Chart... 2-11 Chapter 3: Configuring and Operating the DLT4000 Drive 3.1 In This Chapter ...
  • Page 9 3.10 Preserving Cartridges... 3-26 Chapter 4: Configuring and Operating the DLT4500 Mini-Library 4.1 In This Chapter ... 4-1 4.2 Introduction to the DLT4500 Mini-Library ... 4-2 4.3 Configure the DLT4500 Mini-Library... 4-3 4.4.1 Location of Controls, Switches, and Connectors ... 4-3 4.4.2 Configuration guidelines ...
  • Page 10 Contents 4.11.1 Insert cartridge, magazine ... 4-27 4.11.2 Removing cartridge ... 4-29 4.11.3 Magazine, removing from mini-library... 4-30 4.11.4 Magazine, installing... 4-30 4.11.5 Selecting a Cartridge from the Magazine... 4-31 4.11.6 Loading cartridge into the Drive... 4-31 4.11.7 Unloading cartridge from the drive... 4-32 4.11.8 Opening the Magazine Door...
  • Page 11 5.8.4 Opening the Receiver ... 5-20 5.9 Magazine... 5-21 5.9.1 Inserting a Cartridge ... 5-21 5.9.2 Removing a Cartridge from the Magazine ... 5-24 5.9.3 Removing the Magazine from the Receiver... 5-24 5.9.4 Installing the Magazine into the Receiver... 5-24 Chapter 6: Troubleshooting Guide for the DLT4500/DLT4700 Mini- Library 6.1 In This Chapter ...
  • Page 12 Contents 7.2.1 Updating firmware on a Standalone System ... 7-2 7.3 Creating a Firmware Update Tape ... 7-4 7.3.1 On UN*X Systems ... 7-4 7.4 Firmware Update Procedure... 7-6 7.4.1 Updating the Firmware on DLT4000 (Drive Only Configuration) ... 7-6 7.4.2 Updating the Firmware on the DLT4500 (Drive and Loader Configuration) ...
  • Page 13 8.4.3 ERASE (19h) ... 8-16 8.4.4 INQUIRY (12h) ... 8-17 8.4.4.1 Drive Inquiry Response... 8-18 8.4.4 2 Vendor Unique Inquiry ... 8-21 8.4.4.3 Vital Product Data Pages ... 8-23 8.4.4.4 Media Loader Inquiry Response ... 8-24 8.4.5 LOAD-UNLOAD (1Bh) ... 8-25 8.4.6 LOCATE (2Bh)...
  • Page 14 Contents 8.4.10.3 Read/Write Error Recovery Page... 8-79 8.4.10.4 Disconnect/Reconnect Page... 8-81 8.4.10.7 Control Mode Page (0Ah) ... 8-82 8.4.10.8 Data Compression Page (0Fh)... 8-84 8.4.10.5 Device Configuration Page (10h) ... 8-86 8.4.10.6 Medium Partition Page (11h) ... 8-88 8.4.10.9 EEROM Vendor Unique Page (3Eh)... 8-89 8.4.11 PREVENT/ALLOW MEDIUM REMOVAL (1Eh)...
  • Page 15 8.5.4 READ ELEMENT STATUS (B8h) ... 8-139 8.5.4.1 Element Status Data Header... 8-140 8.5.4.2 Medium Transport Element Status Page... 8-141 8.5.4.3 Storage Element Status Page... 8-142 8.5.4.4 Data Transfer Element Status Page ... 8-143 Appendix A: Technical Specifications A.1 In This Appendix... A-1 A.2 Drive and Mini-library Physical Descriptions...
  • Page 16 Contents A.5 DLT4000 Tape Drive Mounting Hole Descriptions ...A-10 A.6 Performance Specifications ...A-12 A.6.1 Nominal Tape Tension ...A-12 A.6.2 DLT4000 Timing Characteristics ...A-12 A.6.3 DLT4500 Media Loader Timing Characteristics...A-13 A.6.4 DLT4700 Media Loader Timing Characteristics...A-13 A.7 Environmental Specifications ...A-14 A.7.1 Temperature and Humidity...A-14 A.7.2 Altitude ...A-15 A.8 Vibration and Shock Specifications...A-16 A.8.1 Operating Shock and Vibration ...A-16...
  • Page 17 B.2 Internal Status...B-1 Appendix C: Sense Key Information C.1 In This Appendix ...C-1 Appendix D: EEROM Resident Bugcheck and Event Logs D.1 EEROM Packets (Last n Error Events)... D-1 D.2 Bugcheck Packets ... D-2 D.3 PO/ST failure packets ... D-4 D.4 Event Log packets...
  • Page 18 Contents 2-1 Drive Front Panel... 2-3 2-2 DLT4000 Rear Panel... 2-4 2-3 Changing the SCSI ID via the Pushbutton Switchpack ... 2-6 2-4 Rear Panel Components ... 2-7 3-1 DLT4000 Drive Connectors ... 3-3 3-2 SCSI ID Connector Pins... 3-4 3-3 Jumper Positions ...
  • Page 19 Contents 5-2 DLT4700 Operator Control Panel... 5-6 5-3 Write-Protect Switch on a Cartridge ... 5-22 5-4 Inserting a Cartridge into the Magazine... 5-23 5-5 Removing a Cartridge from the Front of the Magazine ... 5-25 5-6 Receiver Opened... 5-26 6-1 Opening the Cartridge Door to Check the Tape Leader... 6-4 7-1 DLT4700 Subsystem Connectors ...
  • Page 20 Contents 8-22 Parameter Codes Supported... 8-39 8-23 Threshold Met Criteria... 8-40 8-24 Last n Error Events Page ... 8-41 8-25 Parameter Codes Supported... 8-42 8-26 Read/Write Compression Ratio Page Header ... 8-42 8-27 Read/Write Compression Ratio LOG SENSE Page Format... 8-43 8-28 Read/Write Bytes Transferred LOG SENSE Page Format...
  • Page 21 Contents 8-51 Disconnect/Reconnect Page Format ... 8-81 8-54 Control Mode Page (0Ah)... 8-82 8-55 Data Compression Page (0Fh) ... 8-84 8-52 Device Configuration Page Format ... 8-86 8-53 Medium Partition Page Format ... 8-88 8-56 PREVENT/ALLOW MEDIUM REMOVAL CDB... 8-90 8-57 READ CDB...
  • Page 22 8-89 Element Type Code Definitions ...8-139 8-90 Element Status Data Header ...8-140 8-91 Medium Transport Element Status Page ...8-141 8-92 Storage Element Status Page ...8-142 8-93 Data Transfer Element Status Page...8-143 A-1 Power Cord ...A-9 A-2 Mounting Hole Dimensions (Top View) ...A-10 A-3 Mounting Hole Dimensions (Side View)...A-11...
  • Page 23 Contents List of Tables 2-1 Adding a Terminator ... 2-8 2-2 POST--Right Side Indicators ... 2-9 2-3 After POST ... 2-10 2-4 DLT4000 Troubleshooting Chart... 2-11 3-1 Results of Density Selection... 3-10 3-2 Determining the Drive's Operating Condition... 3-15 3-3 Before Loading the Cartridge ... 3-19 3-4 After Loading the Cartridge and Operating ...
  • Page 24 Contents 6-1 DLT4500 OCP Button Conditions... 6-2 6-2 DLT4700 OCP Button Conditions... 6-3 7-1 Block Size used for Firmware Update Tape ... 7-4 7-1 Results (DLT4000) Code Update)... 7-8 7-2 Results (DLT4500) Code Update)... 7-11 7-3 Results (DLT4700) Code Update)... 7-17 8-1 Supported SCSI Messages ...
  • Page 25 Contents A-10 Storage Ranges (Unpacked or Packed) ... A-15 A-11 Shipment Ranges... A-15 A-12 Operating Vibration Specifications ... A-16 A-13 Operating Shock Specifications, All Products ... A-16 A-14 Operating Shock Specifications, Table Tops and Drive ... A-17 A-15 Nonoperating Shock Overstress (Bench Handling - Unpackaged) Specifications ...
  • Page 26 Contents D-3 Event Log Codes ...D-5 D-4 Directory Event Log Flags ...D-7 D-5 Directory Event Status...D-7 D-6 68020 Code Update Status...D-10 D-7 Servo Code Update Status...D-10 xxiv-DLT4000\DLT4500\DLT4700 Cartridge Tape Subsystem...

  • Page 27: Revision History

    This Revision History provides a concise publication record of this manual. It lists the manual revision levels, release dates, and reasons for the revisions. Manual No. Date 81-108336-01 5 May 95 81-108336-02 81-60043-01 10 Mar 96 DLT4000 /DLT4500/DLT4700 Cartridge Tape Subsystem -xxv REVISION HISTORY Summary of Changes Original issue...
  • Page 28 Revision History Manual No. Date Summary of Changes Unloading a Cartridge, added CAUTION note, page(s) 3-24. Chapter four reconstructed. Run POST test updated, page(s) 4-8. Description of tape cartridge updated, page(s) 4-20. Figure 5-2 upgraded, page(s) 5-6. Table 5-1 upgraded, page(s) 5-11. Table 5-2 upgraded, page(s) 5-14.

  • Page 29: Structure Of This Manual

    To the Reader: QUANTUM makes every effort to ensure the accuracy of information. However, some errors may have been introduced inadvertently; they will be corrected in the next release. QUANTUM recognizes that some users may require additional content. We welcome your feedback and your suggestions for enhancements and we will evaluate your input for a future release.
  • Page 30 Preface Chapter 2, Installing and Configuring the DLT4000 Tabletop Drive, describes installing and configuring the DLT4000 tabletop tape drive. Chapter 3, Configuring and Operating the DLT4000 Tape Drive, includes selecting density, configuration, and other operation information for the tape drive, such as front panel indicators and controls, Power-on Self-test, the tape cartridge write-protect switch, loading a cartridge, using the cleaning tape, unloading a cartridge, and preserving cartridges.

  • Page 31: Chapter 1: Overview And Features Of The Dlt4000/Dlt4500/Dlt4700 Product

    DLT4000/DLT4500/DLT4700 Product 1.1 In This Chapter Chapter 1 includes the following main topics and sections: Topic Product Overview Fast Data Transfer Rate High-Capacity Compaction Strong Media Compatibility Firmware Update Capability Embedded Diagnostics 1.2 Product Overview The DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem is a high-performance, high-capacity, streaming cartridge tape product designed for use on midrange and high- end computing systems.

  • Page 32: Fast Data Transfer Rate

    Overview and Features of the DLT4000/DLT4500/DLT4700 Product changer device (loader). The mini-library provides unattended backup of 280 GB in less than 24 hours or up to 91 GB in an 8-hour shift in a compressed mode. The drive and mini-libraries are available in a rack mountable form factor. Also, the DLT4000 drive, DLT4500 mini-library and DLT4700 mini-library are available with either single-ended or differential, fast driver/receivers.

  • Page 33: Durable Media

    The tape media can endure 500,000 passes and has a shelf life of 10 years, which provides superior media durability and data reliability. 1.7 Compatibility Quantum is committed to maintaining compatibility within the DLT drives. DLT4000/DLT4500/DLT4700 Subsystem tape products are the third generation of tape products, started with the DLT The DLT4000/DLT4500/DLT4700 Subsystem complies with the ANSI standard for SCSI- 2.
  • Page 34 Overview and Features of the DLT4000/DLT4500/DLT4700 Product 1-4 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 35: In This Chapter

    Installing and Configuring the DLT4000 2.1 In This Chapter Chapter 2 includes the following main topics and sections: Topic Prepare for the Installation Install the DLT4000 Tabletop Drive Configure the DLT4000 Tabletop Drive Connect the Cables Test the Installation DLT4000 Troubleshooting Chart 2.2 Prepare for the Installation This section describes how to prepare for the installation of the DLT4000 tabletop drive including:...

  • Page 36: Installation Setup

    Installing and Configuring the DLT4000 Tabletop Drive 2.2.2 Installation Setup The steps for installation setup are: Step Action Unpack and check your shipment. Choose a site for the DLT4000 tabletop drive. Power off the system on which the DLT4000 tabletop drive is to be installed.

  • Page 37: Drive Front Panel

    Figure 2-1 shows the DLT4000 tabletop drive. CARTRIDGE INSERT/RELEASE HANDLE (DOWN) Figure 2-1 Drive Front Panel Indicators (Left Side of Drive) Density indicator 2.6 (Yellow) Density indicator 6.0 (Yellow) Density indicator 10.0/15.0 (Yellow) Density indicator 20.0 (Yellow) Compress indicator (Yellow) Density Override indicator (Yellow) Controls Density Select button...

  • Page 38: Install The Drive

    Installing and Configuring the DLT4000 Tabletop Drive Figure 2-2 shows connector locations. 2.3 Install the Drive To install the DLT4000 tabletop drive: Step 2-4 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Figure 2-2 DLT4000 Rear Panel Action Note the DLT4000 tabletop drive factory settings. Review Section 2.4.1.

  • Page 39: Configure The Dlt4000 Tabletop

    2.4 Configure the DLT4000 Tabletop This section describes how to configure the DLT4000 tabletop drive including: Topic Configuration Guidelines Disable Parity Checking Changing the SCSI ID The DLT4000 tabletop drive is factory set to SCSI ID 5, unless otherwise specified. The drive is factory set for parity generation and checking is enabled.

  • Page 40: Changing The Scsi Id Via The Pushbutton Switch

    Installing and Configuring the DLT4000 Tabletop Drive Figure 2-3 shows the SCSI ID pushbutton switch location. Figure 2-3 Changing the SCSI ID via the Pushbutton Switch 2-6 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 41: Connect The Cables

    2.5 Connect the Cables Section 2.5 includes the following topics: Topic Examine the DLT4000 Rear Panel Connect the SCSI Signal Cable Terminate the SCSI Bus Connect the Power Cord 2.5.1 Examine the DLT4000 Rear Panel Examine the components on the DLT4000 rear panel to complete the physical installation (Figure 2-4).

  • Page 42: Terminate The Scsi Bus

    Installing and Configuring the DLT4000 Tabletop Drive 2. Snap the wire cable clamps into place to secure the cable. 3. Connect the other end of the SCSI signal cable to the SCSI connector on your system or, for daisy-chained configurations, to another SCSI device. See your system documentation for system SCSI connections.

  • Page 43: Test The Installation

    2.6 Test the Installation Section 2.6 includes the following topics: Topic Run the Power-On Self-Test (POST) What to Do after POST 2.6.1 Run POST To test the installation for the DLT4000 tabletop drive by running POST: 1. Turn on the system power. 2.

  • Page 44: What To Do After Post

    Installing and Configuring the DLT4000 Tabletop Drive POST completes in about 13 seconds and the drive responds normally to all commands. However, it might take longer for the media to become ready. After a bus reset, the tape drive responds within a bus selection time-out period. 2.6.2 What to Do after POST All the events in Table 2-2 took place...

  • Page 45: Dlt4000 Troubleshooting Chart

    2.7 DLT4000 Troubleshooting Chart If the DLT4000 tabletop drive fails during POST or operation, use Table 2-4 to determine the problem and the action to take. Your system does not recognize the DLT4000 tabletop drive Installing and Configuring the DLT4000 Tabletop Drive Table 2-4 DLT4000 Troubleshooting Chart Then You should...
  • Page 46 Installing and Configuring the DLT4000 Tabletop Drive Table 2-4 DLT4000 Troubleshooting Chart (cont’d) Your system does not recognize the DLT4000 tabletop drive The DLT4000 tabletop drive does not power up All right- or all left-side indicators on the DLT4000 front panel blink You find fatal or nonfatal errors for which you cannot...

  • Page 47: In This Chapter

    Configuring and Operating the DLT4000 3.1 In This Chapter The configuration section in this chapter applies to the basic drive without the SCSI ID switchpack and power supply. (Chapter 2 applies to configuring the tabletop). Chapter 3 includes these main topics and sections: Topic Before You Install the DLT4000 Drive Selecting Density...

  • Page 48: Disabling Parity Checking

    Configuring and Operating the DLT4000 Basic Tape Drive 3.2.1 Disabling Parity Checking If your system does not generate parity, you can disable parity checking by adding a jumper to the SCSI connector on the left side of the DLT4000 drive (Figure 3-1). _________________________ NOTE ____________________________ A jumper must always be placed on the Remote ID Present position (Figure 3-2) for the host to recognize any ID selection on this connector...

  • Page 49: Dlt4000 Drive Connectors

    To disable parity: 1. Use Figure 3-1, Number •, to locate the SCSI ID connector on the drive. F ro n t B e ze l R igh t side L e ft sid e ¶TRM PWR Connector Figure 3-1 DLT4000 Drive Connectors Configuring and Operating the DLT4000 Basic Tape Drive S CS I P arit y Disab le ·SCSI ID Connector...

  • Page 50: Scsi Id Connector Pins

    Configuring and Operating the DLT4000 Basic Tape Drive Figure 3-2 shows what the pins on the SCSI ID connector represent. Remote ID Present _________________________ NOTE ____________________________ A jumper must always be placed on the Remote ID Present position (Figure 3-2) for the host to recognize any ID selection on this connector. ___________________________________________________________ 3-4 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Disable...

  • Page 51: Changing The Scsi Id

    2. Place the jumper in the disable parity check position, as shown in Letter I, Figure 3-3. 8 - Bit A. SCSI ID 0 B. SCSI ID 1 C. SCSI ID 2 3.2.2 Changing the SCSI ID The drive is shipped with SCSI ID 5, unless otherwise specified. You can change the SCSI ID by adding jumpers to the drive's SCSI connector (Figure 3-1).
  • Page 52 Configuring and Operating the DLT4000 Basic Tape Drive To change the SCSI ID: 1. Use Figure 3-1, number •, to locate the SCSI ID connector on the drive. 2. Choose a SCSI ID from 0 to 7. 3. Use Figure 3-3, to see where to place the jumpers for the ID you choose. For example, if you chose SCSI ID 1, place the jumpers in the same positions as those in Letter B.

  • Page 53: Locating The Scsi Cable And Power Connectors

    Figure 3-4 Jumper Settings for TRM PWR Œ 3.2.4 Locating the SCSI Cable and Power Connectors To install the DLT4000 drive, note the location of the rear connectors (Figure 3-5). Œ SCSI Connector Ž Power Connector (Custom Power Connection) Configuring and Operating the DLT4000 Basic Tape Drive Œ...

  • Page 54: Selecting Density

    Configuring and Operating the DLT4000 Basic Tape Drive 3.3 Selecting Density Section 3.3 describes the drive's density select features. _________________________ CAUTION _________________________ If a prerecorded tape is used and write from beginning of tape (BOT), all prerecorded data is lost. This includes density changes, since they only occur when writing from BOT.
  • Page 55 4. You can use the drive's control panel at various times, not just after loading a tape. Density selection is inactive until the write from BOT command is issued. The controller remembers the density selection state until you do one of the following: Change the density selection Unload the tape...

  • Page 56: Results Of Density Selection

    Configuring and Operating the DLT4000 Basic Tape Drive Table 3-1 shows the results of density selection. The Density Select button is not used The Density Select button is used, and if the actual tape density is the same as the density you selected The Density Select button is used, and if the actual tape...

  • Page 57: Overview Of The Front Panel

    3.4 Overview of the Front Panel The DLT4000 drive has the following indicators and controls for operating the drive (Figure 3-6): Figure 3-6 shows the DLT4000 drive indicators and controls. Indicators (Left Side of Drive) Density indicator 2.6 (Yellow) Density indicator 6.0 (Yellow) Density indicator 10.0/15.0 (Yellow) Density indicator 20.0 (Yellow) Compress indicator (Yellow)

  • Page 58: Description Of Controls And Indicators

    Configuring and Operating the DLT4000 Basic Tape Drive 3.5 Description of Controls and Indicators Section 3.5 includes the following sections: Topic Beeper Unload Button Cartridge Insert/Release Handle Indicator Action during Power-on Self-test and Operation 3.5.1 Beeper A beeper sounds when you can operate the cartridge insert/release handle. When you hear the beep, the green Operate Handle indicator should be on.

  • Page 59: Indicator Action During Power-On Self Test And Operation

    3.5.4 Indicator Action during Power-On Self-Test and Operation When you turn on system power, the drive performs the power-on self-test (POST). The sequence of events is: Stage What Happens The indicators on the right front panel turn on sequentially from top to bottom.

  • Page 60: Determining The Drive's Operating Condition

    Configuring and Operating the DLT4000 Basic Tape Drive Drive State a. No cartridge is present b. A cartridge is present and the handle is down c. A cartridge is present, but the handle is up (not recommended) d. The drive detects an error condition e.
  • Page 61 Table 3-2 Determining the Drive's Operating Condition Label Color Indicator (Right front panel) Write Protected Orange Tape in Use Yellow Use Cleaning Tape Yellow Operate Handle Green All four right-side – indicators or all left-side indicators Configuring and Operating the DLT4000 Basic Tape Drive State Operating Condition Tape is write-protected.
  • Page 62 Configuring and Operating the DLT4000 Basic Tape Drive Table 3-2 Determining the Drive's Operating Condition (cont’d) Label Indicator (Left Front Panel) 10.0/15.0 20.0 Compress Density Override All four right-side or all left-side indicators 3-16 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Color State Yellow Blinking Yellow...

  • Page 63: Description Of The Tape Cartridge

    3.6 Description of the Tape Cartridge The DLTtape III tape cartridge is a 4-inch, gray, plastic cartridge containing 1100 feet of 1/2 inch magnetic metal particle tape. The DLTtape IIIxt tape cartridge is a 4-inch, white, plastic cartridge containing 1800 feet of 1/2 inch magnetic metal particle tape.

  • Page 64: Tape Cartridge

    Configuring and Operating the DLT4000 Basic Tape Drive Figure 3-7 shows the write-protect switch on the tape cartridge. Figure 3-7 Tape Cartridge 3-18 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 65: Data Protection

    3.6.2 Data Protection When the cartridge write-protect switch is moved to the left, the drive turns on the write protect LED immediately. But, if the drive is writing to the tape, write protect does not take effect until the write completes. Table 3-3 describes what happens to data protection when you move the write-protect switch before loading the cartridge.

  • Page 66: Loading A Cartridge

    Configuring and Operating the DLT4000 Basic Tape Drive 3.7 Loading a Cartridge The following are more detailed steps for loading a cartridge (Figure 3-8): 1. When the Operate Handle green indicator is on steady, lift the cartridge insert/release handle open. _________________________ NOTE ____________________________ If Operate Handle indicator is blinking, close handle and wait for a steady green indication, then lift handle and insert tape cartridge.

  • Page 67: Loading A Cartridge

    Configuring and Operating the DLT4000 Basic Tape Drive Figure 3-8 shows how to load a cartridge into the drive. Figure 3-8 Loading a Cartridge DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 3-21...

  • Page 68: Tape In Use

    Configuring and Operating the DLT4000 Basic Tape Drive 3.7.1 Tape in Use Whenever the yellow Tape in Use indicator is on steady, the tape is ready to use. When the drive is calibrating, reading, writing or rewinding the tape, the Tape in Use indicator blinks.

  • Page 69: Using The Cleaning Tape Cartridge

    3.8 Using the Cleaning Tape Cartridge Use Table 3-6 to determine when to use the cleaning cartridge. Table 3-6 When to Use the Cleaning Cartridge 1. Use Cleaning Tape indicators (Figure 3-6) 2. A data cartridge causes Use Cleaning Tape to blink 3.

  • Page 70: Unloading A Cartridge

    Configuring and Operating the DLT4000 Basic Tape Drive 3.9 Unloading a Cartridge _________________________ CAUTION _________________________ Remove a cartridge from the drive before turning off host system power. Failure to remove a cartridge can result in cartridge and drive damage. When you remove the cartridge from the drive, return the cartridge to its plastic case to prolong the cartridge life.

  • Page 71: Unloading A Cartridge

    Configuring and Operating the DLT4000 Basic Tape Drive Figure 3-9 Unloading a Cartridge DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 3-25...

  • Page 72: Preserving Cartridges

    Configuring and Operating the DLT4000 Basic Tape Drive 3.10 Preserving Cartridges For longer life of recorded or unrecorded cartridges, store cartridges in a clean environment with these conditions: Do not drop or bang the cartridge. This can displace the tape leader, making the cartridge unusable and possibly damaging the drive.

  • Page 73: In This Chapter

    Configuring and Operating the DLT4500 4.1 In This Chapter The configuration section in this chapter applies to the mini-library and its operation. Chapter 4 includes these main topics and sections: Topic Introduction to the DLT4500 Mini-Library Configure the DLT4500 Mini-Library Installation Test Operator Control Panel Key Lock...

  • Page 74: Introduction To The Mini-Library

    Configuring and Operating the DLT4500 Mini-Library 4.2 Introduction to the Mini-Library The mini-library includes a DLT4000 tape drive, a media loader, and a 5-cartridge removable magazine. The same SCSI target controller board controls the tape drive and the media loader. If the controller detects the loader's presence when the system is turned on, the loader is presented as a SCSI-2 medium changer device on LUN 1.

  • Page 75: Location Of Controls, Switches, And Connectors

    . Configure and Install the DLT4500 Mini-Library This section describes how to configure and install the mini-library including: Connecting the SCSI signal cable to the mini-library 4 4. Location of Controls, Switches, and Connectors Figures 4 1, -2 4- , 4 4 illustrate the front and rear panel layouts of the Œ...

  • Page 76: Mini-Library Rear Panel Components

    Configuring and Operating the DLT4500 Mini-Library Œ Label Ž Figure 4-2 Mini-Library Rear Panel Components 4-4 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsytem • Power Switch/Power Connector • SCSI Connectors...

  • Page 77: Loosening The Shipping Screw

    Configuring and Operating the DLT4500 Mini-Library Œ • Shipping Screw Locking Lever Figure 4-3 Loosening the Shipping Screw Under the Mini-Library DLT4000/DLT4500/DLT4700 Cartridge Tape Subsytem 4-5...

  • Page 78: Rotate The Locking Lever

    Configuring and Operating the DLT4500 Mini-Library Figure 4-4 Rotate the Locking Lever Lift the locking lever on the front of the mini-library (Figure 4-4) to rotate the magazine locking mechanism. This allows you to remove the magazine from the mini- library.

  • Page 79: Configuration Guidelines

    4.4.2 Configuration Guidelines The mini-library is factory set to SCSI ID 5, unless otherwise specified. The system uses the SCSI ID to identify, or address, the mini-library. Follow these guidelines when you configure the mini-library for your system: If you are installing the mini- library as The only SCSI device on the bus or one of multiple SCSI devices...

  • Page 80: Connecting The Scsi Signal Cable

    Configuring and Operating the DLT4500 Mini-Library 4.4.4 Connecting the SCSI Signal Cable to the Mini-Library Examine the components on the mini-library rear panel (Figure 4-2) to complete the physical installation. To connect the SCSI signal cable: 1. Ensure the mini-library power is turned off. 2.

  • Page 81: Run Post

    4.5 Test the Installation This section tells you how to run the power-on self-test (POST) and what to do after POST. 4.5.1 Run POST To test the installation for the mini-library by running POST: 1. Turn on the system power. 2.

  • Page 82: Dlt4500 Mini-Library Troubleshooting Chart

    Configuring and Operating the DLT4500 Mini-Library Error indications fall into these main categories: Magazine Error Loader Error Drive Error Controller Error Unknown Error Table 4-1 DLT4500 Mini-library Troubleshooting Chart Message LDR RST ERR MAG ERR LDR ERR DRV ERR CTL ERR UNK In some errors, the mini-library Autoloader retries the error three times before showing failure...
  • Page 83 Configuring and Operating the DLT4500 Mini-Library When the user engages the Load/Unload button, the mini-library Autoloader attempts to clear the error. When the user engages the Open button, the door is released to allow the user to open the door to access to the magazine. If all of the actions taken by the user fails to clear the error, call your service representative.

  • Page 84: Operator Control Panel

    Configuring and Operating the DLT4500 Mini-Library 4.6 Operator Control Panel The operator control panel (OCP) has 4 pushbuttons (Figure 4-5 and Table 4-2). Figure 4-5 Mini-Library Operator Control Panel ΠDisplay Mode The LCD Display features two lines of characters. Message content of either line can contain a mixture of messages and field codes.

  • Page 85: Mini-Library Operator Control Panel

    Table 4-2 lists each button and its function. Table 4-2 Mini-Library Operator Control Panel Button Display Mode The Display Mode button allows the user to select Normal, Density Select, SCSI ID Select mode, or Firmware Update Mode. Normal Mode is the default setting after either mini-library power-up or mini-library reset.

  • Page 86: Normal Mode Displays

    Configuring and Operating the DLT4500 Mini-Library 4.6.1 Normal Mode Displays In Normal Mode the two line display is defined in figure 4.6. Table 4-3 lists the line one displayed messages during Normal Mode operation. Display Message DRV ACT DRV RDY DRV REW LDR RDY LDR ACT...
  • Page 87 Table 4-4 lists the line two displayed field codes during Normal Mode operation. Table 4-4 Normal Mode, Line Two Display Message HC when displayed indicates the need to use a cleaning cartridge Blank indicates normal operation SLOT NUMBER Displays the current slot number containing the cartridge.

  • Page 88: Density Select Mode Displays

    Configuring and Operating the DLT4500 Mini-Library 4.6.2 Density Select Mode Displays In Density Select Mode the two line display is defined in figure 4-8 Table 4-5 lists the displayed field codes during Density Select Mode operation. Display Message CURRENT DENSITY NEW DENSITY 4-16 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsytem CURRENT...
  • Page 89 Table 4-6 lists displayed cartridge current and new density messages during Density Select Mode operation. Table 4-6 Cartridge Density Display Display Message On steady indicates the tape is recorded in 2.6 format. Flashing indicates the tape is recorded in another density.

  • Page 90: Scsi Id Select Mode

    Configuring and Operating the DLT4500 Mini-Library 4.6.3 SCSI ID Select Mode SCSI ID Select mode allows you to select the SCSI ID for the tape drive and to enter Code Update mode. If you turn power off and then on again or reset the mini-library, the SCSI ID you chose reappears after being stored.

  • Page 91: Firmware Update Mode

    4.7.4 Firmware Update Mode In Normal Mode note, pressing the Display Mode button twice will put the mini- library in Firmware Update mode. In Density Select Mode the two line display is defined in figure 4-9 Figure 4-9 Firmware Update Mode Field Definition Table 4-8 lists displayed messages during operation.

  • Page 92: Key Lock

    Configuring and Operating the DLT4500 Mini-Library 4.8 Key Lock The key lock on the front of the mini-library (Figure 4-1) enables or disables use of the operator control panel (OCP) (Figure 2-5). The key lock prevents unauthorized removal of the magazine or cartridges, providing a measure of data security. To unlock or enable the OCP, turn the key toward the opened lock icon next to the key lock.

  • Page 93: Selecting Density

    4.9 Selecting Density This section describes the mini-library's density select feature. The user can select density by using any of the following: 1. On a write from beginning of tape (BOT), tape density is selected by one of the following: Front panel Density Select mode _________________________ NOTE ____________________________ The user can perform a front panel density selection at any time, but the...
  • Page 94 Configuring and Operating the DLT4500 Mini-Library If you loaded a tape with a prerecorded 2.6 GB density and you use Density Select mode to select 10 GB density: Before a write from BOT occurs, you should see the 2.6 show steady, and the 10 and OVR flash in the display: After a write from BOT occurs, you should see the selected density 10 and the Table 4-9 shows results.

  • Page 95: Programmable Host Selection Via Your Operating System

    4.9.2 Programmable Host Selection via Your Operating System To select density via the SCSI bus: Do a SCSI MODE SELECT with the density you want. For more details, see the chapter on SCSI Interface. . Write data to the tape from BOT. 4.9.3 2 Default Density 20 GB, 30 GB, 40 GB at Compression If you did not use the front panel density select mode or programmable host selection, the selection becomes the default density of 20 GB Compress using a DLTtape III, 30...

  • Page 96: Description Of The Tape Cartridge

    Configuring and Operating the DLT4500 Mini-Library 4.10 Description of the Tape Cartridge The DLTtape IV tape cartridge is a 4-inch, black, plastic cartridge containing 1800 feet of 1/2 inch magnetic metal particle tape. The DLTtape III tape cartridge is a 4-inch, gray, plastic cartridge containing 1100 feet of 1/2 inch magnetic metal particle tape.

  • Page 97: Data Protection

    Figure 4-10 shows the write-protect switch on the tape cartridge. ΠOrange Indicator Figure 4-10 Write-Protect Switch on a Cartridge 4.10.2 Data Protection If you move the cartridge write-protect switch to the left, and then load the tape, the WP (write-protect) message displays. Table 4-10 describes what happens to data protection when you move the write-protect switch before you load the cartridge.

  • Page 98: Description Of The Magazine

    Configuring and Operating the DLT4500 Mini-Library 4.11 Description of the Magazine The front of the magazine has numbers 0 through 4 to indicate each slot number. _________________________NOTE ____________________________ Insert and remove all cartridges at the front of the magazine. ___________________________________________________________ Œ...

  • Page 99: Inserting A Cartridge Into The Front Of The Magazine

    4.11.1 Inserting a Cartridge into the Front of the Magazine Before cartridge insertion: Grasp the cartridge with the write-protect switch on the right side facing you. Set the cartridge's write-protect switch to the desired position. If you want to Write to the tape Write-protect the tape Configuring and Operating the DLT4500 Mini-Library Then...
  • Page 100 Configuring and Operating the DLT4500 Mini-Library Figure 4-12 Inserting a Cartridge into the Magazine To insert a cartridge into the magazine (Figure 4-12): Œ Place the magazine on a flat surface with the slots facing you. Each slot is numbered—to ensure you are inserting the cartridge correctly in the front of the magazine.

  • Page 101: Removing A Cartridge From The Magazine

    Configuring and Operating the DLT4500 Mini-Library Figure 4-13 Removing a Cartridge from the Magazine 4.11.2 Removing a Cartridge from the Magazine To remove a cartridge from the magazine (Figure 4-13): Œ At the front of the magazine, • where you can see the metal tab next to the slot number, press in on the cartridge until it stops and you hear a click.

  • Page 102: Removing The Magazine From The Mini-Library

    Configuring and Operating the DLT4500 Mini-Library _________________________NOTE ____________________________ Never apply labels to the top or bottom of tape cartridges. Doing so can cause cartridge jams in the mini-library. Use the space on the front of the cartridge for labels. ___________________________________________________________ 4.11.3 Removing the Magazine from the Mini-Library To remove the magazine from the mini-library, first ensure the OCP is enabled or unlocked via the key lock (Figure 4-1).

  • Page 103: Selecting A Cartridge From The Magazine

    4.11.5 Selecting a Cartridge from the Magazine After a successful initialization, the mini-library automatically selects the first slot containing a cartridge and the Select button becomes active. To select a cartridge: press the Select button to advance to the next slot containing a cartridge.

  • Page 104: Unloading The Cartridge

    Configuring and Operating the DLT4500 Mini-Library 4.11.7 Unloading the Cartridge _________________________CAUTION _________________________ Do not press the Load/Unload button until backup or other tape operations are stopped at the terminal. Doing so can result in operation failure and drive unavailability. ___________________________________________________________ You want to unload the cartridge from the drive...

  • Page 105: When To Use The Cleaning Tape Cartridge

    4.12 When to Use the Cleaning Tape Cartridge Use Table 4-12 to determine when to use the cleaning cartridge. Table 4-12 When to Use the Cleaning Cartridge 1. The HC message displays 2. A data cartridge causes the HC message to display frequently 3.
  • Page 106 Configuring and Operating the DLT4500 Mini-Library 4-34 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsytem...

  • Page 107: In This Chapter

    Configuring and Operating the DLT4700 5.1 In This Chapter The configuration section in this chapter applies to the mini-library and its operation. Chapter 5 includes these main topics and sections: Topic Introduction to the Media Loader Configure the DLT4700 Mini-Library Mode Select Key Selecting Density Operator Control Panel (OCP)

  • Page 108: Configuring The Dlt4700 Mini-Library

    Configuring and Operating the DLT4700 Mini-Library Auto-loading is implemented as a side effect of the SCSI UNLOAD command. An unload is specified The next slot is empty, or the cartridge unloaded was for the last slot in the magazine 5.3 Configure the DLT4700 Mini-Library This section describes how to configure the DLT4700 mini-library including: Topic Configuration Guidelines...

  • Page 109: Configuration Guidelines

    5.3.1 Configuration Guidelines The system uses the SCSI ID to identify, or address, the DLT4700 mini-library. Follow these guidelines when configuring the DLT4700 mini-library for your system: If you install the DLT4700 as The only SCSI device or one of multiple SCSI devices on the bus The last or only device on the SCSI bus...
  • Page 110 Configuring and Operating the DLT4700 Mini-Library Figure 5-1 shows the SCSI ID pushbutton switch location. Figure 5-1 Changing the SCSI ID via the Pushbutton Switch Œ SCSI Connector • Fan ’ Voltage Selection Switch 5-4 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem • Wire Cable Clamps Ž...

  • Page 111: Mode Select Key

    When you copy data to the tape, operations stop if one of the following happens: Storage capacity of the last tape cartridge is exceeded No tape cartridge is in the next sequential slot in the magazine To lock the DLT4700 mini-library into the enclosure and lock the receiver, set the Mode Select key to OCP Disabled.

  • Page 112: Dlt4700 Operator Control Panel

    Configuring and Operating the DLT4700 Mini-Library Figure 5-2 DLT4700 Operator Control Panel Error! Bookmark not defined. 5-6 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 113: Automatic Mode

    When you copy data to the tape, operations stop if one of the following happens: Storage capacity of the last tape cartridge is exceeded No tape cartridge is in the next sequential slot in the magazine To lock the DLT4700 mini-library into its normal operating position in the enclosure, but leave the receiver unlocked, set the Mode Select key to Automatic mode.

  • Page 114: Service Mode

    Configuring and Operating the DLT4700 Mini-Library SCSI move media commands are disabled. SCSI load/unload commands are disabled. _________________________ NOTE ____________________________ During Manual mode, the cartridge returns to the magazine, but the current Slot Select indicator does not advance forward to the next available cartridge. ___________________________________________________________ 5.4.4 Service Mode Service mode allows for servicing procedures.

  • Page 115: Selecting Density

    5.5 Selecting Density Section 5.5 describes the loader's density select feature. Ways of Selecting Density The user can select density by using any of the following: 1. On all read operations and all write append operations, the recorded density is the density to be used.
  • Page 116 Configuring and Operating the DLT4700 Mini-Library Density Select Example If you have loaded a tape with a prerecorded 2.6 GB density and you use the Density Select button to select 10.0/15.0 GB density, the following should happen: The 2.6 indicator remains lit density has not changed yet and the steady indicator indicates recorded tape density The 10.0/15.0 indicator blinks density change is pending Density Override indicators...

  • Page 117: Results Of Density Selection

    Table 5-1 shows the results of density selection. Table 5-1 Results of Density Selection Then You did not select the The indicators show the actual density when the Density Select button tape is reading or writing. The indicators are on steady and the Density Override indicator is off.

  • Page 118: Operator Control Panel

    Configuring and Operating the DLT4700 Mini-Library 5.6 Operator Control Panel The DLT4700 Operator Control Panel (OCP) has 4 OCP pushbuttons and 22 indicators (Table 5-2) used with the Mode Select key. See Section 5.4 for information on the Mode Select key and its functions. See Section 5.8 for more details on button and indicator operations.
  • Page 119 Table 5-2 DLT4700 Operator Control Panel (Cont’d) Button/Indicator Color Write Protected Orang indicator Tape In Use Yellow indicator Use Cleaning Orang Tape indicator Magazine Fault indicator Loader Fault indicator Current Slot Green indicators 0-6 Density Select Green DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 5-13 Configuring and Operating the DLT4700 Mini-Library Function Indicates the cartridge in the drive is write-...
  • Page 120 Configuring and Operating the DLT4700 Mini-Library Table 5-2 DLT4700 Operator Control Panel (Cont’d) Button/Indicator Density Override 10.0/15.0 20.0 5-14 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Color Function Yellow Indicates tape drive activity as follows: On steady you selected a density from the front panel.
  • Page 121 Table 5-2 DLT4700 Operator Control Panel (Cont’d) Button/Indicator Color Compress Yellow DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 5-15 Configuring and Operating the DLT4700 Mini-Library Function Indicates tape drive activity as follows: On Compression mode enabled. Compression can be done in 10.0/15.0/20.0 GB density only. Off Compression mode disabled.

  • Page 122: Power-On Process

    Configuring and Operating the DLT4700 Mini-Library 5.7 Power-On Process _________________________ CAUTION _________________________ Before applying power, verify the DLT4700 mini-library is set (see the label on the mini-library rear panel) for the available ac supply voltage. ___________________________________________________________ 5-16 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...
  • Page 123 Table 5-3 explains what happens during each phase of the DLT4700 mini-library operation. Table 5-3 Loader Power-On Self-Test Phase What Happens When you power on the DLT4700 mini-library, the Loader Fault and Power On indicators on the loader OCP are on. One second later, all indicators are on.

  • Page 124: Slot Select, Load/Unload

    Configuring and Operating the DLT4700 Mini-Library 5.8 Slot Select, Load/Unload, and Eject Button Functions The Slot Select, Load/Unload, Eject, and Density Select buttons are OCP pushbuttons. They contain a green indicator and they are operable only when their corresponding indicators are on. _________________________ NOTE ____________________________ The Load/Unload button has three functions: If a loader fault occurred and the Loader Fault indicator is on, press...

  • Page 125: Unloading The Cartridge

    5.8.3 Unloading the Cartridge _________________________ CAUTION _________________________ Do not press the Load/Unload button until backup or other tape operations are stopped at the terminal. Doing so can result in operation failure and drive unavailability. _________________________ NOTE ____________________________ The Load/Unload indicator must be on before you press the Load/Unload button to load or unload a cartridge.

  • Page 126: Opening The Receiver

    Configuring and Operating the DLT4700 Mini-Library 5.8.4 Opening the Receiver The Eject button opens the receiver for insertion or removal of the magazine. The button is disabled when the Mode Select key is in the OCP Disabled position. The Eject button can also be used to unload a tape from the drive. When A cartridge is not in the drive...

  • Page 127: Magazine

    5.9 Magazine The front of the magazine has numbers, 0 through 6, that indicate the number of the slot. _________________________ NOTE ____________________________ Insert and remove all cartridges at the front of the magazine. ___________________________________________________________ 5.9.1 Inserting a Cartridge into the Front of the Magazine To simplify cartridge insertion: place the magazine on a flat surface with the slots facing you (Figure 5-4).

  • Page 128: Write-Protect Switch On A Cartridge

    Configuring and Operating the DLT4700 Mini-Library Figure 5-3 shows the operation of the Write-Protect switch. Figure 5-3 Write-Protect Switch on a Cartridge Figure 5-4 shows inserting a cartridge into the magazine. 5-22 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 129: Inserting A Cartridge Into The Magazine

    Configuring and Operating the DLT4700 Mini-Library Figure 5-4 Inserting a Cartridge into the Magazine DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 5-23...

  • Page 130: Removing A Cartridge From The Magazine

    Configuring and Operating the DLT4700 Mini-Library 5.9.2 Removing a Cartridge from the Magazine To remove a cartridge from the magazine: at the front of the magazine press in on the cartridge (Figure 5-5) until it stops and you hear a click. Then, release. The slot has a spring-release action.

  • Page 131: Removing A Cartridge From The Front Of The Magazine

    Configuring and Operating the DLT4700 Mini-Library Figure 5-5 shows the removal of a cartridge from the magazine. Figure 5-5 Removing a Cartridge from the Front of the Magazine DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 5-25...

  • Page 132: Receiver Opened

    Configuring and Operating the DLT4700 Mini-Library Figure 5-6 shows the open receiver. Figure 5-6 Receiver Opened 5-26 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 133: In This Chapter

    Troubleshooting Guide for the DLT4500/DLT4700 Mini-Library 6.1 In This Chapter Chapter 6 includes the following main topics and sections: Topic Conditions Necessary for Button Operation 6.2 Operation Failure Avoiding Basic Problems Error Conditions : DLT4500 Mini-Library Power Problems 6.2 Conditions Necessary for Button Operation Be sure to review information in the previous chapters to ensure you are correctly operating the DLT4500/DLT4700 mini-library.

  • Page 134: Dlt4500 Ocp Button Conditions

    Troubleshooting Guide for the DLT4500/DLT4700 Mini-Library _________________________ NOTE Do not press the Load/Unload button to abort any function of the DLT4500/DLT4700 mini-library. Press [Ctrl/Y] or [Ctrl/C] instead. ___________________________________________________________ See Chapter 4 for more information on the functions of the DLT4500 OCP Table 6-1 DLT4500 OCP Button Conditions If you want to Select another slot in the...

  • Page 135: Operation Failure

    See Chapter 5 for more information on the functions of the DLT4700 OCP buttons. If you want to Select another slot in the magazine Load the selected cartridge into the tape drive Return the selected cartridge to its original slot in the magazine Clear a magazine or loader fault...

  • Page 136: Avoiding Basic Problems

    Troubleshooting Guide for the DLT4500/DLT4700 Mini-Library 6.4 Avoiding Basic Problems Follow these guidelines when you operate the DLT4500/DLT4700 mini-library to avoid basic problems: Use only DLTtape III, DLTtape IIIxt or DLTtape IV cartridges. Check the tape leader in the cartridge by lifting the cartridge latch that opens the door to expose the leader.

  • Page 137: Dlt4500 Error Conditions

    6.5 DLT4500 Error Conditions Error indications fall into these main categories: Magazine Error Loader Error Drive Error Controller Error Unknown Error 6.5.1 DLT4500 Magazine Error The ERR MAG message displays the status of cartridges reported by the loader and drive is inconsistent. In some magazine errors, the mini-library retries the error three times before showing failure.

  • Page 138: Dlt4500 Unknown Error Description

    Troubleshooting Guide for the DLT4500/DLT4700 Mini-Library 6.5.5 DLT4500 Unknown Error Description The ERR UNK message displays the mini-library detected an error of unknown origin. In some unknown errors, the mini-library retries the error three times before showing failure. 6.5.5.1 DLT4500 Clearing a Loader, Drive, Controller, or Unknown Error Pressing the Load/Unload button, the mini-library attempts to clear the error.
  • Page 139 6.6.1.1 Detecting Cases 1, 2, and 3 The user can tell these cases have occurred when the Magazine Fault indicator and slot indicators 0 and 5 are on. _________________________ CAUTION _________________________ Never remove a cartridge from the magazine by moving the metal tab in front of the cartridge.

  • Page 140: Dlt4700 Loader Fault Description

    Troubleshooting Guide for the DLT4500/DLT4700 Mini-Library 6.6.1.2 Detecting Case 4 The user can tell this case occurred when the Magazine Fault indicator and slot indicators 0 and 6 are on. This is the only time slot indicators 0 and 6 are on for a magazine fault.

  • Page 141: Power Problems

    _________________________ NOTE ____________________________ Error indicators do not blink. During hardware failures, the controller module determines action. ___________________________________________________________ 6.6.2.1 Clearing a DLT4700 Loader Fault When a loader fault occurs, the Load/Unload and Eject indicators are on. Pressing the Load/Unload button, the DLT4700 loader attempts to clear the error. Pressing Eject, the receiver opens to let you access the magazine.
  • Page 142 Troubleshooting Guide for the DLT4500/DLT4700 Mini-Library 6-10 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 143: Chapter 7: Firmware Update

    7.1 In This Chapter Chapter 7 includes the following main topics and sections: Topic DLT4000 Firmware Update Overview Creating a "Firmware Update Tape" Firmware Update Procedure 7.2 DLT4000 Firmware Update Overview The DLT4000 Cartridge Tape Subsystem family can automatically update the controller firmware directly from a tape containing the appropriate information.

  • Page 144: Updating Firmware On A Standalone System

    Firmware Update (From Tape) 7.2.1 Updating Firmware on a Standalone System The user can update the subsystem, even when the subsystem is not attached to a SCSI bus, that is, a standalone system. However, to perform an update, the Power-On Self- Test (POST) must pass first, and to pass, POST needs a properly terminated bus.
  • Page 145 To do a firmware update on a standalone system: 1. Find the TRM PWR connector on the right side of the DLT4000 drive (Figure 7-1, number Œ). F ro n t B e ze l R igh t s id e L e ft s id e Figure 7-1 DLT4000 Subsystem Connectors ¶TRM PWR Connector...

  • Page 146: Creating A Firmware Update Tape

    Firmware Update (From Tape) 2. Ensure the TRM PWR jumpers are in position (Figure 7-2, number•). Figure 7-2 Jumper Settings for TRM PWR Connector Œ From the time the tape is inserted and the drive handle is closed, updating the firmware takes from 2 to 3 minutes.
  • Page 147 Firmware Update (From Tape) When making the update tape, copy the image file to the tape media using a block size as defined in Table 7-1, that is dd, ltf, and so forth. The tape has to be uncompressed. DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 7-5...

  • Page 148: Firmware Update Procedure

    Firmware Update (From Tape) 7.4 Firmware Update Procedure Section 7.4 describes the procedure for updating the firmware (code) of the DLT4000 subsystem controller. The update is done from a cartridge that stores the firmware image. Firmware update from the host is also supported. See the section on the SCSI WRITE BUFFER command in Chapter 8 for details.
  • Page 149 Release the Unload button and press the button again within 4 seconds. The second press should take less than 1 second. d. The Tape in Use and the Write Protect indicators blink, showing the tape subsystem recognizes the firmware update mode has been selected.

  • Page 150: Results (Dlt4000) Code Update)

    Firmware Update (From Tape) 6. If the firmware image is valid, the controller's flash EEPROM memory is automatically updated with the new firmware image. The Write Protect and Tape in Use indicators flash again during the controller firmware update. 7.4.1.1 Interpreting the Results (DLT4000) Code Update) Two possible results can occur: The firmware update cartridge is unloaded: this means a successful update.

  • Page 151: Updating The Firmware On The Dlt4500 (Drive And Loader Configuration)

    Table 7-1 Results (DLT4000) Code Update) (Cont’d) If... 1. The tape is NOT a valid firmware update tape 2. The tape does not contain a valid image The tape contains a valid image, but for some reason the reprogramming flash memory fails 7.4.2 Updating the Firmware on the DLT4500 (Drive and Loader Configuration)
  • Page 152 Firmware Update (From Tape) elevator stops scanning the magazine. Press the Load/Unload button to load the code update tape into the tape drive. The DLT4500 code revision is the same revision as that of the update tape The DLT4500 code revision is not the same revision as that of the update tape 4.

  • Page 153: Results (Dlt4500) Code Update)

    7.4.2.1 Interpreting the Results (DLT4500 Code Update) The following results can occur: The code update cartridge unloads from the drive and loads into the magazine slot from which it came The code update cartridge does NOT unload from the drive and load into the magazine.
  • Page 154 Firmware Update (From Tape) Table 7-2 Results (DLT4500) Code Update) (Cont'd) 7-12 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem This means And you should 1. Press the Unload The code update button to unload the cartridge contains a tape cartridge from corrupted image file the drive.
  • Page 155 Table 7-2 Results (DLT4500) Code Update) (Cont'd) This means The tape cartridge with the valid update image is not readable. A power failure occurs during the code update. The drive may be unusable. DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 7-13 Firmware Update (From Tape) And you should 1.

  • Page 156: Updating The Firmware On The Dlt4700 (Drive And Loader Configuration)

    Firmware Update (From Tape) Table 7-2 Results (DLT4500) Code Update) (Cont'd) 7.4.3 Updating the Firmware on the DLT4700 (Drive and Loader Configuration) 1. Obtain or make a DLTtape III, DLTtape IIIxt, or DLTtape IV with the firmware image of the desired revision level copied to it. 2.
  • Page 157 e. The Tape in Use and the Write Protect indicators blink, showing the subsystem recognizes the firmware update mode has been selected. If selecting firmware update mode is not successful (for example, because of not pushing the Unload button properly the second time), the Write Protect indicator should stop blinking within several seconds.
  • Page 158 Firmware Update (From Tape) g. When the drive code update is complete, the drive resets, and goes through Power-On Self-Test (POST). The process waits until the tape is reloaded at beginning of tape (BOT). h. If the firmware image is valid, the controller's flash EEPROM memory is automatically updated with the new firmware image.

  • Page 159: Results (Dlt4700) Code Update)

    Table 7-3 gives additional details. Table 7-3 Results (DLT4700) Code Update) The image is valid The tape is NOT a valid firmware update tape The tape contains a valid image, but for some reason reprogramming of Flash memory fails _________________________ CAUTION _________________________ Never turn off power if you think the firmware is being updated.
  • Page 160 Firmware Update (From Tape) 7-18 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 161: Chapter 8: Dlt4000 Scsi Interface

    Refer to Chapter 2 for details. _________________________ NOTE ____________________________ The SCSI specification referrers to mini-libraries as “medium changers” where as Quantum uses the term “mini-libraries” throughout this manual. ___________________________________________________________ The DLT4000 drive supports a maximum block size of 1 Byte to 16 MBytes.

  • Page 162: Initiator/Target Operations

    DLT4000 SCSI Interface 8.2.2 Initiator/Target Operation The DLT4000 drive does not act as an initiator on the SCSI bus. Therefore, the device will not do any of the following: Generate unsolicited interrupts to the host Initiate its own SCSI commands Assert bus reset 8.2.3 SCSI IDs and Logical Unit Numbers (LUNs) The DLT4000 drive with optional medium changer has two logical units.

  • Page 163: Unit Attention Condition

    8 2. Unit Attention Condition Queued Unit Attentions are implemented on this device, and are maintained following circumstances: BUS Reset Bus Device Reset message media may have changed asynchronously A firmware (microcode) update has completed a cartridge is loaded, Power Up and Not-ready to Ready Transition Unit Attentions are created.

  • Page 164: Data Cache And Tape Write Interaction

    DLT4000 SCSI Interface 8.2.6 Data Cache and Tape Write Interaction The DLT4000 drive contains a data cache that buffers blocks (records) until they are written. This section defines specific times that blocks are written to the tape. A Mode Select parameter allows the data cache to be disabled (unbuffered mode). In this mode, every WRITE command will cause the data to be written to the media before the STATUS byte and the COMMAND COMPLETE message is returned to the host.

  • Page 165: Status Phase

    STATUS phase is requested by the initiator. The only exception is during error cases when the device Status bytes the tape drive returns are as follows: REQUEST SENSE command should be sent following this status to determine unable to accept a command from an otherwise acceptable initiator. The initiator for commands issued with the LINK bit set.

  • Page 166: Bus Free

    DLT4000 SCSI Interface These commands are as follows: INQUIRY LOAD UNLOAD LOG SENSE/SELECT MODE SELECT MODE SENSE PREVENT/ALLOW MEDIUM REMOVAL READ BLOCK LIMITS READ BUFFER READ ELEMENT STATUS RECEIVE DIAGNOSTIC RESULTS REQUEST SENSE RESERVE/RELEASE UNIT SEND DIAGNOSTIC (non-media access diagnostics) WRITE BUFFER The TEST UNIT READY command is used to determine whether the tape drive would accept a media access command without returning CHECK CONDITION...
  • Page 167 normal environment should be virtually free of bus parity errors Bus parity errors cause the drive to either retry the operation, go to STATUS phase, or Retrying of parity errors during Data Out Phase when writing is normally not done, but can be enabled by changing the EnaParErrRetry parameter in the VU EEROM device performance (the data stream on writes cannot be pipelined as well).

  • Page 168: Scsi Message System

    DLT4000 SCSI Interface 8 3 SCSI Message System purpose of physical path management. To support certain SCSI-1 initiators, an Identify message is not required by the should be an IDENTIFY, ABORT, or BUS DEVICE RESET message. If the DLT4000 drive receives any other message in this case, it will go directly to BUS The following messages are supported: Code In/Out...
  • Page 169 DLT4000 SCSI Interface ABORT (06h) This message is sent from the initiator to the target to clear, on the selected unit, the current I/O process. Buffered (cached) write operations will be completed if possible. The target goes directly to the BUS FREE phase after successful receipt of this message.

  • Page 170: Extended Message Format

    DLT4000 SCSI Interface When received from an initiator, the tape drive may respond in one of two ways. First, it may take the message as a request by the initiator to disconnect and comply by entering message in phase and sending the DISCONNECT message back to the initiator (possibly preceded by the SAVE DATA POINTERS message).
  • Page 171 IDENTIFY (80h-FFh) These messages are sent either by the initiator or by the target to establish (or reestablish) the physical connection path between an initiator and target for a particular logical unit. The message byte consists of the following bits: Bit 7: Always set to one.
  • Page 172 DLT4000 SCSI Interface directly to the BUS FREE state by releasing the BSY signal, signifying a catastrophic error. The target's response to this message is to switch to the MESSAGE IN phase and re- send from the beginning all the bytes of the message which generated the original MESSAGE PARITY ERROR message.

  • Page 173: Sdtr Extended Message Format

    Synchronous Data Transfer Request (SDTR) This extended message allows the target and initiator to agree on the values of the parameters relevant to synchronous transfers. DLT4000 drive will not initiate the Synchronous Data Transfer Request message, but relies on the Initiator to do so. The SDTR message has the following format: Byte 0 Extended Message Identifier –...

  • Page 174: Tape Drive Scsi Commands

    DLT4000 SCSI Interface 8.4 Tape Drive SCSI Commands 8.4.1 Control Byte - Flag and Link Bits The control byte of the Command Descriptor Block contains the Flag and Link bits. Use of these bits is entirely initiator dependent. Setting the Link bit provides an automatic link to the next command, bypassing the usual ARBITRATION, SELECTION, and MESSAGE OUT phases which would normally occur between commands.

  • Page 175: Summary Of Supported Sequential-Access Device Commands

    8.4.2 Summary of Supported Sequential-Access Device Commands The following table shows what SCSI commands are supported by the DLT4000 tape drive. Table 8-2 DLT4000 Supported SCSI Commands Opcode 1A/5A Command ERASE INQUIRY LOAD-UNLOAD LOCATE LOG SELECT LOG SENSE MODE SELECT MODE SENSE PREVENT/ALLOW MEDIUM REMOVAL READ...

  • Page 176: Erase (19H)

    DLT4000 SCSI Interface 8.4.3 ERASE (19h) Byte ERASE causes data on the tape to be erased. Any write data currently held in buffer memory and not written to tape yet is flushed to tape before the ERASE is executed. Immed If the Immediate bit is set to zero, the target will not return status until the selected operation has completed.

  • Page 177: Inquiry (12H)

    8.4.4 INQUIRY (12h) Byte INQUIRY tells the drive to send information regarding the device's parameters to the initiator. The INQUIRY command executes normally even if the specified LUN is not attached. INQUIRY returns a Check Condition status only when the target cannot return the requested Inquiry data.

  • Page 178: Drive Inquiry Response

    TrmIOP Reserved Additional Length (33h) Reserved MChngr WBus32 WBus16 Sync Vendor ID = “Quantum “* Product ID = “DLT4000 Product Revision Level = “hhss” Vendor Unique bytes Figure 8-5 INQUIRY Response Data Peripheral Device Type ANSI-Approved Version Response Data Format...
  • Page 179 Other Inquiry Data Fields The rest of the fields in the Inquiry Response are used as follows: Byte 1: RMB - The Removable Medium bit is one. Device-Type Modifier - Set to 0. Byte 2: IOS Version - Set to 0 ECMA Version - Set to 0 ANSI Approved Version - Set to 02h, indicating compliance with SCSI-2 Byte 3:...
  • Page 180 DLT4000 SCSI Interface Byte 7: All bits set to zero, except: Sync - Set to 1 (synchronous data transfer supported) Linked - Set to 1 (linked commands supported) Vendor Identification - See figure 8-6 Product Identification - See figure 8-6 _________________________ NOTE ____________________________ If a media loader is attached to the tape drive, the Product ID will indicate "DLT4500"...

  • Page 181: Vendor Unique Inquiry Data

    8.4.4.2 Vendor Unique Inquiry Data The following information can be used to precisely identify the revision of subsystem components. Byte 52-55 Figure 8-6 INQUIRY Vendor Unique Bytes Definition Vendor Specific Inquiry Bytes To more precisely identify the product and the installed firmware, additional information is available.

  • Page 182: Product Family Bit Values

    DLT4000 SCSI Interface Product Family Use Table 8-3 to determine what Product Family Bit value represents. Released Flag This flag differentiates between released and test versions of firmware. One indicates released code (Vxxx) or field test code (Txxx). Released code has no Minor FW Version number (byte 38 is 0).

  • Page 183: Vital Product Data Pages

    8.4.4.3 Vital Product Data Pages The following figures show the information in the supported Vital Product Data Pages. Peripheral Qualifier Byte Figure 8-7 Supported Vital Product Data Pages Peripheral Qualifier Byte 4 - 13 Serial Number The serial number is the serial number of the printed circuit card mounted on the bottom of the DLT4000 drive.

  • Page 184: Media Loader Inquiry Response

    DLT4000 SCSI Interface Peripheral Qualifier Byte 4 - 5 6 - 7 8 - 11 12 -35 Figure 8-9 Firmware Build Information page - VU The checksums are binary, and are for positive Firmware and EEPROM identification. Firmware Build Date is an ASCII string in the DD-Mmm-YYYY HH:MM::SS format.

  • Page 185: Load-Unload (1Bh)

    8.4.5 LOAD-UNLOAD (1Bh) Byte LOAD-UNLOAD tells the target to load or unload the media in the tape cartridge. If no cartridge is in the drive, both LOAD and UNLOAD will return a CHECK CONDITION status with a NOT READY sense key set. If the drive has received an UNLOAD command with the Immed bit set and then receives another command which would involve tape motion or TEST UNIT READY, the drive will return a CHECK CONDITION status with a NOT READY sense key set.
  • Page 186 DLT4000 SCSI Interface The command specific bits are used as follows: Immed - If this bit is set, status is returned as soon as the operation is started. Otherwise, the status is returned after the operation has completed. Re-Ten - Re-tension operations are not needed on the DLT4000 drive, so this bit is ignored (that is, good status, if the bit is set).

  • Page 187: Locate (2Bh)

    8.4.6 LOCATE (2Bh) Byte (MSB) The LOCATE command is used to do high-speed positioning to the specified block address. Average positioning time is about 45 seconds; maximum time is under 90 seconds. The READ POSITION command can be used to obtain the block address, when Writing, where particular blocks of data (for example, a data file) are about to be written.

  • Page 188: Log Select (4Ch)

    DLT4000 SCSI Interface 8.4.7 LOG SELECT (4Ch) Byte (MSB) LOG SELECT allows the host to manage statistical information maintained by the device about its own hardware or the installed media. The description should be read in conjunction with the description of the LOG SENSE command which follows it, to provide the reader with information about log page format, parameters, and supported pages.

  • Page 189: Log Page Control Definitions

    Figure 8-13 LOG Page Control Definitions All types of parameter values are changeable through Log Select. When the PC field is set to 00b or 01b and the Parameter List Length is zero, the command is terminated with a CHECK CONDITION Status, with Sense Key of ILLEGAL REQUEST, and ASC of INVALID FIELD IN CDB.

  • Page 190: Operation Of Log Select

    DLT4000 SCSI Interface 8.4.7.1 Operation of LOG SELECT The purpose of the LOG SELECT command is to allow the initiator to modify and initialize parameters within the logs supported by the device. There are two ways to initialize the log parameters. First, set the PCR bit in the LOG SELECT CDB;...

  • Page 191: Read/Write Error Log Select Page Format

    LOG SELECT PAGE FORMAT Each Log page will begin with a 4-byte header followed by n number of log parameter blocks (one block for each parameter code). Each block, except for parameter code 05h, will be 8 bytes. The parameter block for code 05h will be 12 bytes. Log Page Header Reserved Byte...
  • Page 192 DLT4000 SCSI Interface Parameter Control Bytes Byte 2 of Log parameter block in Figure 8-15 is referred to as the parameter control byte. DU–Disable Update: DU bit is not defined for LOG SELECT and the target ignores any value. DS and TSD–Saving parameters is not supported; they both should be set to 1. If the DS and/or TSD are set to zero, the command is terminated with CHECK CONDITION status with the sense key set to ILLEGAL REQUEST with the additional sense code set to INVALID FIELD IN PARAMETER LIST.

  • Page 193: Parameter Codes Supported

    Parameter Value This field is the actual value of this log parameter. Parameter Code Errors corrected with substantial delays Errors corrected with possible delays Total rewrites or rereads Total errors corrected Total times correction algorithm processed Total bytes processed Tortal uncorrected errors 8000h Vendor Unique Figure 8-16 Parameter Codes Supported...

  • Page 194: Log Sense (4Dh)

    DLT4000 SCSI Interface 8.4.8 LOG SENSE (4Dh) Byte (MSB) (MSB) LOG SENSE allows the host to retrieve statistical information maintained by the device about its own hardware or the installed media. It is a complementary command to LOG SELECT. The Parameter Pointer Control bit must be zero. A Parameter Pointer Control bit of zero indicates that the parameter data requested from the device will start with the parameter code specified in the Parameter Pointer field and return the number of bytes specified in the Allocation Length field in ascending order of parameter codes from...

  • Page 195: Log Page Control Definitions

    Saving log parameters is not supported and is always zero. If the SP bit is set, the command is terminated with CHECK CONDITION status with the sense key set to ILLEGAL REQUEST, and an additional sense code of INVALID FIELD IN CDB. The Page Control field defines the type of parameter values to be returned: Figure 8-18 LOG Page Control Definitions The Default Threshold Values are the maximum values that each parameter can...

  • Page 196: Log Sense Pages Supported

    DLT4000 SCSI Interface Page Code Figure 8-19 LOG SENSE Pages Supported Parameter Pointer The Parameter Pointer field allows the host to specify at which parameter within a log page the requested data should begin. For example, if a page supports parameters 0 through 5, and the Parameter Pointer field contains 3, then only parameters 3, 4, and 5 are returned to the initiator.

  • Page 197: Supported Pages Page Format

    Error Detection Summary in LOG SENSE CDB The following conditions constitute errors that will be detected by the drive in relation to the CDB. The request sense data is set to ILLEGAL REQUEST, INVALID FIELD IN CDB. If a page is not supported If the parameter pointer is larger than the highest numbered parameter on the page If SP bit is set to 1...

  • Page 198: Read/Write Error Log Sense Page Format

    DLT4000 SCSI Interface 8.4.8.2 Read/Write Error Log Page (Page 2 and 3) Each Log page will begin with a 4-byte header followed by n number of log parameter blocks, each block of 8 bytes except for parameter code 5h. The log parameter block for the Parameter total bytes processed (5h) will be 12 bytes, since the parameter value is 8 bytes long.

  • Page 199: Parameter Codes Supported

    Parameter Code The following parameter codes are supported for the read/write error counter pages. Parameter Code Errors corrected with substantial delays Errors corrected with possible delays Total rewrites or rereads Total errors corrected Total times correction algorithm processed Total bytes processed Tortal uncorrected errors 8000h Vendor Unique...

  • Page 200: Threshold Met Criteria

    DLT4000 SCSI Interface will be set to LOG EXCEPTION and ASCQ will be set to THRESHOLD CONDITION MET. If the RLEC bit in control mode page is zero then, UNIT ATTENTION will not be generated. _________________________ NOTE ____________________________ This comparison is performed in real time. Therefore, you do not need to issue a Log Sense command to get the check condition.

  • Page 201: Last N Error Events Page

    8.4.8.3 Last n Error Events Page (07h) This page returns one parameter at a time that consists of the ASCII text for the specified event log. The Parameter Number field in the CDB specifies the log event to return. The log events EEROM are numbered 0 to 255, after which the number wraps back to 0, and only a limited number of events are stored at a given time (up to 14).

  • Page 202: Read/Write Compression Ratio Page Header

    DLT4000 SCSI Interface 8.4.8.4 Read/Write Compression Ratio Page Format (32h) The Read/Write Compression Ratio page begins with a 4-byte header followed by the log parameter blocks of 6 or 8 bytes, depending on the parameter code selected. Parameter Codes The following parameter codes are supported for the Read/Write Compression Ratio page.

  • Page 203: Read/Write Compression Ratio Log Sense Page Format

    Parameter Block for Parameter Codes 00 and 01 (MSB) Byte (MSB) Figure 8-27 Read/Write Compression Ratio LOG SENSE Page Format Parameter Control Byte DU–Disable Update: This bit is always zero. DS–Disable Save: Saving parameters is not supported; this bit will always be set to 1.

  • Page 204: Read/Write Bytes Transferred Log Sense Page Format

    DLT4000 SCSI Interface Parameter Block for Parameter Codes 02 through 09 (MSB) (MSB) Byte Figure 8-28 Read/Write Bytes Transferred LOG SENSE Page Format Parameter Control Byte DU–Disable Update: This bit is always zero. DS–Disable Save: Saving parameters is not supported; this bit will always be set to 1.
  • Page 205 DLT4000 SCSI Interface Parameter codes 04 and 05 report the counts of bytes transferred from the tape to the buffer. Parameter code 04 reports the number of full megabytes transferred. Parameter code 05 reports the number of bytes less than a full megabyte that has been transferred.

  • Page 206: Mode Select (15H)

    DLT4000 SCSI Interface 8.4.9 MODE SELECT (15h) Byte MODE SELECT enables the host to configure the device. Implementing MODE SELECT and MODE SENSE requires a certain amount of handshaking between the host and the drive. Before configuring the drive, the host should issue a MODE SENSE to get the current configuration and determine what parameters are configurable.

  • Page 207: Mode Select Parameter List

    8.4.9.1 MODE SELECT Parameter List The MODE SELECT parameter list shown below, contains a 4-byte header, followed by one 8-byte block descriptor. Byte Block Descriptor Byte Page Descriptors Figure 8-30 MODE SELECT Parameter List Media Type This field is ignored by MODE SELECT command. Buffered Mode The drive will implement Immediate Reporting on WRITE commands through Buffered mode.
  • Page 208 DLT4000 SCSI Interface compression. If writing 2.6 or 6.0 GByte formats, if the block size is a multiple of 4 Kbytes, there is no capacity loss. When using the 10 GByte or 20 GByte format, if compression is disabled and the block size is a multiple of 8 Kbytes, there is no capacity loss.
  • Page 209 Density Code This field should match the current density of the media, or will be set to zero if the density is unknown. 00h - use default density 0Ah - 6667 bpi MFM serial cart. tape X3B5/86-199 (Read only) 16h - 10000 bpi MFM serial cart tape X3.193-1990 (Read only) 17h - 42500 bpi MFM serial cart tape X3B5/91-174 - 2.6 GB 18h - (Same as 17h but with 56 track pairs vs.

  • Page 210: Mode Select Pages

    DLT4000 SCSI Interface 8.4.9.2 MODE SELECT Pages Following the Block Descriptor are the MODE SELECT pages, which set the device parameters. Each page has a 2-byte header which identifies the page code and indicates the number of bytes in that page. The supported Page Codes are as follows: Page Code Figure 8-31 MODE SELECT Pages Supported...

  • Page 211: Read/Write Error Recovery Page (01H)

    8.4.9.3 Read/Write Error Recovery Page (01h) The drive supports the Error Recovery Page which has the following format: PS(0) Byte In this page, only the Post Error (PER) flag parameter is changeable. If PER is set, Check Conditions will be created, with Sense Key of Recovered Error, and VU Sense Data detailing the cause.
  • Page 212 DLT4000 SCSI Interface Write Retry Count This field reports the maximum number of overwrite retries that will be performed before declaring an unrecoverable error. 8-52 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 213: Disconnect/Reconnect Page Format

    8.4.9.4 Disconnect/Reconnect Page (02h) The drive supports the Disconnect/Reconnect Page which has the following format: PS(0) Byte (MSB) (MSB) (MSB) (MSB) Figure 8-33 Disconnect/Reconnect Page Format In this page, only the Maximum Burst Size parameter is changeable. The following parameters in this page are supported: Maximum Burst Size This value specifies the maximum amount of data that will be transferred without disconnecting.

  • Page 214: Data Transfer Disconnect Control

    DLT4000 SCSI Interface DTDC Description Data transfer disconnect control is not used. Disconnect is controlled by the other fields in this page A target does not attempt to disconnect once the data transfer of a command has started until all data the command is to transfer has been transferred.
  • Page 215 DLT4000 SCSI Interface DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 8-55...

  • Page 216: Control Mode Page (0Ah)

    DLT4000 SCSI Interface 8.4.9.5 Control Mode Page (0Ah) The control mode page provides controls over several features such as tagged queuing, extended contingent allegiance, asynchronous event notification, and error logging. Byte EECA (MSB) A report log exception condition (RLEC) bit of one specifies the target reports log exception conditions.
  • Page 217 DLT4000 SCSI Interface The RLEC bit indicates whether the DLT4000 drive should return Check Condition status with the sense key set to Unit Attention (6h) when one of its write and read error counters of the log pages reaches a specified threshold as follows: (See LOG SELECT command section on how to change the threshold.) 0 - Do not return Unit Attention when a threshold condition is met 1 - Return Unit Attention when a threshold condition is met...

  • Page 218: Data Compression Page

    DLT4000 SCSI Interface 8.4.9.6 Data Compression Page (0Fh) The Data Compression Page specifies parameters for the control of data compression. This page allows you to turn DLT4000 drive compressed format on and off independently of the tape's position and allows you to enable or disable decompression of DLT4000 drive compressed data during write operations.
  • Page 219 DDE (Data Decompression Enable) When the DLT4000 drive reads compressed data from tape, it automatically decompresses the data before sending it to the initiator. Data compression is always enabled, so this bit must be set to 1 (enable data decompression). RED (Report Exception on Decompression) The DLT4000 drive does not report exceptions on decompression (boundaries between compressed and uncompressed data).

  • Page 220: Device Configuration Page Format

    DLT4000 SCSI Interface 8.4.9.7 Device Configuration Page (10h) The drive supports the Device Configuration Page which has the following format: PS(0) Byte (MSB) (MSB) Figure 8-37 Device Configuration Page Format In this page, only the Write Delay Time and Select Data Compression Algorithm parameters are changeable.
  • Page 221 Active Partition Only partition 0 is supported. Setting this field to any other value will be rejected by the drive with a CHECK CONDITION status and the ILLEGAL REQUEST sense key set. Write Buffer Full Ratio and Read Buffer Empty Ratio These indicate how full/empty the buffer memory should be before restarting the writing/reading of the media.
  • Page 222 DLT4000 SCSI Interface SEW and Buffer Size At Early Warning The Synchronize at Early Warning bit is set to 1. Buffer Size at EW is not supported and must be zero. Select Data Compression Algorithm One enables data compression; a zero disables it. The front panel setting will override what is specified in the MODE SELECT, but no error will result.

  • Page 223: Medium Partition Page (11H)

    8.4.9.8 Medium Partition Page (11h) The drive supports the Medium Partitions Parameter Page, which has the following format: PS(0) Byte Figure 8-38 Medium Partition Page Format Maximum Additional Partitions No additional partitions are supported, this field must be zero. Additional Partitions Defined The field specifies the number of additional partitions to be defined for the tape based on the settings of the SDP and IDP bits.

  • Page 224: Eerom Vendor Unique Page (3Eh)

    DLT4000 SCSI Interface 8.4.9.9 EEROM Vendor Unique Page (3Eh) The drive supports a vendor unique page, which you can use to modify savable parameters. Only one savable parameter may be changed per Mode Select command. It has the following format: PS(0) Figure 8-39 EEROM Vendor Unique Page Format The ASCII string has a parameter name, followed by one or more space characters, a...

  • Page 225: Eerom Vendor Unique Page Parameters

    Applied to DLTtape III tape for DLT260 format, DLT600 format and DLT2000xt format. Applied to DLTtape IV tape for DLT4000 format Default Length Usage (Bytes) QUANTUM Vendor Identification field in Inquiry Data DLT4000 Product Identification field in Inquiry Data 0=automatic 3=DLT2000xt, 4=DLT4000...
  • Page 226 DLT4000 SCSI Interface Table 8-4 EEROM Vendor Unique Page Parameters (cont’d) Name Value Rep. NODISCONFXDBLK ASCII Binary PROTECTDIRONWP ASCII Binary ENACLNGLTRPT ASCII Binary LONGXPORTPAGE ASCII Binary FORCEEEREBUILD ASCII Binary SCSIINQVS ASCII Binary DEFSEW ASCII Binary ENAINITSYNCNEG ASCII Binary REPORTRCVDPERRS ASCII Binary ENATHIRDPTYDENS ASCII Binary FORCEREADSILI...
  • Page 227 Table 8-4 EEROM Vendor Unique Page Parameters (cont’d) Name Value Rep. DISUNBUFMODE ASCII Binary NODEFERRCVDERR ASCII Binary SCSIBUSDMATIMER ASCII Decimal SCSIRESELRETRIES ASCII Decimal SCSIRDYEARLY ASCII Binary REPORTRCVRDERR ASCII Binary NORDYUAONUNLD ASCII Binary REDUNDANCYMODE ASCII Decimal REPBUSYINPROG ASCII Binary Default Length Usage (Bytes) The drive disables unbuffered mode, i.e.

  • Page 228: Eerom Vendor Unique Page Example 1

    DLT4000 SCSI Interface This is an example of an EEROM vendor unique page that will modify the VENDORID parameter to "XXXYY." Figure 8-40 EEROM Vendor Unique Page Example 1 8-68 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Page Code (3EH) Page Length (0FH) “v”...

  • Page 229: Eerom Vendor Unique Page Example 2

    This is an example of an EEROM vendor unique page that will modify the FORCEDENSITY parameter to 1. Figure 8-41 EEROM Vendor Unique Page Example 2 Page Code (3EH) Page Length (0FH) “F” (46H) “O” (4FH) “R” (52H) “C” (43H) “E”...

  • Page 230: Mode Select Changeable Parameters

    DLT4000 SCSI Interface 8.4.9.10 MODE SELECT Changeable Parameters The following table lists the changeable mode parameters and their minimum and maximum values allowed. See the previous definitions for the units that are used. Parameter rounding is supported for all parameters except the block descriptor length. Page: Parameter Header: Buffered Mode, Device Specific Byte Block Descriptor Length...

  • Page 231: Mode Sense (1Ah /5Ah)

    8.4.10 MODE SENSE (1Ah /5Ah) MODE SENSE allows the drive to report its media, current or changeable configuration parameters to the host. It is a complementary command to MODE SELECT. Byte The DLT4000 products also support the 10 byte MODE SENSE, which is required to request the VU EEROM Parameter page because of the large amount of data that needs to be passed back.

  • Page 232: Mode Sense Page Control Definition

    DLT4000 SCSI Interface Byte (MSB) MODE SENSE allows the drive to report its media, current or changeable configuration parameters to the host. It is a complementary command to MODE SELECT. If the Disable Block Descriptors bit is zero, the device returns the Block Descriptor Data.
  • Page 233 DLT4000 SCSI Interface Page Code This allows the host to select any specific page, or all the pages supported by the drive. Allocation Length The Allocation Length field specifies the number of bytes that the host has allocated for returned MODE SENSE data. An Allocation Length of zero means that the drive will return no MODE SENSE data.

  • Page 234: Mode Sense Parameter List

    DLT4000 SCSI Interface 8.4.10.1 MODE SENSE Parameter List The MODE SENSE (6) data contains a 4-byte header followed by one 8-byte block descriptor, followed by zero or more variable length pages, depending on the Page Code and the Allocation Length. Byte 0 2 WP Figure 8-45 MODE SENSE (6) Data Header...

  • Page 235: Mode Sense Block Descriptor

    (MSB) Byte (MSB) Figure 8-47 MODE SENSE Block Descriptor Byte Page Defined or Vendor-Unique Parameter Bytes Figure 8-48 MODE SENSE Page Descriptor Data Length The Sense Data Length specifies the length in bytes of the following MODE SENSE data that is available to be transferred during DATA IN phase. The Sense Data Length does not include itself.
  • Page 236 DLT4000 SCSI Interface A Write-Protected bit of zero indicates that the tape is write-enabled. A Write- Protected bit of one indicates that the tape is write-protected. Buffered Mode The drive implements Immediate Reporting on WRITE commands through Buffered mode. If the field is zero, then the drive does not report a GOOD status on WRITE commands until the data blocks are actually written to tape.
  • Page 237 DLT4000 SCSI Interface Number of Blocks This field will be sent as zero, indicating that all of the remaining logical blocks on the tape will have the medium characteristics specified by the block descriptor. Block Length This specifies the length in bytes of each logical block transferred over the SCSI bus. A block length of zero indicates that the length is variable (as specified in the I/O command).

  • Page 238: Mode Sense Pages

    DLT4000 SCSI Interface 8. .10 2 MODE SENSE Pages parameters. Each page has a 2-byte header which identifies the page code and indicates the number of bytes in that page. Page Code Figure 8-49 MODE SENSE Pages Supported PS Bit A Parameters Savable (PS) bit of one indicates that the page can be saved in nonvolatile memory by the drive.

  • Page 239: Read/Write Error Recovery Page

    .4 10. Read/Write Error Recovery Page (01h) The drive will support the Error Recovery Page, which has the following format: Rsvd Byte Figure 8-50 Error Recovery Page Format Option Flags TB–The Transfer Block (when not fully recovered) function is not supported. EER–The Enable Early Recovery function is always enabled.
  • Page 240 DLT4000 SCSI Interface Write Retry Count This field reports the maximum number of overwrite retries that will be performed before declaring an unrecoverable error. 8-80 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 241: Disconnect/Reconnect Page

    8. .10 4 Disconnect/Reconnect Page (02h) The drive will support the Disconnect/Reconnect Page which has the following format: Byte (MSB) (MSB) (MSB) (MSB) Figure 8-51 Disconnect/Reconnect Page Format The following parameters in this page are supported: Maximum Burst Size This value specifies the maximum amount of data that will be transferred without disconnecting.

  • Page 242: Control Mode Page (0Ah)

    DLT4000 SCSI Interface 8.4.10.5 Control Mode Page (0Ah) The Control Mode Page allows you to determine whether the DLT4000 drive will return Check Condition status when one of its write and read error counters reaches a specified threshold. Byte EECA (MSB) Page Code The Page Code identifies the type of MODE SENSE page being transferred.
  • Page 243 DLT4000 SCSI Interface EECA (Enable Extended Contingent Allegiance) returned for this field is 0. RAENP (Ready AEN Permission) value returned for this field is 0. UAAENP (Unit Attention AEN Permission) returned for this field is 0. Ready AEN Holdoff Period returned for this field is 0.

  • Page 244: Data Compression Page (0Fh)

    DLT4000 SCSI Interface 8 4. The Data Compression Page specifies parameters for the control of data compression. Byte (MSB) (MSB) (MSB) Figure 8-53 Data Compression Page (0Fh) PS (Parameters Savable) The Parameters Savable bit indicates if the MODE SENSE parameter data contained in this page is savable.
  • Page 245 DCE (Data Compression Enable) value returned for this bit depends on the current write density of the DLT4000 drive as follows: 1 - Data compression is enabled. DCC (Data Compression Capable) compression as follows: 0 - The device does not support data compressi 1 - The device supports data compression and will process any data sent to it by the initiator according to the setting of the DCE bit (byte 02, bit 7) returned for this bit is 1.

  • Page 246: Device Configuration Page Format

    DLT4000 SCSI Interface 8.4.10.7 Device Configuration Page (10h) The drive supports the Device Configuration Page which has the following format: Byte (MSB) (MSB) Figure 8-54 Device Configuration Page Format Saving parameters is not supported and will be zero. CAP, CAF, Active Format These fields are not supported and will be zero.
  • Page 247 These indicate how full/empty the buffer memory should be before restarting the writing/reading of the media. The DLT4000 drive will set these fields to zero (unused) ratios according to the average data rates over the SCSI bus. Write Delay Time before forcing the data to tape (100 ms increments).

  • Page 248: Medium Partition Page Format

    DLT4000 SCSI Interface 8.4.10.8 Medium Partition Page (11h) The drive supports the Medium Partitions Parameter Page, which has the following format: Byte Figure 8-55 Medium Partition Page Format Maximum Additional Partitions No additional partitions are supported; this field will be zero. Additional Partitions Defined The field specifies the number of additional partitions to be defined for the tape based on the settings of the SDP and IDP bits.

  • Page 249: Eerom Vendor Unique Page (3Eh)

    DLT4000 SCSI Interface 8. .10 9 EEROM Vendor Unique Page (3Eh) parameters that are settable through MODE SELECT EEROM vendor unique page are returned. NOTE ____________________________ MODE SENSE (6) to retrieve EEROM parameters ________________________________ Because of the length of the EEROM parameter, a 10-byte MODE SENSE command is required to retrieve the parameters.

  • Page 250: Prevent/Allow Medium Removal (1Eh)

    DLT4000 SCSI Interface 8.4.11 PREVENT/ALLOW MEDIUM REMOVAL (1Eh) Byte Figure 8 56 This command enables or disables the unloading of the tape cartridge. If this bit is set, the Unload button on the drive front panel is effectively disabled, and the UNLOAD command will not unload the media or the cartridge.

  • Page 251: Read (08H)

    8.4.12 READ (08h) (MSB) the drive. Fixed or variable-length blocks are to be transferred. If the Fixed bit is set to zero, a Variable Block mode is requested. A single block is initiator has allocated for the returned data. If the Fixed bit is set to one, the Transfer Length specifies the number of blocks to be in Fixed Block mode.
  • Page 252 DLT4000 SCSI Interface field will be set to NO SENSE. The Information Bytes will be set to the difference (residue) between the requested transfer length and the actual block length, or in Fixed Blocked Mode, the difference (residue) between the requested number of blocks and the actual number of blocks read.

  • Page 253: Read Block Limits Cdb

    .4 13 READ BLOCK LIMITS (05h) Byte Figure 8-58 READ BLOCK LIMITS CDB READ BLOCK LIMITS tells the drive to return its limits for block length. The READ BLOCK LIMITS data shown below is sent during the DATA IN phase of the command.

  • Page 254: Read Buffer ( 3Ch)

    DLT4000 SCSI Interface 8 4. READ BUFFER ( 3Ch) Byte READ BUFFER is used in conjunction with WRITE BUFFER as a diagnostic function for testing the drive's data buffer and the SCSI bus integrity. Mode The drive supports the following values within the field. If any nonsupported value is set, the drive terminates the command with a CHECK CONDITION status and an ILLEGAL REQUEST sense key set.

  • Page 255: Combined Header And Data Mode

    Allocation Length The Allocation Length specifies the maximum number of bytes that the initiator has allocated for returned data. 8.4.14.1 Combined Header and Data Mode In this mode, the drive returns a 4-byte header followed by the data bytes. The drive terminates the DATA IN phase when Allocation Length bytes of header and data have been transferred, or when all available data has been transferred to the initiator, whichever is less.

  • Page 256: Read Buffer Descriptor

    DLT4000 SCSI Interface 8-96 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Offset Boundary (0Ch) (MSB) Buffer Capacity Figure -63 READ BUFFER Descriptor (LSB)

  • Page 257: Read Position (34H)

    8.4.15 READ POSITION (34h) Byte Block Address. The LOCATE command uses this identifier to position back to this same logical position, in a high performance fashion. The Block Type bit indicates how the position is interpreted. Since this device uses the same logical block address whether this bit is set or not, the setting of BT is ignored.

  • Page 258: Read Position Data Format

    DLT4000 SCSI Interface 8.4.15.1 READ POSITION Data Format Byte (MSB) The BOP and EOP bits will be set as appropriate. The Block Position Unknown (BPU) the block address values returned. 8-98 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Partition Number First Block Location Reserved Number of Block in Buffer READ POSITION Data Format...
  • Page 259 DLT4000 SCSI Interface First Block Location The block address associated with the current logical position; the next block to be transferred between the target and initiator if a READ or WRITE command is issued. Last Block Location The block address associated with the current physical position; the next block to be transferred to the media and from the target's buffer.

  • Page 260: Receive Diagnostics Results (1Ch)

    .4 16 RECEIVE DIAGNOSTICS RESULTS (1Ch) Byte (MSB) Figure 8-66 RECEIVE DIAGNOSTICS RESULTS CDB RECEIVE DIAGNOSTIC RESULTS tells the drive to send analysis data to the initiator after completion of a SEND DIAGNOSTIC command. The following data will be returned by this command. A REQUEST SENSE command should be issued to obtain more detailed information following a check condition on a SEND DIAGNOSTIC command.

  • Page 261: Medium Changer Considerations

    .4 17 RELEASE UNIT (17h) Byte RELEASE UNIT releases the drive if it is currently reserved by the requesting initiator. It is not an error to attempt to release the drive if it is not currently reserved by the requesting initiator. However, if it reserved by another initiator, the drive is not released.

  • Page 262: Request Sense (03H)

    DLT4000 SCSI Interface 8.4.18 REQUEST SENSE (03h) Byte REQUEST SENSE tells the target to transfer sense data to the initiator. The sense data is valid for a CHECK CONDITION or RESERVATION CONFLICT target until retrieved by the REQUEST SENSE command, or until the receipt of any other command from the same initiator.

  • Page 263: Sense Information Format

    8.4.18.1 Sense Information Format Valid mark (MSB) Byte (MSB) Valid defined in the SCSI specification. Error Code Segment Number RSVD Information Bytes Command Specific Information Bytes Additional Sense Code Qualifier Sub-Assembly Code Reserved Field Pointer Internal Status Code (VU) Tape Motion Hours Tape Remaining Figure 8 70 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 8-103...
  • Page 264 DLT4000 SCSI Interface Error-Code A value of 70h indicates a current error – the report is associated with the most recently received command. A value of 71h indicates a deferred error – the report is associated with a previous command and not as a result of the current command. No other values will be returned.
  • Page 265 DLT4000 SCSI Interface Additional Sense Length of the command descriptor block is too small to transfer all of the additional sense bytes, the Additional Sense Length is not adjusted to reflect the truncation. Command Specific Bytes are handled as device specific and can be logged by the operating system on error conditions.

  • Page 266: Sense Keys Used

    DLT4000 SCSI Interface Sense Description No Sense. Check the Filemark/EOM/ILI bits and the ASC/Q bytes. Parameters on a Mode Select, or to report that R/W error rates are reaching subsystem specification limits for optimal operation. without any unrecovered errors for a long period of time. Media might not be present in the drive, or may be in the process of loading or calibrating.

  • Page 267: Additional Sense Codes/Qualifiers Used

    Table 8-6 Sense Keys Used (Cont’d) Sense Description Command Aborted. Generated when a command has been aborted by the tape device for some reason. Check the ASC/Q bytes. Volume Overflow. Physical end of media has been reached during writing. The initiator ignored the EOM condition and continued writing.
  • Page 268 DLT4000 SCSI Interface Table 8-7 Additional Sense Codes/Qualifiers Used (Cont’d) ASCQ 01h* 8-108 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Description Unrecovered Read Error Incomplete Block Read Recorded Entity Not Found Mech Position Error Detected by Read of Media Parameter List Length Error Illegal opcode Invalid Element Address Invalid CDB field...
  • Page 269 Table 8-7 Additional Sense Codes/Qualifiers Used (Cont’d) ASCQ 0Dh* 0Eh* * = Medium Changer specific commands DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 8-109 Description Write protected Hardware write protect Data safety write protect Not ready to read Reset occurred Mode parameters changed Log parameters changed Commands Cleared by another Initiator Cannot read medium...
  • Page 270 DLT4000 SCSI Interface Table 8-7 Additional Sense Codes/Qualifiers Used (Cont’d) ASCQ 8-110 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Description Microcode has been changed ROM EDC failure RAM failure Bad Drive status Loader diags failed Reportable POST failure Message error Internal Target Failure Unexpected Selection Interrupt Command complete sequence failure SCSI chip Gross Error...
  • Page 271 Table 8-7 Additional Sense Codes/Qualifiers Used (Cont’d) ASCQ DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 8-111 Description Media Load/Eject failure Unload Tape failure Media Removal Prevented Operator Media Removal Request Threshold Condition Met Log Counter at Maximum Calibration Error Cleaning Required Cleaning Requested Directory Read Error Not allowed if not at BOT DLT4000 SCSI Interface...

  • Page 272: Reserve Unit (16H)

    DLT4000 SCSI Interface 8.4.19 RESERVE UNIT (16h) Byte RESERVE UNIT reserves the specified drive for exclusive use by the requesting initiator or for another specified SCSI device. The reservation remains in effect until one of the following conditions is met: The initiator that made the reservation sends another RESERVE UNIT command.

  • Page 273: Medium Changer Considerations

    DLT4000 SCSI Interface SCSI device specified in the Third-Party Device ID field. The drive preserves the reservation until any one of the four conditions mentioned above occurs. The drive ignores any attempt made by any other initiator to release the reservation and returns a GOOD status.

  • Page 274: Rewind (01H)

    DLT4000 SCSI Interface 8.4.20 REWIND (01h) Byte REWIND tells the drive to position the tape at the beginning of the currently active partition. Before rewinding, the drive writes any write data that is buffered to the tape, and appends an EOD marker. Immed If the Immed (Immediate) bit is set, the drive first writes any remaining buffered data to tape followed by an EOD marker.

  • Page 275: Send Diagnostic (1Dh)

    8.4.21 SEND DIAGNOSTIC (1Dh) Byte (MSB) SEND DIAGNOSTIC tells the drive to perform its diagnostic tests. The Page Format field is not supported and must be zero. Two separate types of unit resident tests can be accessed: Electronics Self-Test - (Level 1 test) To invoke the diagnostic, a good portion of the controller hardware and software must be functioning properly.
  • Page 276 DLT4000 SCSI Interface Write/Read Functionality Test - (Level 2 test). The default version of this test does the following: Writes 500 32 KB records on track 0. Rewinds the tape. Reads the records. Positions to the beginning of track 1. Writes 500 32 KB records on track 1.

  • Page 277: Send Diagnostic Parameter List Format

    Table 8-8 Send Diagnostics Parameters Selftest DevOfL (MSB) (MSB) Byte (MSB) (MSB) Figure 8-74 SEND DIAGNOSTIC Parameter List Format DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 8-117 UnitOfL Selftest Action Illegal combination Self-Test 2 with default parameters Illegal combination Self-Test 2 with default parameters Self-Test 1 with default parameters Self-Test 2 with default parameters Self-Test 1 with default parameters...
  • Page 278 DLT4000 SCSI Interface Pattern Name Rotate All 0's Alternating 1's and 0's Marching 1 Marching 0 Random Data If the Max Number of Passes is zero, this indicates to loop forever. A BUS Reset or a selection from the host sending an Abort or a Bus Device Reset message will terminate testing.

  • Page 279: Additional Sense Codes

    Table 8-10 Sense Keys Used Sense Key Description Medium Error. A positioning error has occurred where the returned position does not match the expected. Hardware Error. The Additional Sense Code/Qualifier fields will provide more specific information. ILLEGAL REQUEST. Illegal bit settings in the SEND DIAGNOSTIC command.

  • Page 280: Space (11H)

    DLT4000 SCSI Interface 8.4.22 SPACE (11h) (MSB) Byte SPACE provides a variety of positioning functions that are determined by Code and Count fields in the Command Descriptor Block. Both forward (toward EOM/P) and reverse (toward BOM/P) positioning are provided. Code The code is defined as follows: For 2.6 and 6.0 GB format, the drive supports count values 0, 1, and 2 only.
  • Page 281 Count When spacing over blocks or marks, the Count field is interpreted as follows: A positive value N causes forward movement over N blocks or marks. The tape is logically positioned after the Nth block or mark on the EOM/P side. A zero value causes no change in the logical position.

  • Page 282: Medium Changer Considerations

    DLT4000 SCSI Interface 8.4.23 TEST UNIT READY (00h) Byte TEST UNIT READY checks if the drive unit is ready for commands involving tape movement. If the drive has a tape loaded, the command returns a GOOD status. Otherwise, CHECK CONDITION is reported. It is possible to get multiple check conditions on a TEST UNIT READY command because of power cycle, code update, and tape loaded.

  • Page 283: Verify (13H)

    8.4.24 VERIFY (13h) (MSB) Byte VERIFY verifies one or more blocks beginning with the next block on the tape. Both CRC and EDCs are validated. Immed If this bit is set, the Verify command will complete before any media movement is done (that is, when processing has been initiated).

  • Page 284: Write (0Ah)

    DLT4000 SCSI Interface 8.4.25 WRITE (0Ah) (MSB) Byte WRITE transfers one or more blocks from the host to the current logical position. When in Buffered Mode (see MODE SELECT), the tape drive reports a GOOD status on WRITE commands as soon as this data block has been transferred to the data buffer.
  • Page 285 DLT4000 SCSI Interface Fixed The fixed bit specifies both the meaning of the Transfer Length field and whether fixed-length or variable-length blocks are to be transferred. If the Fixed bit is set to zero, Variable Block mode is selected. A single block is transferred from the initiator and is written to the logical unit beginning at the current logical tape position.

  • Page 286: Header And Data Mode

    DLT4000 SCSI Interface 8.4.26 WRITE BUFFER (3Bh) Byte (MSB) (MSB) WRITE BUFFER is used with READ BUFFER as a diagnostic function for testing the device data buffer, DMA engine, SCSI bus interface hardware, and SCSI bus integrity. It is also used for downloading and updating controller microcode (firmware). Mode The drive supports the following values within the field.

  • Page 287: Download Microcode And Save

    The data to be transferred is preceded by a 4-byte header consisting entirely of reserved bytes. This header is discarded (not stored into the buffer). The buffer offset field must be zero for this mode. 8.4.26.2 Write Data Similar to mode 000b, except there is no header in the data passed to the target. The Buffer Offset must be zero.
  • Page 288 DLT4000 SCSI Interface _________________________ CAUTION _________________________ During the actual reprogramming of the FLASH memory chips, if any type of powerfail occurs, or if the reprogramming fails part way through, the subsystem will be unusable, and the controller board will need to be replaced.

  • Page 289: Write Filemarks (10H)

    8.4.27 WRITE FILEMARKS (10h) (MSB) Byte WRITE FILEMARKS causes the specified number of Filemarks to be written beginning at the current logical position on tape. If the Immed bit is not set, any data or Filemarks in the write cache buffer are written to tape. WSmk If this bit is set, the tape drive writes a save-set mark to tape instead of a Filemark.
  • Page 290 DLT4000 SCSI Interface CONDITION status in each case. If the drive encounters the physical EOM when attempting a WRITE FILEMARKS, CHECK CONDITION status is returned. 8-130 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 291: Supported Scsi-2 Medium Changer Device Commands

    8.5 Supported SCSI-2 Medium Changer Device Commands On the Medium Changer LUN, only commands defined for this device type are allowed. The following commands are implemented: Table 8-12 SCSI-2 Medium Changer Commands Opcode Command INITIALIZE ELEMENT STATUS INQUIRY MODE SELECT MODE SENSE MOVE MEDIUM READ BUFFER...

  • Page 292: Initialize Element Status

    DLT4000 SCSI Interface 8.5.1 INITIALIZE ELEMENT STATUS (07h) Byte Figure 8-83 Initialize Element Status CDB This command causes the medium changer to initialize the element status. 8-132 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Operation Code (07h) Logical Unit Number Reserved Reserved Reserved Unused Reserved Reserved...

  • Page 293: Device Capabilities Page (1Fh)

    8.5.2 MODE SENSE/SELECT (1Ah/15h) All three pages that are specific to Medium Changers are supported. 8.5.2.1 Device Capabilities Page (1Fh) The drive supports the Device Capabilities Page which has the following format: Byte Figure 8-84 Device Capabilities Page Format Bit Field Values Elements that can store media: StorDT, StorST Valid Source->Destination pairs: ST->DT, DT->ST All the "MT->XX"...
  • Page 294 DLT4000 SCSI Interface The medium changer does not support "ST->ST" or "DT->DT". 8-134 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 295: Element Address Assignment Page (1Dh)

    Figure 8-85 Element Address Assignment Page Format Length (12h) 1st Medium Transport Element Address (01h) Number of Medium Transport Elements (1) 1st Storage Element Address (100h) Number of Storage Elements 1st Import/Export Elements (0) Number of Import/Export Elements 1st Data Transfer Element Address (10)h...

  • Page 296: Medium Changer Element Addresses

    Medium Transport Element Reserved Data Transfer Element (tape drive) Reserved Medium Storage Element (Magazine slot 0) Medium Storage Element (Magazine slot 1) Medium Storage Element (Magazine slot 2) Medium Storage Element (Magazine slot 3) Medium Storage Element (Magazine slot 4)

  • Page 297: Transport Geometry Parameters Page (1Eh)

    8.5.2.3 Transport Geometry Parameters Page (1Eh) The drive supports the Transport Geometry Page which has the following format: Byte Figure 8-86 Transport Geometry Page Format Rotation of media is not appropriate for this type of Loader, so the Rotate bit is zero. There is only one Medium Transport Element, so there is only one set, with one member.

  • Page 298: Move Medium (A5H)

    DLT4000 SCSI Interface 8.5.3 MOVE MEDIUM (A5h) Logical Unit Number (MSB) (MSB) Byte (MSB) The Move Medium command is used to move cartridges from the tape drive to the magazine slot it came from, or from any magazine slot to the tape drive. The Transport Element Address field must be zero or one.

  • Page 299: Read Element Status (B8H)

    Unused Reserved Code Description All element types reported (valid in CDB only) Medium Transport Element Storage Element (magazine slot) Import Export Element (not supported) Data Transfer Element (tape drive) 5 - Fh reserved DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem 8-139 DLT4000 SCSI Interface...

  • Page 300: Element Status Data Header

    DLT4000 SCSI Interface 8.5.4.1 Element Status Data Header (MSB) (MSB) Byte (MSB) Figure 8-90 Element Status Data Header 8-140 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem First Element Address Reported Number of Elements Reported Reserved Byte Count of Report Available (LSB) (LSB) (LSB)

  • Page 301: Medium Transport Element Status Page

    8.5.4.2 Medium Transport Element Status Page PVolTag (MSB) Byte (MSB) Descriptor (MSB) Byte SValid 18 (MSB) Figure 8-91 Medium Transport Element Status Page There is only one Medium Transport element, which can be addressed explicitly as element address 1, or implicitly as address 0. PvolTag and AVolTag are always zero.

  • Page 302: Storage Element Status Page

    Byte 26 to n Figure 8-92 Storage Element Status Page There are up to seven Storage Elements, corresponding to the number of slots in a magazine. PvolTag and AVolTag are always zero. Access is always 1, and Full is set to 1 if a media cartridge is in the corresponding magazine slot.

  • Page 303: Data Transfer Element Status Page

    8.5.4.4 Data Transfer Element Status Page Byte Descriptor Byte Figure 8-93 Data Transfer Element Status Page PvolTag and AVolTag are always zero. Access is always set, and Full is set if a cartridge is in the tape drive. IDValid and LUValid are always set, drive LUN is 0. The SCSI Bus Address field is the same as the tape drive's controller.
  • Page 304 DLT4000 SCSI Interface 8-144 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 305: A.1 In This Appendix

    A.1 In This Appendix Appendix A contains specifications for the DLT4000 tape drive, DLT4500 mini- library and the DLT4700 mini-library including: Topic Drive and Mini-library Physical Descriptions DLT4000 Drive/Table Top DLT4500 Mini-library DLT4700 Mini-library Functional Specifications DLT4000 Drive Identifying the Correct AC Power Cord Tape Drive Mounting Holes Performance Specifications Environmental Specifications...

  • Page 306: A.2 Drive And Mini-Library Physical Descriptions

    Technical Specifications A.2 Drive and Mini-library Physical Descriptions A.2.1 DLT4000 Drive Physical specifications Table A-1 lists the key physical specifications of the DLT4000 tape drive. Table A-1 DLT4000 Physical Specifications Description Height 82.5 mm (3.235 in) without bezel 86.3 mm (3.4 in) with bezel Width 144.8 mm (5.7 in) behind bezel 148.3 mm (5.84 in) with bezel...
  • Page 307 Table A-1 DLT4000 Physical Specifications (cont'd) Description Drive 5 1/4 inch FH (modified depth) Electrical rating (Auto ranging) Power 25 W steady state/27 W, Requirements Power Consumption +5(±5%)* Volt 2.0 A steady state/2.5 A +12(±5%)* Volt 0.8 A steady state/1.5 A Communication SCSI-2 bus 8 bits (single-ended interface...

  • Page 308: A-2 Dlt4500 Mini-Library Physical Specifications

    Technical Specifications A.2.2 DLT4500 Mini-library Physical specifications Table A-2 lists the key physical specifications for the DLT4500 mini-library. Table A-2 DLT4500 Mini-Library Physical Specifications Description Height Width Length* Weight Environmental temperature Operating 10 C to 40 C (50 F to 104 F) -40 C to 66 C (-40 F to 150.8 F) Nonoperating Humidity...

  • Page 309: A-3 Dlt4700 Mini-Library Physical Specifications

    A.2.3 DLT4700 Mini-library Physical specifications Table A-3 lists the key physical specifications for the DLT4700 mini-library. Table A-3 DLT4700 Mini-Library Physical Specifications Description Height Width Length* Weight Environmental temperature Operating Nonoperating -40 C to 66 C (-40 F to 150.8 F) Humidity Operating Nonoperating...

  • Page 310: A-4 Dlt4000 Functional Specifications

    Technical Specifications A.3 Drive Functional Specifications A.3.1 DLT4000 Drive Functional Specifications Table A-4 lists the key functional specifications of the DLT4000 tape drive. Table A-4 DLT4000 Functional Specifications Functional DLTtape IV Capacity/formatted native Capacity/formatted compressed 2:1 DLTtape IIIxt Cartridge Capacity/formatted native Capacity/formatted compressed 2:1 DLTtape III...
  • Page 311 Table A-4 DLT4000 Functional Specifications (cont'd) Functional Error Rate (Unrecoverable) Tracks Linear Bit Density Nominal compression ratio. Actual compression is data dependent. Included format data, user data, post amble, and so forth for extended tape. DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem A-7 Specifications Read interchange recoverable error rate Read unrecoverable error rate...

  • Page 312: A.4 Identifying The Correct Ac Power Cord

    An AC power cord was supplied with your unit. Carefully inspect it and make sure that it is the correct one for your country or region based on the criteria listed below. If you feel the supplied AC power cord is not correct, contact your authorized Quantum service representative.

  • Page 313: A-1 Power Cord

    Technical Specifications Figure A-1 shows the different AC power cord plug configurations for 115V and 220V/240V usage. Figure A-1 Power Cords DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem A-9...

  • Page 314: A.5 Dlt4000 Tape Drive Mounting Hole Descriptions

    Technical Specifications A.5 DLT4000 Tape Drive Mounting Hole Descriptions Figure A-2 shows the mounting holes and dimensions in a top view of the DLT4000 drive. Figure A-2 Mounting Hole Dimensions (Top View) Tape drive width and height are standard 5-1/4 inch disk drive form factor measurements.

  • Page 315: A-3 Mounting Hole Dimensions (Side View)

    Technical Specifications Figure A-3 shows the mounting holes and dimensions in a side view of the DLT4000 drive. Figure A-3 Mounting Hole Dimensions (Side View) DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem A-11...

  • Page 316: A.6.2 Dlt4000 Timing Characteristics

    Technical Specifications A.6 Performance Specifications Section A.6 describes performance specifications including: Topic Nominal Tape Tension DLT4000 Media Loader Timing Characteristics DLT4500 Media Loader Timing Characteristics DLT4700 Media Loader Timing Characteristics A.6.1 Nominal Tape Tension Nominal tape tension is: 3.0 ± 1 oz when stationary 4.7 ±...

  • Page 317: A.6.3 Dlt4500 Media Loader Timing Characteristics

    A.6.3 DLT4500 Media Loader Timing Characteristics Table A-6 lists timing characteristics of the DLT4500 media loader. Table A-6 DLT4500 Media Loader Timing Characteristics Nominal magazine scan Move cartridge slot to drive Move cartridge drive to slot Error recovery Load media on to drive & ready for I/O processing Unload media from drive to cartridge (from BOT)

  • Page 318: A.7 Environmental Specifications

    Technical Specifications A.7 Environmental Specifications Section A.7 describes environmental specifications including: Topic Temperature and Humidity Altitude The tape drive conforms to an environment that includes general offices and workspaces with: Conditioned and marginally-conditioned areas with central or remote air-conditioning Complete temperature and humidity controls Moderate control tolerances Systems capable of maintaining comfort levels (for example, typical offices and general work areas)

  • Page 319: A.7.2 Altitude

    Dry Bulb Temperature Range Wet Bulb Temperature Temperature gradient Temperature shock Relative humidity Humidity gradient Table A-10 lists the storage ranges. Table A-10 Storage Ranges (Unpacked or Packed) Dry Bulb Temperature Range Wet Bulb Temperature Temperature gradient Temperature shock Relative humidity Humidity gradient...

  • Page 320: A.8 Vibration And Shock Specifications

    Technical Specifications A.8 Vibration and Shock Specifications Section A.8 describes environmental specifications: Topic Operating Vibration and Shock Nonoperating Vibration and Shock A.8.1 Operating Vibration and Shock Table A-12 lists operating vibration specifications and Table A-13 and Table A-14 lists operating shock specifications. Table A-12 Operating Vibration Specifications Vibration type Frequency range...

  • Page 321: A.8.2 Nonoperating Shock And Vibration

    Table A-14 Operating Shock Specifications, Table Top and Drive Pulse shape Peak acceleration Duration Application A.8.2 Nonoperating Shock and Vibration Table A-15 lists Nonoperating shock (bench handling) specifications for the tabletop product without its shipping packaging. Table A-15 Nonoperating Shock "Overstress" (Bench Handling - Test Type Description Application...

  • Page 322: A-17 Nonoperating (Packaged) Repetitive Shock Specifications

    Technical Specifications Tables A-16, A-17, A-18 A-19, A-20, and A-21 list Nonoperating vibration and Nonoperating shock specifications for the product in its shipping packaging. Table A-16 Nonoperating (Packaged) Vibration Specifications Vibration type Random vibration Frequency 5 to 300 Hz, vertical (z); 5 to 200 Hz horizontal (x and y) range Vibration 1.19 GRMS overall in vertical (z) axis...

  • Page 323: A-20 Nonoperating (Unpackaged) Vibration Specifications

    Table A-18 Nonoperating (Packaged) Shock (Drop) Specifications All Test type Drop shock Drop height 30 in - items < 20.9 lbs 24 in - 21 < items < 40.9 lbs 18 in - 41 < items < 60.9 lbs 12 in - 61 < items < 100 lbs Application 10 drops total;...

  • Page 324: A-21 Nonoperating (Unpackaged) Shock Specifications

    Technical Specifications Table A-21 Nonoperating (Unpackaged) Shock Specifications Pulse shape Peak acceleration Duration Application Pulse shape Peak acceleration Duration Application A-20 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Nonoperating (Unpackaged) Square wave 40 G, 180 in/sec velocity changing 10 ms X, Y, and Z axes, twice in each axis, total of 6 shocks 1/2 sine pulse 140 G...

  • Page 325: A.9 Electromagnetic Interference (Emi) Susceptibility

    A.9 Electromagnetic Interference (EMI) Susceptibility Section A.9 describes environmental specifications including: Topic Electromagnetic Emissions Conducted Emissions Radiated Emissions Magnetic Radiated Susceptibility Radiated Susceptibility Conducted Susceptibility ESD Failure Level Limits Acoustic Noise Emissions A.9.1 Electromagnetic Emissions Electromagnetic emissions include: CSA 108.8 EEC Directive 89/336 EN55022 and National standards are based on: BS6527...

  • Page 326: A.9.4 Magnetic Radiated Susceptibility

    Technical Specifications A.9.2 Conducted Emissions Limits for Class B equipment are in the frequency range from 0.15 to 30 MHz. The limit decreases linearly with the logarithm of the frequency in the range from 0.15 to 0.50 MHz. Table A-22 list the conducted emission limits. Frequency Range (MHz) 0.15 to 0.50 0.50 to 5...

  • Page 327: A.9.6 Conducted Susceptibility

    A.9.5 Radiated Susceptibility Table A-25 lists the radiated susceptibility limits: Table A-25 High Frequency, Electric Fields, 1 to 1000 MHz 3 V/m (rms) 80% modulated 1 KHz A.9.6 Conducted Susceptibility The transient voltage is the actual peak voltage above the normal ac voltage from the power source.

  • Page 328: A.9.8 Acoustic Noise Emissions

    Technical Specifications Table A-28 lists the low-level conducted interference voltage limits: Table A-28 Low-level Conducted Interference 3 V(rms) 80% modulated 1 A.9.7 ESD Failure Level Limits Table A-29 lists the ESD failure level limits for normal operator access areas. Failure Type Equipment Hard Office...
  • Page 329 Table A-30 Acoustic Noise Declaration for German Noise Declaration Law Schallemissionswerte - Werteangaben nach ISO 9296 und ISO 7779/DIN EN27779: Schalleistungspegel Gerät Leerlauf TH5xx TH5Bx TH5Ex TH5Fx TH5Hx Table A-30 Acoustic Noise Declaration for German Noise Declaration Law Generic Product Option Numbers TH5xx TH5Bx...

  • Page 330: A.10.2 Electromagnetic Emission Requirements

    Technical Specifications A.10 Regulatory Requirements Regulatory requirements include: Safety Electromagnetic emissions A.10.1 Safety Requirements Safety requirements include: UL1950 - Information Technology Including Electrical Business Equipment CSA C22.2 #220 - Information Technology Including Electrical Business Equipment TUV EN60950/IEC 950 - Information Technology Including Electrical Business Equipment A.10.2 Electromagnetic Emission Requirements Electromagnetic emission requirements include:...

  • Page 331: A.11 Drive Reliability Factors

    Design life statistics provide the point at which statistical failure rate begins to rise. Continuous operation. Quantum Corporation does not warrant that predicted MTBF is representative of any particular unit installed for customer use. Actual figures vary from unit to unit.

  • Page 332: A.12 Dlttape Recording Media Specifications

    Technical Specifications A.12 DLTtape Recording Media Specifications Table A-32 lists the media characteristics: Table A-32 DLTtape Recording Media Specifications DLTtape III Description Width Length Cartridge Dimensions Shelf Life Usage DLTtape IIIxt Media Description Width Length Cartridge Dimensions Shelf Life Usage DLTtape IV Description Width...

  • Page 333: B.1 In This Appendix

    Definition of Vendor Unique Sense Data B.1 In This Appendix Appendix B lists the internal status codes with their descriptions. B.2 Internal Status Code The internal status code is located at byte offset 18 of the request sense data and may be available after certain types of failures.
  • Page 334 Definition of Vendor Unique Sense Data Information Description Cleared from queue Missing data block read only Gap within object (missing blocks in record) Record on tape larger than requested Compare error Successive blocks missing across objects Drive state not valid for command Drive error Drive communication timeout error Drive unloaded...

  • Page 335: B-2 Internal Status Bit Flags

    Table B-1 Internal Status Code (cont’d) Description Invalid source slot Invalid destination slot Source slot empty Destination slot full Medium changer motion error Medium changer/drive interface error Medium changer/slot interface error Medium changer mechanical error Medium changer hardware error Medium changer controller error Unrecognized medium changer subcommand Medium changer fatal error Medium changer is in manual mode...
  • Page 336 Definition of Vendor Unique Sense Data Information B-4 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 337: C.1 In This Appendix

    Appendix C Sense Key Information C.1 In This Appendix Appendix C lists the sense key information. No Sense (0): 00 01 Unexpected FM encountered 00 02 EOM encountered 00 04 BOM encountered Recovered Error (1): 0A 00 Error Log Overflow 37 00 Rounded Parameter 3B 08 Repositioning error 44 C1 Internal Target failure, EEROM copy 1 area bad...
  • Page 338 Sense Key Information 04 02 Unit Not Ready, Load command needed 04 03 Unit Not Ready, Manual Intervention needed 3A 00 Medium Not Present 3A 80 Medium Not Present, Cartridge Missing 5A 01 Operator Media Removal Request Medium Error (3): 04 02 Unit Not Ready, Load command needed 0C 00 Write Error 11 00 Unrecovered Read Error...
  • Page 339 Sense Key Information 40 82 Diagnostic/POST failure, bad drive status 40 83 Diagnostic/POST failure, loader diags failure 40 84 Diagnostic/POST failure, POST soft failure 44 00 Internal Target Failure 44 80 Unexpected selection interrupt 44 83 SCSI chip gross error 44 84 Unexplained residue in TC registers 44 85 Immediate data transfer timeout 44 86 Insufficient CDB bytes...
  • Page 340 Sense Key Information 24 8D Bad drive/server image EDC 24 8E Invalid personality for code update 24 8F Bad controller image EDC 25 00 Illegal LUN 26 00 Parameter List Error, invalid field 26 01 Parameter List Error, parameter not supported 26 02 Parameter List Error, parameter value invalid 39 00 Saving parameters not supported 3B 0D Media Destination Element Full...
  • Page 341 47 00 SCSI parity error 48 00 IDE Message received 49 00 Invalid Message Error 4E 00 Overlapped commands attempted Volume Overflow (Dh): no additional sense code Miscompare (Eh): no additional sense code _________________________ NOTE ____________________________ The Filemark/EOM/ILI bits may be set even though ASC/ASCQ = 00 00: ___________________________________________________________ (1) FM, EOM, ILI bit may be set with no sense key (0) and ASC/ASCQ = 00 00...
  • Page 342 Sense Key Information C-6 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

  • Page 343: D.1 Eerom Packets (Last N Error Events)

    Appendix D EEROM Resident Bugcheck and Event Logs D.1 EEROM Packets (Last n Error Events) The DLT4000 products keep certain error and event logs in semi-permanent non- volatile memory (EEROM) on the ECM. There is room for a total of 14 such information packets in EEROM, each consisting of 98 bytes (96 data bytes plus 2 control bytes) of information.

  • Page 344: D.2 Bugcheck Packets

    EEROM Resident Bugcheck and Event Logs Packet Purpose Type Packet Empty Bugcheck - Fatal System Crash PO/ST (power on/self test) Failure EVENT LOG - Generic event informational (non-fatal) data CUP - Code Update Status Packet Manufacturing DIAG results packet D.2 Bugcheck Packets Bugchecks occur because of some kind of software detected fatal failure.

  • Page 345: D-2 Bugcheck Log Packet Layout

    Figure D-2 Bugcheck LOG Packet Layout Table D-2 Bugcheck Error Codes Bugcheck Meaning and Possible Cause Code E204 Unexpected Timer2 Interrupt- possible ECM fault EE01 Spurious Non-Maskable Interrupt- possible ECM fault EE02 Spurious 8254 Timer Interrupt- possible ECM fault EE03 Spurious Level 5 interrupt (GPSP)- possible ECM fault EE04 Spurious Drive Comm Interrupt- possible ECM fault...

  • Page 346: D.3 Po/St Failure Packets

    EEROM Resident Bugcheck and Event Logs D.3 PO/ST failure packets PO/ST failure packets are stored whenever the Power-On /Self-Test logic detects a failure of any kind. Each failure is encoded as a 4-byte vector. In some cases, multiple vectors may be stored, as shown in Figure D-3. D.4 Event Log packets Event logs are non fatal and can occur to log error or informative information regarding significant events.

  • Page 347: D-3 Event Log Codes

    Event Log Code 0xA400 0xA401 0xA402 0xA403 0xA407 0xA408 D.4.1 Directory Failure Event Logs These event logs are written when a directory read or write request fails for any reason. Refer to Figure D-5 and the sections that follow. EEROM Resident Bugcheck and Event Logs Figure D-4 EVENT LOG Packet Layout Table D-3 Event Log Codes Meaning...
  • Page 348 EEROM Resident Bugcheck and Event Logs Saved Overwrites/ReReads/ReWrites These are fields are used as temporaries and have no use in interpreting these packets. Dir Called Mode A code which specifies the original reason for the directory call. A value of 1 indicates a directory READ (on load);...

  • Page 349: D-5 Directory Event Status

    Table D-4 SET DIR_TAB "Directory Event Log Flags Bit Mask 0x01 0x02 0x04 0x08 0x10 0x20 0x40 0x80 D.5 Primary Status/Secondary Status Primary Secondary Missing Block Count The number of missing directory LBNs. Meaning READ on Load operation complete Inhibit further WRITEs unless WRITE from BOT LBN 0 was found intact Directory WRITE failed Tape FORMAT Mismatch...

  • Page 350: D.6 Code Update (Cup) Status Packet

    EEROM Resident Bugcheck and Event Logs Expected LBNs The total number of directory LBNs expected. Servo EOT Address Servo version of tape length. Unique Media ID The Unique Media Identification number, stored on the media. CR_MSG Address The address of the CR-MSG request block from TDS. D.6 Code Update (CUP) Status Packet The CUP status packet is written after every code update attempt regardless of its status.

  • Page 351: D-6 Code Update (Cup) Log Packet Layout

    EEROM Resident Bugcheck and Event Logs Figure D-6 Code Update (CUP) LOG Packet Layout DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem D-9...

  • Page 352: D-6 68020 Code Update Status

    EEROM Resident Bugcheck and Event Logs Status D-10 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem Table D-6 68020 Code Update Status Meaning No Update Operation Performed Code Update Operation Successful Personality Lockout Image EDC Check Failed Bad Image Write to FLASH Memory Failed Erase of FLASH Memory Failed FLASH Memory Clear (zero) Failed Invalid Image Compressed)
  • Page 353 3-20, 4-31, 5-18 positioning the write-protect switch, 3-17 preserving, 3-26 removing, 4-29 removing from the magazine, 5-24 DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem-1 storage, 3-26 unloading, 3-24, 4-32, 5-19 using a, 3-22 using cleaning tape cartridge, 3-23 write-protect switch, 4-25, 5-21 Cartridge insert/release handle...
  • Page 354 Index Data transfer, 8-1 Data Transfer Element Status Page, 8-143 Data transfer rate, 1-2 Definition of Vendor Unique Sense Data Information, B-1 Density Select Mode Displays, 4-16 selecting, 3-8, 4-21, 5-9 Density select mode, 4-22 Density, native default, 4-23 Description DLT4000 tape drive, A-2, A-6 DLT4500 Mini-library, A-4 DLT4700 Mini-library, A-5...
  • Page 355 page, 8-135 Element status data header, 8-140 ERASE, 8-16 Error events, 8-41 ESD failure level limits, A-24 Event Log packets, D-4 Directory Failure Event Logs, D-5 Failure level limits ESD, A-24 Fast transient voltage data cables, A-23 power cables, A-23 Firmware update creating a tape, 7-4 creating a tape on UN*X Systems, 7-4...
  • Page 356 Index Magazine, 5-21 DLT4500 description, 4-26 DLT4500 door, open, 4-32 DLT4700, removing from receiver, 5-24 DLT4700,restoration into receiver, 5-24 installing into the DLT4500 Mini-Library, 4-30 removing from DLT4500 Mini-Library, 4- Magnetic radiated susceptibility, A-22 Manual mode, 5-5, 5-7 Media, 1-3 Media loader inquiry response, 8-24 Medium Changer considerations, 8-113...
  • Page 357 Read/Write Compression Ratio Log SENSE, 8-42 Read/Write Error Log Page (Page 2 and 3), 8-38 Read/Write Error Recovery, 8-51, 8-79 Storage element status, 8-142 Transport geometry parameters, 8-137 Vital product data, 8-23 Page format, 8-37 Parity checking disable, 3-2, 5-3...
  • Page 358 Shock requirements environmental requirements, A-17 Side view, A-11 Slot Select button, 5-18 operation, 5-18 SPACE, 8-120 STATUS phase, 8-5 Storage element status page, 8-142 Storage ranges environmental specifications, A-15 Supported SCSI-2 medium changer device commands, 8-131 Switch functions, density select, 4-19...
  • Page 359 Index DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem-7...
  • Page 360 Index 8-DLT4000/DLT4500/DLT4700 Cartridge Tape Subsystem...

Table of Contents
