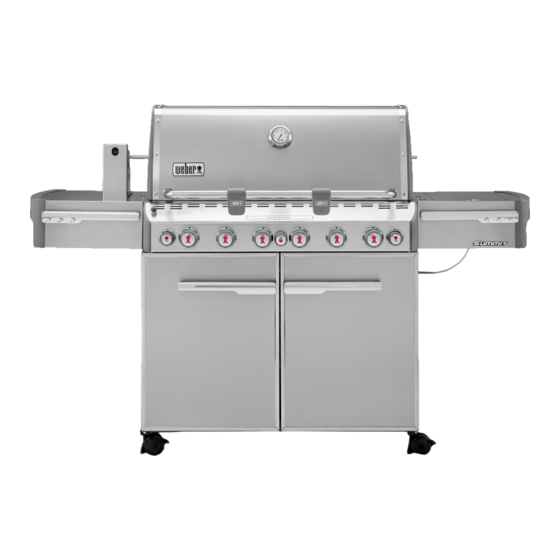

Weber Summit 670 Owner's Manual

Hide thumbs Also See for Summit 670:
Table of Contents

Advertisement

Quick Links

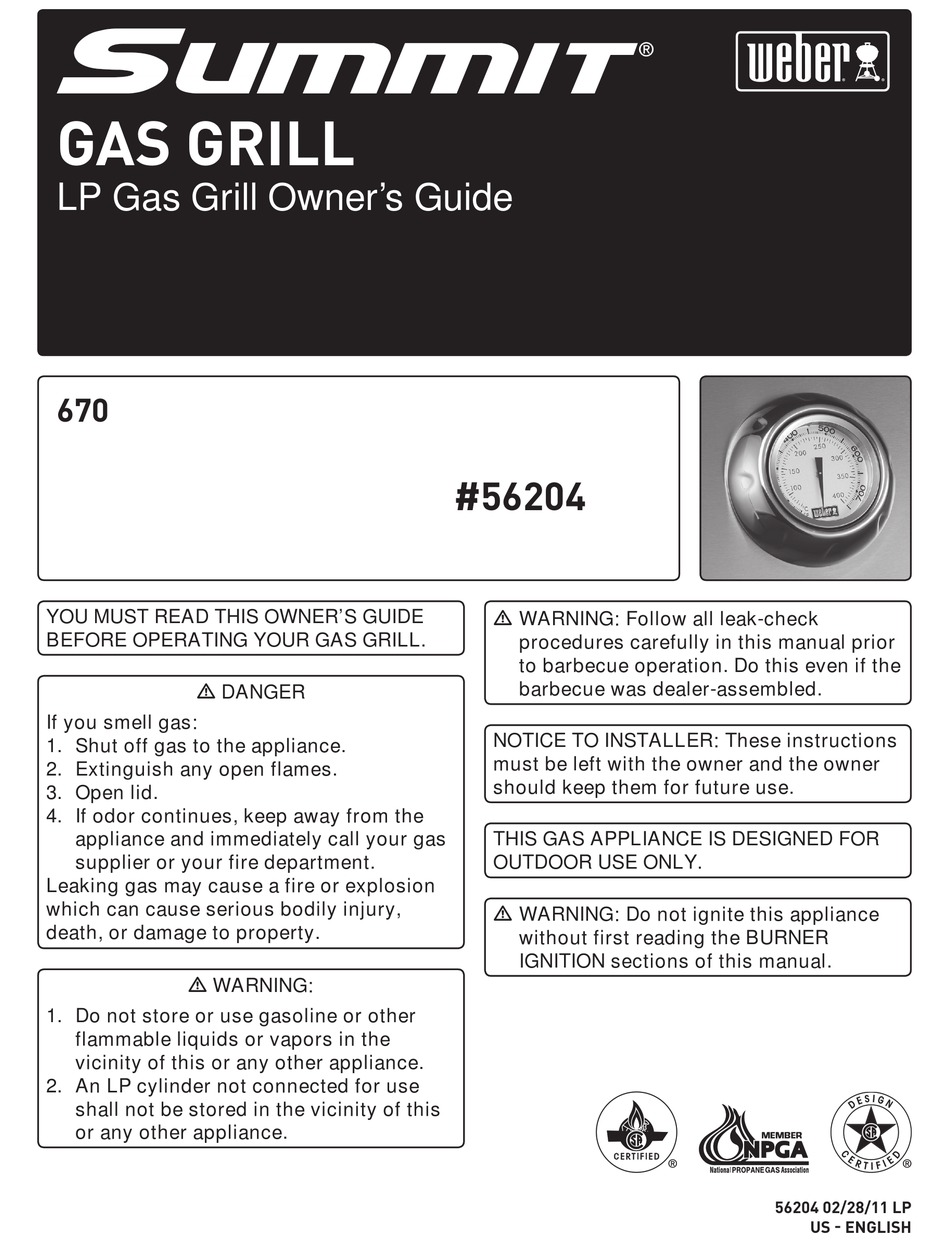

GAS GRILL
LP Gas Grill Owner's Guide
670
You must read this owner's Guide
before operatinG Your Gas Grill.
m danGer
if you smell gas:
1. shut off gas to the appliance.
2. extinguish any open flames.
3. open lid.
4. if odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
leaking gas may cause a fire or explosion
which can cause serious bodily injury,
death, or damage to property.
m warninG:
1. do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. an lp cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
#56204
m warninG: follow all leak-check
procedures carefully in this manual prior
to barbecue operation. do this even if the
barbecue was dealer-assembled.
notiCe to installer: these instructions
must be left with the owner and the owner
should keep them for future use.
this Gas applianCe is desiGned for
outdoor use onlY.
m warninG: do not ignite this appliance
without first reading the burner
iGnition sections of this manual.
56204 02/28/11 LP
US - ENGLISH

Advertisement

Table of Contents
loading

Summary of Contents for Weber Summit 670

  • Page 1 GAS GRILL LP Gas Grill Owner’s Guide #56204 You must read this owner’s Guide m warninG: follow all leak-check before operatinG Your Gas Grill. procedures carefully in this manual prior to barbecue operation. do this even if the barbecue was dealer-assembled. m danGer if you smell gas: notiCe to installer: these instructions...
  • Page 2: Warnings

    ® operation.
  • Page 3: Table Of Contents

    ROTISSERIE COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 WEBER ®...
  • Page 4: Exploded View

    EXPLoDED VIEW SUMMIT_670_LP_US_012011...
  • Page 5: Exploded View List

    18. small Knob bezel 40. rotisserie spit assembly 62. Caster 19. small Knob 41. Cooking Grate 63. locking Caster 20. large Knob 42. smoker box 21. large Knob bezel 43. smoker bar 22. sear station Knob 44. smoker burner ® WWW.WEbER.com ®...
  • Page 6: Warranty

    . If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge . If you are required to return defective parts, transportation charges must be prepaid . Weber will return parts to the purchaser, freight or postage prepaid .
  • Page 7: General Instructions

    GENERAL INSTRUcTIoNS storaGe and/or nonuse Your Weber ® gas barbecue is a portable outdoor cooking appliance . With the Weber ® gas barbecue you can grill, barbecue, roast and bake with results that are difficult to • The gas must be turned off at the liquid propane cylinder when the Weber ® duplicate with indoor kitchen appliances . The closed lid and Flavorizer bars produce ®...
  • Page 8: Gas Instructions

    ® and tested to meet 100% CSA and ANSI requirements . m warninG: replacement lp tanks must match the regulator connection supplied with this weber gas appliance. ® liquid propane Cylinder requirements • Check to be sure that cylinders have a D.O.T. certification (1), and that they have been date tested (2) is within five years of use .
  • Page 9: Important Lp Cylinder Information

    GAS INSTRUcTIoNS important lp CYlinder information m danGer neVer store a spare lp cylinder under or near weber ® appliances. neVer fill the tank beyond 80% full. failure to follow these statements exactly may result in a fire causing death or serious injury.
  • Page 10 .) One series of tanks mount with the valve facing front (3) . The other tanks mount with the valve facing away from the fuel scale (4) . Weber recommends the use of cylinder manufacturer’s Manchester and Worthington, with a 47 .6 lb water capacity .
  • Page 11: Check For Gas Leaks

    Note: All factory-made connections have been thoroughly checked for gas leaks. The burners have been flame-tested. As a safety precaution, however, you should recheck all fittings for leaks before using your Weber® gas barbecue. Shipping and handling may loosen or damage a gas fitting.
  • Page 12 Grill. Contact the Customer service representative in your area using the contact information on our web site. log onto www.weber.com ® E) Side burner hose to quick disconnect connection, side burner valve and orifice connections (5) .
  • Page 13: Refilling The Liquid Propane Cylinder

    Grill out™ handle liGht ® The Weber Grill Out™ Handle Light has a built-in “Tilt Sensor . ” With the power button (1) activated, the light will come on when the grill lid is open . The light will turn off when the lid is closed .
  • Page 14: Before Using The Grill

    Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. if the hose is found to be damaged in any way, do not use the barbecue. replace using only weber authorized replacement hose. Contact ®...
  • Page 15: Snap Ignition Operation

    Repeat lighting procedure a second time . m warninG: if the burner still does not light, turn the burner control knob to off and wait five minutes to let the gas clear before you try again or try to light with a match. ◆ WWW.WEbER.com ®...
  • Page 16: Main Burner Ignition & Usage

    Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. if the hose is found to be damaged in any way, do not use the barbecue. replace using only weber authorized replacement hose. Contact ®...
  • Page 17: Main Burner Manual Ignition

    ◆ to eXtinGuish Push in and turn each burner control knob clockwise to OFF position . Turn gas supply off at the source . ◆ WWW.WEbER.com ®...
  • Page 18: Grilling Tips & Helpful Hints

    . • Using a timer will help to alert you when “well-done” is about to become “over-done.” Note: If grill loses heat while cooking, refer to the troubleshooting section of this manual. m warninG: do not move the weber gas barbecue when ® operating or while barbecue is hot.
  • Page 19: Cooking Methods

    . For longer cooking times, add water to the foil pan to keep drippings from burning . The drippings can be used to make gravies or sauces . ◆ WWW.WEbER.com ®...
  • Page 20: Side Burner Ignition & Usage

    Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. if the hose is found to be damaged in any way, do not use the barbecue. replace using only weber authorized replacement hose. Contact ®...
  • Page 21: Side Burner Manual Ignition

    ◆ to eXtinGuish Push down and turn side burner control knob to the OFF position . Be sure the burner is off and cool before closing the side burner lid . ◆ WWW.WEbER.com ®...
  • Page 22: Sear Station ® Ignition & Usage

    Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. if the hose is found to be damaged in any way, do not use the barbecue. replace using only weber authorized replacement hose. Contact ®...
  • Page 23: Sear Station

    Food is placed in the area of intense heat between the lit burners . usinG the sear station ® Your Weber ® gas barbecue includes a sear burner for searing meats such as steak, poultry parts, fish, and chops .
  • Page 24: Smoker Burner Ignition & Usage

    Contact the ® Customer service representative in your area using the contact information on our web site. log onto www.weber.com ® A) Open the grill lid (1) . B) Open smoker box lid (2) . C) Fill smoker with water-soaked wood chunks or chips (3) .
  • Page 25: Smoker Burner Manual Ignition

    Contact the ® Customer service representative in your area using the contact information on our web site. log onto www.weber.com ® A) Open the lid (1) . m danGer failure to open the lid while igniting the grill, or not waiting...
  • Page 26: Using The Smoker

    SmoKER bURNER IGNITIoN & USAGE usinG the smoKer The smoker uses presoaked wood chips . For best results with faster cooking foods like steaks, burgers, and chops, etc ., we recommend using finer wood chips because they ignite and create smoke faster . For longer cooking foods such as roasts, chicken, and turkeys, etc ., we recommend using larger wood chunks because they ignite slowly and provide smoke for a longer period of time .
  • Page 27: Rotisserie Burner Ignition & Usage

    Check hose before each use of grill for nicks, cracking, abrasions or cuts. if the hose is found to be damaged in any way, do not use the grill. replace using only a weber authorized replacement hose. Contact the ®...
  • Page 28: Rotisserie Burner Manual Ignition

    Check hose before each use of grill for nicks, cracking, abrasions or cuts. if the hose is found to be damaged in any way, do not use the grill. replace using only a weber authorized replacement hose. Contact the ®...
  • Page 29: Important Safeguards

    ® plugs, or motor in water or other liquids.
  • Page 30: Rotisserie Cooking

    RoTISSERIE bURNER IGNITIoN & USAGE F) Insert the pointed end of the rotisserie shaft into the motor . Lower the rotisserie spit into the grooves on the cookbox (6) . G) The rotisserie shaft should rotate so that the heavy side of the meat or poultry rotates down to the bottom .
  • Page 31: Troubleshooting

    Check the adjustment pin on the bottom of each door. Loosen adjustment nut/s. Slide door/s until aligned. Tighten nut . if problems cannot be corrected by using these methods, please contact the Customer service representative in your area using the contact information on our web site. log onto www.weber.com ® SIDE bURNER TRoUbLESHooTING PRobLEm cHEcK SoLUTIoN side burner does not light.
  • Page 32: Sear Station ® Troubleshooting

    ® GRILL oUT™ HANDLE LIGHT TRoUbLESHooTING PRobLEm cHEcK SoLUTIoN weber Grill out™ handle light does not light. Are the batteries old? Replace batteries . Are the batteries installed correctly? Refer to assembly illustration . Is the lid in the up position with the power button ON? Light will activate when lid is open .
  • Page 33: Maintenance

    ® Your Weber gas barbecue, as well as any outdoor gas appliance, is a target for spiders m warninG: turn your weber gas barbecue off and wait for ® ® and other insects . They can nest in the venturi section (1) of the burner tubes . This it to cool before cleaning.
  • Page 34: Replacing Main Burners

    mAINTENANcE replaCinG main burners Note: Your Summit ® gas grill must be off and cool. A) Turn gas off at source . B) Disconnect gas supply . C) Remove cooking grates . D) Remove Flavorizer bars . ® E) Remove smoker box (if included in your model) . removing Control panel Parts required: Phillips screwdriver and a towel .
  • Page 35: Side Burner Maintenance

    Make sure white wire is connected between the igniter and grounding clip . Spark should be a white/blue color, not yellow . A) Igniter wire (1) B) Ground wire (2) C) Burner (3) ◆ side burner Grate side burner Cap side burner ring & head igniter electrode Control Knob igniter WWW.WEbER.com ®...
  • Page 36: Annual Maintenance

    . If a spider/insect screen becomes damaged or cannot be cleaned, please contact the Customer Service Representative in your area using the contact information on our web site . Log onto www .weber .com ® burner flame pattern...
