1.

Unpack the box.

2.

Insert the SIM card supplied by your service provider.

3.
Install the battery and completely charge it before using the terminal.

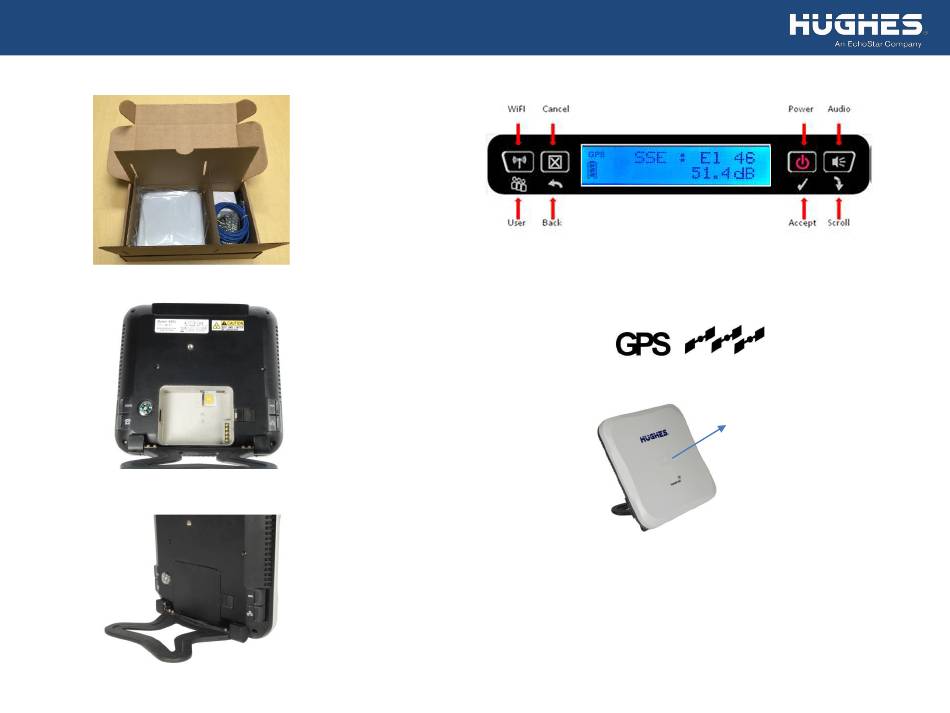

Hughes 9202M Quick Start Guide
4.
Power on the UT by long pressing the Power button (>2 seconds).
Button function, long press (>2 sec)
Button function, short press (<2 sec)
5.
Set up the UT in an open area and allow it to acquire a GPS fix. The GPS
satellite icons on the display will indicate when the UT can see the GPS
satellites. The GPS icon will go solid, and the satellite icons will disappear
when the UT has a fix.
6.
Point the UT at the satellite using the pointing information on the LCD.
7.
Maximize the signal shown on the LCD by adjusting the direction and
elevation angle of the unit. You can also press the audio button to get an
audible indication of the signal. Signal strength should be 50 to 54dB.
8.

Connect an Ethernet cable from your computer to the UT.

Open your browser and enter IP address 192.168.128.100 to access the
home page of the UT Web User Interface.
To satellite
3004217-0001_a
