Hughes 9202
Quick Start User Guide
3500658-0001 Rev C
Revision C
1-August-2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9202 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hughes 9202

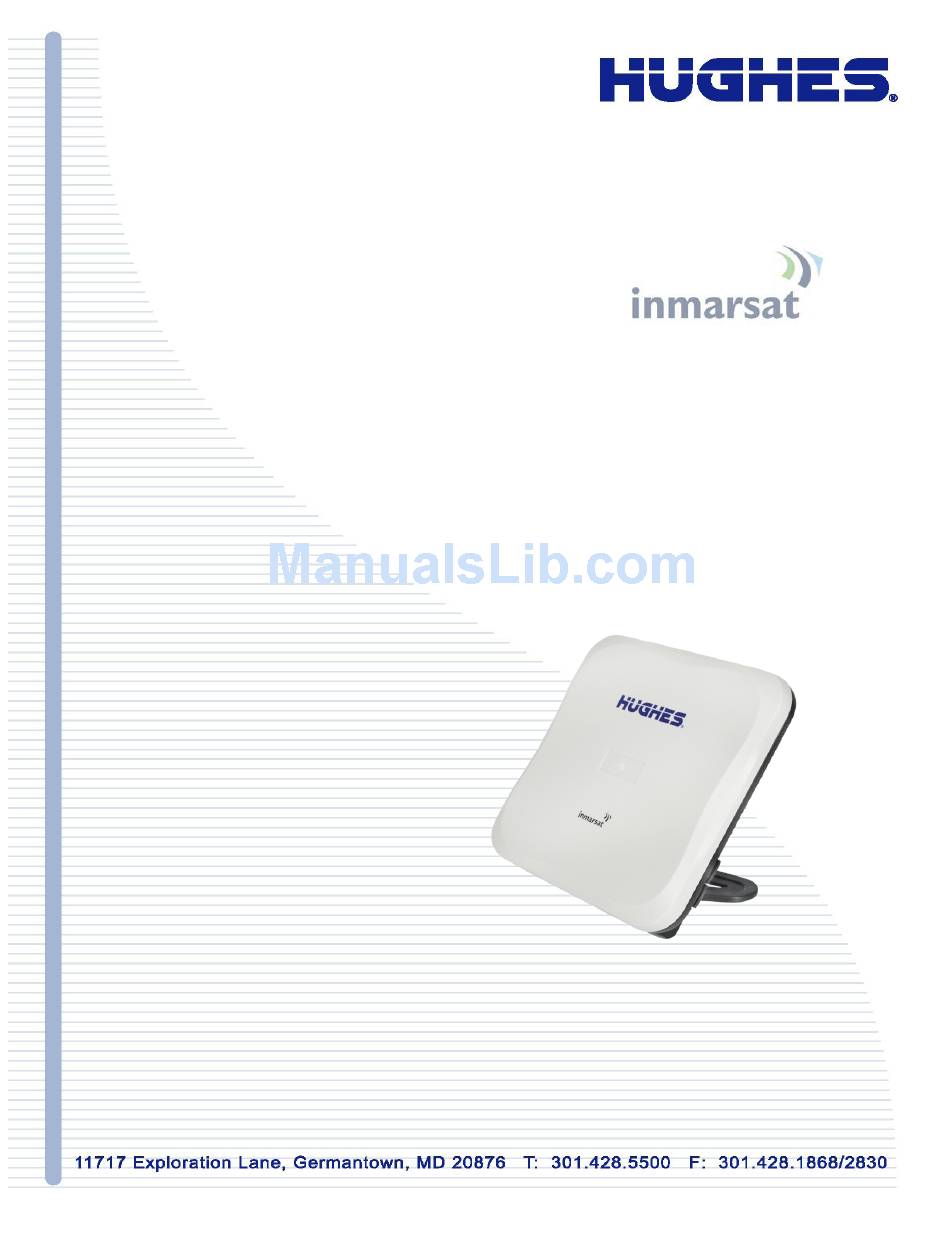

  • Page 1 Hughes 9202 Quick Start User Guide 3500658-0001 Rev C Revision C 1-August-2012...
  • Page 2 Copyright © 2012 Hughes Network Systems, LLC All rights reserved. This publication and its contents are proprietary to Hughes Network Systems, LLC. No part of this publication may be reproduced in any form or by any means without the written permission of Hughes Network Systems, LLC, 11717 Exploration Lane, Germantown, Maryland 20876.
  • Page 3: Table Of Contents

    Coverage Map ............................6 About this Quick Start User Guide ......................6 Package Contents ............................6 Minimum System Requirements for Laptop/PC ..................7 Using the Hughes 9202........................8 Before Getting Started ..........................8 Quick start ..............................8 GPS Icon ..............................8 Satellite Icons ............................
  • Page 4 Application Note – Phone/Fax ....................25  Quick Start User Guide 3500658-0001 Rev C...
  • Page 5: Introduction

    Introduction Overview The Hughes 9202 Land Portable Terminal is the latest Hughes BGAN product to provide reliable satellite connectivity over the Inmarsat BGAN satellite network. The Hughes 9202 comes in a very small and portable package, and it allows the user to send and receive IP packets via Ethernet and WLAN interfaces.
  • Page 6: Coverage Map

    Coverage Map The Inmarsat BGAN service is operated with 3 satellites as shown below. The Hughes 9202 terminal will perform best in areas where the elevation (or “look”) angle is 20 degrees above horizontal or higher, but the terminal can operate down to 5 degrees of look angle.
  • Page 7: Minimum System Requirements For Laptop/Pc

    Mozilla or Safari.  PC Support for Ethernet or WLAN (802.11b or b/g).  100 MB of free hard disk space if using LaunchPad. Only LaunchPad version 5.0.1 or newer supports the 9202.  Quick Start User Guide 3500658-0001 Rev C...
  • Page 8: Using The Hughes 9202

    Power on the unit by pressing the power button for at least 2 seconds. Since the Hughes 9202 terminal is a portable device, you must first obtain a GPS fix by laying the terminal flat with an open view of the sky.
  • Page 9: Satellite Icons

    GPS fix is obtained, both the GPS receiver and all of the satellite icons are turned off and the word “GPS” should go on steady. Figure 1: 9202 Front Panel showing buttons and functions The top line gives the compass bearing and elevation angle of the closest satellite.
  • Page 10: Web Ui Quick Start

    9202’s internal web server. From your terminal equipment (e.g. PC), enter 192.168.128.100 as the URL to access the Hughes 9202’s home page. (See Using the Web UI starting on page 19 for more details.)  The Terminal Status page gives you all the information you need to point and register with the network.
  • Page 11: Connecting The Terminal To The Computer

    Connecting the terminal to the computer You can connect your computer to the 9202 with one or more of the following interfaces  Ethernet  WLAN (Wi-Fi)  Integrated Services Digital Network (ISDN)  During initial setup, the terminal can only be configured using an Ethernet connection.
  • Page 12: Connecting By Ethernet

    Refer to the documentation supplied with your computer for details. Connecting by Ethernet To connect the Hughes 9202 terminal to a device using Ethernet:  Connect a standard Ethernet cable to your device’s Ethernet port, and insert the other end of the connector into the Ethernet port on the 9202.
  • Page 13: Connecting By Rj-11

    0018005551234# (00 + Country code + phone number+ #) RJ-11 and ISDN handsets cannot be used at the same time. You must configure the 9202 to either ISDN or analog telephony mode. When switching between ISDN and analog telephony modes, the 9202 must be rebooted.
  • Page 14: Using The Lcd And Keypad

    Using the LCD and Keypad LCD Display and Keypad The 9202 terminal has an LCD display that provides status information about the terminal. It has a four button keypad that allows you to control the operational features of the terminal without the need of a PC or a browser.
  • Page 15: Menu Navigation

    Menu Navigation From the status display, a short press of the Accept button takes the display to menu mode and displays the first of a circular list of menu items. The menu structure is shown in Figure 2 below. Use the scroll button to scroll between options and the accept button to select options.
  • Page 16: Menu Navigation

    Menu Navigation Level 1 Level 2 Level 3 Level 4 Comment Connection Starts display with the Standard current setting 32 Kbps 64 Kbps 128 Kbps Disconnect Information # New Msgs or New message count No New Msgs 13.32861° N format {Latitude} or Blocked 23.45833°...
  • Page 17: Display Icons

    Display Icons Battery Icon The battery icon displays the estimated life of the battery while under battery power. The battery icon also displays the charging state while under external power. Three segments: 75% to full Two segments: 50% to 74% One segment: 25% to 49% Zero segments: 10% to 24% Zero segments, flashing: 0% to 9%...
  • Page 18: Wireless Lan Icon

    Wireless LAN Icon The wireless LAN icon displays the state of the WLAN feature. Off if Wireless LAN operation is turned off. On if Wireless LAN is on. Wireless LAN Lock Icon The lock icon displays the state of encryption for the WLAN feature.
  • Page 19: Using The Web Ui

    Using the Web UI Accessing the Web UI The Hughes 9202 UT includes its own internal Web User Interface (Web UI). To access the Web UI, open your favorite Web Browser and type in the internal IP address of the UT e.g.
  • Page 20: Support Page

    Support Page This web page allows you to display technical and support information about the terminal and retrieve logs.  Quick Start User Guide 3500658-0001 Rev C...
  • Page 21: Troubleshooting

    Troubleshooting Problem Possible Cause Possible Solution Terminal will not turn on Battery not connected properly Check battery is correctly installed Connect AC/DC converter to Battery not charged charge the battery Cannot get SIM card to lock SIM is not correctly oriented for insertion Ensure the SIM is pressed into position firmly into the SIM slot...
  • Page 22 Problem Possible Cause Possible Solution ISDN device connected to The calling party is using the main MS-ISDN Make sure that the calling terminal will not ring on in- phone number to call the ISDN device. party is using the correct MS- coming calls Device may need the 3.1KHz audio or the ISDN number for the...
  • Page 23 Problem Possible Cause Possible Solution Terminal’s location limits visibility of 3 or Terminal does not obtain a Move the terminal to a GPS fix more GPS satellites. location where there are few obstructions such as trees or tall buildings, so that as much as possible of the sky is visible.
  • Page 24: Technical Specifications

    1. Performance may be affected by a wide range of factors. 2. The Hughes 9202 broadband satellite terminal operates on DC power which can be supplied by an AC or DC power source. To comply with safety requirements, the terminal must be powered with only an AC/DC adapter or DC power adapter supplied or approved by Hughes.
  • Page 25 Application Note – Phone/Fax 1. The Hughes 9202 RJ14 port allows the connection of both a telephone and a fax or modem at the same time (BGAN circuit switched network restrictions mandate that only one is in use at any given time).
  • Page 26 Hughes suggests one of the following splitters for applications requiring both voice and fax/modem. No splitter is needed when accessing the Hughes 9202 RJ11 connector for voice services only. Two line splitter from Calradstore http://www.calradstore.com/70-489.html Omnicron Electronics MTJ-S2 http://www.omnicronelectronics.com/digital/mtj-s2.htm Radio Shack 2-Line 4–conductor Splitter/Adapter http://www.radioshack.com/product/index.jsp?productId=3900035...
