Summary of Contents for Wharfedale Pro TYPHON-AX8

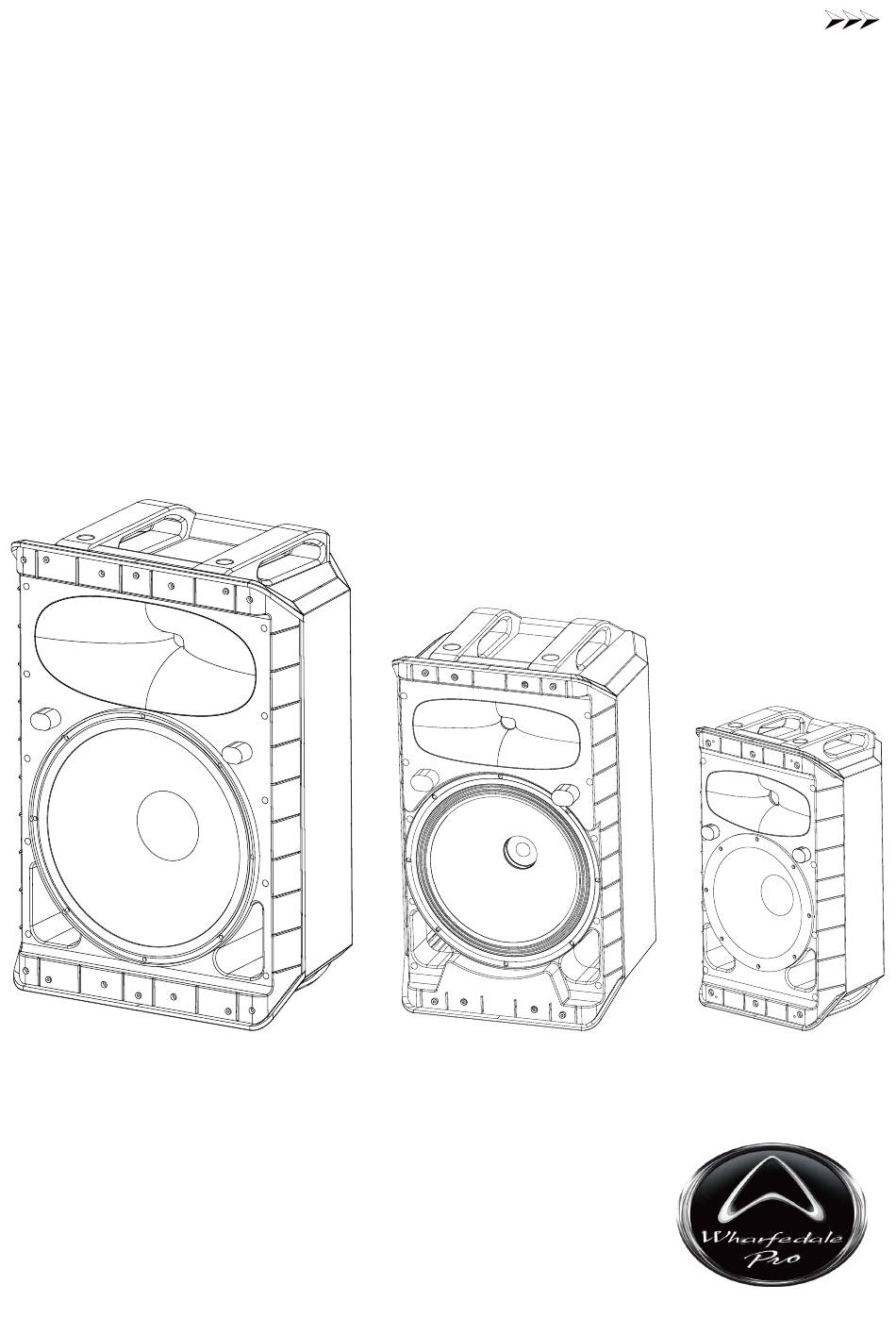

- Page 1 Wharfedale Pro Typhon Series User Manual TYPHON-AX8 TYPHON-AX8-BT TYPHON-AX12 TYPHON-AX12-BT TYPHON-AX15 TYPHON-AX15-BT POWERFUL | PORTABLE | VERSATILE PA WWW.WHARFEDALEPRO.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS …………………………………………… 1 TYPHON - Pronounced - “TYF—ON” ……………………………………………… 2 IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ………………………… 3 - 4 REAR PANEL FEATURES ..………………………………………………………… 5 - 9 TECHNICAL DRAWINGS ………..……..……..……..……..……………………….. 10 - 12 SPECIFICATIONS ……………………………………………………………………. 13 - 15... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS... -
Page 4: Typhon - Pronounced - "Tyf-On
1.75” voice coil. This is coupled to a 100° x 80° waveguide for smooth HF dispersion. The custom Wharfedale Pro LF transducers have newly designed ferrite cores and use flat coil windings to aid cooling. All models feature a moisture rejecting cone material which allows Typhon to be used in damp or humid conditions. -
Page 5: Important Warnings & Safety Instructions
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. - Page 6 CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
-
Page 7: Rear Panel Features
REAR PANEL FEATURES Typhon-AX12 and Typhon-AX12-BT... - Page 8 Typhon-AX15 and Typhon-AX15-BT WWW.WHARFEDALEPRO.COM WWW.WHARFEDALEPRO.COM Typhon-AX15 Serial No. Made in China Serial No. Made in China DSP SETTING DSP SETTING FLAT PUNCH MONITOR BASS FLAT MONITOR BASS PUNCH D-EQ D-EQ ∞ ∞ ∞ ∞ VOLUME VOLUME VOLUME VOLUME LIMIT LIMIT LINE LINE LINE...
- Page 9 Typhon-AX8 and Typhon-AX8-BT DSP SETTING DSP SETTING FLAT MONITOR BASS PUNCH FLAT MONITOR BASS PUNCH D-EQ D-EQ ∞ ∞ ∞ ∞ VOLUME VOLUME VOLUME VOLUME LINE LIMIT LINE LIMIT LINE POWER POWER PAIR 90Hz 90Hz FRONT FRONT LOOP LOOP (BALANCED)
- Page 10 Bluetooth operation (Typhon - BT models only) : a. MONO Mode: Press and release the PAIR button on one speaker only. Select “Wharfedale Pro BT” on your device. The BT LED will change to solid when paired. To disconnect, press and release the PAIR button.
- Page 11 POWER cord input: Typhon uses a standard IEC, three prong, grounded AC elec trical connection. Be sure that you are plugging into the correct source voltage that matches what is indicated just below the power cord jack. RCA Inputs: Typhon-AX8 and Typhon-AX8-BT only. For connection to stereo line level audio sources.
-
Page 12: Technical Drawings
TECHNICAL DRAWINGS TYPHON-AX15 and TYPHON-AX15-BT 480.0... - Page 13 TECHNICAL DRAWINGS TYPHON-AX12 and TYPHON-AX12-BT 154.5 340.0 344.0 Typhon Monitor Wedge Typhon is supplied with a monitor wedge adaptor. This supplied accessory gives you the perfect angle when using Typhon as a stage monitor.
- Page 14 TECHNICAL DRAWINGS Typhon-AX8 and Typhon-AX8-BT 124.5 124.5 256.0 240.0...
-
Page 15: Specifications
SPECIFICATIONS Model Name Typhon-AX15 Typhon-AX15-BT System Type Active 15" 2-way Active 15" 2-way Frequency Response (+/-3 dB) 45 Hz-20 KHz 45 Hz-20 KHz Frequency Range (- 10 dB) 40 Hz-20 KHz 40 Hz-20 KHz Maximum SPL (peak @1 m) 130 dB 130 dB Sensitivity (@ 1 W / 1 m) 99 dB... - Page 16 SPECIFICATIONS Model Name Typhon-AX12 Typhon-AX12-BT System Type Active 12" 2-way Active 12" 2-way Frequency Response (+/-3 dB) 55 Hz-20 kHz 55 Hz-20 kHz Frequency Range (- 10 dB) 50 Hz-20 kHz 50 Hz-20 kHz Maximum SPL (peak @1 m) 129 dB 129 dB Sensitivity (@ 1 W / 1 m) 98 dB...
- Page 17 SPECIFICATIONS Model Name Typhon-AX8 Typhon-AX8-BT System Type Active 8" 2-way Active 8" 2-way Frequency Response (+/-3 dB) 65 Hz-20 kHz 65 Hz-20 kHz Frequency Range (- 10 dB) 60 Hz-20 kHz 60 Hz-20 kHz Maximum SPL (peak @1 m) 127 dB...
- Page 18 2021 August 2021...
