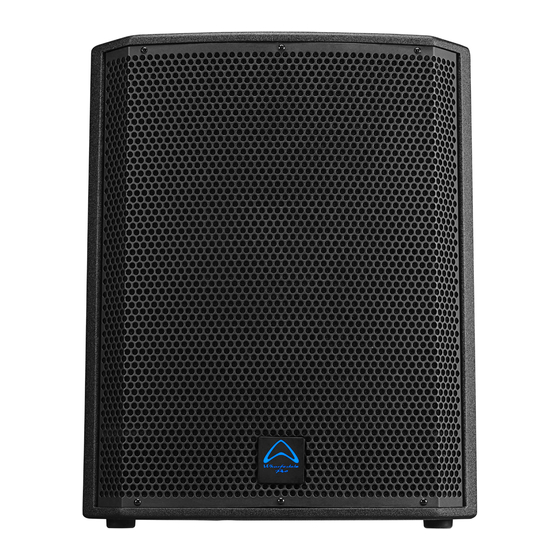

Wharfedale Pro T-Sub-AX18B Quick Start Manual

Your full user manual can also be downloaded from
www.wharfedalepro.com
Congratulations on the purchase of your T-Sub-AX18B. We take great pride in engineering and building every Wharfedale Pro product
and wish to thank you for entrusting us with your audio.
From the time Gilbert Briggs built his first loudspeaker in 1932, to the present day, we have maintained the same standard of quality in
components, workmanship and performance.
Please take the time to read this guide completely in order to get the most from your new system.
Specifications
Frequency Response (+/-3 dB)
Frequency Response (+/-10 dB)
Sensitivity @ 1 w / 1 meter
Maximum SPL (peak @ 1 meter) Half space.
Low Frequency Transducer
Size (mm / inches)
Coil Size (mm / inches)
Low-Frequency Power Amplifier (Class D) 900 W Continuous / 1800 W Peak
Crossover Frequency
Amplifier Protection
Power On Protection
Thermal Protection Amplifier shutdown, auto reset
Driver Protection
Short Protection
Limiter Indicator
Input Connector
Input Impedance
Maximum Input Level
Input Sensitivity
Link Output Connector
Polarity Switch Selection
AC Power details
AC Power Options
Power Indicator Green (back) / Blue logo (front)
Enclosure Material
Pole Mount (Top)
Dimensions (Unpacked)(mm / inches)
Dimensions (packed)(mm / inches)
Net Weight (kg / lbs)
Gross Weight (kg / lbs)
Note : Specifications may be subject to change without notice.
Model Name T-Sub-AX18B
System Type Active 18" Subwoofer
40 Hz-200 Hz
35 Hz-250 Hz
97 dB
133 dB
470 mm / 18"
Quad layer 3.0"
Impedance
Amplifier
LPF 80-200 Hz (adjustable)
Controls
Power switch on / off mute
DC Protection
Red LED
Input type Balanced
2 x socket XLR
47 kΩ Balanced
-10 dBu
2 x pin XLR
0° / 180°
Power Supply SMPS
100 V-120 V and 200 V-240 V
Enclosure
15 mm Plywood
Colour
Paint Tough-Tone
Grille 1.5 mm steel
35 mm
Height 650 mm / 25.6"
Width 528 mm / 20.6"
Depth 638.8 mm / 25.2"
Height 740 mm / 29.0"
Width 725 mm / 28.5"
Depth 614 mm / 24.2"
Weight
36.0 kg / 79.2 lbs
43.5 kg / 95.7 lbs
T-Sub-AX18B
QUICK START GUIDE
Product Features
• 900 Watts Continuous
• 1800 Watts Peak
• 133 dB Max SPL @ 1 meter
• Birch plywood construction
• Illuminated LED front logo badge
• Convection cooled Class D amplifier
• Adjustable low pass filter
4 Ω
• 3.0" voice coil
• Quad layer driver design
• Tough-Tone paint finish
• 35 mm pole socket & durable handles
Yes
Yes
Yes
Yes
Overview
5 V
Black
528.0
638.8
