Wharfedale Pro TYPHON-AX15 Quick Start Manual

Congratulations on the purchase of your Typhon 15" active loudspeaker. We take great pride in engineering and
building every Wharfedale Pro product and wish to thank you for entrusting us with your audio.
From the time Gilbert Briggs built his first loudspeaker in 1932, to the present day, we have maintained the same
standard of quality in components, workmanship and performance.
Please take the time to read this guide completely in order to get the most from your new loudspeaker.
Your full user manual can also be downloaded from www.wharfedalepro.com

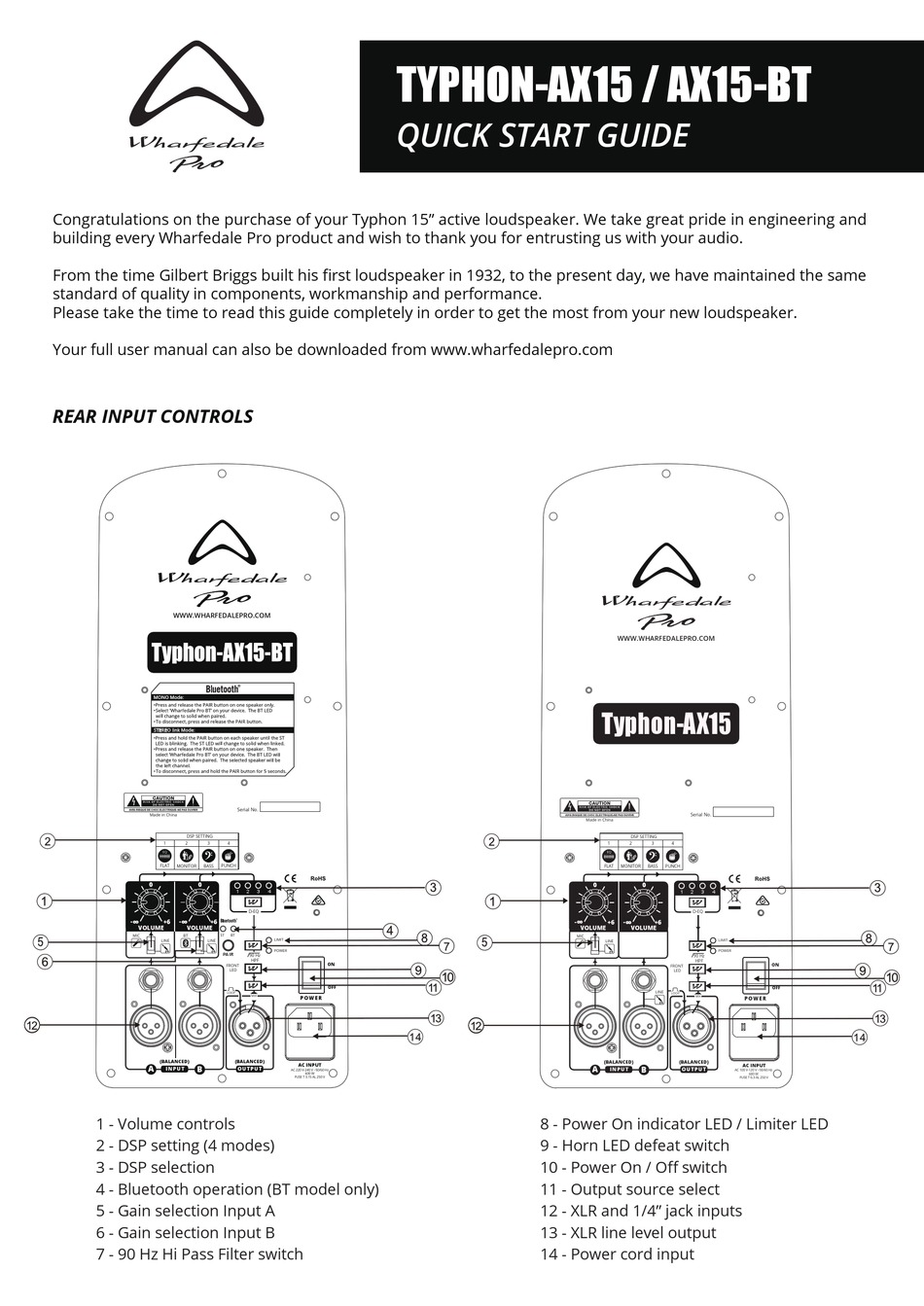

REAR INPUT CONTROLS
WWW.WHARFEDALEPRO.COM
Made in China
DSP SETTING
1 2 3 4
EQ
FLAT PUNCH
MONITOR BASS
∞ ∞
- +6 - +6
VOLUME VOLUME
MIC BT ST
LINE LINE
PAIR
FRONT
LOOP
(BALANCED)
A B
INPUT
1 - Volume controls
2 - DSP setting (4 modes)
3 - DSP selection
4 - Bluetooth operation (BT model only)
5 - Gain selection Input A
6 - Gain selection Input B
7 - 90 Hz Hi Pass Filter switch
TYPHON-AX15 / AX15-BT
QUICK START GUIDE
Serial No.
1 2 3 4
D-EQ
BT
LIMIT
POWER
90 Hz
HPF
ON
LED
OFF
MIX P O W E R
(BALANCED)
AC INPUT
OUT P UT
AC 220 V-240 V ~50/60 Hz
600 W
FUSE T 3.15 AL 250 V
WWW.WHARFEDALEPRO.COM
Typhon-AX15
Serial No.
Made in China
DSP SETTING
1 2 3 4
EQ
FLAT MONITOR BASS PUNCH
1 2 3 4
D-EQ
∞ ∞
- -
+6 +6
VOLUME VOLUME
MIC
LINE
90 Hz
HPF
FRONT
LED
LINE
LOOP
MIX
(BALANCED) (BALANCED)
A
B
INPUT O UT P UT
8 - Power On indicator LED / Limiter LED
9 - Horn LED defeat switch
10 - Power On / Off switch
11 - Output source select
12 - XLR and 1/4" jack inputs
13 - XLR line level output
14 - Power cord input
LIMIT
POWER
ON
OFF
P O W E R
AC INPUT
AC 100 V-120 V ~50/60 Hz
600 W
FUSE T 6.3 AL 250 V
