Power-Button Board; Removing The Power-Button Board - Dell W23C Service Manual

Steps

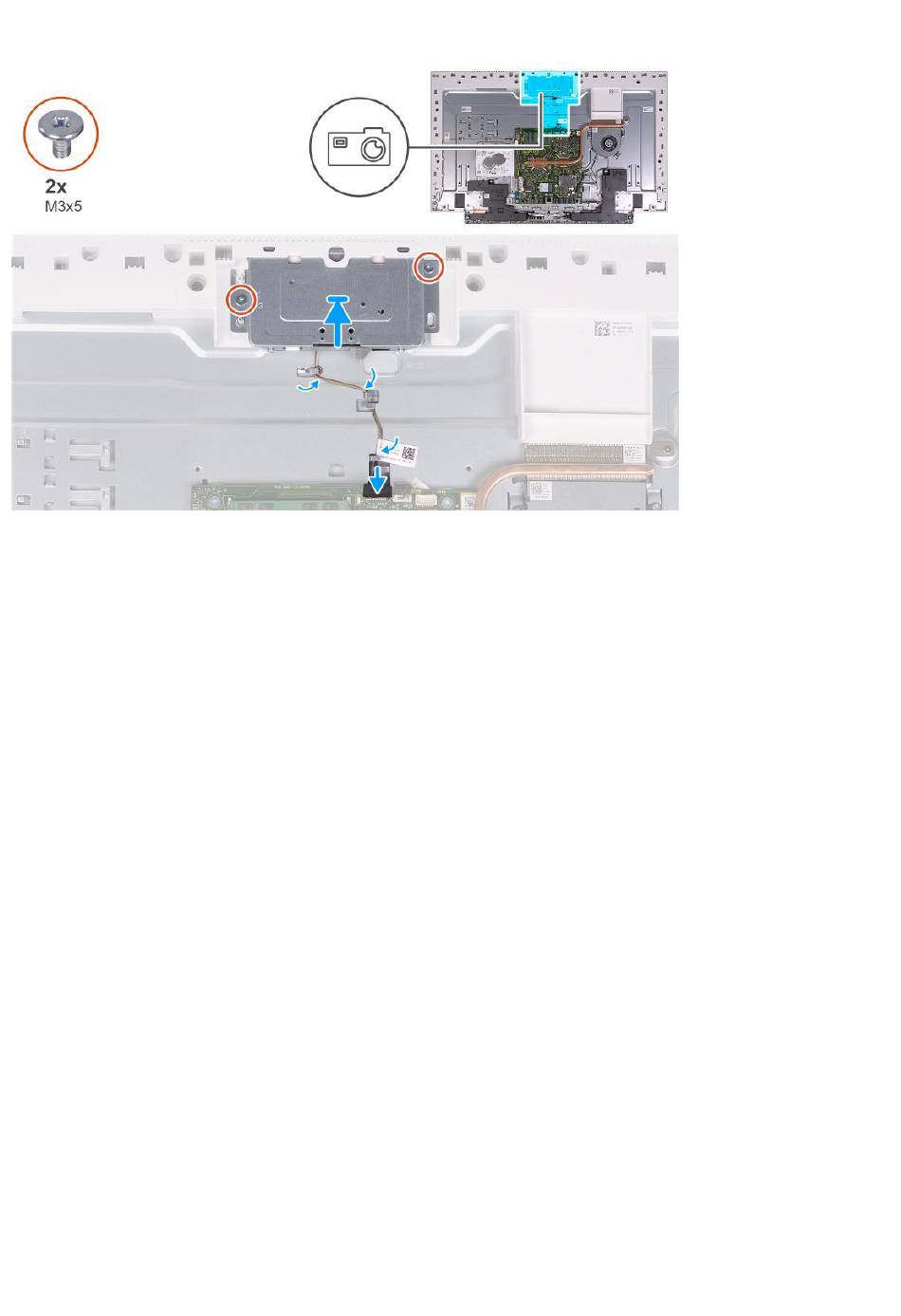

1. Slide and place the retractable-camera assembly on the base panel.
2. Replace the two screws (M3x5) that secure the retractable-camera assembly to the base panel.
3. Route the camera cable through the routing guides on the display-assembly base.
4. Connect the camera cable to the system board.
Next steps
1. Install the system-board
2. Install the stand.
3. Install the bottom cover.
4. Install the back cover.
5. Follow the procedure in

Power-button board

Removing the power-button board

Prerequisites
1. Follow the procedure in
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
5. Remove the system-board
6. Remove the speakers.
About this task
The following image indicates the location of the power-button board and provides a visual representation of the removal
procedure.
shield.
After working inside your
Before working inside your
shield.
computer.
computer.
Removing and installing components 43
