Steps

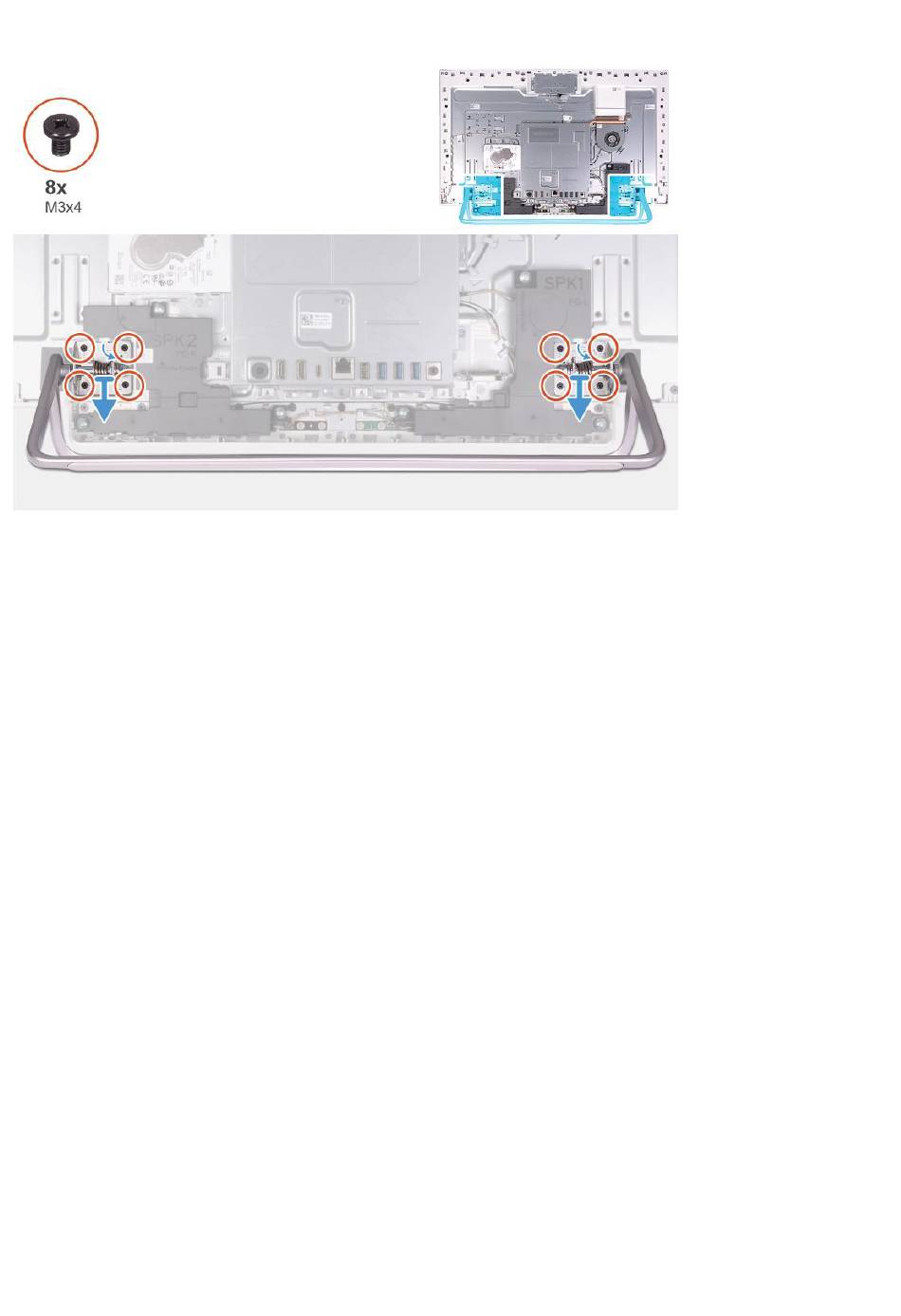

1. In the reverse sequential order indicated on the stand, remove the eight screws (M3x4) that secure the stand to the
display-assembly base.
2. Remove the stand from the slots on the display-assembly base and lift the stand off the display-assembly base.

Installing the stand

Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the stand and provides a visual representation of the installation procedure.
