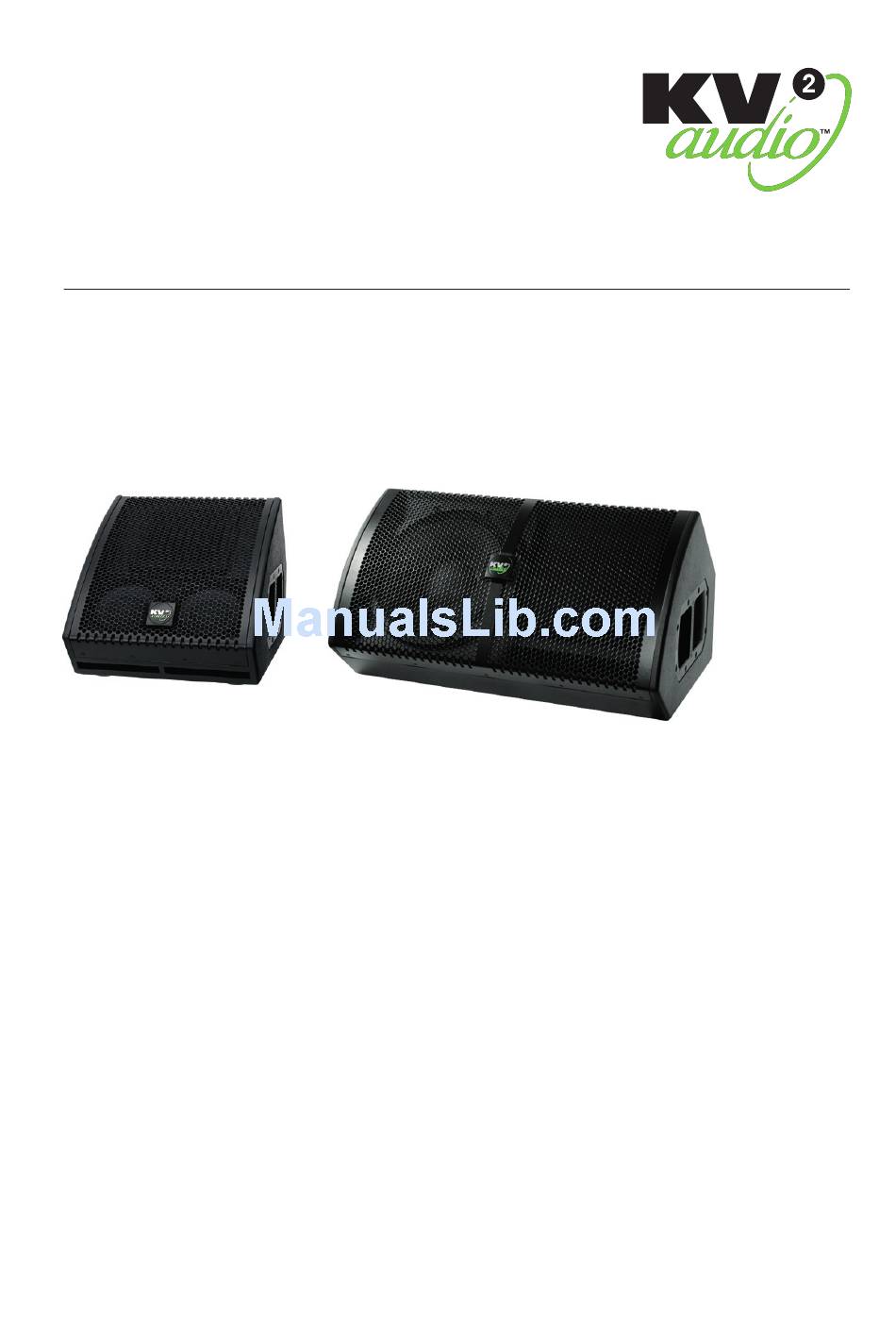

ESM Series
User Guide
· ESM26 · ESM12
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Related Manuals for KV2 Audio ESM26
Summary of Contents for KV2 Audio ESM26
- Page 1 · ESM26 · ESM12 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.
-
Page 2: Table Of Contents
Contents CONTENTS ESM26 - THE ULTIMATE COMPACT PASSIVE MONITOR Overview Drawing Specifications ESM12 - THE ULTIMATE PASSIVE MONITOR Overview Drawing - ESM12L Drawing - ESM12R Specifications ACCESSORIES WARRANTY - SERVICE... -
Page 3: Overview

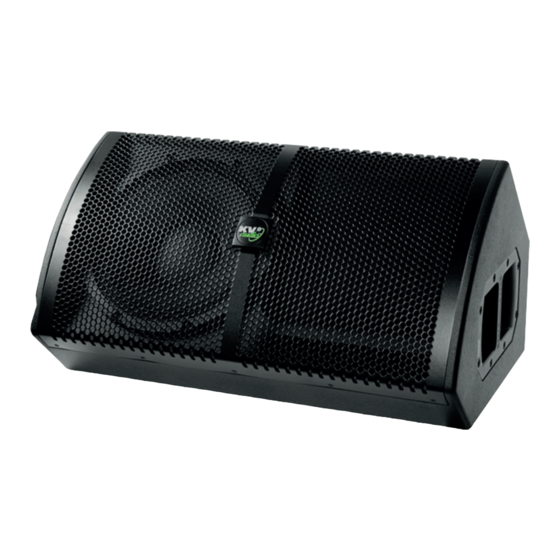

Fixed installations Description The ESM26 is a purpose built stage monitor with incredible clarity and presence, especially in the all important vocal range. Incorporating two high quality 6” drivers and a 1.75” compression driver on a 100x100 degree horn flare. The ESM26 utilises KV2’s revolutionary delay line technology for optimum output and feedback rejection. -
Page 4: Drawing
Drawing... -
Page 5: Specifications
Specifications ESM26 Frequency response (half space) ESM26 Specifications System Acoustic Perfomance Max SPL Long-term 123dB Max SPL Peak 126dB -3dB Response 70Hz to 16kHz Recommended Power 275W Sensitivity 98dB Impedance 8Ω Crossover Point 2.5kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 6: Overview
Overview KVV 987 216 - ESM12L KVV 987 218 - ESM12R THE ULTIMATE PASSIVE MONITOR Applications • Specifically designed as an extremely high output, full range-low profile passive vocal and music floor monitor • Live performance • Concert venues • Portable PA • Fixed installations Description The ESM12 is a full-range low profile 2-way, passive monitoring solution with a 12”... - Page 7 Drawing...
- Page 8 Drawing...
-
Page 9: Specifications
Specifications ESM12 Frequency response ESM12 Specifications System Acoustic Perfomance Max SPL Long-term 127dB Max SPL Peak 130dB -3dB Response 55Hz - 22kHz Recommended Power 500W Sensitivity 98dB Impedance 4Ω Crossover Point 1.2kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 40°... - Page 10 KVV 987 262 KVV 987 261 description: description: - heavy duty - heavy duty - padded - padded Cover for ESM26 part name: COVER ESM26 part number: KVV 987 281 description: - heavy duty - padded Bass speaker cable Speakon 4.40 Bass speaker cable Speakon 4.15...
- Page 11 Accessories RECOMMENDED SPEAKER CABLE LENGTHS MINIMUM CROSS SECTION LENGTH, IMPEDANCE 4Ω LENGTH, IMPEDANCE 8Ω LENGTH, IMPEDANCE 16Ω 2 x 2.5...
- Page 12 If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer.
- Page 13 Notes...
- Page 14 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120075-00-05-0...
