OPERATOR'S MANUAL

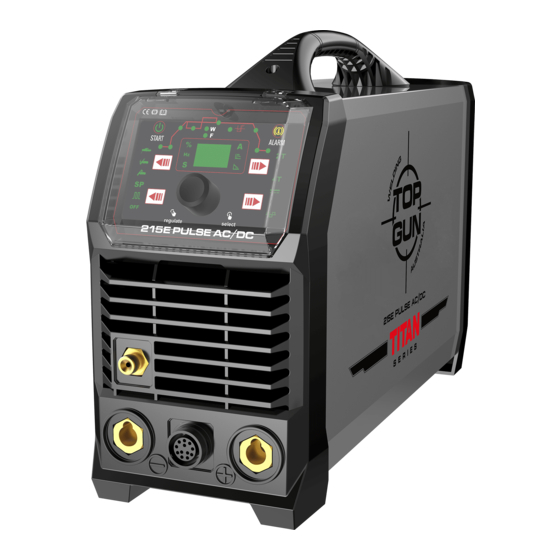

INVERTER AC/DC PULSED TIG WELDER
GTAW 215E AC/DC
2014．06
IMPORTANT: Read this Owner's Manual Completely before attempting to use this
equipment. Save this manual and keep it handy for quick reference. Pay particular
attention to the safety instructions we have provided for your protection. Contact your
.
distributor if you do not fully understand this manual.
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Top Gun GTAW 215E AC/DC
Summary of Contents for Top Gun GTAW 215E AC/DC
- Page 1 OPERATOR’S MANUAL INVERTER AC/DC PULSED TIG WELDER GTAW 215E AC/DC 2014．06 IMPORTANT: Read this Owner’s Manual Completely before attempting to use this equipment. Save this manual and keep it handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection. Contact your...
-
Page 2: Table Of Contents
CONTENT §1 SAFETY ............................. 1 §1.1 S ........................1 IGNAL XPLANATION §1.2 A ....................... 1 ELDING AMAGE §1.3 T ............... 5 HE KNOWLEDGE OF LECTRIC AND AGNETIC IELDS §2 SUMMARY ............................6 § 2.1 B ........................6 RIEF NTRODUCTION §2.2 M ........................ -
Page 3: Safety
SAFETY §1 SAFETY §1.1 Signal Explanation The above signals mean warning! Notice! Running parts and getting an electric shock or thermal parts will take damage for your body or others. The corresponding notices are as follows. It is quite a safe operation after taking several necessary protection measures. - Page 4 SAFETY semiautomatic welding gun are also electrically “hot”. Always be sure the work cable makes a good electrical connection with the metal being welded. The connection should be as close as possible to the area being welded. Maintain the electrode holder, work clamp, welding cable and welding machine in good, safe operating condition.
- Page 5 SAFETY arc when welding or observing open arc welding. Use suitable clothing made from durable flame-resistant material to protect your skin and that of your helpers from the arc rays. Protect other nearby personnel with suitable, non-flammable screening and /or warn them not to watch the arc nor expose themselves to the arc rays or to hot spatter or metal.
- Page 6 SAFETY an explosion even though they have been “cleaned”. Vent hollow castings or containers before heating, cutting or welding. They may explode. Sparks and spatter are thrown from the welding arc. Wear oil free protective garments such as leather gloves, heavy shirt, cuff less trousers, high shoes and a cap over your hair.
-
Page 7: The Knowledge Of Electric And Magnetic Fields
SAFETY §1.3 The knowledge of Electric and Magnetic Fields Electric current flowing through any conductor causes localized Electric and Magnetic Fields (EMF). The discuss on the effect of EMF is ongoing all the world. Up to now, no material evidences show that EMF may have effects on health. -
Page 8: Summary
SUMMARY §2 SUMMARY § 2.1 Brief Introduction GTAW 200P AC/DC welding machine adopts the latest pulse width modulation (PWM) technology and insulated gate bipolar transistor (IGBT) power module, which can change work frequency to medium frequency so as to replace the traditional hulking work frequency transformer with the cabinet medium frequency transformer. - Page 9 SUMMARY ⚫ DC Pulse TIG ⚫ AC MMA ⚫ AC TIG ⚫ AC Pulse TIG 1.For DC MMA, polarity connection can be chosen according to different electrodes，please refer to §3.5； 2.For AC MMA, magnetic flow caused by invariable DC polarity can be avoided； 3.For DC TIG, DCEP is used normally (workpiece connected to positive polarity, while torch connected to negative polarity).
-
Page 10: Module Explanation
SUMMARY IGBT——Insulation Gate Bipolar Transistor TIG——Tungsten Insert Gas welding §2.2 Module Explanation The module explanation of arc welding machine must accord with the correlative prescripts of National Standard GB10249. It is explained as the following (take WSME-200 as an example). §2.3 Working Principle The working principle of GTAW 200P AC/DC welding machines is shown as the following figure. -
Page 11: Volt-Ampere Characteristic
SUMMARY §2.4 Volt-Ampere Characteristic GTAW 200P AC/DC welding machine has an excellent volt-ampere characteristic, whose graph is shown as the following figure. The relation between the conventional rated loading voltage U and the conventional welding current I is as follows: ≤600A，U ＞600A,U When I... -
Page 12: Installation And Adjustment
INSTALLATION AND ADJUSTMENT §3 Installation and Adjustment §3.1 Parameters Models GTAW 200 AC/DC GTAW 200P AC/DC Parameters Input power (V) 1~220/230/240±10% 1~220/230/240±10% Fre.（HZ） 50/60HZ 50/60HZ 30.5（AC TIG） 39.1（AC MMA） 30.5（AC TIG） 39.1（AC MMA） Rated input current（A） 28.3（DC TIG） 40.7（DC MMA） 28.3（DC TIG）... -
Page 13: Duty Cycle & Over Heat
INSTALLATION AND ADJUSTMENT 3.2 Duty cycle & Over heat The letter “X” stands for duty cycle, which is defined as the proportion of the time that a machine can work continuously within a certain time (10 minutes). The rated duty cycle means the proportion of the time that a machine can work continuously within 10 minutes when it outputs the rated welding current. -
Page 14: Polarity Connection（Mma
INSTALLATION AND ADJUSTMENT When the power supply voltage is over the safe work voltage, there are over voltage and under voltage protection inside the welder, the alarm light will on, at the same time, the current output will be cut off. If the power supply voltage continually goes beyond the safe work voltage range, it will shorten the welder life-span. -
Page 15: Assembling The Equipment (Tig)
INSTALLATION AND ADJUSTMENT §3.6 Assembling the equipment (TIG) ⚫ Workpiece is connected to the positive electrode of welding machine, and welding torch is connected to the negative electrode, which is called DC POSITIVE CONNECTION; otherwise, that is called DC NEGATIVE CONNECTION. Generally, it is usually operated in DC POSITIVE CONNECTION in TIG welding mode. -
Page 16: Operation
MAINTENANCE AND TROUBLESHOOTING §4 Operation §4.1 Layout for the panel Positive output The welder’s positive polarity output. Negative output The welder’s negative polarity output. Aero socket Is connected to torch switch control wire.（It has 14 leads and lead 8 - lead 9 are connected to torch switch control wire）. -
Page 17: Control Panel
INSTALLATION AND ADJUSTMENT §4.2 Control panel SIM-GTAW 200P AC/DC... - Page 18 INSTALLATION AND ADJUSTMENT GTAW 200P AC/DC...
-
Page 19: Pedal Switch Control
INSTALLATION AND ADJUSTMENT §4.3.1 Pedal switch control ● When plug the fourteen-lead aero-socket of pedal switch in it. Welder will identify the pedal switch, the welding current knob on the front panel will can’t use，and only 2T can be selected. ●... -
Page 20: Gun Switch Control Current
MAINTENANCE AND TROUBLESHOOTING §4.3.2 Gun switch control current Adjust current button, when Gun switch it’s pushed up, the current increase, when it’s pushed down, the current decrease. §4.4 Argon Arc Welding Operation §4.4.1 TIG welding （4T operation） The start current and crater current can be pre-set. This function can compensate the possible crater that appears at the beginning and end of the welding. -
Page 21: Tig Welding (2T Operation)
MAINTENANCE AND TROUBLESHOOTING ⚫ t2～t3： The output current rises to the setting value (Iw or Ib), the upslope time can be adjusted; ⚫ t3～t4： Welding process. During this period, the gun switch is loosen; Note: Select the pulsed output, the base current and welding current will be outputted alternately; otherwise, output the setting value of welding current;... - Page 22 MAINTENANCE AND TROUBLESHOOTING ⚫ t1～t2: Arc is ignited and the output current rises to the setting welding current (Iw or Ib) from the min welding current. ⚫ t2～t3: During the whole welding process, the gun switch is pressed and held without releasing.
-
Page 23: Welding Parameters
MAINTENANCE AND TROUBLESHOOTING ⚫ Check that whether there is enough Argon gas in the shield gas cylinder, you can test the electromagnetic gas valve through the switch on the front panel. ⚫ Do not let the torch aim at your hand or else of your body. When you press the torch switch, the arc is ignited with a high-frequency, high-voltage spark, and the ignition spark can cause interferences in equipment. -
Page 24: Tig Parameters Matching
MAINTENANCE AND TROUBLESHOOTING §4.5.3 TIG Parameters Matching The corresponding relationship between gas nozzle diameter and electrode diameter Gas nozzle diameter/mm Electrode diameter/mm 1.6 or 2.4 11.1 Notice: the above parameters originate from《Welding Dictionary》P142, Volume 1 of Edition 2. Gas nozzle and the shield gas flow rate DC positive connection Welding current Gas nozzle... - Page 25 MAINTENANCE AND TROUBLESHOOTING TIG of stainless steel (single run welding) Workpiece tungsten Argon gas welding Welding welding wire thickness Joint form electrode flow rate/ current speed/ diameter/mm diameter/mm L·min (DCEP) cm·min Butt joint 20～50 Butt joint 50～80 Butt joint 65～105 Corner 75～125 joint...
-
Page 26: Operation Environment
MAINTENANCE AND TROUBLESHOOTING Parameters of AC TIG (MMA) for Aluminum and its alloy Argon Welding Tungsten Pre-heat flow Sheet Welding wire electrode Temper rate nozzle Remark thickness current diameter diameter -ature diameter /℃ L·min － 45～60 7～9 Flange welding Flange or butt －... -
Page 27: Operation Notices
MAINTENANCE AND TROUBLESHOOTING ● Operation temperature range:-10 C～+40 ● Relative humidity is below 90 % (20 ● Preferably site the machine some angles above the floor level, the maximum angle does not exceed ● Protect the machine against heavy rain or in hot circumstance against direct sunshine. ●... - Page 28 MAINTENANCE AND TROUBLESHOOTING date Maintenance item Observe that whether panel knob and switch in the front and at the back of arc welding machine are flexible and put correctly in place. If the knob has not been put correctly in place, please correct;...
-
Page 29: Troubleshooting
MAINTENANCE AND TROUBLESHOOTING §5.2 Troubleshooting ⚫ Before arc welding machines are dispatched from the factory, they have already been debugged accurately. So forbid anyone who is not authorized by us to do any change to the equipment! ⚫ Maintenance course must be operated carefully. If any wire becomes flexible or is misplaced, it maybe potential danger to user! ⚫... - Page 30 MAINTENANCE AND TROUBLESHOOTING Troubles Reasons Solution no-load voltage output The machine is damaged Check the main circuit and the Pr4. (MMA) The welding cable is not connected with the Connect the welding cable to the two output of the welder. welder’s output.
- Page 31 MAINTENANCE AND TROUBLESHOOTING Troubles Reasons Solution Over-voltage Power supply Using the stable power supply protection fluctuates Power supply Using the stable power supply fluctuates Low-voltage Too many machines protection Reduce the machines using power using power supply supply in the same time in the same time Over-current Unusual current in...
-
Page 32: Electrical Principle Drawing
MAINTENANCE AND TROUBLESHOOTING §5.3 Electrical principle drawing... - Page 33 MAINTENANCE AND TROUBLESHOOTING...
