Top Gun CUT-40M Operation Instructions Manual

Dc inverter air plasma cutting machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

THANKS FOR PURCHASING OUR PRODUCT
DC INVERTER
AIR PLASMA
CUTTING MACHINE
OPERATION INSTRUCTIONS
（ BE SUITABLE FOR 1x220V or 1x110V ）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUT-40M and is the answer not in the manual?

Questions and answers

Related Manuals for Top Gun CUT-40M

Summary of Contents for Top Gun CUT-40M

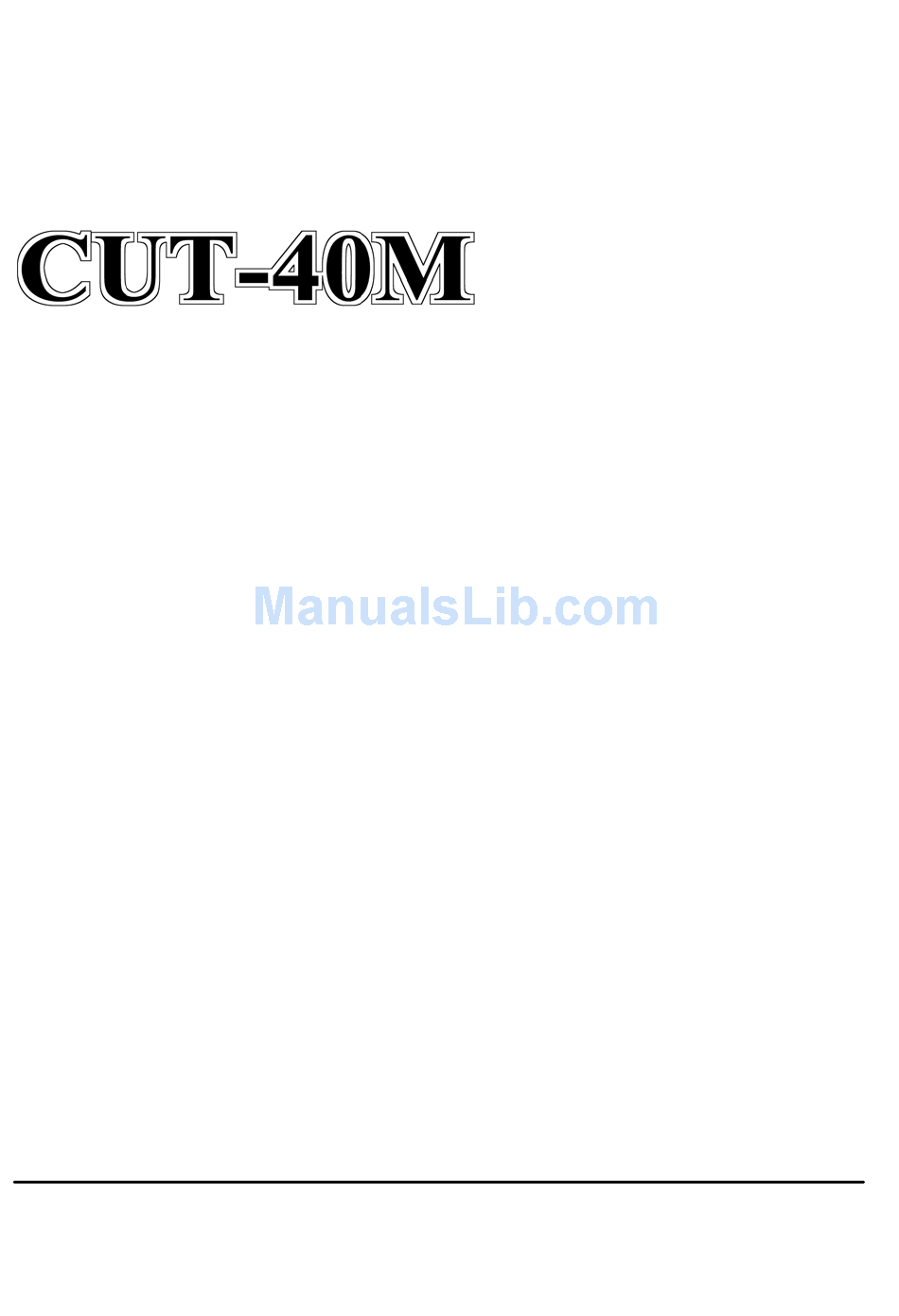

  • Page 1 THANKS FOR PURCHASING OUR PRODUCT DC INVERTER AIR PLASMA CUTTING MACHINE OPERATION INSTRUCTIONS （ BE SUITABLE FOR 1x220V or 1x110V ）...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Follow these precautions carefully. Improper use of any welder can result in injury or death. 1. ONLY CONNECT WELDER TO A POWER SOURCE FOR WHICH IT WAS DESIGNED. The specification plate on the welder lists this information. When welding outdoors only use an extension cord intended for such use.

  • Page 3: Brief Introduction

    1.BRIEF INTRODUCTION CUT-40M INVERTER AIR PLASMA CUTTING MACHINES are all our own high-new technical products with special purpose power parts and up-to-date inverter control IC. The machines hold a safe lead of traditional products and other inverter cutting machines by their cutting thickness ,seam smooth degree, arc generation and cutting current ,and the machine is compressed air and the cost of cutting is very low.

  • Page 4: Front Panel

    2. For the safety of the equipment and the persons, the customer must correctly make grounding or protection according to the power supply system:using 4 mm lead to connect the protection grounding of the cutting machine. 3. Cutting operating should be carried out in dry and good ventilating area. The surrounding objects should be not less than 0.5m away from the cutting machine.

  • Page 5: Method Of The Operation

    6. METHOD OF THE OPERATION 1. Connect the machine correctly according the sketch. And switch on the air compressor until to its rated pressure. It will be turned off automatically to adjust the air pressure-reduced valve to the proper value.(0.2-0.35MPa generally) 2.

  • Page 6: Problem Solving

    General Troubles and Problem Solving TROUBLE CAUSES PROBLEM SOLVING 1. No electricity input 1. Check incoming line Power lamp not light 2. Power switch of machine fails 2. Replace the switch 1. Fan power line is off 1. reconnect the line 2.

  • Page 7: Packing List

    ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ Certificate of quality Name of product:DC INVERTER AIR PLASMA CUTTING MACHINE Type of product: CUT-40M Packing Test results of this welder fulfils_____________ _________technical requirements and its release from the works is granted.
  • Page 8 Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. WARNING electrode with skin or wet clothing. Insulate yourself from work and ground. Spanish No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el AVISO DE bajo carga con la piel o ropa moja-...
  • Page 9 Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or Use ventilation or exhaust to guards off. WARNING remove fumes from breathing zone. Spanish Los humos fuera de la zona de res- Desconectar el cable de ali- No operar con panel abierto o AVISO DE...
