Models:
58460 - 3" Pad, Non-Vac
58461 - 3" Pad, Vac-Ready
58462 - 3" Pad, Central Vac
WARNING
!
Index Key
No. Part # Description
1 Sanding Pad: See Chart
2 57262 Balancer Shaft
3 95630 Snap Ring
4 95628 Bearing Shield
5 56053 Bearing Seal
6 56052 Bearing
7 Motor Shaft Balancer:
58474 3" & 3-1/2"
8 54673 Key
9 56046 Lock Ring
10 02695 Bearing
11 54630 Front Bearing Plate
12 54705 Rotor/Blade Set (5/pkg.)
13 56595 Cylinder
(Includes: 95865 Pin)
14 01020 O-Ring
15 54629 Rear Bearing Plate
16 01206 Bearing
17 56713 Lock Assembly
18 96252 Compression Spring
19 56705 Post Cap
20 57264 Post Assembly
21 56712 Switch Bottom
22 96478 O-Ring
23 54458 Shroud
24 Housing: See Chart
(Includes: 56591 Grip)
25 56711 Switch Top
26 96489 Screw
27 95627 Pin
28 56582 Safety Throttle Lever
29 98459 O-Ring
30 56579 Valve Stem
31 56578 Speed Regulator
32 01025 O-Ring (3)
33 56598 Seal
34 51944 Tip Valve
35 51943 Spring
36 56586* Vacuum Plug
37 96459 O-Ring
38 56469 Exhaust Gasket
39 56468 Handle Assembly
(Includes, 51938 Inlet Screen)
40 96469 Screw (2)
41 96454 Screw (2)
42 56597* Muffler
43 56596* Muffler Cap
*Parts included with Non-Vacuum
Models Only.
58465 - 3-1/2" Pad, Non-Vac
58466 - 3-1/2" Pad, Vac-Ready
58467 - 3-1/2" Pad, Central Vac
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
26
25
24
23
22
O
1
19
18
T
12 N•m
16
13
11
9

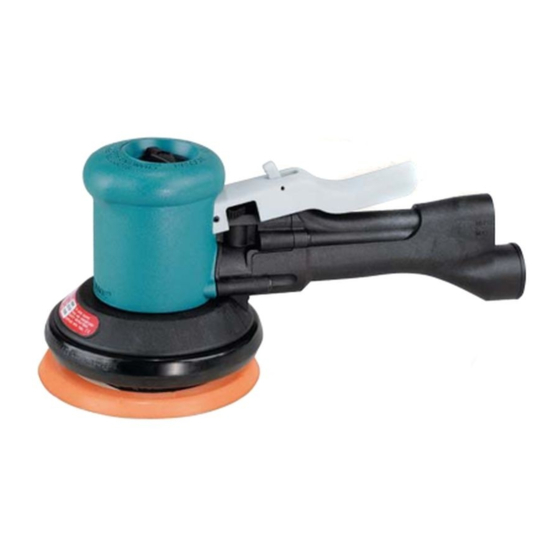

Dual Action Sander
12,000 RPM Air Motor and Machine Parts
27
29
30
O
28
1
31
O
1
32
35
34
33
38
36
21
20
LEFT HAND
THREAD
A
3
17
8
15
A
14
2
O
6
1
4
12
O
1
2
A
2
10
T
34 N•m
Parts Page Reorder No. PD04•11
Effective January, 2004
Dynalocke
O
Oil: O
= Air Lube
1
A
Adhesive: A
A
T
Torque: N•m x 8.85 = In. - lbs.
O
1
37
41
T
39
HOUSING
ASSEMBLY #
64470
64471
64472
64473
64474
64475
LEFT HAND
THREAD
7
5
3
SANDING PADS
56084 - 3" Non-Vac
1
56084 - 3" Vac
56098 - 3-1/2" Non-Vac
56098 - 3-1/2" Vac
TM
'
s
KEY
= Loctite #271
2
= Loctite #242
3
40
T
3 N•m
43
42
3 N•m
MODEL
NUMBER
58460
58461
58462
58465
58466
58467
Advertisement
Related Manuals for Dynabrade Dynalocke 58460
Summary of Contents for Dynabrade Dynalocke 58460
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools WARNING ’ (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade Warning/Safety Operating Instructions for more complete safety information. Index Key No.
- Page 2 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade Rotary Vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 20 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 2 drops per minute).
- Page 3 Set (5) onto the motor shaft balancer. 8. Apply the 95842 Dynabrade Air Lube (10W/NR or equivalent) to the blades. 9. Install the 56595 Cylinder over the rotor so that the short line-up pin fits into the front bearing plate.
- Page 4 Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed. Operate tool...
