Models:
58410 - 3/16" Orbit, Non-Vac
58411 - 3/16" Orbit, Vac-Ready
58414 - 3/16" Orbit, Central Vac
WARNING

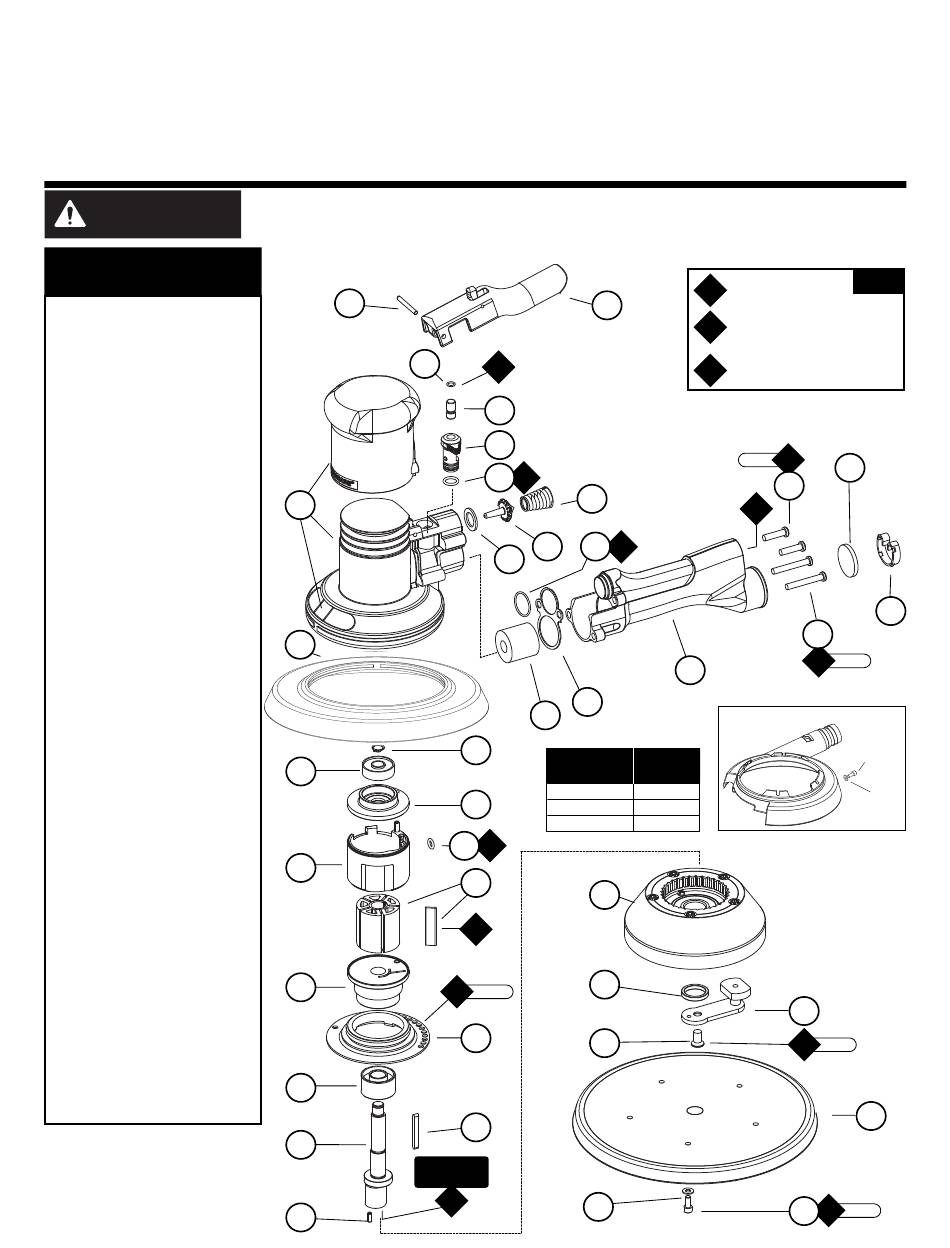

Index Key
No. Part # Description
1 95178 Screw (5)
2 95886 Washer (5)
3 Sanding Pad:
56234 8" Non-Vacuum
56235 8" Vacuum
4 96477 Screw
5 56478 8" Balance Arm Assy.
6 56474 Balance Washer
7 56470 Mount Plate Assembly
8 01673 Pin
9 56589 Shaft
10 54673 Key
11 56133 Bearing
12 57332 Lock Ring
13 56594 Front Bearing Plate
14 54705 Rotor/Blade Set (5/pkg.)
15 56595 Cylinder
(Includes: 95865 Pin)
16 95911 O-Ring
17 54629 Rear Bearing Plate
18 01206 Bearing
19 95626 Retaining Ring
20 Shroud:
56489 8" Non-Vacuum
57736 8" Vacuum Overskirt
21 Housing: See Chart
(Includes: 56581 Housing Grip
and Labels)
22 95627 Pin
23 56582 Safety Throttle Lever
24 98459 O-Ring
25 56579 Valve Stem
26 56578 Speed Regulator
27 01025 O-Ring (3)
28 56598 Seal
29 51944 Tip Valve
30 51943 Spring
31 56586* Vacuum Plug
32 56469 Exhaust Gasket
33 96459 O-Ring
34 56468 Handle Assembly
(Includes: 51938 Inlet Screen)
35 96469 Screw (2)
36 96454 Screw (2)
37 56597* Muffler
38 56596* Muffler Clip
*Specific Components For Models:
8" Non-Vacuum
8" Central Vacuum
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
22
24
21
20
18
15
13
11
9
I.D. Of Threads
8

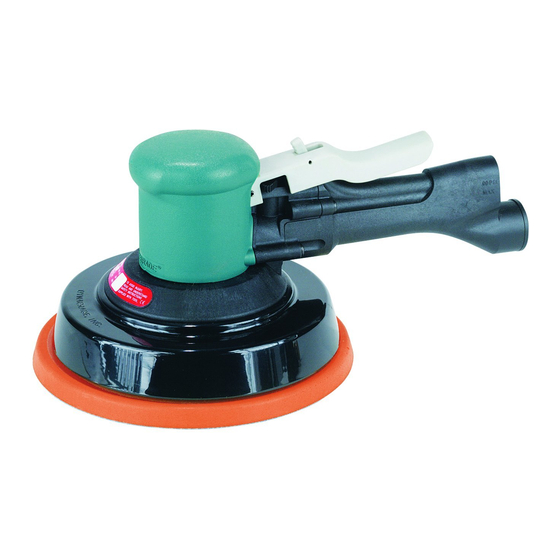

Random Orbital Sander
10,000 RPM Air Motor and Machine Parts
23
O
1
25
26
O
27
1
30
29
33
28
32
31
19
HOUSING
ASSEMBLY #
64441
17
64442
64445
O
16
1
14
7
O
1
6
T
34 N•m
12
4
10
Apply To
A
3
2
Parts Page Reorder No. PD06•25R
Effective December, 2013
Supersedes: PD06•25
8" 2-Hand
Oil: O
= Air Lube
O
1
A
Adhesive: A
Torque: N•m x 8.85 = In. - lbs.
T
T
3 N•m
35
O
1
O
1
34
57736 VACUUM SHROUD
MODEL
NUMBER
58410
58411
58414
'
s
KEY
= Loctite #243
3
37
38
36
T
3 N•m
96425
Screw (4)
95886
Washer (4)
5
T
9 N•m
3
T
1
3 N•m
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynabrade 58410
Summary of Contents for Dynabrade 58410
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools WARNING ’ (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade Warning/Safety Operating Instructions for more complete safety information. Index Key No.
- Page 2 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade Rotary Vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 20 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 2 drops per minute).
- Page 3 4. Install the 54673 Key so that the 90° side of the key fits into the keyway of the shaft and the tapered side of the key fits into the rotor. Install the 54705 Rotor/Blade Set (5) onto the shaft. 5. Apply the 95842 Dynabrade Air Lube (10W/NR or equivalent) to the blades. 6. Install the 56595 Cylinder over the rotor so that the short line-up pin fits into the front bearing plate.
- Page 4 Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed. Operate tool for 30 seconds to determine if tool is operating properly and to allow lubricating oils to properly penetrate motor.
