For Serial No. 3A2827 and Higher
Model:
58050 – 3,200 RPM

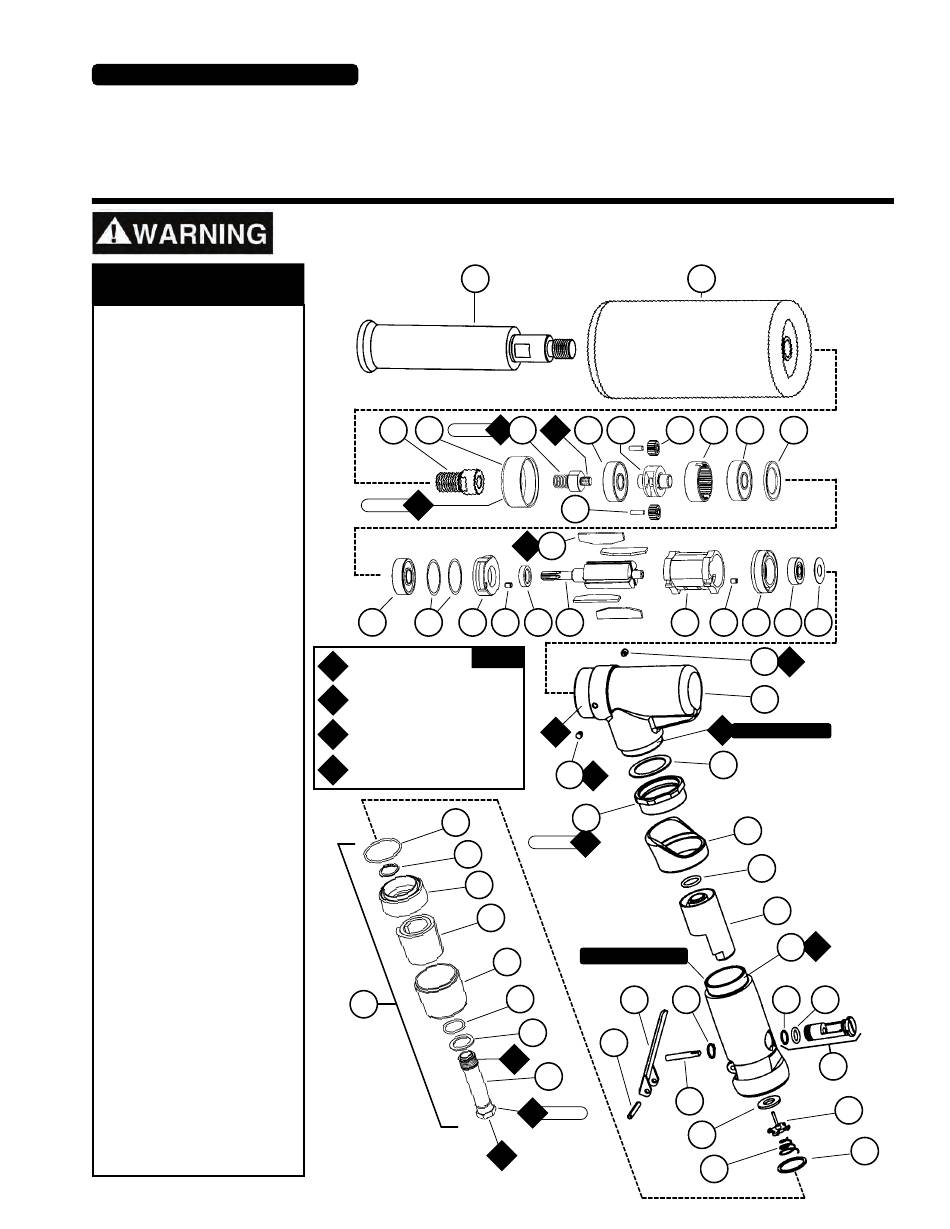

Index Key
No. Part #
Description
1 58057 Handle w/ 5/8"-11 Spindle
2 94434 Dynacushion 3 1/4" x 7"
(5/8"-11 Threaded Bore)
3 55034 Adapter (5/8"-11 Male)
4 50781 Rear Exhaust Cover
5 50782 Adapter
6 54520 Bearing (2)
7 54472 Gear Shaft (2)
8 50786 Planetary Carrier
9 54519 Gear w/ Needle Bearing (2)
10 54468 Ring Gear
11 50778 Spacer
12 02649 Bearing
13 54529 Shim Pack (3/pkg.)
14 01478 Front Bearing Plate
15 50767 Pin (2)
16 01479 Spacer
17 54554 Rotor
18 01480 Blade (4/pkg.)
19 01476 Cylinder
20 02673 Rear Bearing Plate
21 02696 Bearing
22 02679 Shield
23 50784 Screw Set
24 50776 Housing
25 01041 Grease Fitting
26 01548 Gasket
27 01461 Lock Nut
28 01558 Collar
29 95523 O-Ring
30 01470 Insert
31 12132 Pin
32 01448 Throttle Lever
33 95558 Retaining Ring
34 01449 Valve Stem
35 01488 Housing
36 95730 O-Ring
37 01024 O-Ring
38 01469 Speed Regulator Assembly
39 01464 Seal
40 01472 Tip Valve
41 01468 Spring
42 01564 Air Control Ring
43 95438 O-Ring
44 95711 Retaining Ring
45 94521 Muffler Base
46 94528 Felt Muffler
47 94522 Muffler Cap
48 95375 O-Ring
49 94526 Spacer
50 94523 Inlet Adapter
51 94519 Muffler Assembly
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
3
4
17 N•m
28 N•m
T
12
13
O
Oil: O
= Air Lube
1
G
Grease: G
= Lubriplate 630 AA
1
Adhesive: A
= Loctite #271
A
2
A
= Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
43
51

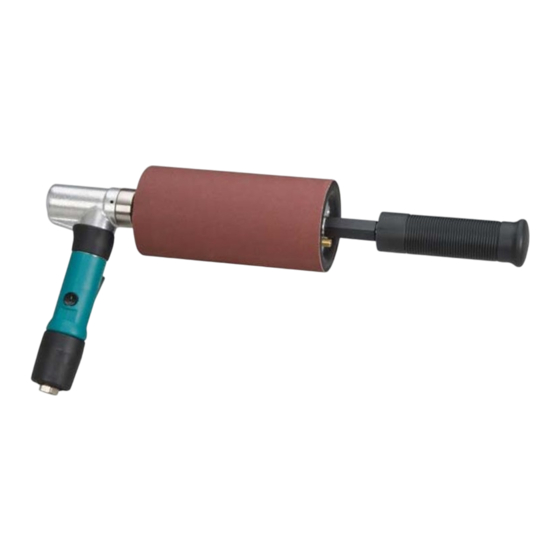

Rolling Pin Sander
1
5
A
6
8
T
2
7
O
18
1
14
15
16
17
KEY
A
8
25
G
1
27
45 N•m
T
44
45
46
Right Hand Thread
47
48
32
49
31
A
8
50
23 N•m
T
O
1
Parts Page Reorder No. PD03•05
Effective January, 2003
Supersedes PD01•30
Air Motor and Machine Parts
2
9
10
6
11
19
15
20
21
22
23
A
8
24
A
Left Hand Thread
8
26
28
29
30
A
35
8
33
36
37
38
34
39
41
'
s
40
42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynabrade 58050
Summary of Contents for Dynabrade 58050
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools ’ (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade Warning/Safety Operating Instructions for more complete safety information.
- Page 2 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade Rotary Vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your lubricator at 4 drops per minute).
- Page 3 Important: Manufacturer’s warranty is void if tool is disassembled before warranty expires. Notice: Dynabrade strongly recommends the use of their 52296 Repair Collar (sold separately) during assembly/disassembly activities. Failure to use this collar will highly increase the risk of damage to the valve body of this tool. Please refer to parts breakdown for part identification.
- Page 4 Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed.
