- Page 1 WARNING: The welding headsheild must be worn during use WARNING: Read these instructions before using the machine 100 AMP ARC WELDER MODEL NO: EASIARC 110 PART NO: 6010942 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS1219 ISS 5...
-
Page 2: Environmental Recycling Policy
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING: WHEN USING ELECTRICAL TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. WARNING: READ ALL THESE INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS PRODUCT AND KEEP THESE INSTRUCTIONS IN A SAFE PLACE. ELECTRIC SHOCK insulated for safety. -
Page 4: Personal Protection
• The welding arc can cause serious one is looking before striking an burns. Avoid contact with the skin. arc. • Sparks and molten metal are • Wear hearing protection if ejected during welding. Take required. precautions to prevent fire. •... -
Page 5: Additional Safety Precautions For Arc Welders
If you have area, as the welding process gives a problem with the machine off toxic fumes. contact your local CLARKE dealer. • ALWAYS ensure there is a fire • NEVER use or store in a wet/damp extinguisher on hand. -
Page 6: Electrical Connections

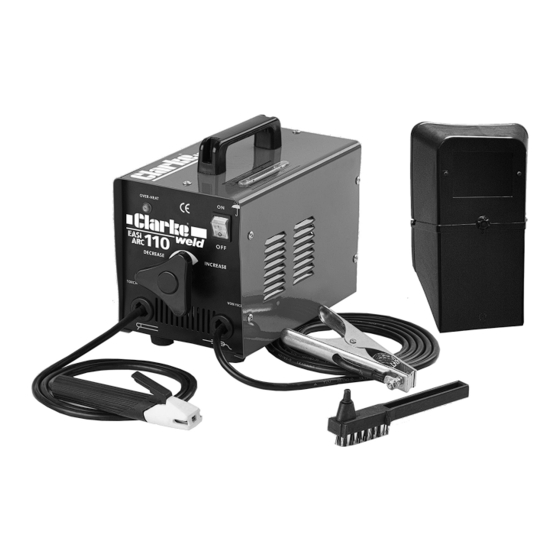

ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 7 UNPACKING Any damage or deficiency should be reported to your CLARKE dealer immediately. The components include the following: • 1 x 100 Amp AC Arc Welder • 1 x Combination Wire Brush & Hammer • 1 x Clarke Instruction Manual •...
-
Page 8: The Welding Shield
When replacing the glass panels, only use parts supplied by Clarke International. The dark panel is a certified, specific optical class, and should not be exchanged for any other type. The clear glass panel should be replaced when it becomes badly pitted. -
Page 9: Operating The Welder
OPERATING THE WELDER THERMAL CUTOUT If the machine stops at any time and the amber light on the front panel illuminates, the thermal cutout has activated. Wait until the transformer has cooled sufficiently (the amber light goes out) before restarting work. ATTACHING THE EARTH CLAMP Attach the earth clamp firmly to the workpiece as close as possible to the point of weld. -
Page 10: Striking An Arc
STRIKING AN ARC IMPORTANT: BEFORE you strike an arc, always bring the face shield up to protect your eyes. 1. Line up the electrode exactly over the spot where you want to strike. 2. Position your shield in front of your face and tap the electrode down firmly. -
Page 11: Welding Pitfalls
WELDING PITFALLS The arc welding technique is an acquired skill and requires considerable practice before perfect results are obtained. The diagrams below will help to explain the pitfalls in your technique and how to overcome them. ARC TOO SHORT This causes irregular masses of weld to be deposited, with slag contamination on an uneven surface. -
Page 12: Maintenance
As a general rule, the power supply should be inspected at least annually. Consult your CLARKE dealer for advice if necessary. ACCESSORIES The following are some of the accessories available from your CLARKE dealer. Please quote the part numbers shown below: DESCRIPTION... -
Page 13: Rating Plate
RATING PLATE Name and address of manufacturer 13.2 Average reset time Model number, part number Energy Input symbol Batch number Rated supply voltage Rated maximum supply current British Standards applied Maximum effective supply current This symbol indicates that the unit is suitable for carrying out welding operations in an environment which has an increased risk of electric... -
Page 14: Specifications
NOTE: The details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
