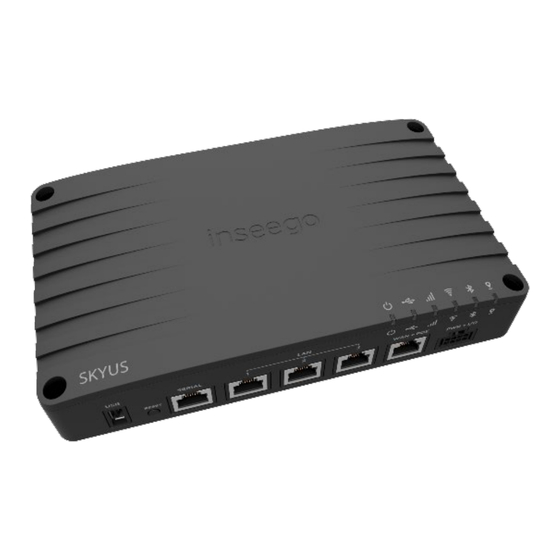

Inseego SKYUS 500 User Manual

Ip rated gigabit lte router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE
SKYUS 500
IP Rated Gigabit LTE Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKYUS 500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inseego SKYUS 500

Summary of Contents for Inseego SKYUS 500

  • Page 1 USER GUIDE SKYUS 500 IP Rated Gigabit LTE Router...
  • Page 2 INSEEGO COPYRIGHT STATEMENT 2019 Inseego Corp. All rights reserved. Complying with all copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose without the expressed written permission of Inseego Corp.

  • Page 3: Table Of Contents

    Connecting to a Mobile Network ..........................17 Connecting Additional Devices ............................. 17 Connecting via Wi-Fi ................................. 17 Connecting via Ethernet ..............................18 Resetting Skyus 500 ................................18 Getting Support .................................. 18 3 Software Configuration ..............................19 Overview ....................................20 Home Page.................................... 20 Side Menu .....................................
  • Page 4 Ethernet WAN Tab ................................61 Wi-Fi as WAN Tab ................................62 System Status Tab ................................63 4 Advanced Settings ................................64 Overview ....................................65 LAN ......................................66 IPv4 ......................................66 Manual DNS ..................................68 Network ....................................69 APN ......................................69 SKYUS 500 USER GUIDE...
  • Page 5 Device Certifications / Standards ..........................83 Cellular ....................................83 Wi-Fi ......................................84 Positioning .................................... 85 Bluetooth* ..................................... 85 Power ...................................... 85 Interfaces ....................................85 Antenna Connections ............................... 86 SIM ......................................86 USB Host ....................................86 LEDs ......................................86 SKYUS 500 USER GUIDE...
  • Page 6 Inputs/Outputs ..................................87 Warranty and Services ..............................87 Regulatory Information ..............................88 Wireless Communications ............................... 89 Limited Warranty and Liability............................90 Safety Hazards ..................................90 Installation and Operating Instructions........................93 6 Glossary ....................................94 Glossary ....................................95 SKYUS 500 USER GUIDE...

  • Page 7: Introduction

    Introduction Overview Description Indicator LEDs SKYUS 500 USER GUIDE...

  • Page 8: Overview

    Overview The Skyus 500 is a full-featured router that provides high-speed cellular connectivity. It provides Cat-18 (4G LTE-A Pro) and future external 5G support for ultra-fast internet access and to optimize your business needs in fixed or mobile applications. Skyus 500 features multiple ethernet ports, Wi-Fi 5, GPS, Bluetooth 5.0 , aGNSS location based services as well as enterprise-grade security and routing features.

  • Page 9: Description

    Description Inside the box, you will find a Skyus 500 router, a Quick Start Guide, and a DC power + I/O cable. Below is an overview of the physical interfaces of the device. Front View Back View SKYUS 500 USER GUIDE...

  • Page 10: Indicator Leds

    Indicator LEDs The Skyus 500 has six indicator LEDs. These indicators change colors and either blink or glow solid to communicate current states for the device. LED Color Operation Meaning Device Health USB* Cellular Orange Solid No SIM Slow Blink...
  • Page 11 Dead Reckoning Active, Location Acquired The WAN/LAN connector ports also have indicator LEDs. LED Color Operation Meaning Green Indicates Ethernet connection speed Solid 1000 Mbps (Gigabit) 10/100 Mbps Amber Indicates link status Solid Link Blinking Activity No link SKYUS 500 USER GUIDE...

  • Page 12: Installation And Getting Started

    Installing and Connecting Power (for Vehicle Applications) Connecting I/O Devices Connecting and Powering your Router Connecting to the Web UI Initial Configuration and Setup Connecting to a Mobile Network Connecting Additional Devices Resetting Skyus 500 Getting Support SKYUS 500 USER GUIDE...

  • Page 13: Installation Overview

    Installation Overview This chapter provides instructions for installing and getting your Skyus 500 up and running, as well as reset and support information. The installation process consists of the following steps: • Installing a SIM Card • Installing and Connecting Power (for Vehicle Applications) •...

  • Page 14: Installing And Connecting Power (For Vehicle Applications)

    Electrical installations can be hazardous and should be performed only by licensed professionals. Consider the following when installing your Skyus 500 in a vehicle: • Do not install the device in an area of a vehicle where it will distract the driver.

  • Page 15: Connecting To Vehicle Electrical System

    3. If you are installing in a high vibration setting, use cable strain relief to reduce the effects of vibration. Install the strain relief to the same surface as the Skyus 500, within eight inches of the device. This allows the router and cable to vibrate together. Ensure the cable is not pulling on the power connection.

  • Page 16: Connecting I/O Devices

    I/O inputs convey information to the router about the state of an external device or system; for example, that a siren is on. I/O outputs are used for the Skyus 500 to tell a device or system to turn on or off; for example, an ignition lock.

  • Page 17: Connecting And Powering Your Router

    Ethernet port of the device you wish to connect. It is recommended to only use the power supply/adapter or connection accessory provided by Inseego. Contact insidesalesus@inseego.com for more information about the power supply/adapter. SKYUS 500 USER GUIDE...

  • Page 18: Connecting To The Web Ui

    Web Interface page and select Change Password. Select Help > Admin Password for more information. 3. To set an Access Point Name (APN) for your network to communicate with the Skyus 500, go to Settings > Advanced > Network tab.

  • Page 19: Connecting Via Ethernet

    The Wi-Fi name and password are displayed in the Wi-Fi panel of the Home screen. Connecting via Ethernet To connect a wired device to your Skyus 500, plug the end of an Ethernet cable into one of the Ethernet ports. NOTE: If you are connecting several devices via Ethernet using your Skyus 500 as a Dynamic Host Configuration Protocol (DHCP) server on a switch, select Setting>...

  • Page 20: Software Configuration

    Software Configuration Overview Admin Password Managing Wi-Fi Settings Managing Connected Devices Managing Access Control Managing Settings Configuring GPS Managing VPN Managing I/O Settings Configuring Remote Management Viewing Info About the Router SKYUS 500 USER GUIDE...

  • Page 21: Overview

    Home Page The Skyus 500 Home page is the local gateway to configuring and managing your router. It displays current router status, lists currently connected devices, and offers links to other pages with option settings and help. Click > in the bottom-right corner of a panel to access subscreens with further information and options.

  • Page 22: Side Menu

    Side Menu Each subscreen in the Skyus 500 Web Interface includes a menu on the left, which you can use to return to the Home page or jump to other screens. The current screen is indicated by a red bar.

  • Page 23: Admin Password

    Admin Password The Admin password is what you use to sign into the Skyus 500 Web Interface. Initially, it is the same as the default password for your router’s Primary network and is printed on the bottom of the router.
  • Page 24 To manage settings for these networks, select > from the Home page Wi-Fi panel (or select Wi-Fi from the Web UI side menu). The Wi-Fi page includes four tabs: • Wi-Fi Settings Tab • Wi-Fi Primary Network Tab • Wi-Fi Guest Network Tab • Wi-Fi as WAN Tab SKYUS 500 USER GUIDE...

  • Page 25: Wi-Fi Settings Tab

    Use the Allow Wi-Fi devices to connect to this Router ON/OFF slider to turn Wi-Fi on or off. This selection affects Primary and Guest networks. When Wi-Fi is turned off, the only way to connect to the router (and to the Admin website) is with Ethernet cable. SKYUS 500 USER GUIDE...
  • Page 26 If you experience interference, try lowering the Bandwidth setting to reduce the interference. NOTE: Leave the Channel set to Automatic unless you need to choose a particular channel for your environment. Select Save Changes to store new settings. SKYUS 500 USER GUIDE...

  • Page 27: Wi-Fi Primary Network Tab

    The name can be up to 28 characters long. Security: Select an option for Wi-Fi security: • WPA2 Personal is the most secure method of Wi-Fi Protected Access and should be used if possible. SKYUS 500 USER GUIDE...
  • Page 28 Wi-Fi Primary network name (SSID) on their list of available networks. If not selected, the network name will need to be manually entered for devices to connect to the network. Select Save Changes to store new settings. SKYUS 500 USER GUIDE...

  • Page 29: Wi-Fi Guest Network Tab

    The name can be up to 28 characters long. Security: Select an option for Wi-Fi security: • WPA2 Personal is the most secure method of Wi-Fi Protected Access and should be used if possible. SKYUS 500 USER GUIDE...
  • Page 30 Fi Guest network name (SSID) on their list of available networks. If not selected, the network name will need to be manually entered for devices to connect to the network. Select Save Changes to store new settings. SKYUS 500 USER GUIDE...

  • Page 31: Wi-Fi As Wan Tab

    Add Access Point: Use this button to add a hidden network. The Add new access point dialog displays. Enter an SSID, choose a security level from the Security drop-down, and enter a password if prompted. Select Save Changes. SKYUS 500 USER GUIDE...
  • Page 32 If an access point is enabled and available, and has highest priority among the enabled access points (is first in the list), the Skyus 500 connects to that access point and displays its details in the Connected Access Point area below, including: o SSID: The SSID (network name) of the connected access point.

  • Page 33: Managing Connected Devices

    On the Web UI Home page, the Connected Devices panel lists all devices currently connected to your Skyus 500, along with the network they are using. To manage connected devices, select > from the Home page Connected Devices panel (or select Connected Devices from the Web UI side menu).

  • Page 34: Connected Devices Page

    Device: This is usually the hostname set on the connected device. In rare cases, the hostname may be unavailable. You can change the name of a device as it appears in the Skyus 500 Web UI by clicking in the Device field and editing the name.
  • Page 35 Link Local: The Link-Local IPv6 address if the connected device supports IPv6. Click the minus icon (-) to collapse a row. Blocked This section lists all devices blocked from connecting to the Skyus 500. NOTE: Since blocked devices are not currently connected, they do not have an IP address. Instead, they are identified by their name and MAC address.

  • Page 36: Managing Access Control

    Schedules Tab Devices Tab Access controls in the Skyus 500 Web UI allow you to control Internet access to specific devices. You can set up multiple schedules for Internet access on the Schedules tab and apply them to individual connected devices on the Devices tab.

  • Page 37: Schedules Tab

    Schedules Tab Access controls in the Skyus 500 Web UI allow you to control Internet access to specific devices. You can set up multiple schedules for Internet access on the Schedules tab and apply them to individual connected devices on the Devices tab.
  • Page 38 Select Save schedule to close the dialog box and return to the Schedules page. The new schedule is now listed. Use the View, Edit, and Delete buttons to view, edit, or delete (unapplied schedules only) listed schedules. Use the Devices tab to apply schedules to devices. SKYUS 500 USER GUIDE...

  • Page 39: Managing Settings

    To change system settings, select > from the Home page Settings panel (or select Settings from the Web UI side menu). The Settings page includes four tabs: • Preferences Tab • Software Update Tab • Backup and Restore Tab • Advanced Tab SKYUS 500 USER GUIDE...

  • Page 40: Preferences Tab

    Preferences Tab This tab allows you to change how dates, time, and numbers are displayed in the Skyus 500 Web UI. NOTE: These preferences affect packets sent to remote servers. For example, if you select a 24 hour time format, the Web UI, and any packets reporting time somewhere else, will display time in 24 hour format.

  • Page 41: Software Update Tab

    Check for New System Update Checked for update: The date and time the Skyus 500 last checked to see if an update was available. Update status: This is area is usually blank. If you check for an update, the result of that check, or the download progress of an update displays.
  • Page 42 System Update History This section displays details of the last updates that have been downloaded and installed to this device. If this section is blank, no updates have been installed. SKYUS 500 USER GUIDE...

  • Page 43: Backup And Restore Tab

    Backup and Restore Tab Use this tab to back up current Skyus 500 settings to a file on your computer, restore (upload) a previously-saved configuration file, reset the router to factory defaults, or restart the router. Backup To back up current Skyus 500 settings to a file on your computer, enter your Admin password in the Admin password field.

  • Page 44: Advanced Tab

    The backup file cannot be edited or viewed on the downloaded system or on any other device. This file can only be restored for this model of Skyus 500, and settings can only be viewed or changed using the Web UI.

  • Page 45: Configuring Gps

    Configuring GPS The Skyus 500 incorporates a GPS receiver. The GPS receiver can determine your current location, often even indoors. Current location information can be shared with connected devices by using the Local Streaming feature on the Local tab. To configure GPS, select > from any Home page panel and then select GPS from the Web UI side menu.

  • Page 46: Status Tab

    Speed: Speed the device is traveling at. Altitude: Altitude for the last location fix. Accuracy: A measure of the accuracy of the horizontal position obtained by the GPS receiver. Direction: Direction the device is traveling relative to North. SKYUS 500 USER GUIDE...

  • Page 47: Local Tab

    Port number: The port number used by the driver software on your computer to establish a connection to the Skyus 500 and obtain GPS data. Unless there is a good reason to do so, you should not change the port number. Acceptable port values are between 1024 and 65535.

  • Page 48: Remote Tab

    These servers are not IoT Connect. Use the Remote Management page to configure IoT Connect remote servers. Global device ID: The 4-digit unique ID specific to your Skyus 500 that is inserted into your GPS packet for routing to remote servers.
  • Page 49 Stationary Timer — You can set a stationary timer that monitors for movement and only route packets if the Skyus 500 is continuously moving within the time range. For example, if you set this value to 1 minute and your router has not moved within 1 minute, a packet will not be routed.
  • Page 50 Click Save Changes to implement your settings or Cancel to cancel. You return to the Remote page. The new remote server is now listed. Use the View, Edit, and Delete buttons to view, edit, or delete listed remote servers. SKYUS 500 USER GUIDE...

  • Page 51: Managing Vpn

    Managing VPN The Skyus 500 allows you to create IPSEC VPNs to establish secure connections to remote networks over a public network. To configure VPN, select > from any Home page panel and then select VPN from the Web UI side menu.
  • Page 52 • Local Authentication — Select Pre-shared Key from the drop-down list. This is currently the only form of authentication available with Skyus 500. • Pre-shared key — Enter a password used to authenticate to your end of the tunnel (usually matches the remote password.)
  • Page 53 DPD Action: Use the drop-down to select a DPD action. DPD Delay: The number of seconds between DPD packets. DPD Timeout: The number of seconds the router will allow an IPsec session to be idle before beginning to send DPD packets to the peer machine. SKYUS 500 USER GUIDE...

  • Page 54: Managing I/O Settings

    The Skyus 500 includes I/O pins, including an ignition monitor and configurable digital General Purpose Input Output (GPIO) pins. Page 14 shows the placement of GPIO pins in the Skyus 500 cable harness. To configure I/O settings, select > from any Home page panel and then select I/O Settings from the Web UI side menu.
  • Page 55 Enable ignition monitoring: This setting enables or disables the ignition monitor on your device. When the ON/OFF slider is ON, the Skyus 500 turns on and off (with time delay) with the ignition. When OFF, the ignition monitor is not available.

  • Page 56: Configuring Remote Management

    Remote Server Connection State: A report on your router’s connection to the IoT Connect server. Up indicates Skyus 500 is communicating with IoT Servers. Down means Skyus 500 is not communicating with IoT Connect servers. Last reported: The time when your router last sent a packet to the IoT Connect servers.
  • Page 57 Traffic type: This static value is provided to show that the router is communicating via Inseego's protocol. Exclude GPS: Check this box if you do not want the Skyus 500 to send GPS information to the IoT Connect server. Reporting interval: This is the interval at which your device will send packets into the IoT Connect server.

  • Page 58: Viewing Info About The Router

    (or select About from the Web UI side menu). The About page includes five tabs: • General Status Tab • Primary WAN Tab • Ethernet WAN Tab • Wi-Fi as WAN Tab • System Status Tab SKYUS 500 USER GUIDE...

  • Page 59: General Status Tab

    Session Data Tx: The amount of data transmitted for the current Internet session. This counter starts at zero when the connection is established. • Session Data Rx: The amount of data received for the current Internet session. This counter starts at zero when the connection is established. SKYUS 500 USER GUIDE...

  • Page 60: Primary Wan Tab

    Model Version: For the 4G modem component, this is the version of the firmware (software) currently installed. • System Version: The version of currently installed software. Primary WAN Tab Use this tab to view details about your Primary WAN connection. SKYUS 500 USER GUIDE...
  • Page 61 Signal Strength: The strength of the LTE signal, measured in dBm. Higher absolute values NOTE: indicate a stronger signal, for example: -80 dBm is a stronger signal than -90 dBm. signal strength is typically lower than 3G signal strength. SKYUS 500 USER GUIDE...

  • Page 62: Ethernet Wan Tab

    IPv4 DNS: The Domain Name Server currently used by this device. • IPv6 Address: The global IPv6 address for the Skyus 500. If IPv6 is turned off, or is not supported by the current network connection, this appears blank. •...

  • Page 63: Wi-Fi As Wan Tab

    Signal Strength: The received signal strength indicator (RSSI) value. • Mode: The mode setting of the Wi-Fi network connection. • Channel: The channel setting of the Wi-Fi network connection. • IP Address: The IP address assigned to the router. SKYUS 500 USER GUIDE...

  • Page 64: System Status Tab

    General • Ethernet Clients: The number of clients connected by Ethernet. • GHz Clients: The number of clients connected at 2.4 GHz band. • 5 GHz Clients: The number of clients connected at 5 GHz band. SKYUS 500 USER GUIDE...

  • Page 65: Advanced Settings

    Advanced Settings Overview Manual DNS Network Firewall MAC Filter Port Filtering Port Forwarding WAN Configuration SKYUS 500 USER GUIDE...

  • Page 66: Overview

    WARNING! Changing the Advanced settings may be harmful to the stability, performance, and security of the Skyus 500. When you select the Advanced tab on the Settings page, a warning message appears. If you click Continue, the LAN tab of the Advanced Settings page appears.

  • Page 67: Lan

    This tab provides settings and information about the Skyus 500's local area network (LAN). For this device, the LAN consists of this device and all Wi-Fi and Ethernet connected devices. IPv4 IP address: The IP address for this device, as seen from the local network. Normally, you can use the default value.
  • Page 68 Use Reserved IP Addresses: This allows you to ensure that a connected device will always be allocated the same IP Address by the Skyus 500. To use this feature, click the Reserve specific IP addresses for selected devices link. A list of devices with their MAC Address, Current IP Address, and a field to enter a Reserved IP Address appears.

  • Page 69: Manual Dns

    Manual DNS The Skyus 500 automatically selects a Domain Name Server (DNS). This tab allows you to manually assign up to two DNS IP addresses. Turn on manual DNS: Check this box to manually select a DNS. DNS 1 IP address: Enter the IP address for the primary DNS. This address is required to use the Manual DNS feature.

  • Page 70: Network

    In most configurations, the Skyus 500 is used with a dynamic IP and SIM and the Access Point Name (APN) is available from the network, for example: vzwinternet. However, if you are on a private network, you may need to set the APN on this tab for the network to communicate with the Skyus 500, for example: we01.vzwstatic.

  • Page 71: Firewall

    Firewall The Skyus 500 firewall determines which Internet traffic is allowed to pass between the router and connected devices and protects your connected devices from malicious incoming traffic from the Internet. The firewall cannot be turned off. Use the Firewall tab to adjust the general security level of the firewall, designate a specific device to receive all traffic, and set up specific firewall rules.

  • Page 72: Security Level

    Security Level You can select from three general security levels to block traffic into and through the Skyus 500. The default Security Level is Medium. • Low — allows inbound traffic to services with open ports matching the inbound request port.

  • Page 73: Mac Filter

    MAC Filter The MAC filter allows only selected devices to access the Skyus 500’s Primary Wi-Fi network. By default, MAC filter is turned OFF. Use this tab to turn the MAC Filter ON and specify device access. NOTE: The MAC filter has no effect on devices connected to the Guest Wi-Fi network or connected via Ethernet.

  • Page 74: Device List

    Device List This list includes all devices currently connected to the Skyus 500, except those connected via Ethernet. Add New Device: Use this button to add a device to the device list, then enter the device name, MAC address, choose whether to select the MAC Address Filter checkbox, and click Save Changes.

  • Page 75: Port Filtering

    You can also view the current Port Filtering setting (ON/OFF) in the Settings panel on the Web UI Home page. Port Filtering To turn on port filtering, move the ON/OFF slider to ON. To turn off port filtering, so that any application can connect to the Internet, move the slider to OFF. SKYUS 500 USER GUIDE...

  • Page 76: Applications

    Yes indicates the protocol is standardized for the port number. No indicates the protocol is standardized for the port number. Assigned indicates the port number is assigned by IANA (Internet Assigned Numbers Authority) for protocol use, but may not be standardized. SKYUS 500 USER GUIDE...

  • Page 77: Custom Applications

    Delete: Check this box to delete a custom application. NOTE: Click on the Port Filtering tab again to remove deleted custom applications from view on the screen. Click Save Changes to save any changes made to the custom applications. SKYUS 500 USER GUIDE...

  • Page 78: Port Forwarding

    Port forwarding creates a security risk and should not be turned on unless it is required. Some mobile networks provide you with an IP address on their own network rather than an Internet IP address. In this case, Port Forwarding cannot be used, because Internet users cannot reach your IP address. SKYUS 500 USER GUIDE...

  • Page 79: Port Forwarding

    Yes indicates the protocol is standardized for the port number. No indicates the protocol is standardized for the port number. Assigned indicates the port number is assigned by IANA (Internet Assigned Numbers Authority) for protocol use, but may not be standardized. SKYUS 500 USER GUIDE...

  • Page 80: Custom Applications

    Delete: Check this box to delete a custom application. NOTE: Click on the Port Forwarding tab again to remove deleted custom applications from view on the screen. Click Save Changes to save any changes made to the custom applications. SKYUS 500 USER GUIDE...

  • Page 81: Wan Configuration

    Use this tab to configure and set the priority of each available WAN interface. Active WAN Interface This section displays current active WAN interfaces. Priority Listing of the Available WAN Interfaces Use the drop-downs to reset the priorities you wish for WAN interfaces. SKYUS 500 USER GUIDE...

  • Page 82: Wan Settings

    NOTE: positive results, while a larger value may delay detection of issues. • WAN recovery retries — The number of successful checks a failed connection requires before it is considered active again. SKYUS 500 USER GUIDE...

  • Page 83: Product Specifications And Regulatory Information

    Product Specifications and Regulatory Information Product Specifications Regulatory Information Wireless Communications Limited Warranty and Liability Safety Hazards Installation and Operating Instructions SKYUS 500 USER GUIDE...

  • Page 84: Product Specifications

    LTE Cat-18 (1.2 Gbps) using 5CA Requires Use of Antenna Ports LTE 1 and LTE 2 as well as LTE 3 and LTE 4 Carrier Aggregation or UL1 and UL2 24 dBm Transmit Power -110 dBm Receive Sensitivity SKYUS 500 USER GUIDE...

  • Page 85: Wi-Fi

    Dynamic Frequency Scanning (DFS) Simultaneous Dual Band Wi-Fi Two SSIDs per Band Wi-Fi Privacy Separation Wi-Fi Client Mode (Wi-Fi as WAN, WWAN) Simultaneous Access Point/Client Mode Location Based AP/Client Mode Switching Wi-Fi Authentication WPA2 Personal, WPA/WPA2 Personal, WPA/WPA2 Enterprise SKYUS 500 USER GUIDE...

  • Page 86: Positioning

    1x WAN/LAN + PoE 3x WAN/LAN 1x RJ45 10/100 Serial over Ethernet 1x USB 2.0 Type A Host 1x 8-Pin Molex Mini-Fit Latching Power and I/O C 2x Accessible 4FF Nano SIM Slots For future release SKYUS 500 USER GUIDE...

  • Page 87: Antenna Connections

    Networking DHCP Server, Network Address Translation, WAN Failover, Port Forwarding, URL Filtering Remote Networking Inseego IoT Connect Cloud Platform and Alerting Customizable Dashboard, Alerts, Alarms, and Actions Based on Smart Rules Secure Remote Visibility and Device Management, Remote Configuration and FOTA, MQTT Encryption with x.509 Certificates...

  • Page 88: Inputs/Outputs

    1x 1-Wire Input 4x GPIO (2x available at launch) Warranty and Services Industry Leading Warranty, Inseego IoT Connect Options Available Inseego Care Support and Advanced Replacement Options Available Skyus Provisioning Available to Apply Custom Templates and Verify Device Activation Prior to Shipment...

  • Page 89: Regulatory Information

    2. This equipment is authorized only for Fixed or Mobile applications and is required to be installed as such. 3. This equipment must be installed and operated with a minimum separation of 20 cm (8 in.) between the equipment and users/bystanders at all times. SKYUS 500 USER GUIDE...

  • Page 90: Wireless Communications

    This can be due to the variation in radio signal strength that results from changes in the characteristics of the radio transmission path. Although data loss is rare, the environment where you operate the modem might adversely affect communications. SKYUS 500 USER GUIDE...

  • Page 91: Limited Warranty And Liability

    Inseego Corp. or its partners will not be held responsible for damages of any kind resulting from the delays or errors in data transmitted or received with the Skyus 500 device, or failure of the Skyus 500 device to transmit or receive such data.
  • Page 92 Electrical and electronic devices are sensitive to electrostatic discharge (ESD). Macintosh native connection software might attempt to reinitialize the device should a substantial electrostatic discharge reset the device. If the software is not operational after an ESD occurrence, then restart your computer. ROHS COMPLIANCE SKYUS 500 USER GUIDE...
  • Page 93 As a part of Inseego’s corporate policy of environmental protection, Inseego takes every step to ensure that devices are designed and manufactured to comply to the European Union Directive 2015/863 amending 2011/65/EU for the Restriction of Hazardous Substances (RoHS). SKYUS 500 USER GUIDE...

  • Page 94: Installation And Operating Instructions

    Power Adaptor (optionally provided with the product) shall not be used in the hazardous location. The instructions shall stipulate that if a power adaptor is provided with the equipment, the adaptor and associated wiring harness may only be used in a non-hazardous (unclassified) location. SKYUS 500 USER GUIDE...

  • Page 95: Glossary

    Glossary SKYUS 500 USER GUIDE...

  • Page 96: Glossary

    GB — Gigabyte. A multiple of the unit byte for digital information storage. Usage depends on • context. When referring to disk capacities it usually means 10 bytes. It also applies to data transmission quantities over telecommunication circuits. Gbps — Gigabits per second. The rate of data flow. • SKYUS 500 USER GUIDE...
  • Page 97 Network Technology — The technology on which a particular network provider’s system is • built; such as LTE or GSM. NMEA port — National Marine Electronics Association port. The port through which • applications can access a GPS data stream. SKYUS 500 USER GUIDE...
  • Page 98 SSID — Service Set IDentifier. The name assigned to a Wi-Fi network. • TCP/IP — Transmission Control Protocol/Internet Protocol. The set of communications • protocols used for the Internet and other similar networks. SKYUS 500 USER GUIDE...
  • Page 99 2013. Wi-Fi Client — A wireless device that connects to the Internet via Wi-Fi • WPA/WPA2 — Wi-Fi Protected Access. A security protocol fir wireless 802.11 networks from • the Wi-Fi Alliance. SKYUS 500 USER GUIDE...
