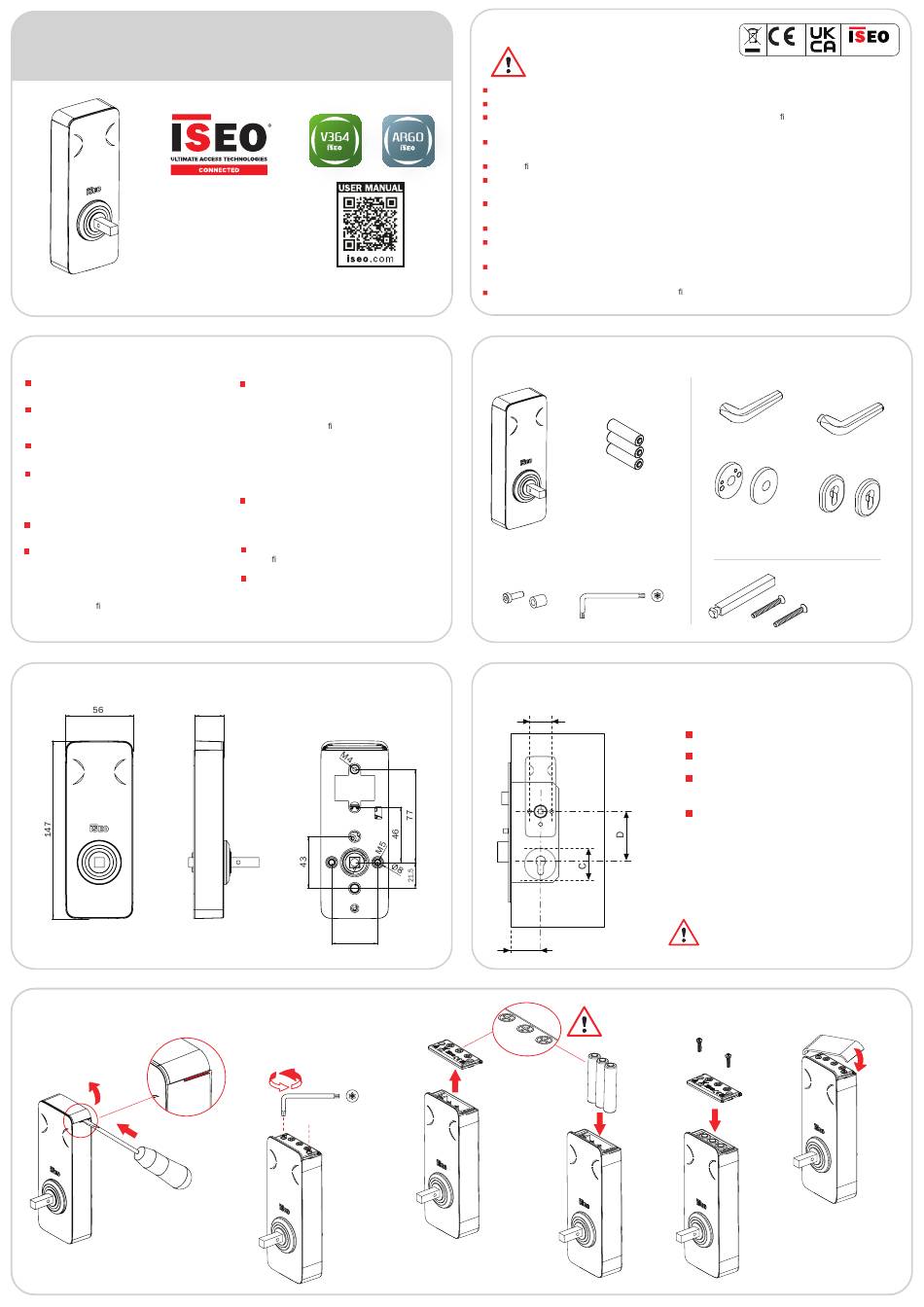

Iseo MA1A Installation Manual

MA1A
INSTALLATION GUIDE (EN)
Iseo Serrature s.p.a
Via San Girolamo 13
25055 Pisogne (BS)
ITALY
Tel. +39 0364 8821
iseo@iseo.com
Non contractual document. Subject to change. Cod. KW21751 -24/06/2023
MA1A Installation Guide (EN) - © 2023 Iseo Serrature S.p.a.
TECHNICAL DATA
PRODUCT:

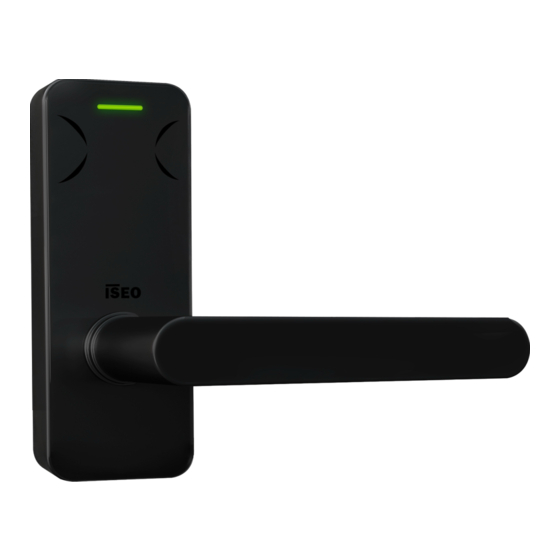

Electronic trim lock
APPLICATION:
To open a door equipped with a compatible
mechanical lock
MODELS:
- MA1A standard compatible to any DIN lock
SOFTWARE COMPATIBILITY:
- ARGO System
- V364 System
- Luckey and LSA
POWER SUPPLY:
3 x Alkaline batteries 1,5V type AAA
KEY FEATURES:
- Bi-color LED (green, red)
- Multifrequencies buzzer
- Automatic low power mode
- Compatible to any DIN lock version
- DIN holes lock xing
DIMENSIONS
24
BATTERY INSTALLATION & REPLACEMENT
1
Snap!
COMMUNICATION INTERFACES:
- Bluetooth 5.0 - Frequency 2,40 - 2,4835 GHz
Maximum power: < 10 mW
- RFID reader frequency 13,553 - 13,567 MHz,
maximum magnetic eld: < 40µA/m (measured
at 10m at the maximum power capacity).
Compatible to:
• ISO/IEC 14443 Type A and Type B cards
• MIFARE Classic & DESFire (EV1, EV2, EV3)
• ISEO Cards & Keyfobs (min.20mm antenna diam.)
CERTIFICATIONS:
Compliance to RED, European and UK directives
concerning radio equipment regulations
IP Grade: IP54
HOUSING:
To be xed to door by the DIN holes lock
OPERATING TEMPERATURES:
- Working temperature: -20°C/+60°C
- Storage temperature: -20°C/+70°C
- H.R.: Max. 95% with no condensing
UM = mm
38*
*DIN Holes
3
2
WARNINGS
Read this manual prior to use the device in order to ensure a safe and proper use.
Preserve this manual as future reference.
The installation and maintanance of the device must be carried out by quali ed technical staff, adequately
trained by ISEO.
The instructions should be carefully followed during installation. These instructions and any maintenance
instructions should be passed on by the installer to the user.
No modi cations of any kind are permitted, except for those described in these instructions.
The product must be destined only for the use for which it is expressly designed and therefore as a door lock
for residential, commercial and light industry locations. Any other use is considered improper and dangerous.
The electrical connection must be made according to the constructor's instructions and respecting the
regulations in force.
For all repairs, exclusively contact a technical assistance center authorized by the constructor.
Remove the batteries before carrying out any technical service that involves opening or accessing
the internal parts of the product.
Dispose of the product and batteries separately from household waste, in accordance with local laws and
regulations.
Battery replacement must be carried out by quali ed technical staff. Replace all batteries at the same time.
Risk of explosion if the batteries are replaced with an incorrect type.
PACKAGE CONTENTS
3 x 1,5V AAA
Alkaline batteries
MA1A
Anti-tilt kit Torx key T8
INSTALLATION REQUIREMENTS
DIN
E
4 5
ULTIMATE ACCESS
T E C H N O L O G I E S
EC Declarations of conformity available at:
https://www.iseo.com/it/en/download
ADDITIONAL ACCESSORIES
Not included - to be separately ordered
MA1A Handle
Internal Handle
Fixing plate with
reinforcing spring Cylinder escutcheon
plus cover with cover (x 2)
Handle follower
and screws kit
E) Door entrance >= 35mm
D) Min center-holes distance = 70mm*
C) *Escutcheon max diameter = 52mm
(If D=70mm)
DIN) DIN holes = 38mm
8mm spindle required with the ISEO
handle kit
6
Click!
