ARIES
Electronic Trim Set
User Manual
EN 01

Advertisement

Table of Contents
loading

Related Manuals for Iseo ARIES

Summary of Contents for Iseo ARIES

  • Page 1 ARIES Electronic Trim Set User Manual EN 01...

  • Page 3: Information Icons

    This manual explains the functions, configurations and characteristics of Aries, the ISEO electronic Trim Set. For commercial documents (catalogues and leaflets), technical documents (installation and maintenance manuals) and certifications, refers to the ISEO website at the following link: https://www.iseo.com...

  • Page 4: Information On Copyright

    ISEO. • ISEO reserves the right to change the specifications of the hardware and software described in this manual at any time and without prior notice.

  • Page 5: Table Of Contents

    Table of Contents About this manual Getting started Information icons 18 Package contents Information on copyright 19 Installing Aries Trademarks 19 Programming and using Aries Keywords 19 Privacy function Safety and Environment Maintenance Warnings 20 Battery replacement Handling lithium batteries...

  • Page 6: Safety And Environment

    (for example in case of empty door in the inside). Ensure also, in case the door has grooves, that water does not run under the Aries gaskets. • Be careful to not hit or scratch Aries cover with hard or sharp objects (keys, rings or other metal objects).

  • Page 7: Handling Lithium Batteries

    Safety and Environment Handling lithium batteries Batteries may leak or explode if improperly handled. Observe the following precautions when handling batteries for use in this product: • Do not connect the battery during the shipping and the storage. Connet the battery just during installation and use.

  • Page 8: Disposal And Recycling

    Safety and Environment Disposal and recycling This product and battery are designated for separate collection at an appropriate collection point. Do not dispose of as household waste. For more information, contact the retailer or the local authorities in charge of waste management. Dispose of the product separately from household waste, in accordance with local laws and regulations.

  • Page 9: Certifications

    2014/53/UE Directive (RED = radio) 2011/65/UE Directive (RoHS) Donwload the conformity certificate at iseo.com website Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields), recommended by international guidelines.
  • Page 10 Certifications Environmental resistance Result • Operating temperature: -20°C ÷ +60°C Temperature range • Storage temperature: -25°C ÷ +75°C Humidity • Max 95% non condensation. Depending on the model: Protection by enclosures • IP54 (protected installations) • IP55 (Outdoor installations) Frequency type Frequency band MAX emission value RFID tag reader...

  • Page 11: Overview

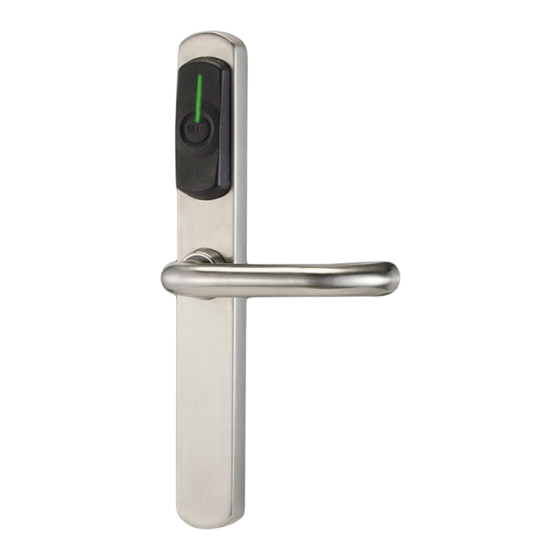

    What is Aries Aries is the electronic trim set can be installed on almost any door currently available on the market, and it’s designed to work with most mechanical locks. It’s battery operated, so doesn’t require any wiring. This makes it the ideal solution for managing access, ensuring optimum flexibility and low installation costs for both new installations and application on existing doors.

  • Page 12: Technical Data

    Battery replacement from the inside for more security. Battery life (endurance) Aries: up to 5 years or 50.000 opening (*) Aries Smart: up to 2 years or 20.000 opening (*). 3 levels battery charge detection. (*) Depending on usage, environment, options.
  • Page 13 Black plastic underplate 70mm width (to cover existing holes). Environmental characteristics Operating temperature: -20°C ÷ +60°C. Storage temperature: -25°C ÷ +75°C. Protection system (IP grading): IP54 or IP55 (outdoor installations). For detailed commercial informatoin, please check related catalogue and leaflet at: iseo.com.

  • Page 14: Dimensions

    Overview Dimensions Feature Characteristics Dimensions Plate width: 38 mm Plate length: 294 mm Plate thickness: 16,5 mm Handle length: 131,5 mm from plate center Weight 1350 gr. Follower/cylinder center distance 70, 72, 85 and 92 mm.

  • Page 15: Options And Versions

    Overview Options and versions Aries can be supplied in different versions. The followings are the most commons ones. For all the available options and versions, check the on-line catalogue at iseo.com website. 1) Aries with or without privacy function. No Privacy function Privacy function 2) Aries with mechanical emergency key override with visible or hidden cylinder.
  • Page 16 3) Aries with electric emergency power supply override (hidden). At the place of the cylinder Aries has an electric plug for a standard 9V battery. To open the lock when internal batteries are empty, remove the external cover, plug-in the standard 9V battery to power up the lock, then read a valid credential to open.
  • Page 17 Overview Options and versions 5) Aries IP55 (Outdoor installations) Aries IP55 for outdoor installation, is provided with gaskets to isolate the electronic and the mechanic from water leaks. ARIES IP55 All weather version Guarnizioni Gasket Dichtung Joints Junta Pakkingen For outdoors installation use Aries IP55 version. Ensure anyway, to retain the IP certification, that water does not run over the door surface, entering through the door and the gaskets, or inside the door itself (for example in case of empty door in the inside).

  • Page 18: Package Contents

    Getting Started Package contents The product box contains the following items: • Aries electronic trim set internal and external plaque. • Internal and external aesthetic covers. • 2 x AA 3,6V high current lithium batteries. • Installation guide. • Warning sheet.

  • Page 19: Installing Aries

    For a correct procedure see also Warnings at the Safety and Environment chapter. Programming and using Aries For these operations, please refer to Argo User Manual for Aries Smart, or V364 System Administrator Manual for Aries. Both available at: iseo.com.

  • Page 20: Maintenance

    Replace the Aries battery as soon as the software in use notifies you, following the procedure later illustrated in this topic. Aries has a multilevel battery charge detection, to allow a proper and in advance alert to change the battery.
  • Page 21 Maintenance LITHIUM BATTERY ER 14505M 3.6V AA 2 x AA 3.6V high current Lithium Battery Do not use metal objects to help battery removal. Risk of explosion if the battery is replaced with an incorrect type. Replace both batteries at the same time with same model. Dispose of batteries according to your local environmental laws and guidelines.
  • Page 22 Maintenance Emergency opening Apertura d’emergenza Emergency opening Notöffnung Ouverture d'urgence Apertura de emergencia 2,5 mm Override ISEO key Alkaline 9V 6LR61...
  • Page 23 Maintenance A. Emergency opening by override cylinder The electronic lock has an hidden emergency mechanical cylinder (option with visible cylinder available), under the aesthetic cover. It can be used to open the door in case of battery failure or any malfunctioning of the electronic trim.
  • Page 24 B. Emergency opening by external power supply In case the mechanical emergency override cylinder is not installed, Aries can be provided with the external emergency power supply function, to be able to open the door in case of battery failure.
  • Page 25 Maintenance LITHIUM BATTERY ER 14505M 3.6V AA 2 x AA 3.6V high current Lithium Battery Do not use metal objects to help battery removal. Risk of explosion if the battery is replaced with an incorrect type. Replace both batteries at the same time with same model. Dispose of batteries according to your local environmental laws and guidelines.

  • Page 26: Cleaning

    Storage • For not installed product, store Aries in a clean dry place at a room temperature between -25°C and +75°C and relative humidity between 20% and 95%.

  • Page 27: Troubleshooting

    • Check the installation. • Electronic board or mechanic mal- • Replace the electronic trim set. function. For Aries spare part codes, refer to the on-line catalogue available at iseo.com or call the ISEOZero1 Technical Support (go to Technical assistance).

  • Page 28: Light And Acoustic Signals

    For this topic go to “Light and acoustics signals” in the Argo User Manual or in the V364 System Administrator Manual, both available at iseo.com. Technical assistance For any help please contact ISEOZero1 Technical Support. Visit iseo.com website to find your country telephone number. When you contact the ISEOZero1 Technical Support please provide the next information: •...
  • Page 29 Notes...
  • Page 30 ISEO Beijing C/ Las Marineras 2 zero1-cn@iseo.com 28864 Ajalvir - Madrid +8610 58698079 SPAIN zero1-es@iseo.com UNITED ARAB EMIRATES Iseo Projects and Access Control DMCC iseoprojects@iseo.com +971 4 5136162 SOUTH AFRICA ISEO South Africa (Pty) LTD zero1-za@iseo.com ROMANIA Feroneria Prod S.A.
