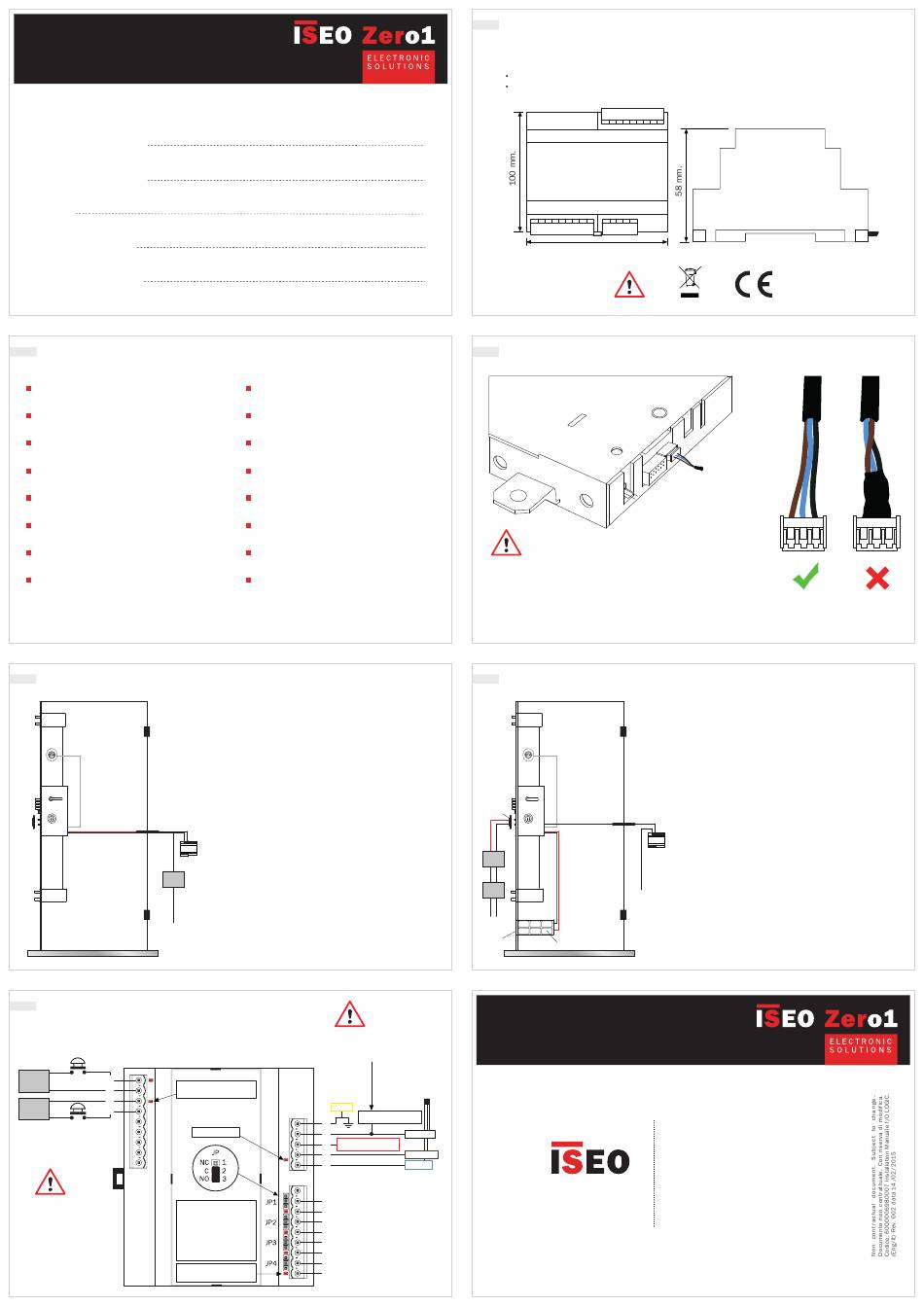

Iseo x1R Easy Quick Start Manual

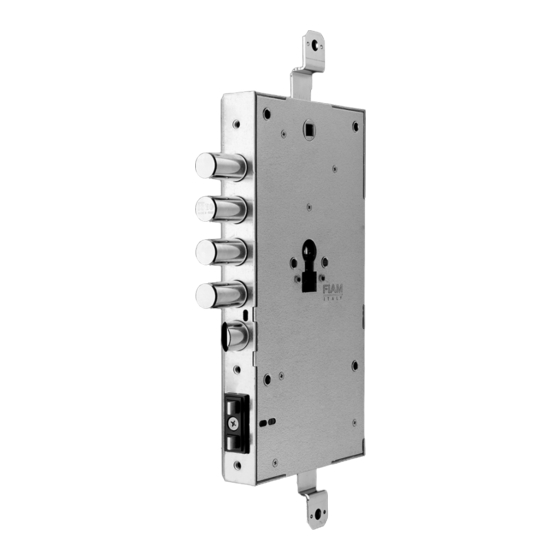

x1R Easy
INDEX

GENERAL CHARACTERISTICS

TECHNICAL SPECIFICATIONS

WARNINGS

INSTALLATION EXAMPLES

ELECTRICAL CONNECTIONS

2. TECHNICAL SPECIFICATIONS
Overall dimensions 106x100x58 mm.
Power supply 9/24 VDC
Absorption 100 mA
1 Relay for bolt retracted (in) position
1 door position Relay
1 Relay for latch extracted (out) position
1 Relay for the motorised door opener
control (Relay activated for 1 sec.).
Maximum relay switching voltage:
120VAC/60VDC
4. INSTALLATION EXAMPLES
2
x1R Easy
1
7 3 4
5
6
230 VAC
5. ELECTRICAL CONNECTIONS
P1
("OPEN" button
not supplied)
9/24
6
VAC/VDC Note: each digital inputs
7
has a statud LED.
8
9/24
9
VAC/VDC
P2
LED Power "ON"
("CLOSE" button
not supplied)
J2
The 3 poles communication
Note: the bridges (JP1,
cable supplied with the lock (n° 4
JP2, JP3, JP4) can be used
paragraph 4) is 4 meters long; if
to
you need to extend the cable,
respectives relay to be NO
the maximum length is 15
(factory setting) or NC (by
meters, using an AWG25 cable.
moving the bridge to the
1-2 position.
Note:
each relay has a status LED.
Maximum relay switching current: 1A
Maximum relay switching power: 60VA/24W
2 optoinsulated digital inputs (9-24 VAC/DC)
for the "Open" and "Close" commands.
1 POWER ON indication LED.
1 indication LED for each active relay.
1 indication LED for each active digital
input.
1 hook for fixing the DIN bar.
1 two-way 3 conductor (Tx, Rx, GND)
communication channel.
Installation with Fiam 9VDC – 3 A feeder
1. Door contact supplied with lock
2. Internal facing plate (cod. 98PI0698)
3. Cable gland (cod. 8810.00000 - for openings up to 90°)
(cod. 6013.0000 - for openings up to 180°)
4. Communication cable supplied with the lock
(3 poles: black, brown, blue)
5. I/O Logic (cod. 587.00.0698.007)
6. Fiam 9VDC/2,89A feeder (cod. 587.00.0000.3809)
7. Power supply cable supplied with Fiam feeder
(2 poles: red, black)
Before switching on the
power to the I/O Logic
and the x1R Easy lock
connect the communication
cable.
EARTH
J1
NEGATIVE FEED
1
2
POSITIVE FEED
3
9/24 VDC
4
5
J3
10 C RL1
11 NO RL1
12 C RL2
configure the
13 NO RL2
14 C RL3
15 NO RL3
16 C RL4
17 NO RL4
1. GENERAL CHARACTERISTICS
The I/O logic (code 587.00.0698.0007 – fig 1) is a module that, when connected to the x1R easy lock via
a two-way 3 conductor (Tx, Rx and GND) communication interface, extends its potential, making it possible
to: acquire "Open" and "Close" commands via 2 remote digital inputs;
control 4 relay outputs
1
2
3
4
5
3. WARNINGS
When using the I/0 logic with an x1R Easy lock, before proceeding with
the connection make sure that the black condenser is NOT between
the black and brown wires in the communication cable. If it is remove
it by cutting the terminals. The presence of the condenser (filter)
between the black and brown cables prevents communication between
the x1R Easy lock and the I/0 logic.
4.1 INSTALLATION EXAMPLES
2
x1R Easy
1
8
9
230 VAC
10
x1R Easy
Communication cable
with 3 poles: black,
brown and blue supplied
with the x1R Easy lock.
9/24 VDC
BLACK WIRE
BROWN WIRE
BLUE WIRE
Motorised latch bolt
position relay
Bolt retracted
position relay
Door position relay
Relay (1 sec. impulse)
controlling motorised
"door opened"
Top
View
105 mm.
Installation with 9/24 VDC – 3A feeder and rechargeable
battery kit / Fiam battery charger
1. Door contact supplied with lock
2. Internal facing plate (cod. 98PI0698)
3. Cable gland (cod. 8810.00000 - for openings up to 90°)
4. Communication cable supplied with lock
(3 poles: black, brown, blue)
3
4
5. I/O Logic (cod. 587.00.0698.007)
6. Set of rechargeable Fiam batteries (cod. 582.00.6000.0016)
5
7. Power supply cable supplied with Fiam battery holder
(2 poles: red, black)
7
8. Fiam battery charger (cod. 582.00.6001.0016)
9/24 VDC
11
9. Fiam 230/12 VAC transformer (cod. 582.00.0698.0000)
10. Fiam battery holder (cod. 587.00.0698.0000)
11. External 9/24 VDC 2A power supply (not supplied).
6
