Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
PUBLIC ADDRESS SYSTEM
TS-4200PD/4350PD/4500PD
PROFESSIONAL POWER AMPLIFIER
PROFESSIONAL POWER AMPLIFIER
PRO
CLP
SIG
cha chb
chc chd
POWER
MIN
CHA
MAX
MIN
CHB
MAX
MIN
ON
OFF

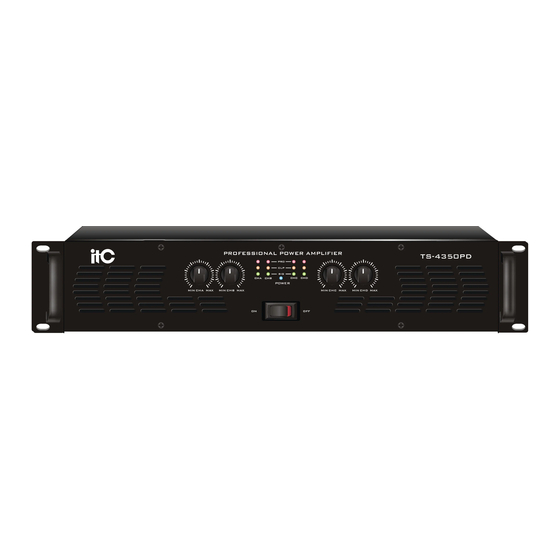

TS-4350PD
CHC
MAX
MIN
CHD
MAX
Advertisement
Table of Contents
Related Manuals for ITC TS-4200PD
Summary of Contents for ITC TS-4200PD

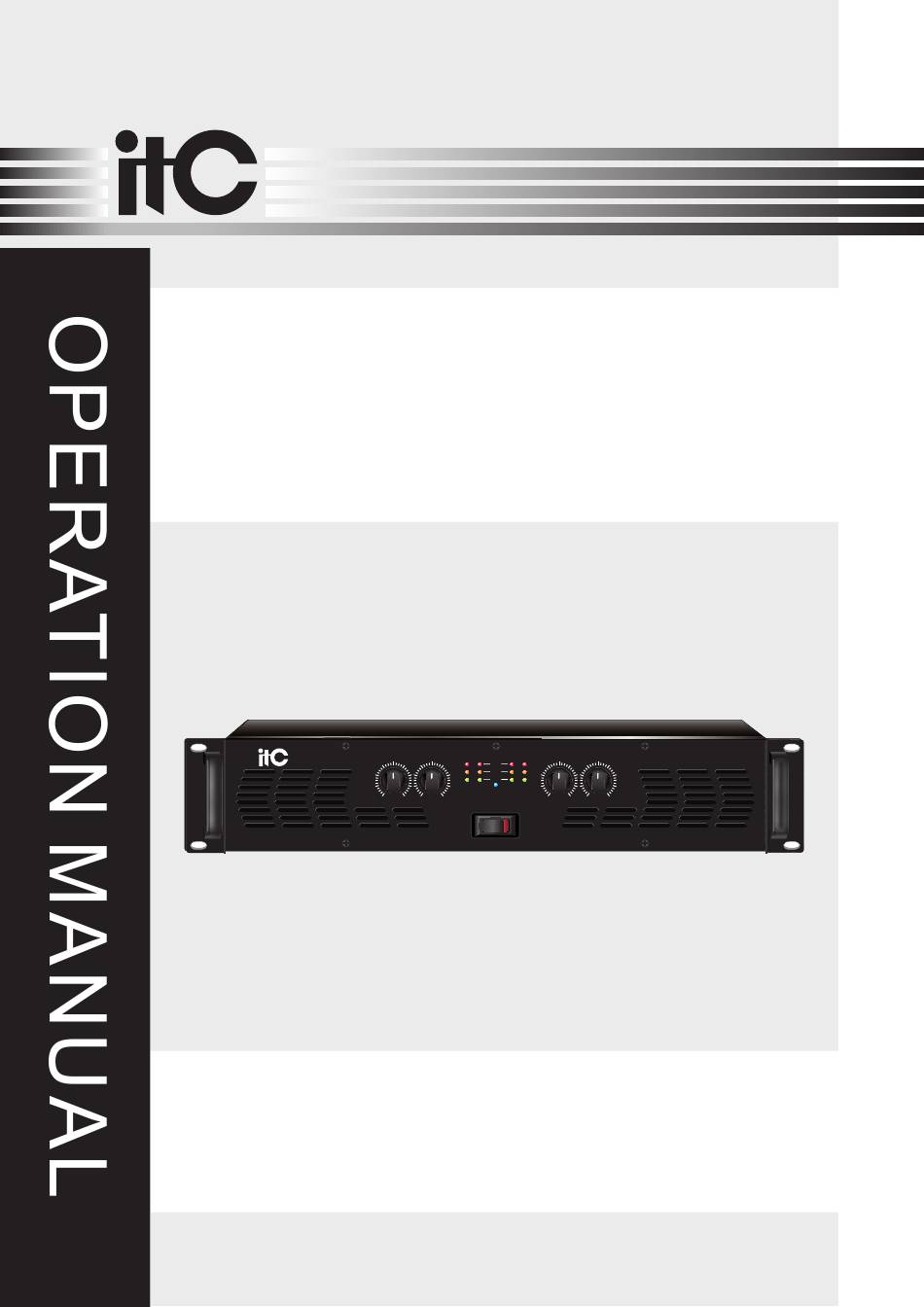

- Page 1 PUBLIC ADDRESS SYSTEM TS-4200PD/4350PD/4500PD PROFESSIONAL POWER AMPLIFIER PROFESSIONAL POWER AMPLIFIER TS-4350PD cha chb chc chd POWER Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES .......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel ......................6 4.2 Rear Panel....................... 7 5. OPERATION ILLUSTRATION ................8 TROUBLESHOOTING ....................10 7. APPLICATIONS ..................... 11 8.BLOCK DIAGRAM ....................12 9.SPECIFICATIONS .................... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or...
-
Page 5: General Description
2. GENERAL DESCRIPTION It is a high-efficiency four-channel professional power amplifier with a combination of high-performance switching power supply and class D power amplifier; Support four balanced / unbalanced inputs and a high-fidelity circuit design with extremely low distortion THD+N<0.02% @ 1W. It adopts 2U standard cabinet design, with high efficiency, light weight and beautiful appearance. -
Page 6: Nomenclature And Functions
4. NOMENCLATURE AND FUNCTIONS 4.1 FRONT PANEL 6 78 PROFESSIONAL POWER AMPLIFIER cha chb chc chd POWER 1. Installation positioning holes (19-inch cabinets); 2. Air grid; 3. The volume control knob of the CHA channel controls the output volume of the channel. Rotate the volume clockwise to increase the volume and vice versa. -
Page 7: Rear Panel
4. NOMENCLATURE AND FUNCTIONS 4.2 REAR PANEL INPUTS 1+ 1- 1+ 1- CHC INPUT CHA INPUT 2+ 2- 2+ 2- PDS NEQ PDS NEQ CHC OUT CHA OUT BRIDGE BRIDGE BREAKER STEREO STEREO PARALLEL PARALLEL 1+ 1- 1+ 1- 2+ 2- 2+ 2- LIFT LIFT... -
Page 8: Operation Illustration
5. OPERATION ILLUSTRATION 1. Connect the speakers: ①In the operating mode of STEREO and ②In BRIDGE's operating mode, the speaker connection is as shown below: PARALLEL, the speaker connection is as shown below: BRIDGE BRIDGE 1+ 1- 1+ 1- 2+ 2- 2+ 2- STEREO STEREO... - Page 9 5. OPERATION ILLUSTRATION Microphone using: 1.Turning the volume knob to the left,Connect the microphone and microphone input interface. 2.Turning the volume knob in the right position. 3.Facing the microphone and Speak loudly, turn the volume knob to the right, until the output signal no longer distortion.If input is high but output is low voice, and then increase the volume by using the volume knob.If the speaker volume is very high, then reduce the volume by using the volume knob.
-
Page 10: Troubleshooting
6. TROUBLESHOOTING Failure phenomena Failure cause 1 Power line is cut off 1. Power switch is not opened 2. The protection function of the equipment is not activated 1. The power switch is not opened or the power plug is bad contacted. 2. -
Page 11: Applications
7. APPLICATIONS REAR PANEL CONNECTIONS CD player / MP3 player and other audio source equipment POWER OPEN PLAY STOP PREVIOUS NEXT CLOSE Handheld wireless microphone Mixer Professional audio processor INPUTS CHA INPUT 1+ 1- 1+ 1- CHC INPUT 2+ 2- 2+ 2- PDS NEQ PDS NEQ... -
Page 12: Block Diagram
8. BLOCK DIAGRAM... -
Page 13: Specifications
9. SPECIFICATIONS Output power （20-20KHz/THD≤1％） TS-4200PD TS-4350PD TS-4500PD Stereo / parallel 8Ω×4 105W×4 190W×4 350W×4 Stereo / parallel 4Ω×4 200W×4 350W×4 500W×4 Bridge 8Ω×2 420W×2 750W×2 1000W×2 Connecting interfaces XLR, TRS interfaces Voltage gain (@1KHz) 32dB 34.4dB 36.2dB Input sensitivity 0.775V/1V/1.44V... -
Page 14: Dimensional Diagram
10. DIMENSIONAL DIAGRAM UNIT:mm PROFESSIONAL POWER AMPLIFIER TS-4500PD cha chb chc chd POWER INPUTS 1+ 1- 1+ 1- CHA INPUT CHC INPUT 2+ 2- 2+ 2- PDS NEQ PDS NEQ CHC OUT CHA OUT BRIDGE BRIDGE BREAKER STEREO STEREO PARALLEL PARALLEL 1+ 1- 1+ 1-... - Page 15 PUBLIC ADDRESS SYSTEM VersionV0.1...
