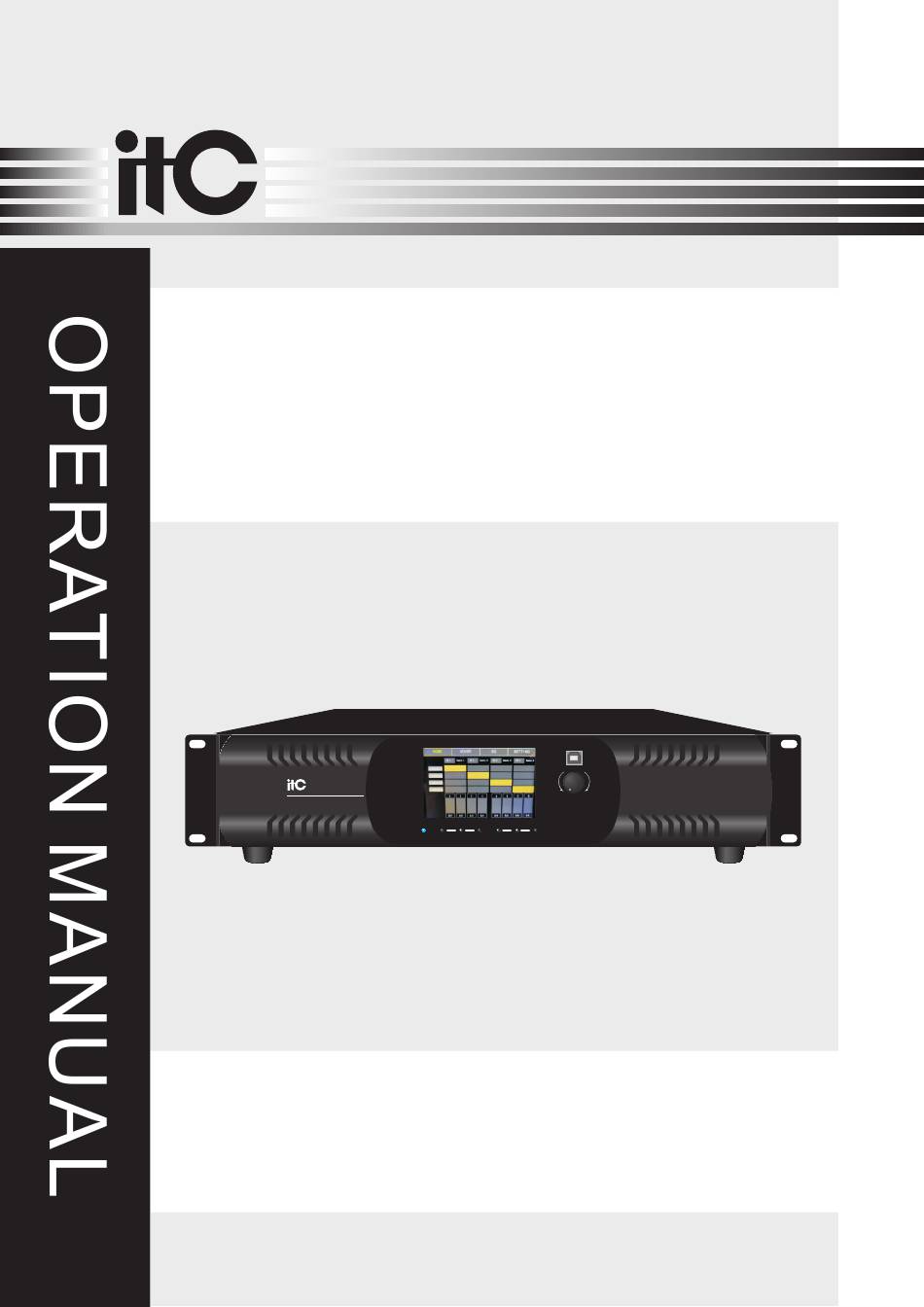

TS-4500DT
PROFESSIONAL POWER AMPLIFIER
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
PUBLIC ADDRESS SYSTEM
PROFESSIONAL POWER AMPLIFIER
PUSH-ENTER
POWER
CLIP/PRO
PA /BR
CLIP/PRO
CLIP/PRO
PA /BR
CLIP/PRO
CH1
CH2
CH3
CH4
TS-4500DT
USB
Advertisement
Table of Contents
Related Manuals for ITC TS-4500DT
Summary of Contents for ITC TS-4500DT
- Page 1 PUBLIC ADDRESS SYSTEM TS-4500DT PROFESSIONAL POWER AMPLIFIER TS-4500DT PROFESSIONAL POWER AMPLIFIER PUSH-ENTER POWER CLIP/PRO PA /BR CLIP/PRO CLIP/PRO PA /BR CLIP/PRO Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES .......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel ......................6 4.2 Rear Panel....................... 7 5. OPERATION ILLUSTRATION ................8 TROUBLESHOOTING .....................9 7. APPLICATIONS ..................... 10 8.BLOCK DIAGRAM ....................11 9.SPECIFICATIONS .................... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or...
-
Page 5: General Description

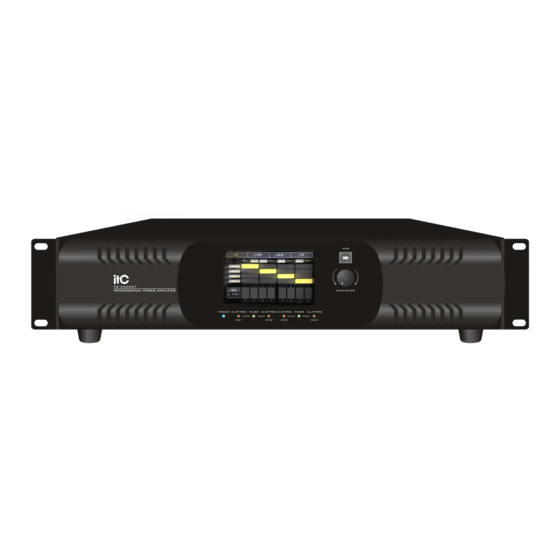

2. GENERAL DESCRIPTION It is a high-efficiency four-channel professional digital amplifier with a combination of high-performance switching power supply and class-D amplifier; Ideal for medium and large-scale theaters, outdoor performances, theaters, stadiums, clubs, night clubs, entertainment venues, bars, rental, auditorium, banquet halls and concert, etc. -
Page 6: Nomenclature And Functions
4. NOMENCLATURE AND FUNCTIONS 4.1 FRONT PANEL 11 10 TS-4500DT PROFESSIONAL POWER AMPLIFIER PUSH-ENTER POWER CLIP/PRO PA/BR CLIP/PRO CLIP/PRO PA/BR CLIP/PRO 4 5 6 7 8 9 1. Installation positioning holes (19-inch cabinets); 2. Air grid; 3. Power status indicator;... -
Page 7: Rear Panel
4. NOMENCLATURE AND FUNCTIONS 4.3 REAR PANEL INPUTS CHC INPUT CHA INPUT BREAKER 1+ 1- 1+ 1- 2+ 2- 2+ 2- PDS NEQ PDS NEQ CHC CHD CHC OUT CHA OUT BRIDGE STEREO PARALLEL 1+ 1- 1+ 1- LIFT 2+ 2- 2+ 2- PDS NEQ PDS NEQ... -
Page 8: Operation Illustration
5. OPERATION ILLUSTRATION 1.Connect the speakers: ① In the operating mode of STEREO and ②In BRIDGE's operating mode, the speaker PARALLEL, the speaker connection is as connection is as shown below: shown below: BRIDGE BRIDGE 1+ 1- 1+ 1- 2+ 2- 2+ 2- STEREO PDS NEQ... -
Page 9: Troubleshooting
5. OPERATION ILLUSTRATION Microphone using: 1.Turning the volume knob to the left,Connect the microphone and microphone input interface. 2.Turning the volume knob in the right position. 3.Facing the microphone and Speak loudly, turn the volume knob to the right, until the output signal no longer distortion.If input is high but output is low voice, and then increase the volume by using the volume knob.If the speaker volume is very high, then reduce the volume by using the volume knob. -
Page 10: Applications
7. APPLICATIONS REAR PANEL CONNECTIONS Audio equipment such as CD player / MP3 player POWER OPEN PLAY STOP PREVIOUS NEXT CLOSE Handheld wireless microphone Mixer Professional audio processor INPUTS CHC INPUT CHA INPUT BREAKER 1+ 1- 1+ 1- 2+ 2- 2+ 2- PDS NEQ PDS NEQ... -
Page 11: Block Diagram
8. BLOCK DIAGRAM AC POWER AC POWER ±12V;+5V INPUT D ±12V INPUT C INPUT B OUTPUT*4 INPUT A ±12V;+5V... -
Page 12: Specifications
9. SPECIFICATIONS Output power (20-20KHz / THD≤1%) TS-4500DT Stereo/parallel 8Ω × 4 350W×4 Stereo/parallel 4Ω × 4 500W×4 Bridge 8Ω × 2 1000W×2 Connecting interfaces XLR, TRS interface 34.4dB Voltage gain (@1KHz) Input sensitivity 0.775V 10KΩ unbalanced, 20KΩ balanced Input impedance... -
Page 13: Dimensional Diagram
10. DIMENSIONAL DIAGRAM UNIT:mm TS-4500DT PROFESSIONAL POWER AMPLIFIER PUSH-ENTER POWER CLIP/PRO PA /BR CLIP/PRO CLIP/PRO PA /BR CLIP/PRO INPUTS CHC INPUT CHA INPUT BREAKER 1+ 1- 1+ 1- 2+ 2- 2+ 2- PDS NEQ PDS NEQ CHC CHD CHC OUT... - Page 14 PUBLIC ADDRESS SYSTEM VersionV0.1...
