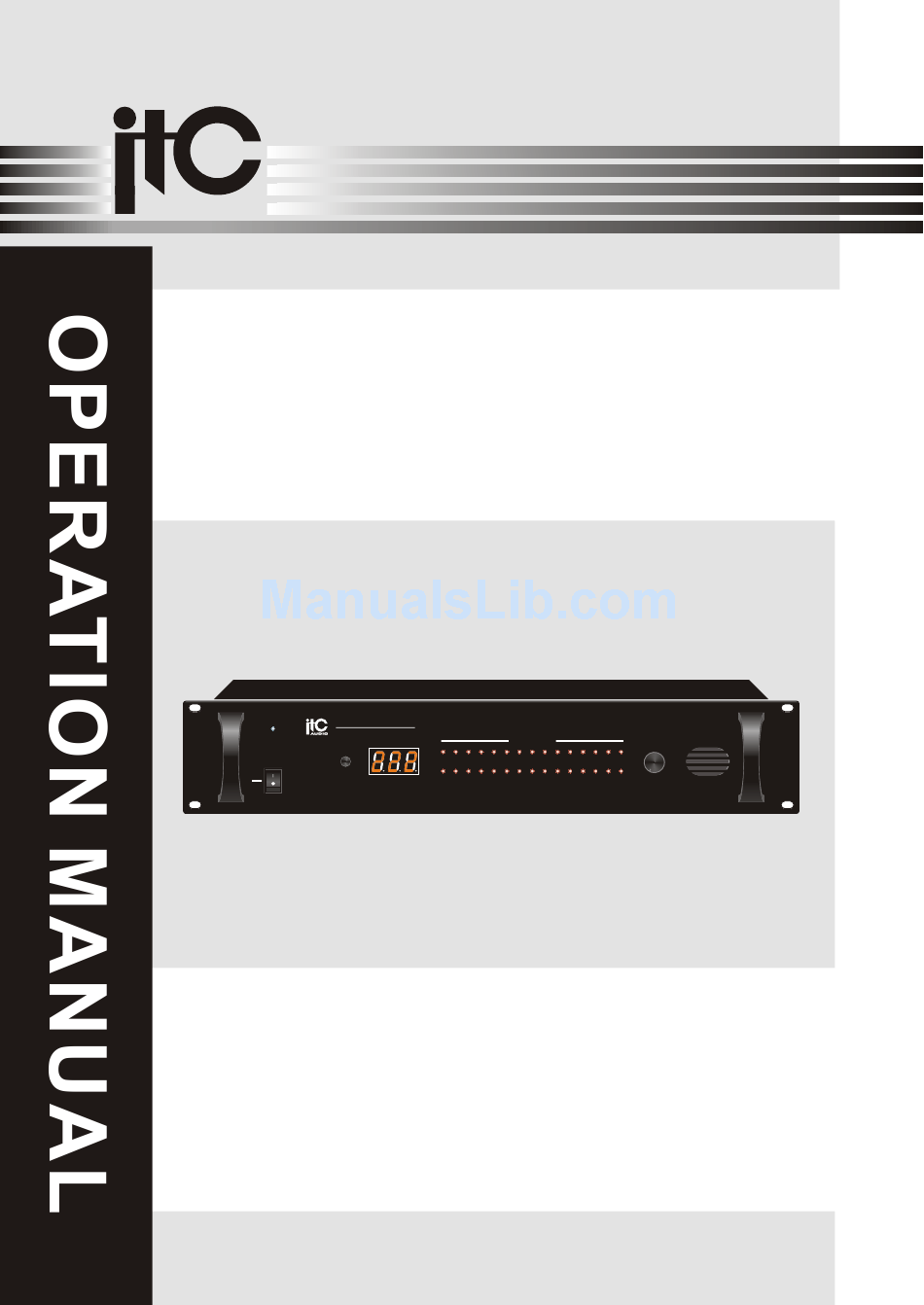

  • Page 1 PUBLIC ADDRESS SYSTEM AUDIO AUDIO T-6723 MIXER AMPLIFIER T-6723 EMERGENCY SWITCH POWER ALARM ZONES VOLUME REST Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ...................3 2. GENERAL DESCRIPTION ................5 3. FEATURES ......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel ......................6 4.2 Rear Panel......................7 OPERATION Fire Alarm Collection Function ................8 Alarm Light Display .....................8 Mp3 Alarm Music Player ..................

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
  • Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or property...

  • Page 5: General Description

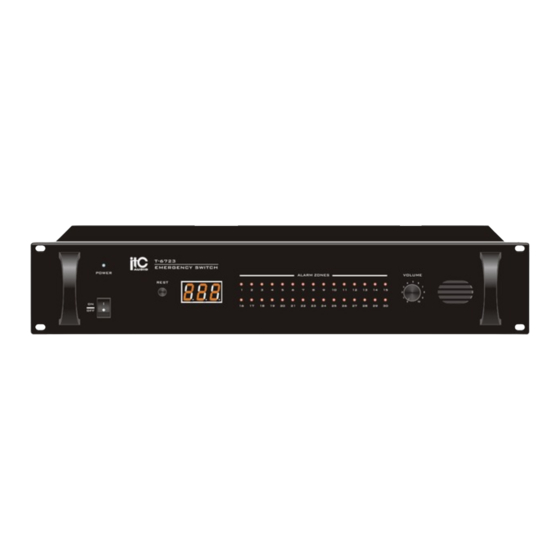

    2. GENERAL DESCRIPTION The T-6723 is a public address emergency swh with can provide an ideal public address solution from small to big places such us mosques, schools, hotels and factories to train stadium and air stations. 3. FEATURES 1.Emergency signal warning function.

  • Page 6: Nomenclature And Functions

    4 N O M E N C L AT U R E A N D F U N C T I O N S 4.1 FRONT PANEL POWER ALARM ZONES VOLUME REST 4. ALARM LAYER 1. POWER Power indicator Display the working 2.

  • Page 7: Rear Panel

    NOMENCLATURE AND FUNCTIONS 4.2 REAR PANEL IN 1-15 OUTPUT ADDRESS ERROR USE ONLY WITHA 250W FUSE PLAYING IN 16-30 10.ADDRESS TAG 14.STATUS INDICATOR Address choose When the SD card is running, PLAYING 11.COM (green light), when no SD card, ERRER Com communicate point (red light).

  • Page 8: Operation

    5.OPERATION 5.1 FIRE ALARM COLLECTION FUNCTION 30 Road fire alarm collection ,30 LED alarm display,as long as shorcircuit boards, after triggering alarm input terminals, you can trigger internal alarms, internal CPU through the calculations, the alarm signal by RJ422 communications will send out alarm signal, while playing the corresponding zone alarm music,the corresponding LED display, expand able to 300 partitions.
  • Page 9 OPERATION WARNING AREA ADDRESS COAD 1-30 31-60 1 2 3 4 61-90 1 2 3 4 91-120 121-150 151-180 181-210 211-240 241-270 271-300 2.address code swh 5 NO.5 as a choice of alarm trigger method 0 aopen-type trigger 1 regular closed Trigger normal open shorcircuit triggered mode: the methods is to shorcircuit the alarm input port , trigger the alarm , T-6223A will keep in an alarm status after disconnecting the alarm input .

  • Page 10: Applications

    6. APPLICATIONS REAR PANEL CONNECTIONS...

  • Page 11: Specifications

    7.SPECIFICATIONS EMERGENCY SWH EMERGENCY SWH MODEL T-6723 POWER REQUIREMENTS ~220-240V 50/60Hz POWER CONSUMPTION 484X353X88 DIMENSION(mm) 5.3Kg NET WEIGHT GROSS WEIGHT 6.5Kg...

  • Page 12: Dimensional Diagram

    8. DIMENSIONAL DIAGRAM UNIT :mm POWER ALARM ZONES VOLUME REST IN 1-15 OUTPUT ADDRESS ERROR USE ONLY WITHA 250W FUSE PLAYING IN 16-30 UNIT :mm POWER ALARM ZONES VOLUME REST Over Over...
  • Page 13 PUBLIC ADDRESS SYSTEM AUDIO AUDIO VersionV0.1...
