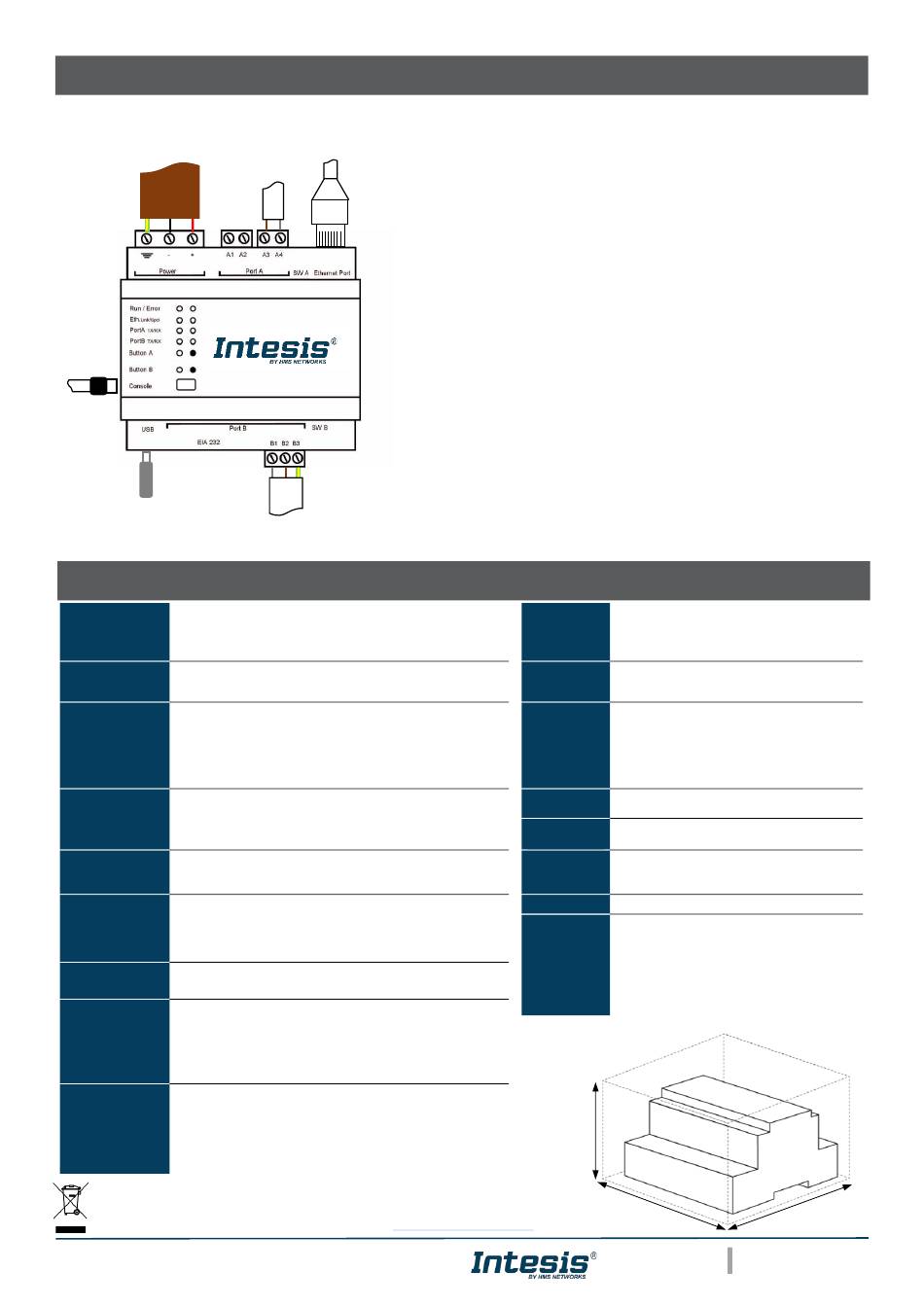

CONNECTIONS
Power Supply
Console
Port
USB
storage
ELECTRICAL & MECHANICAL FEATURES
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with
ferrule)
Terminal Wiring
1 core: 0.5mm
(for power supply and
2 cores: 0.5mm
low-voltage signals)
3 cores: not permitted
If cables are more than 3.05 meters long, Class 2 cable is required.
1 x Plug-in screw terminal block (3 poles)
9 to 36VDC +/-10%, Max.: 140mA.
Power
24VAC +/-10% 50-60Hz, Max.: 127mA
Recommended: 24VDC
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x XY Plug-in screw terminal block orange (2 poles)
1500VDC isolation from other ports
Port A
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
1 x DIP-Switch for PORT A configuration:
Switch A
Reserved for future use
(SWA)
1 x Serial EIA232 (SUB-D9 male connector)
Reserved for future use
1 x Serial EIA485 Plug-in screw terminal block (3 poles)
PORT B
A, B, SGND (Reference ground or shield)
1500VDC isolation from other ports
(except PORT B: EIA232)
1 x DIP-Switch for serial EIA485 configuration:
Position 1:
ON: 120 Ω termination active
Switch B
Off: 120 Ω termination inactive
(SWB)
Position 2-3:
ON: Polarization active
Off: Polarization inactive
This marking on the product, accessories, packaging or literature (manual) indicates that the product contains electronic
parts and they must be properly disposed of by following the instructions at
Rev.1.0
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
Power Supply
Ethernet
AC Bus
Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.
BACnet IP
If using DC power supply:
Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted
(check table below). The power supply can be connected to earth but only through the negative terminal,
never through the positive terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals of the
AC power supply to earth, and make sure the same power supply is not supplying any other device.
Ethernet / BACnet IP (UDP) / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector ETH of the gateway. Use an Ethernet CAT5
cable. If communicating through the LAN of the building, contact the network administrator and make sure traffic
on the port used is allowed through all the LAN path (check the gateway user manual for more information).
Default IP is 192.168.100.246.
PortA / VRF
Connect the XY terminals of XYE Outdoor Unit to the connectors A3 (Y) A4 (X) of gateway's PortA. Respect the
polarity.
PortB / BACnet MSTP
Connect the EIA485 bus to connectors B1 (B+), B2 (A-) and B3 (SNGD) of gateway's PortB. Respect the polarity.
Note for PortB; Remember the characteristics of the standard EIA485 bus: maximum distance of 1200 meters,
maximum 32 devices connected to the bus, and in each end of the bus it must be a termination resistor of 120
Ω. Bus biasing and termination resistor for EIA485 can be enabled for PortA and PortB by means of a dedicated
DIP switch – see table below.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between the
Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user
manual for more information.
USB
Connect a USB storage device (not an HDD) if required. Check the user manual for more information.
BACnet
MSTP
w
h): 90x88x56 mm
x
x
w
h): 130x100x100mm
x
x
... 2.5mm
2
2
... 1.5mm
2
2
https://intesis.com/weee-regulation
Size: Coin 20mm x 3.2mm
Battery
Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Console
Mini Type-B USB 2.0 compliant
Port
1500VDC isolation
Type-A USB 2.0 compliant
Only for USB flash storage device
USB port
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Button A: Check the user manual
Push Button
Button B: Check the user manual
Operation
0°C to +60°C
Temperature
Operational
5 to 95%, no condensation
Humidity
Protection
IP20 (IEC60529)
10 x Onboard LED indicators
2 x Run (Power)/Error
2 x Ethernet Link/Speed
LED
2 x Port A TX/RX
Indicators
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
100 mm (h)
100 mm (w)
URL
130 mm (d)
https://www.intesis.com
2 / 2
