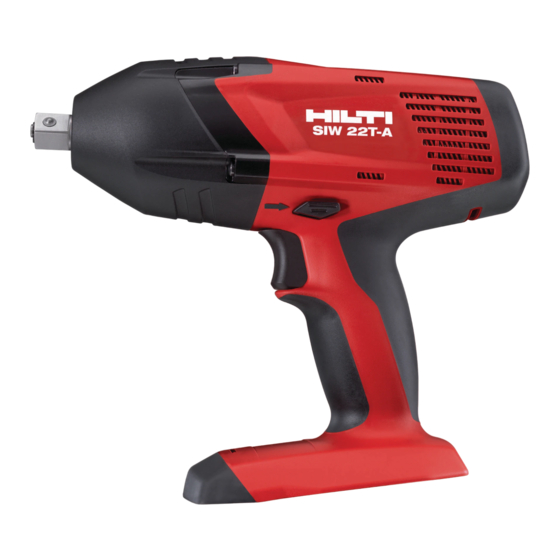

Hilti SIW 22T-A 1/2 Operator's Manual
Hide thumbs
Also See for SIW 22T-A 1/2:
- Original operating instructions (47 pages) ,
- Operating instructions manual (68 pages)
Related Manuals for Hilti SIW 22T-A 1/2
Summary of Contents for Hilti SIW 22T-A 1/2
- Page 1 SIW 22T-A 1 / 2 " SIW 22T-A 3 / 4 " English Printed: 27.07.2016 | Doc-Nr: PUB / 5293233 / 000 / 00...
- Page 2 Revolutions per minute 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.
- Page 3 ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information Type SIW 22T-A "| SIW 22T-A Generation: Serial no.:...
- Page 4 ▶ Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to jam and are easier to control. Using and handling the cordless power tool ▶ Use only the specified batteries in the power tools. Use of any other batteries may present a risk of injury and fire.
- Page 5 3 Description 3.1 Overview of the product Printed: 27.07.2016 | Doc-Nr: PUB / 5293233 / 000 / 00...
-
Page 6: Operation
Impact screwdriver/wrench, operating instructions. Note To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by us for use with the product can be found at your local Hilti Center or online at: www.hilti.com 4 Technical data 4.1 Technical data... - Page 7 1. Disconnect the battery from the tool. 2. Fit the mounting plate into the guides provided. 3. Use the 2 screws to attach the belt hook and make sure that the screws are driven fully (countersunk head flush). 5.2 Setting forward or reverse rotation Note In the middle position, the forward / reverse selector switch serves as a safety lock.
- Page 8 1. Set the forward/reverse switch to the middle position or remove the battery from the power tool. 2. Align the hole in the socket with the retention ball on the square drive. 3. Fit the locking ring on the socket. ◁...
- Page 9 5.5 Removing the socket SIW 22T-A " 1. Set the forward/reverse switch to the middle position or remove the battery from the power tool. 2. Pull the accessory tool off the square drive. 5.6 Removing the socket SIW 22T-A " 1.
-
Page 10: Troubleshooting
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 7 Transport and storage 7.1 Transport and storage of cordless tools... - Page 11 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 12 Hilti = registered trademark of Hilti Corp., Schaan 20160718 Printed: 27.07.2016 | Doc-Nr: PUB / 5293233 / 000 / 00...
