Schematic Diagram - Linear Technology DC1576 Demo Manual

Lt3760 8-channel 100ma high voltage led driver

Table of Contents

DEMO MANUAL DC1573A

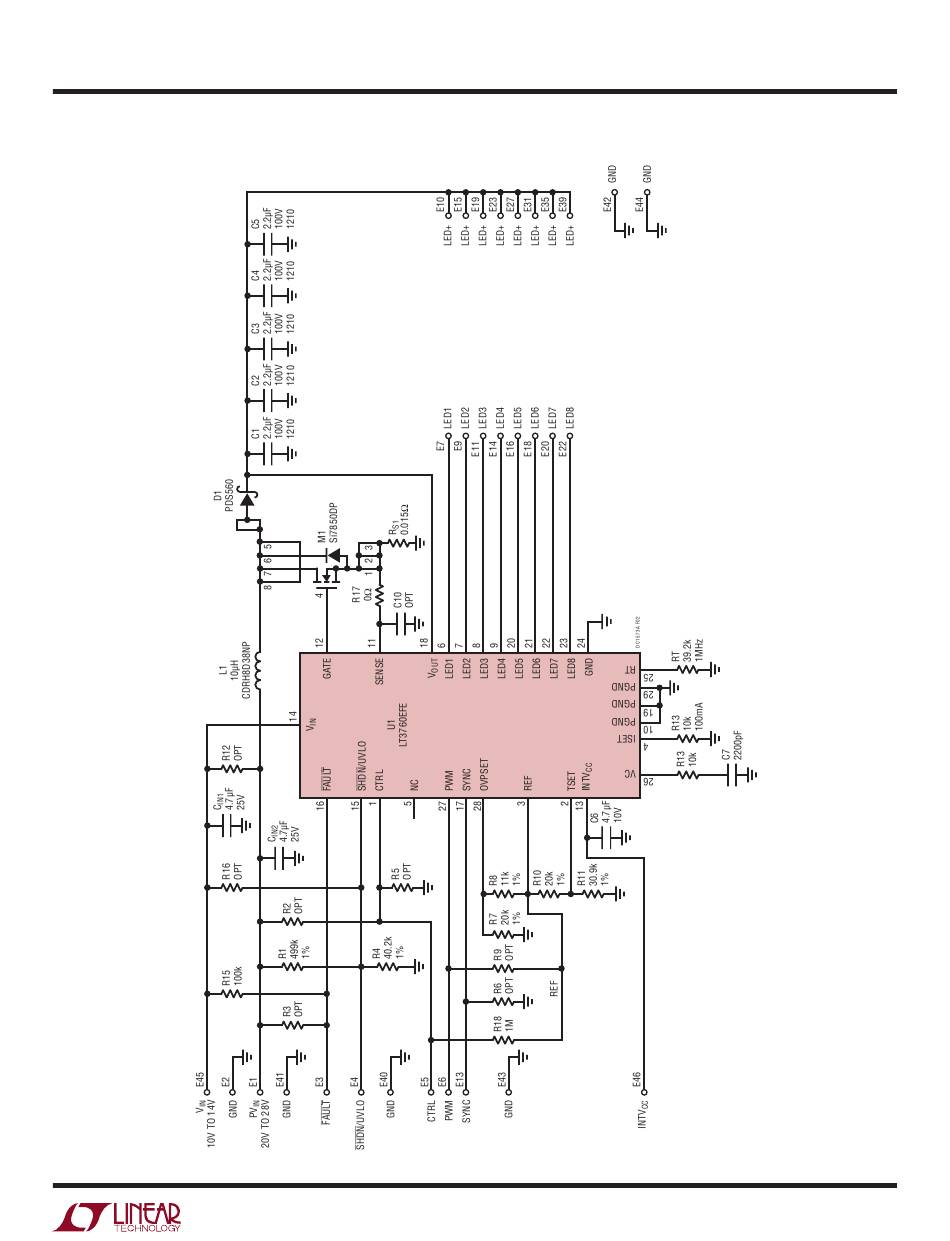

scheMAtic DiAgrAM

dc1573af
