GameSir T4w - Wired Controller Manual

NOTICE: Please read this Precautions carefully before using the product.

• CONTAINS SMALL PARTS. Keep out of reach of children under the age of 3. Seek immediate medical attention if swallowed or inhaled.
• DO NOT use the product near fire.
• DO NOT expose to direct sunlight or high temperatures.
• DO NOT leave the product in a humid or dusty environment.
• DO NOT impact the product or cause it to fall due to strong impact.
• DO NOT touch USB port directly or it might cause malfunctions.
• DO NOT strongly bend or pull cable parts.
• Use a soft, dry cloth while cleaning.
• DO NOT use chemicals such as gasoline or thinner.
• DO NOT disassemble, repair or modify.
• DO NOT use for purposes other than its original purpose. We are NOT responsible for accidents or damage when used for non-original purposes.
• DO NOT look directly at the optical light. It might damage your eyes.
• If you have any quality concerns or suggestions, please contact GameSir or your local distributor.

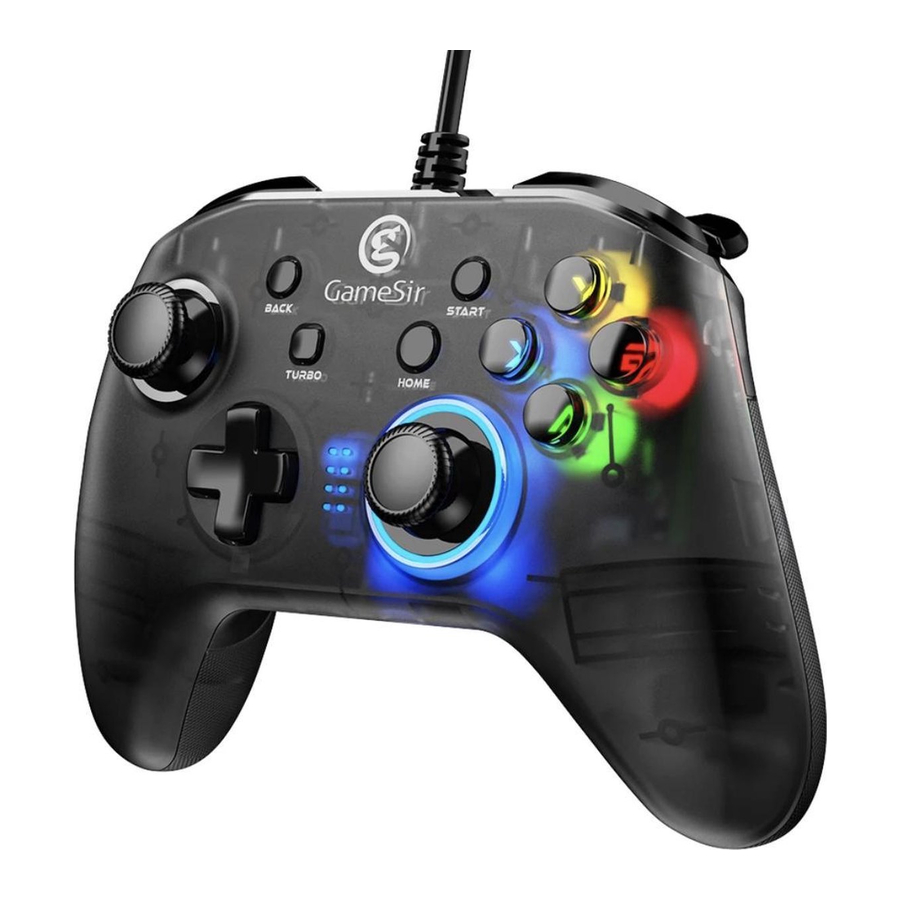

PRODUCT DESCRIPTION

GameSir T4w Wired Controller is designed for a strengthened gaming experience. It is compatible with Windows 7 or above through wired connection. GameSir T4w Wired Controller has LB & RB buttons, D-pad, silicone anti-skid 3D joystick and sensitive triggers. Dual motors bring strong vibration feedback. Ergonomic handles are unevenly engraved and designed for anti-skid handhold. The product has translucent design with LED ABXY buttons on the right.

PACKAGE CONTENTS

GameSir T4w Wired Controller

Instruction Manual

SYSTEM REQUIREMENT

Windows 7/8/10

REGISTRATION

Register your GameSir ID at https://gamesir.hk/ to get real-time information on your product's warranty status and series of GameSir exclusive benefits.

WHAT YOU'LL GET

*12 months limited manufacturer's warranty

*Free online technical support at https://gamesir.hk/ (Supports English and Japanese)

DEVICE LAYOUT

1. BACK Button
2. START Button
3. Turbo Button
4. HOME Button
5. A/B/X/Y buttons
6. Backlight loop
7. LED light indicators
8. D-Pad


9. Reset
10. LT Button
11. LB Button
12. USB Cable
13. RT Button
14. RB Button

CONNECTION

PC Dinput Wired Connection Mode Setup:

1. Plug in USB cable into PC USB port.
2. If LED1 + LED3 stay on, Dinput mode is connected succesfully.

Long press Home key for 5 seconds to switch mode.

PC Xinput Wired Connection Mode Setup:

1. Plug in USB cable into PC USB port.
2. If LED1 + LED4 stay on, Xinput mode is connected succesfully.

Long press Home key for 5 seconds to switch mode.

Dinput Mode: LED1+LED3 indicators stay on.

Xinput Mode: LED1+LED4 indicators stay on.

TURBO FUNCTION

1. Press the key where you want to set turbo function, press TURBO key simultaneously, then back light turns into red and Turbo function is successfully set.
2. Press the key that is successfully set for Turbo function, press TURBO key simultaneously, then back light turns into red and Turbo function is successfully canceled.

* The following buttons can be used to set for Turbo function:

A, B, X, Y, LB, RB, LT, RT.

LIGHTING AND MOTOR VIBRATION INTENSITY ADJUSTMENT

Lighting adjustment:
Hold LT, RT, R3 simultaneously then press up or down of D-pad to adjust lighting. The lowest level is light off among 5 levels of lighting.

Motor vibration intensity adjustment:
Hold Turbo then press up or down of D-pad to adjust vibration. The lowest level is vibration off among 5 levels of vibration.

RESET

Stick a slender pin into the Reset button on the back of GameSir T4w Wired Controller to reset. The controller will turn off and reboot.

GameSir • Gaming is Winning.™

© 2018 GameSir Inc. All rights reserved.

Product may vary slightly from those pictures.

We hope this manual answered any questions you may have. If you have any further questions, please contact us:
