GameSir Z2 - E-sports Wireless Keypad & Mouse Combo Manual

PRODUCT DESCRIPTION

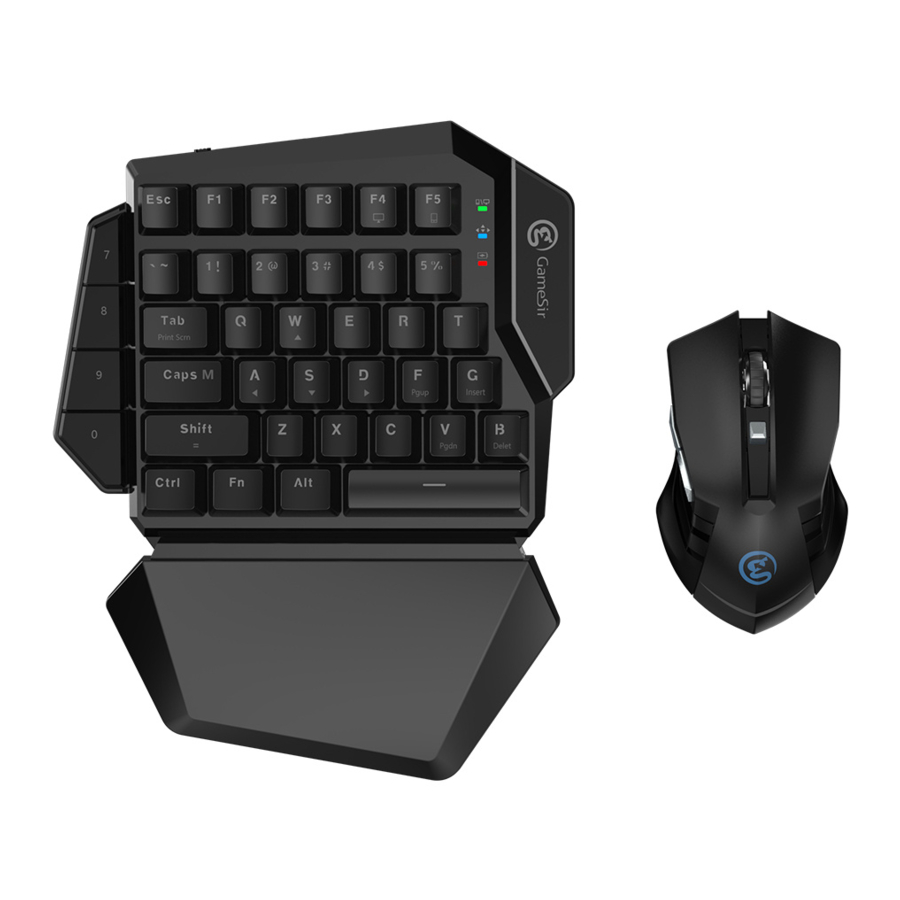

GameSir Z2 E-sports Wireless Keypad & Mouse Combo contains GameSir Z2 wireless one-handed gaming keypad and GameSir GM180 E-sports wireless gaming mouse. It is compatible with Windows PC/Android through stable 2.4GHz dongle, providing accurate and flexible keypad and mouse control.
Built-in with 1000mAh lithium battery, GameSir Z2 wireless one-handed gaming keypad can be connected through 2.4GHz/Bluetooth. The slidable ergonomic palmrest perfectly suits different gestures for a faster control.
GameSir GM180 E-sports wireless gaming mouse greatly optimizes aiming accuracy and stability to avoid external mouse's poor compatibility and high consumption.

PACKAGE CONTENTS

GameSir Z2 wireless one-handed gaming keypad (with 2.4GHz wireless dongle)
GameSir GM180 E-sports wireless gaming mouse (with 2.4GHz wireless dongle)
Mirco USB cable (3.28 ft.)
Detachable and slidable palmrest User Manual

SYSTEM REQUIREMENT

Windows 7 or above Android 4.0 or above iOS 10 or above

REGISTRATION

Register your GameSir ID at https://gamesir.hk/ to get latest updates about GameSir products and gaming news.

YOUR BENEFITS

• 30 calendar days to return an item from the date you received it.
• 12-month replacement with the same model from the date you received it.
• Free online technical support at https://gamesir.hk/

DEVICE LAYOUT

1. Connection indicator light
2. D-pad mode switch light
3. Power light
4. Detachable and slidable palmrest
5. 2.4GHz dongle
6. USB port
7. Micro-USB
8. Power Switch

1. Left button
2. Right button
3. Middle & Roller
4. DPI Key
5. Forward
6. Backward
7. Mouse skate
8. Optical sensor
9. Battery box
10. 2.4GHz dongle

Connect PC via 2.4GHz dongle

1. Power on GameSir Z2 Keypad.
2. Press Fn+F4 to switch to PC mode. The indicator light will flash in green, indicating GameSir Z2 Keypad can be connected.
3. Insert GameSir Z2 Keypad's 2.4GHz dongle into Window PC's USB port.
4. The indicator light will stay solid green. GameSir Z2 Keypad is successfully connected with PC.
5. Insert GameSir GM180 mouse's 2.4GHz dongle into Window PC's USB port.
6. Driver will be automatically installed on PC. After installation, GameSir Z2 Combo can work normally.

Connect Android(4.0 or above) devices

1. Turn on Bluetooth of Android device.
2. Power on GameSir Z2 Keypad.
3. Press Fn+F5 to switch to Bluetooth mode. The indicator light will flash in blue, indicating GameSir Z2 Keypad can be connected.
4. Download GameSir World app, enter "GameSir Spirit" > "Searching gamepad", connect the gamepad with your phone via Bluetooth.
5. The indicator light will stay solid blue, GameSir Z2 Keypad is successfully connected with Android devices.
6. Insert GameSir GM180 mouse's 2.4GHz dongle into Window PC's USB port.
7. GameSir Z2 Combo can work normally. Click "Gamepad Test" in GameSir World app to take a test.

Scan the QR Code or browse the link below to download GameSir World app.

https://gamesir.hk/gsw

COMBINATION FUNCTION KEYS

Equipped with various combination keys, GameSir Z2 Keypad can meet varied gaming demands through perfectly dealing with different types of games and scenes. GameSir Z2 Keypad owns two sets of unique default key layout profiles, which allow you to switch between W/A/S/D mode and D-pad mode by pressing Fn+W.
W/A/S/D mode: indicator light is on.
D-pad mode: power light and D-pad mode switch light are both on.

GAMESIR GM180 MOUSE DPI ADJUSTMENT

GameSir GM180 mouse's default DPI is 1600. Press DPI key at its back to switch 3 levels of DPI adjustment (800/1200/1600).

AUTOMATIC POWER OFF

When GameSir Z2 Keypad is connected, it will automatically power off within 600 seconds under no operation.
When GameSir Z2 Keypad is disconnected, it will automatically power off within 120 seconds under no operation.
* When GameSir Z2 Keypad automatically powers off, please switch on and connect again with your devices.

POWER INSTRUCTIONS

When GameSir Z2 Keypad is connected, power indicator is off.
When GameSir Z2 Keypad is charging or in low power condition (15% and below), power indicator flashes in red.
