Related Manuals for GameSir T4 pro
Summary of Contents for GameSir T4 pro
- Page 1 GameSir T4 pro User’s guide Importer Alza.cz a.s. Jankovcova 1522/53 Holešovice 170 00 Prague 7 www.alza.cz...
-
Page 2: System Requirements
Dear customer, Thank you for purchasing our product. Please read the following instructions carefully before using for the first time and keep this user manual for future reference. Pay particular attention to the safety instructions. If you have any questions or comments about the device, please contact the customer line. -
Page 3: Device Layout

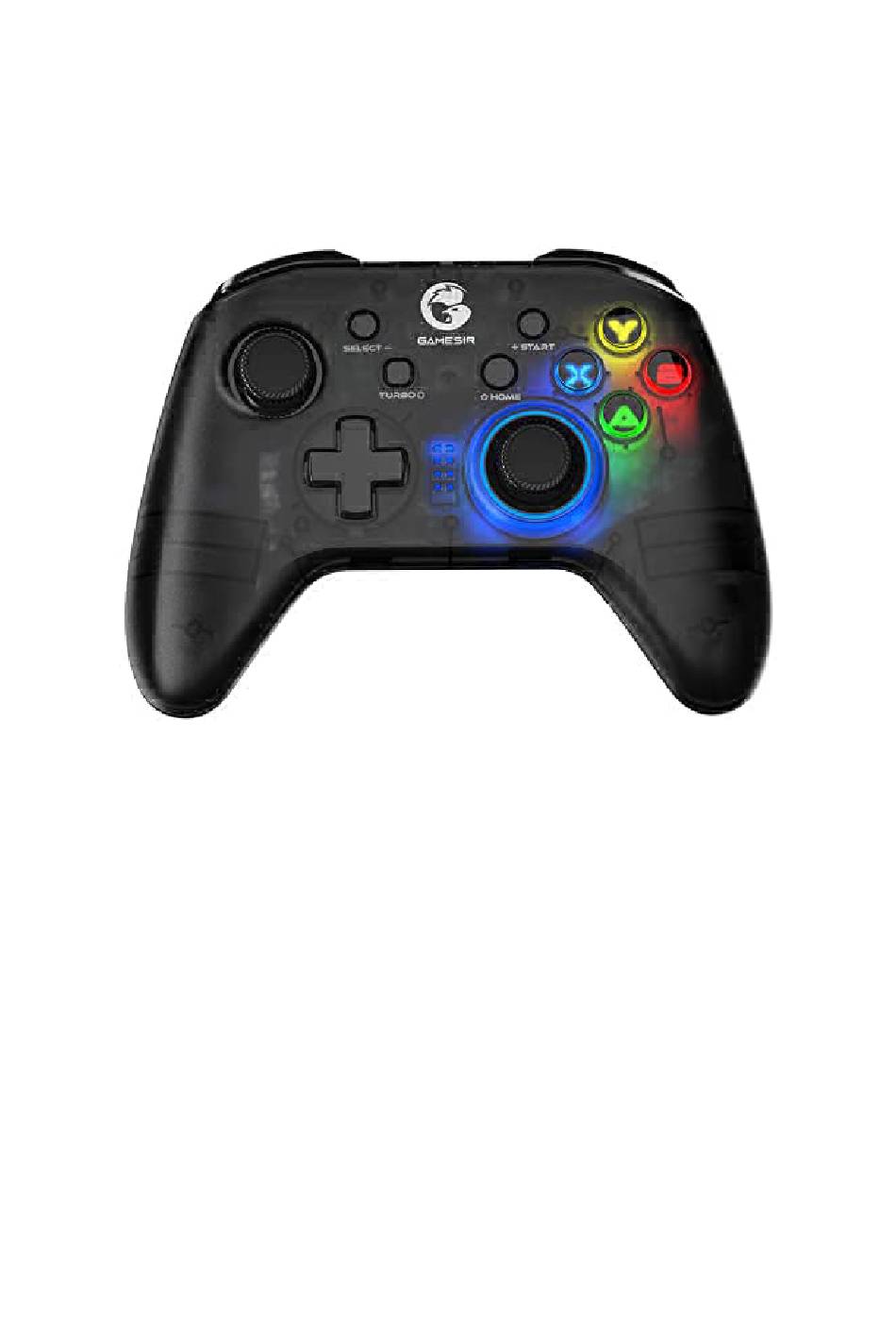

DEVICE LAYOUT A. Left joystick B. D-Pad C. Select Button D. Home button E. Start button F. Right joystick G. ABXY button H. Turbo button Indicator USB reciever... - Page 4 K. LB Button L. RB Button M. LT button N. RT button O. Type-C connector P. Phone holder base Q. Charging Indicator R. M1 M3 button S. M2 M4 button...
- Page 5 Power On: Press and hold the HOME button for 2 seconds to power on. Power Off: Press and hold the HOME button for 5 seconds to power off. Pairing mode: According to the gamepad mode you want to apply, select a button- combination to power on to enter the corresponding mode, which is to enter the pairing mode.
-
Page 6: Battery Status
HOW TO CHARGE THE GAMEPAD Use a charging cable to connect the Type-C interface on the top of the gamepad to the USB charging port. BATTERY STATUS When the battery is below 15%, the current Charging Indicator will flash in RED quickly. Charging indicator Description Red light stays on... - Page 7 HOW TO CONNECT TO A COMPUTER OR ANDROID TV BOX VIA USB RECEIVER 1. Plug the USB receiver into the USB port of your computer od Android TV box. 2. Press the X + HOME button until the gamepad is turned on. 3.
- Page 8 HOW TO CONNECT TO PC VIA A USB CABLE Plug the USB cable to the USB port of your computer. HOME button indicator Description Mode indicator HOW TO CONNECT TO SWITCH OR SWITCH LITE VIA BLUETOOTH 1. Go to the main interface of the Switch and click: Joy Con – change the grip/ order and enter the pairing interface.
- Page 9 Refers to mobile games that support using a gamepad. 1. Press the A + HOME button until the gamepad is turned on. 2. Turn on the phone’s Bluetooth, search for GameSir-T4 pro gamepad, click and pair. 3. The next time you connect, as long as you press the HOME button to power on, the gamepad will automatically connect.
- Page 10 PLAY APPLE ARCADE AND MFI GAMES Refers to mobile games that support using a gamepad. 1. Press the B + HOME button until the gamepad is turned on. 2. Turn on the phone’s Bluetooth, search for Xbox Wireless Controller gamepad, click and pair.
- Page 11 Blue fast flash Pairing Blue stay on Connected To learn more about Android controller-supported games, Apple Arcade games, MFi games and how to use GameSir T4 pro, please scan the following QR code or refer to the online advanced user guide.
- Page 12 BACK BUTTON FUNCTION BACK BUTTONS LAYOUT A button Default button value OTHER FUNCTIONS Key binds Description Turbo + D-Pad’s Up Adjust the intensity of 5 levels of motor & Down vibration, 1 level is the highest, the default is 1 level. Hold L2, R2, R3 + D-Pad’s Up Adjust 5 levels of brightness of the &...
- Page 13 BACK BUTTONS PROGRAMMING SINGLE BUTTON OR MULTIPLE BUTTONS CAN BE SET Turbo mode How to start Description Indicator tips Triggered at Any M button + SELECT E.g.: The red and blue the same time 1. In Switch mode, 1. M1 + SELECT lights of the right combination key enters the Same...
- Page 14 • responsible for accidents or damage when used for non-original purposes. • DO NOT look directly at the optical light. It might damage your eyes. If you have any quality concerns or suggestions, please contact GameSir or your local distributor.
-
Page 15: Warranty Conditions
WARRANTY CONDITIONS A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or other services during the warranty period, contact the product seller directly, you must provide the original proof of purchase with the date of purchase. The following are considered to be a conflict with the warranty conditions, for which the claimed claim may not be recognized: Using the product for any purpose other than that for which the product is intended... - Page 16 This product has been tested in accordance with the standards used to demonstrate compliance with the essential requirements set out in the relevant directives. You can find the declaration of conformity on the alza.cz website. WEEE This product must not be disposed of as normal household waste in accordance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
