GameSir G3v - Gamepad Manual

Product Introduction

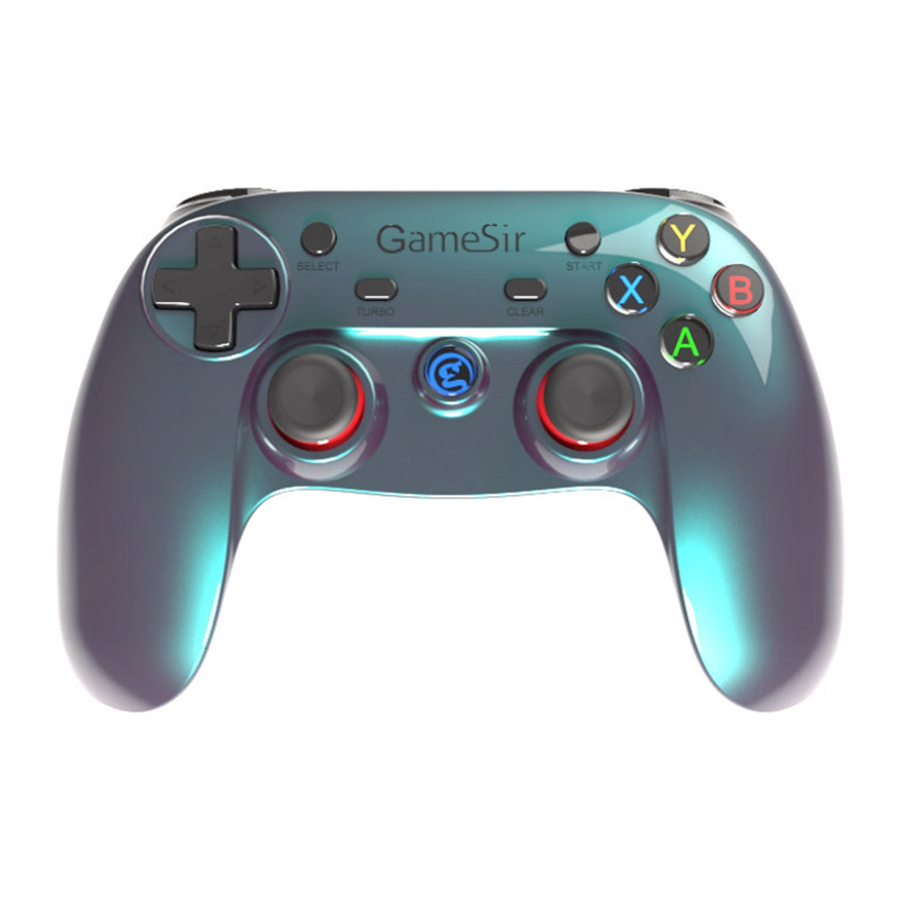

Product Overview

Product Function

Power On / Off

1. Power On: Press HOME button for 2 seconds to start.
2. Power Off: Press HOME button for 5 seconds to power off.

Power LED Indicator
LED 1-LED 4 lights: more than 75% battery power left
LED 1-LED 3 lights: 50%-75% battery power left
LED 1-LED 2 lights: 25%-50% battery power left
Only LED 1 light: 10%-25% battery power left
LED 1 shining: less than 10% battery power left.

Charging Indication

1. Charge through charging cable
   When connect the charging cable, the LED lights from Number 1 to Number 4 will lights in turns, the four lights keep on when it is fully charged.
2. Charge under sleeping mode
   When connect the charging cable, the Game controller wakes up and enters current mode, no signal receiving after 1 minute. LED lights from number 1 to 4 will lights in turns. Four LED lights keep on when it is fully charged.

1. The Game controller enters sleep state after 2-minute disconnection.
2. The Game controller enters sleep state after 5-minute no action.

Vibration Intensity adjustment
Press Clear + Up/down button of the D-Pad to choose the increase/decrease the vibration intensity.

Vibration frequency adjustment
Press Clear + Left/Right button of the D-Pad to choose the higher/lower vibration frequency

Exchange the position of left joystick and D-Pad
Press Clear+L3 to exchange the position of left joystick and D-Pad.

Game Controller Connection

Android Platform (Android phone/Android tablet)

1. Connection Method
   1. Open the Bluetooth on Android device.
   2. Press A + HOME button for 2 seconds to turn on the Game controller.
   3. The "Home" button indicator light will turn green and flashes.
   4. One signal will be found on your screen: "GameSir-G3v"
   5. Connect with "GameSir-G3v" on the Bluetooth management interface of the Android device.
   6. When "Home" button light keeps on in green, the Game controller is connected successfully.
2. Enter or Exit Mouse Simulation Mode (Only being available in HID mode)
   Mouse Simulation Mode enables the Game controller to work as mouse. Left joystick simulates mouse move, A button simulates the left mouse click, B button simulates the right mouse click.
   1. Enter mouse mode: When Game controller is connected, press SELECT+ X button to enter Mouse Simulation Mode, "Home" button keeps on in white.
   2. Exit mouse mode: Press SELECT + X button to exit the Mouse Simulation Mode, "Home" button keeps on in green.
3. Android mode only
   Press B + HOME button simultaneously for 2 seconds to start the Game controller. The difference between the "A+Home" start way and "B+Home" star way is that there is no Mouse Simulation Mode in "B+Home" start mode.

Smart TV/ TV Box - Connection Method

1. Plug dongle into the USB port of your device.
2. Press A + HOME button simultaneously for 2 seconds to start the Game controller.
3. The "Home" button light flashes in green.
4. When "Home button" light keeps on in green, the Game controller is connected successfully.

PC Platform (X-Input mode) - Connection Method

1. Plug dongle into the USB port of your device.
2. Press X + HOME button simultaneously for 2 seconds to start the Game controller.
3. The Home button light flashes in white.
4. When Home button light keeps on in white, the Game controller is connected successfully.

PlayStation3 Platform - Connection Method

1. Plug dongle into the USB port of PS3.
2. Press"Turbo+Home" botton simultaneously for 2 seconds to start the game controller.
3. "Home" button will flashes in blue.
4. When "Home" button keeps on in blue, it means that the games controller has been connected to PS3 successfully.

Auto Reconnection

When device Bluetooth is on and Game controller is off
Press HOME button for 2 seconds to start Game controller, the Game controller will be reconnected to the device automatically.

When device Bluetooth is off and Game controller is on
Turn on the Bluetooth of the device, the Game controller will be reconnected automatically.

When device Bluetooth is off and Game controller is off
Turn on the Bluetooth on device, Press HOME button for 2 seconds to start the Game controller, the Game controller will be reconnected to the device automatically.

When device is connected by dongle and the Game controller is off.
Press Home button for 2 seconds to start Game controller, the Game controller will reconnect with device automatically.

Package Content

1* GameSir Gamepad
1* USB Charging Cable
1* 2.4GHz Dongle
1* User Manual

Wired Connection Method

Press HOME button for 2 seconds to start the gamepad, connect the gamepad with the device by USB cable. (Note: This wired connection requests OTG function of the Android device; USB Wired connection is not supported with IOS platform)

TURBO Function Introduction

TURBO is semi-automatic, it creates one or more continuous button press.

Setting up the Turbo button
Press one or more buttons, (Including ABXY, L1/L2 Button ), and then press the " TURBO " button once, the corresponding function is set up successfully.

Clear TURBO
Press "Clear" button separately, and then release it, you can remove all the Turbo function you have set up.

Function
TURBO is used more in shooting games. Your fingers would easily get tired if you continuously press the same button (shooting button).
With the TURBO, you can continuously shoot by holding the shooting button.

Possible Problems

Why the Game controller can not be identified on computer?

1. Make sure your computer USB port is working.
2. USB voltage is not stable because of short of power supply of computer.
3. Try another USB port.
4. Need to install X360 Game controller software for systems below Windows XP (including XP)

Why the Game controller does not work in games?

1. The game does not support Game controller
2. Set the Game controller mode into the game before using

Why the Game controller does not vibrate?

1. The game does not support vibration.
2. Vibration function is not open in game setting.

Others

1. When the Game controller can not be turned on, it may be because of running out of battery, please use USB cable to charge the Game controller.
2. When the Game controller was crashed or disconnected, please keep the device at effective distance, or reconnect.
3. Factory settings reset: There is a small hole at the back of Game controller, press the hole by using a needle to reset the factory settings.

Attention

1. Avoid strong vibration, do not disassemble, refit or repair on your own.
2. Do not keep in humid, high temperature or soot places.
3. Keep away from water or other liquid, as they may affect the performance of Game controller.
4. Keep away from fire, the built-in battery has the danger of explosion.
5. Charging voltage is USB 3.7-3.5V DC supply (normal Android smart phone charging power can be used)
6. Children should use this production under adult's supervision.
7. Please contact the distributor or our after-sale service staff if you have any quality problem or suggestion. Contact details can be found on the package.
8. G3v can't be connected on Windows PC by Bluetooth, but by the 2.4GHz USB dongle or USB cable.
