GameSir G3s Wireless Controller Manual

PACKAGE CONTENTS

GameSir G3s Wireless Controller
2.4GHz Wireless Dongle
Micro-USB Cable
User Manual

SYSTEM REQUIREMENTS

Android 4.4 or later
Windows 7 or later

REGISTRATION

Register your GameSir ID online at https://gamesir.hk/ to get real-time information on your product's warranty status and a series of exclusive benefits from GameSir.

YOUR BENEFITS

＊12-month replacement of the same model from the date you received it.
＊Contact us for free online technical support

Website: https://gamesir.hk
E-mail: cs@gamesir.hk
Tel: +1-888-937-1733 (USA & Canada)
Sat.-Sun. 9:00 AM-6:00 PM PST
Mon.-Wed. 6:00 AM-6:00 PM PST
Thur.-Fri. 6:00 AM-3:00 PM PST

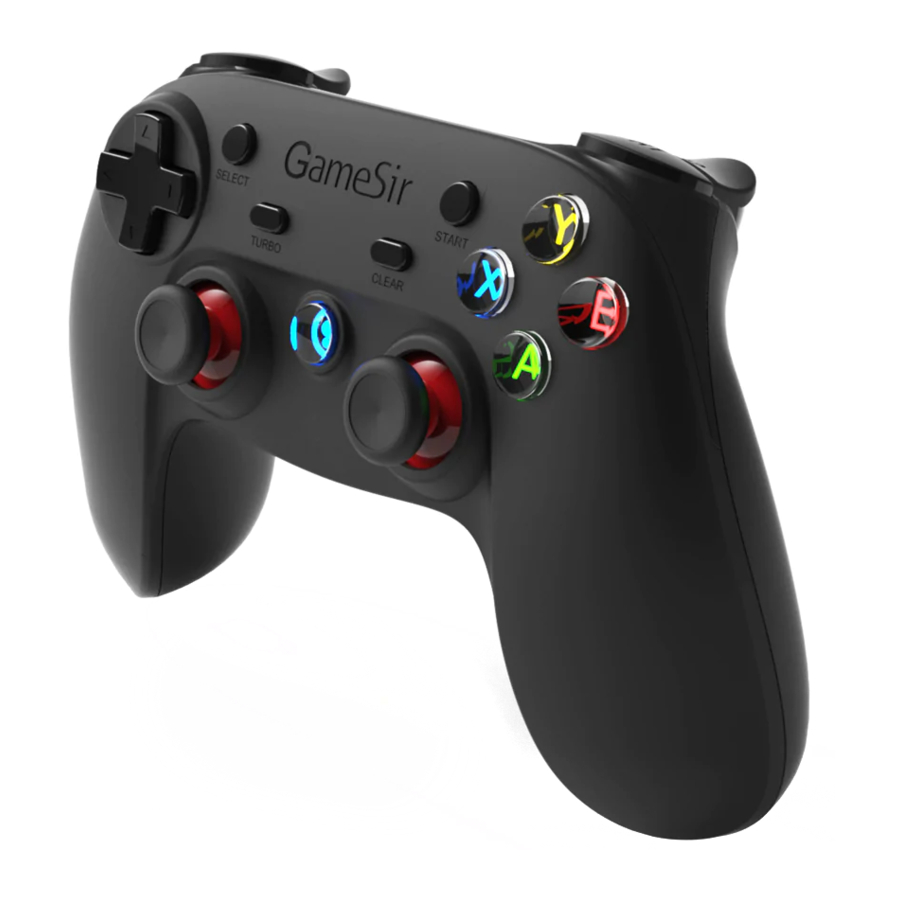

DEVICE LAYOUT

1. D-Pad
2. SELECT Button
3. TURBO Button
4. CLEAR Button
5. START Button
6. ABXY Buttons
7. Left Joystick
8. Home Button
9. Right Joystick
10. L1 / L2 Trigger Button
11. Micro-USB Port
12. R1 / R2 Trigger Button
13. Indicator Lights
14. RESET Hole
15. 2.4GHz Wireless Dongle
16. Micro-USB Cable

READ BEFORE USE

1. Please fully charge the GameSir G3s before use.
2. When the GameSir G3s is being charged, Home button and ABXY buttons will flash every 2 secs.
3. When the GameSir G3s is fully charged, Home button and ABXY buttons will keep lit.
4. When the GameSir G3s is in a low battery state, Home button and ABXY buttons will flash once per sec.

CONNECTION

Connect to Android Phone / Tablet

Bluetooth Connection

1. Turn on Bluetooth on your Android phone / tablet.
2. Press and hold the A + Home buttons simultaneously for 2 secs to turn on the GameSir G3s, the indicator light will flash.
3. Connect the GameSir G3s to your Android phone / tablet via Bluetooth, the indicator light will keep lit and the indicator light will flash. The connection is complete.

＊Please Note: Next time, you just need to press the Home button for 3 secs to turn on the GameSir G3s, which will automatically connect to the last Android phone / tablet via Bluetooth. If you want to connect it to a new Android phone / tablet, repeat the above steps.

Connect to Android TV Box

Bluetooth Connection

1. Turn on Bluetooth on your Android TV box.
2. Press and hold the A + Home buttons simultaneously for 2 secs to turn on the GameSir G3s, the indicator light will flash.
3. Connect the GameSir G3s to your Android TV box via Bluetooth, the indicator light will keep lit and the indicator light will flash. The connection is complete.

＊Please Note: Next time, you just need to press the Home button for 3 secs to turn on the GameSir G3s, which will automatically connect to the last Android TV box via Bluetooth. If you want to connect it to a new Android TV box, repeat the above steps.

2.4GHz Wireless Connection

1. Plug the GameSir G3s's 2.4GHz wireless dongle into the USB port of Android TV box.
2. Press and hold the A + Home buttons simultaneously for 2 secs to turn on the GameSir G3s, the indicator light will keep lit and the indicator light will flash. The connection is complete.

＊Please Note: Next time, you just need to press the Home button for 3 secs to turn on the GameSir G3s, which will automatically connect to the last Android TV box via 2.4GHz wireless dongle. If you want to connect it to a new Android TV box, repeat the above steps.

Connect to Windows PC

2.4GHz Wireless Connection

1. Plug the GameSir G3s's 2.4GHz wireless dongle into the USB port of Windows PC.
2. Press and hold the X + Home buttons simultaneously for 2 secs to turn on the GameSir G3s, the indicator light will keep lit. The connection is complete.

＊Please Note: Next time, you just need to press the Home button for 3 secs to turn on the GameSir G3s, which will automatically connect to the last Windows PC via 2.4GHz wireless dongle. If you want to connect it to a new Windows PC, repeat the above steps.

Wired Connection

1. Press and hold the X + Home buttons simultaneously for 2 secs to turn on the GameSir G3s, the indicator light will flash.
2. Connect the GameSir G3s to Windows PC with the Micro-USB cable, the indicator light will keep lit. The connection is complete.

Connect to PlayStation 3

2.4GHz Wireless Connection

1. Plug the GameSir G3s's 2.4GHz wireless dongle into the USB port of PlayStation 3.
2. Press and hold the TURBO + Home buttons simultaneously for 2 secs to turn on the GameSir G3s, one of the four indicator light will keep lit. The connection is complete.

＊Please Note: Next time, you just need to press the Home button for 3 secs to turn on the GameSir G3s, which will automatically connect to the last PlayStation 3 via 2.4GHz wireless dongle. If you want to connect it to a new PlayStation 3, repeat the above steps.

MOUSE POINTER MODE

When the GameSir G3s is in the Mouse Pointer Mode, the left joystick simulates mouse movement, the A button simulates the left mouse button, and the B button simulates the right mouse button.

Enter Mouse Pointer Mode

When the GameSir G3s is connected to the Android devices successfully, press and hold the SELECT + X buttons simultaneously for 2 secs to enter Mouse Pointer Mode, the indicator light will keep lit.

Exit Mouse Pointer Mode

Once again, press and hold the SELECT + X buttons simultaneously for 2 secs to exit Mouse Pointer Mode, the indicator light will flash.

TURN ON / OFF LED BACKLIGHT

1. When GameSir G3s is connected successfully, press and hold L1 and R1 trigger buttons simultaneously for 5 secs to turn off the LED backlight.
2. Once again, press and hold L1 and R1 trigger buttons simultaneously for 5 secs, you can turn on the LED backlight.

TURBO FUNCTION

Activate TURBO Function

Press one or more buttons, excluding D-pad, joysticks, SELECT and START buttons, then press TURBO button to activate TURBO function.

Clear TURBO Function

Press one or more buttons, then press CLEAR button to clear TURBO function.

© 2019 GameSir Inc. All rights reserved. Product may vary slightly from those pictures.
