Overview
The JetNet 4110L can be thought of a replacement for wires for RS-485 applications.
It is important to know there are 2 "addresses" in the JW 4110L:
•
RF Address
•
Modbus Address
It will be good practice to name in a similar manner so not to get confused.
The RF Address is the addressing scheme for the wireless LoRa communication, while the Modbus
Address is the for the modbus functionality.
Setting up the JetWave 4110L for basic wireless communication
What you will need:
Part Number
F00W4110000000
F00A4110000000
NA
NA
NA
NA

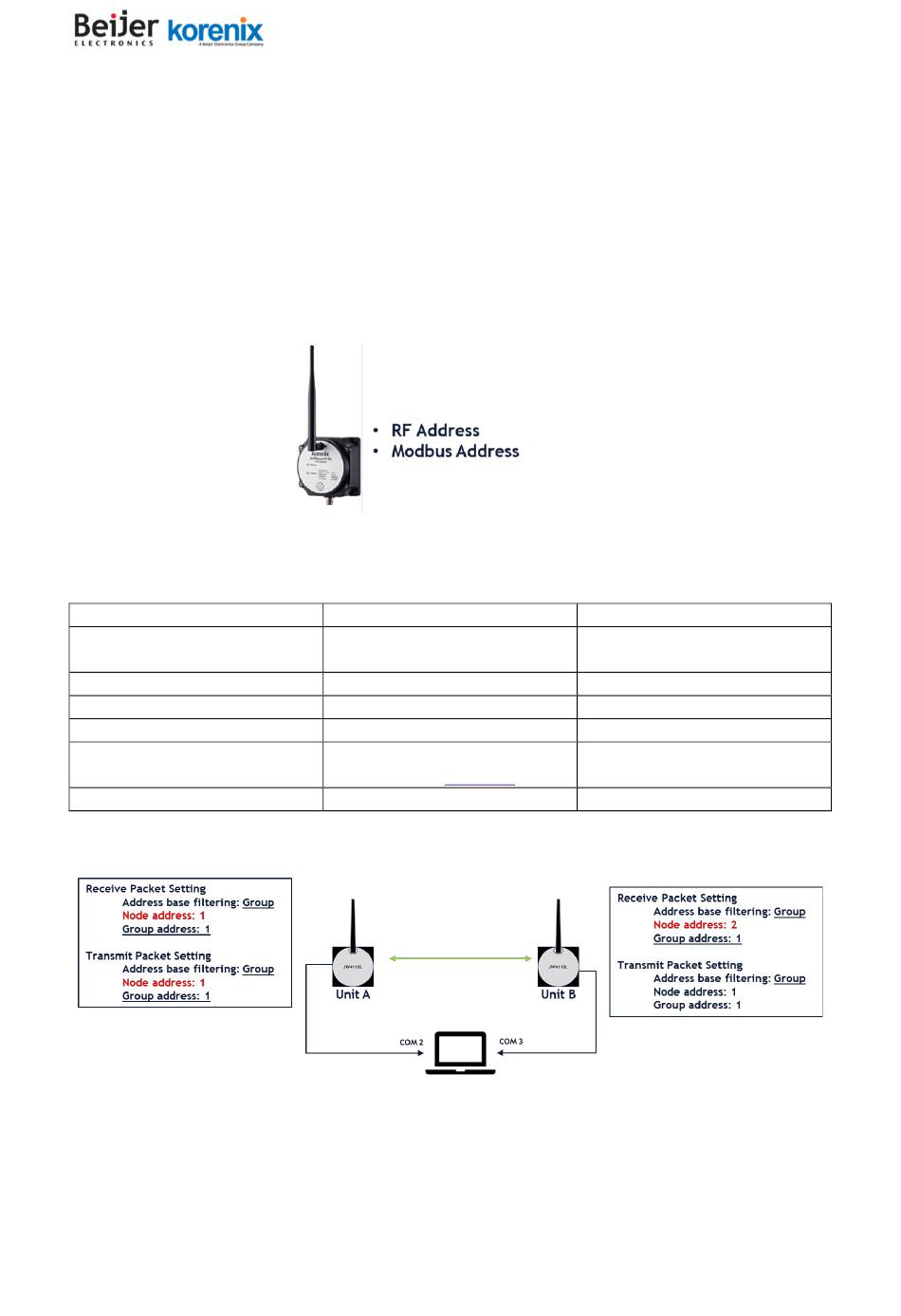

Network Diagram:

As mentioned before there are 2 address on the JetWave 4110L remember that as we move forward.
Once it is connected you will be able to communicate directly over the 2 COM ports.
www.beijerelectronics.com
Version 1.0.0
Description
[JetWave4110L] Industrial LoRa
Gateway
USB to RS-485 adapter
Power supply
Configuring laptop
Terminal software,
recommended TeraTerm
JetControl Software
JetWave 4110L Quick Start Guide 1
People & Technology Connected
Qty
2 or more
1 ( recommended 2)
1
1
1
1
2
