HIKVISION UD04334B Quick Start Manual

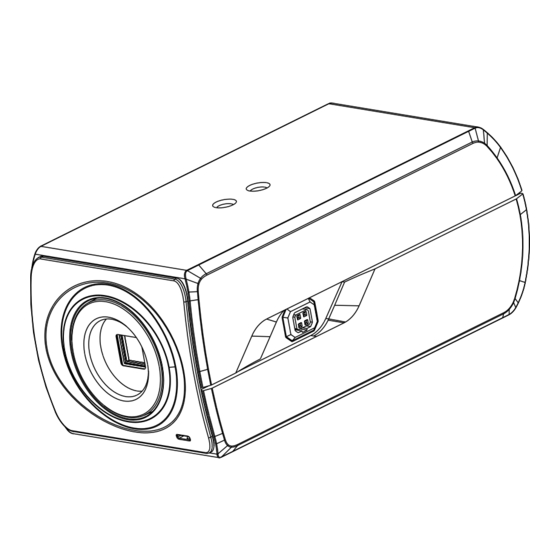

Network box camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network Box Camera
Quick Start Guide
UD04334B
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UD04334B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION UD04334B

Summary of Contents for HIKVISION UD04334B

  • Page 1 Network Box Camera Quick Start Guide UD04334B...
  • Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
  • Page 4 Network Box Camera·Quick Start Guide IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 5 Network Box Camera·Quick Start Guide This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Network Box Camera·Quick Start Guide Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 7 Network Box Camera·Quick Start Guide ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information. ● Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 24 VAC or 12 VDC according to the IEC60950-1 standard.
  • Page 8 Network Box Camera·Quick Start Guide malfunction), and affect the endurance of sensor at the same time. ● The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
  • Page 9 Network Box Camera·Quick Start Guide responsibility for problems caused by unauthorized repair or maintenance.) 0504051060109...

  • Page 10: Table Of Contents

    Network Box Camera·Quick Start Guide Table of Contents 1 Appearance Description ............... 10 2 Installation ..................14 Ceiling Mounting ............14 Wall Mounting .............. 17 Installing the SD Card ............ 21 3 Setting the Network Camera over the LAN ........22 Wiring ................

  • Page 11: Appearance Description

    Network Box Camera·Quick Start Guide 1 Appearance Description The overview of the box camera is shown below: Figure 1-1 Overview (1) The overview of the components and the interface are shown below: Figure 1-2 Overview (2) The interfaces on the rear panel are shown below:...
  • Page 12 Network Box Camera·Quick Start Guide Figure 1-3 Overview (3) Table 1-1 Description Description Description Lens Mount ¼ -20 UNC Screw Hole Power Indicator Auto-iris Interface LAN(PoE)
  • Page 13 Network Box Camera·Quick Start Guide Description Description Power Outlet Reset microSD Card Slot Video Out Grounding Alarm Out RS-232 RS-485 Alarm In Audio Out ABF (Optional) Audio In  ABF function is only supported by certain camera models.  To reset the camera default parameters, you need to press and hold the RESET button and power on the camera.
  • Page 14 Network Box Camera·Quick Start Guide Table 1-2 Pins DC-driven Damp- Damp+ Drive+ Drive- Power, Video and GND pins are used when the auto-iris is driven by video; Damp+, Damp-, Drive+ and Drive- pins are used when the auto-iris is driven by DC.

  • Page 15: Installation

    Network Box Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12V DC or 24V AC, please make sure your power supply matches with your camera.
  • Page 16 Network Box Camera·Quick Start Guide Adjustable Nut Figure 2-1 Install the Mount 2. Fit the lens (not supplied) to the camera and rotate it to get it tightened.  Install the adapter ring to the lens interface if a C-mount lens is used.
  • Page 17 Network Box Camera·Quick Start Guide Figure 2-2 Install the Lens 4. Align the screw hole on the camera with the ceiling mount and rotate the camera to get it fixed. 5. Adjust the surveillance angle. 1). Loosen the pan nut to adjust the pan angle [0°-360°]. 2).

  • Page 18: Wall Mounting

    Network Box Camera·Quick Start Guide Knob Figure 2-3 Install the Camera to the Mount and Adjust the Angle Wall Mounting Steps: 1. Install the lens (not supplied) to the camera and rotate it to get it tightened. 2. Plug the auto-iris cable to the auto-iris interface.
  • Page 19 Network Box Camera·Quick Start Guide Figure 2-4 Install the Lens You need to use the CS adapter ring if C type lens is adopted. 3. Fix the bracket to the wall with the screws.
  • Page 20 Network Box Camera·Quick Start Guide Pedestal Tilt Adjust Screw Figure 2-5 Install the Wall Bracket 4. Align the camera to the pedestal, and fix the camera with the supplied screws. Pan Adjust Screw Figure 2-6 Install the Camera to the Bracket 5.
  • Page 21 Network Box Camera·Quick Start Guide 2). Adjust the focus level to obtain a perfect image on the monitor. Please do not remove the lens cap until you finish the installation to avoid the scrape and dust during the installation and wiring. 6.

  • Page 22: Installing The Sd Card

    Network Box Camera·Quick Start Guide 7. (Optional) For the camera supports ABF, you can adjust the focus manually, or click the ABF button on the rear panel of the camera to adjust the focus automatically. Installing the SD Card  Insert the SD card to the SD card slot to get it installed.

  • Page 23: Setting The Network Camera Over The Lan

    Network Box Camera·Quick Start Guide 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.

  • Page 24: Activating The Camera

    Network Box Camera·Quick Start Guide Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. We will take activation via SADP software and Activation via Web Browser as examples to introduce the camera activation.

  • Page 25: Activation Via Sadp Software

    Network Box Camera·Quick Start Guide Figure 3-3 Activation Interface(Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 26 Network Box Camera·Quick Start Guide Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera. Steps: 1. Run the SADP software to search the online devices. 2.

  • Page 27: Modifying The Ip Address

    Network Box Camera·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 28 Network Box Camera·Quick Start Guide Steps: 1. Run the SADP software. 2. Select an active device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Figure 3-5 Modify the IP Address...
  • Page 29 Network Box Camera·Quick Start Guide Note: You can enable the Hik-Connect service for the device during activation. Refer to Chapter 5.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.

  • Page 30: Accessing Via Web Browser

    Network Box Camera·Quick Start Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:...
  • Page 31 Network Box Camera·Quick Start Guide 4. Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.

  • Page 32: Operating Via Hik-Connect App

    Network Box Camera·Quick Start Guide 5 Operating via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so Note: Hik-Connect service is not supported by certain camera models. Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using...

  • Page 33: Enable Hik-Connect Service Via Web Browser

    Network Box Camera·Quick Start Guide Figure 5-1 Verification Code Setting (SADP) Note: The verification code is required when you add the camera to Hik-Connect app. 3. Click and read "Terms of Service" and "Privacy Policy". 4. Confirm the settings. 5.1.2 Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service.
  • Page 34 Network Box Camera·Quick Start Guide Steps: 1. Access the camera via web browser. Refer to Chapter 4. 2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access Figure 5-2 Platform Access Configuration (Web) 3. Select Platform Access Mode as Hik-Connect. 4.

  • Page 35: Hik-Connect Setup

    Network Box Camera·Quick Start Guide Hik-Connect Setup Steps: 1. Download and install the Hik-Connect app by searching “Hik-Connect” in App Store or Google Play 2. Launch the app and register for a Hik-Connect user account. 3. Log in Hik-Connect app after registration. Adding Camera to Hik-Connect Before you start: You need to enable the Hik-Connect service on camera before...
  • Page 36 Network Box Camera·Quick Start Guide You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package. Figure 5-4 Scan QR Code Note: If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.

  • Page 37: Initializing The Memory Card

    Network Box Camera·Quick Start Guide Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
