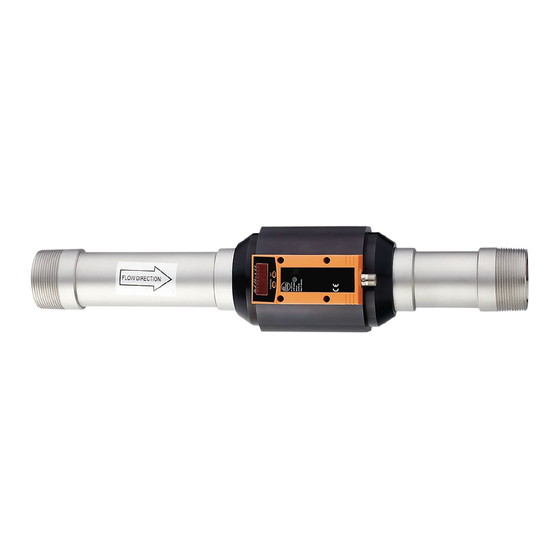

Summary of Contents for IFM Electronic efector300 SD2000

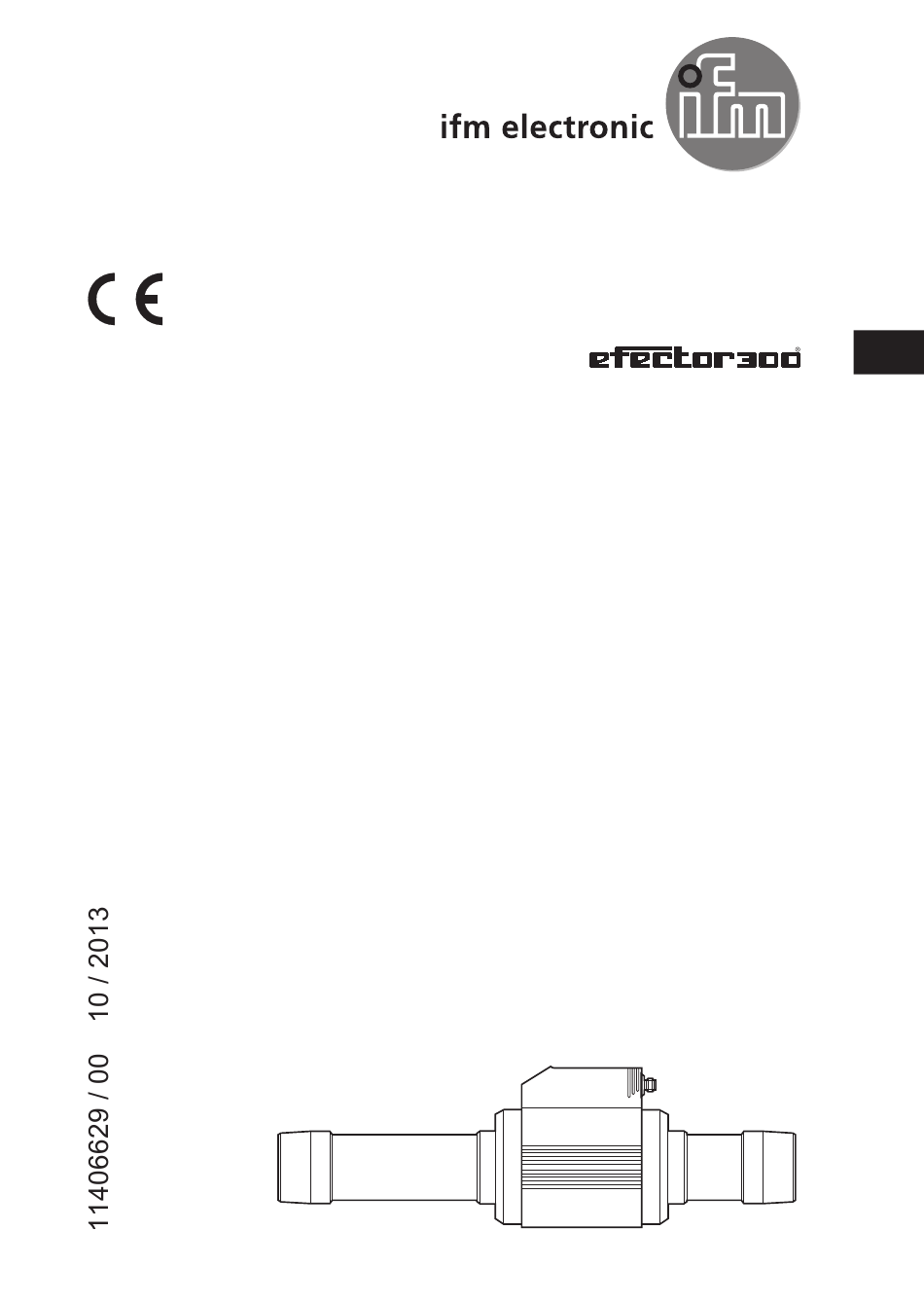

  • Page 1 Operating instructions Compressed air meter SD2000...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 3 Functions and features ����������������������������������������������������������������������������������������5 4 Function ���������������������������������������������������������������������������������������������������������������5 4�1 Processing of the measured signals ��������������������������������������������������������������5 4�2 Volumetric flow monitoring �����������������������������������������������������������������������������6 4�3 Consumed quantity monitoring (totalizer function) ����������������������������������������6 4�3�1 Consumed quantity monitoring with pulse output ���������������������������������6 4�3�2 Consumed quantity monitoring with preset counter �����������������������������6 4�4 Temperature monitoring ���������������������������������������������������������������������������������7...
  • Page 3 9�3�1 Settings for quantity monitoring via pulse output ��������������������������������18 9�3�2 Settings for quantity monitoring via the preset counter ����������������������18 9�3�3 Settings for program-controlled counter reset ������������������������������������18 9�3�4 Deactivation of the counter reset ��������������������������������������������������������18 9�3�5 Counter reset using an external signal �����������������������������������������������18 9�4 Settings for temperature monitoring ������������������������������������������������������������19 9�4�1 Settings for limit value monitoring with OUT2 �������������������������������������19 9�4�2 Setting the analogue value for temperature ���������������������������������������19...
  • Page 4: Preliminary Note

    1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunction or interference� Information Supplementary note� 2 Safety instructions • Please read this document prior to set-up of the unit� Ensure that the product is suitable for your application without any restrictions�...
  • Page 5: Functions And Features

    liability for consequences of misuse by the operator� Improper installation and use of the measurement devices results in a loss of the warranty claims� 3 Functions and features The unit monitors the standard volume flow of compressed air in industrial use� It detects the 4 process categories flow velocity, volumetric flow quantity, con- sumed quantity, medium temperature�...
  • Page 6: 4�2 Volumetric Flow Monitoring

    4.2 Volumetric flow monitoring The flow is monitored by a calorimetric measuring system, the measured signals are evaluated by the electronics� • 2 switching signals for volumetric flow limit values can be provided (output 1 and output 2). Switching functions → 4.5. • An analogue signal which is proportional to the volumetric flow (4���20 mA) can be provided on output 2. Analogue functions → 4.6.
  • Page 7: 4�4 Temperature Monitoring

    - If the quantity x is not reached during the time t, the meter is automatically reset and counting starts again; output 1 does not switch� • Quantity monitoring not time-dependent� - Settings: [ImPS] = quantity x, [ImPR] = [no], [rTo] = [OFF]� - If the quantity x is reached during the time t, output 1 switches and remains switched until the meter is reset via the digital input or [rTo] = [rED�T]�...
  • Page 8: 4�6 Volumetric Flow Or Temperature Monitoring / Analogue Function

    4.6 Volumetric flow or temperature monitoring / analogue function -30% -20% 100% 120% 130% Characteristics of the analogue output to the standard IEC 60947-5-7 1: Output current in mA 2: Operating area 3: Measuring range 4: Range between analogue start point and analogue end point 5: Error message [Err] is displayed 6: Final value of the measuring range (VMR) 7: Error message [OL] is displayed (= overload)
  • Page 9: 4�8 Low Flow Cut-Off (Lfc)

    • Via the menu item [rEF�P] the standard pressure is set, which serves as a refer- ence for the measured and display values for volumetric flow (→ 9.5.5). • Via the menu item [rEF�T] the standard temperature is set, which serves as a reference for the measured and display values for volumetric flow (→ 9.5.6). 4.8 Low flow cut-off (LFC) With this function small volumetric flow quantities can be suppressed (→ 9.5.7). Flows below the LFC value have no effect on the display and output signals� Example: For LFC = 0�5 volumetric flow quantities below 0�5 Nm³/h are sup- pressed�...
  • Page 10: 5�3 Installation Position

    two 90° elbows, two planes B = 15 x pipe diameter valve, slide B = 35 x pipe diameter 5.3 Installation position • Permitted installation positions: pipe length vertical, any position (fig� 1, 2); pipe length horizontal, unit vertical (fig� 3, 5), unit on side, pipe length left (fig� 4)� • Avoid the installation position in fig�...
  • Page 11: Electrical Connection

    6 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to� Voltage supply according to EN 50178, SELV, PELV� ► Disconnect power� ► Connect the unit as follows: OUT2/InD OUT1/IO-Link Pin 1...
  • Page 12: Operating And Display Elements

    7 Operating and display elements 1 2 3 4 5 6 7 8 Mode/Enter Set 1 to 8: Indicator LEDs - LED 1 (green) = current volumetric flow in standard cubic metres / minute (Nm /min)� - LED 2 (green) =current volumetric flow in standard cubic metres / hour (Nm /h)�...
  • Page 13: Menu

    8 Menu 8.1 Menu structure /min Nm/s °C = [Mode/Enter] / = [Set] • • Nm = current meter reading in Nm / Nm * = stored meter reading in Nm • The parameter values displayed in the form of numbers are factory settings or random examples�...
  • Page 14: 8�2 Explanation Of The Menu

    8.2 Explanation of the menu SP1/rP1 Upper / lower limit value for volumetric flow� ImPS Pulse value� Pulse repetition active (= pulse output) or not active ImPR (= preset counter function)� Output function for OUT1 (volumetric flow or consumed quantity): - Switching signal for the limit values: hysteresis function or window function, either normally open or normally closed�...
  • Page 15: Parameter Setting

    rES Restore factory settings� 9 Parameter setting Parameters can be set before installation and set-up of the unit or during operation� If you change parameters during operation, the operating principle of the plant will be influenced� ► Ensure that there will be no malfunctions in your plant� Using an IO-Link capable parameter setting tool such as the FDT service program ifm Container the following options are available: - Reading current process values�...
  • Page 16 Acknowledgement of the parameter value ► Press [Mode/Enter] briefly� Mode/EnterSet > The parameter is displayed again� The new setting value is stored� Setting of other parameters ► Start again with step 1� Finishing the parameter setting ► Press [Mode/Enter] several times until the current measured value is displayed or wait for 15 s (from menu level 1) or 30 s (from menu level 2)�...
  • Page 17: 9�2 Settings For Volumetric Flow Monitoring

    • Timeout: If no button is pressed for 15 s during parameter setting, the unit returns to the operat- ing mode with unchanged values� 9.2 Settings for volumetric flow monitoring 9.2.1 Settings for limit value monitoring with OUT1 ► Select [Uni] and set the unit of measurement (→ 9.5.1). ►...
  • Page 18: 9�3 Settings For Consumed Quantity Monitoring

    9.3 Settings for consumed quantity monitoring 9.3.1 Settings for quantity monitoring via pulse output ► Select [OU1] and set [ImP]� ► Select [ImPS] and set the volumetric flow quantity at which 1 pulse is provided (→ 9.7). ► Select [ImPR] and set [YES]� >...
  • Page 19: 9�4 Settings For Temperature Monitoring

    9.4 Settings for temperature monitoring 9.4.1 Settings for limit value monitoring with OUT2 ► Select [SEL2] and set [TEMP]� ► Select [OU2] and set the switching function� - [Hno] = hysteresis function/NO - [Hnc] = hysteresis function/NC - [Fno] = window function/NO - [Fnc] = window function/NC ►...
  • Page 20: 9�5�3 Setting Of Measured Value Damping

    9.5.3 Setting of measured value damping ► Select [dAP] and set the damping constant in seconds (t value 63 %)� 9.5.4 Setting of the error behaviour of the outputs ► Select [FOU1] and set the value - [On] = output 1 switches ON in case of a fault� - [OFF] = output 1 switches OFF in case of a fault�...
  • Page 21: 9�6 Service Functions

    9.6 Service functions 9.6.1 Reading of the min/max values for the volumetric flow ► Select [HI] or [LO], briefly press [Set]� [HI] = maximum value, [LO] = minimum value Delete memory ► Select [HI] or [LO]� ► Press [Set] and keep it pressed until [----] is displayed� ►...
  • Page 22 Setting operation: ► Set [OU1] to [ImP] (→ 9.3.2). ► Press [Mode/Enter] until [ImPS] is displayed� ► Press [Set] and keep it pressed� > The current numerical value flashes for 5 s, then one of the 4 digits becomes active (digit flashes, can be changed)� ►...
  • Page 23: Operation

    ► Wait 3 s (do The next digit on the right flashes (= becomes active)� not press any 8 1 2� 3 button)� No button pressed; after 3 s 8 1 2� 3 after 3 s 8 1 2� 3 after 3 s 8 1 2�...
  • Page 24: 10�1 Reading Of Set Parameters

    10.1 Reading of set parameters ► Press [Mode/Enter] until the requested parameter is displayed� ► Press [Set] briefly� > The unit displays the corresponding parameter value� After about 15 s (from menu level 1) or 30 s (from menu level 2) it again displays the parameter, then it returns to the Run mode�...
  • Page 25: Factory Setting

    12 Factory setting Factory setting User setting ImPS 0.010 ImPR SP2 (FLOW) rP2 (FLOW) SP2 (TEMP) 24.0 rP2 (TEMP) 23.8 ASP (FLOW) AEP (FLOW) ASP (TEMP) AEP (TEMP) 60.0 DIn2 +EDG FOU1 FOU2 nm3h SELd FLOW SEL2 FLOW rEF.P 1013 rEF.T More information at www�ifm�com...
