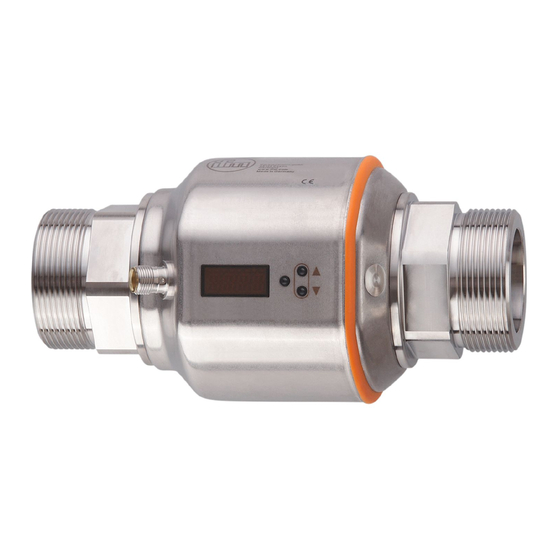

Magnetic-inductive flow meter
Table of Contents

Advertisement

Quick Links

Operating instructions
Magnetic-inductive flow meter
UK
SM0510

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the efector300 SM0510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM Electronic efector300 SM0510

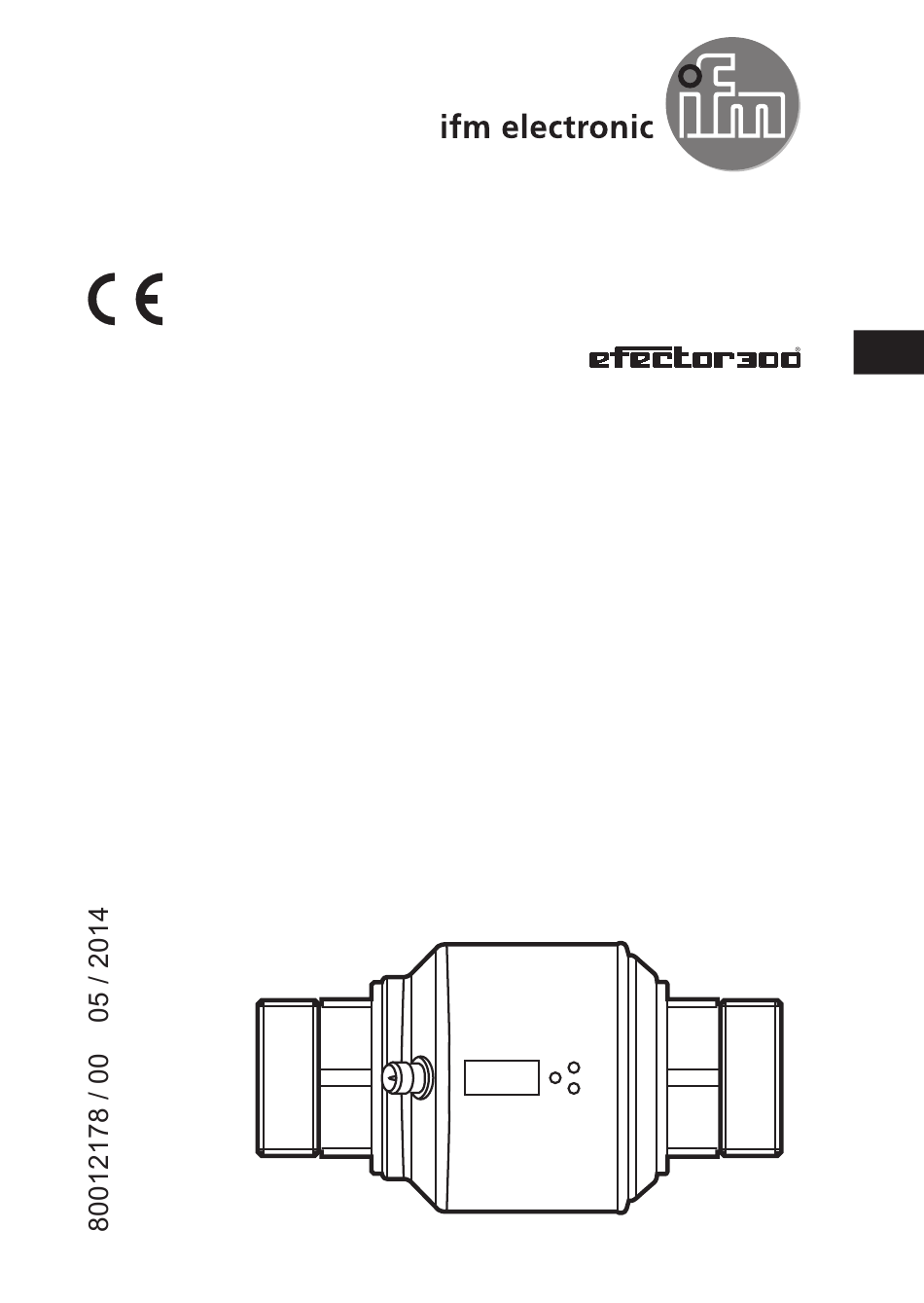

  • Page 1 Operating instructions Magnetic-inductive flow meter SM0510...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 1�2 Warning signs used ���������������������������������������������������������������������������������������5 2 Safety instructions �����������������������������������������������������������������������������������������������5 3 Functions and features ����������������������������������������������������������������������������������������6 4 Function ���������������������������������������������������������������������������������������������������������������6 4�1 Measuring principle for volumetric flow monitoring ����������������������������������������6 4�2 Processing of the measured signals ��������������������������������������������������������������7 4�3 Volumetric flow monitoring �����������������������������������������������������������������������������8 4�3�1 Volumetric flow quantity ������������������������������������������������������������������������8 4�3�2 Direction of flow ������������������������������������������������������������������������������������8...
  • Page 3 8 Menu �����������������������������������������������������������������������������������������������������������������23 8�1 Process value display ����������������������������������������������������������������������������������23 8�2 Main menu ���������������������������������������������������������������������������������������������������24 8�2�1 Explanation main menu ����������������������������������������������������������������������25 8�3 Extended functions – Basic settings ������������������������������������������������������������26 8�3�1 Explanation extended functions (EF) ��������������������������������������������������27 8�3�2 Submenu basic settings (CFG) ����������������������������������������������������������27 8�4 Extended functions – Min/max memory – Emtpy pipe – Simulation ������������28 8�4�1 Explanation extended functions (EF) ��������������������������������������������������29 8�4�2 Submenu min/max memory (MEM) ����������������������������������������������������29 8�4�3 Submenu empty pipe (EPD) ���������������������������������������������������������������29...
  • Page 4: Preliminary Note

    10�5�1 Settings for limit value monitoring with OUT2 �����������������������������������36 10�5�2 Setting the analogue value for temperature �������������������������������������36 10�6 User settings (optional) ������������������������������������������������������������������������������37 10�6�1 Setting of the standard unit of measurement for volumetric flow ������37 10�6�2 Configuration of the standard display �����������������������������������������������37 10�6�3 Changing the direction of the flow rate measurement ����������������������37 10�6�4 Setting the output logic ���������������������������������������������������������������������37 10�6�5 Setting the start-up delay ������������������������������������������������������������������37...
  • Page 5: 1�2 Warning Signs Used

    Important note Non-compliance can result in malfunction or interference� Information Supplementary note� 1.2 Warning signs used CAUTION Warning of personal injury� Slight reversible injuries may result� 2 Safety instructions • Please read this document prior to set-up of the unit� Ensure that the product is suitable for your application without any restrictions�...
  • Page 6: Functions And Features

    ► Protect the housing against contact with flammable substances and unintentional contact� To do so, equip the unit with suitable protection (e�g� protective cover)� ► Do not press the pushbuttons manually; instead use another object (e�g� ballpoint pen)� 3 Functions and features Pressure Equipment Directive (PED): The units comply with section 3, article 3 of the Directive 97/23/EC and must be designed and manufactured for non-super- heated liquids of group 2 fluids in accordance with the sound engineering practice�...
  • Page 7: 4�2 Processing Of The Measured Signals

    1: Field coil 2: Measuring pipe 3: Electrode 4: Charge carrier in the medium 5: Magnetic field Both electrodes must be wetted by the medium� Otherwise the signal [SEnS] for empty pipe is provided, if empty pipe detection is enabled� 4.2 Processing of the measured signals The unit displays the current process values�...
  • Page 8: 4�3 Volumetric Flow Monitoring

    4.3 Volumetric flow monitoring 4.3.1 Volumetric flow quantity The signals for measuring the volumetric flow quantity can be provided as follows: 1� Two switching signals for volumetric flow quantity limit values on output 1 and output 2. On the switching functions → 4.7. 2� A frequency signal (10 Hz���10 kHz) on output 1� On the frequency functions → 4.9.
  • Page 9: 4�4�1 Consumed Quantity Monitoring With Pulse Output

    V = volumetric flow quantity, Imp = output pulses • The current meter reading can be displayed (→ 11.1 Reading the process value)� • In addition the value before the last reset is stored� This value can also be displayed (→ 11.1 Reading the process value). The meter saves the totalled consumed quantity every 10 minutes� In the event of a power failure this value is retained as the current meter reading�...
  • Page 10: 4�5 Temperature Monitoring

    - If the quantity x is not reached during the time t, the meter is automatically reset and counting starts again; output 1 does not switch� 2� Quantity monitoring not time-dependent (→ 10.4.6 Deactivation of the counter reset)� - If the quantity x is reached, output 1 switches and remains switched until the meter is reset�...
  • Page 11: 4�7 Volumetric Flow Or Temperature Monitoring / Switching Function

    4.7 Volumetric flow or temperature monitoring / switching function OUTx changes its switching state if it is above or below the set switching limits (SPx, rPx)� The following switching functions can be selected: 4.7.1 Hysteresis function Normally open: [OUx] = [Hno] Normally closed: [OUx] = [Hnc] First the set point (SPx) is set, then the reset point (rPx) with the requested...
  • Page 12: 4�8 Volumetric Flow Or Temperature Monitoring / Analogue Function

    4.8 Volumetric flow or temperature monitoring / analogue function 4.8.1 Current output [mA] -130 -120 [°C] Characteristics of the analogue output according to the standard IEC 60947-5-7 1: Output current 2: Volumetric flow quantity 3: Temperature 4: Display range 5: Measuring range 6: Range between analogue start point and analogue end point 7: The unit is in the error state (FOU = OFF)�...
  • Page 13: 4�8�2 Voltage Output

    4.8.2 Voltage output [ V ] 12,0 11,5 10,0 [°C] Characteristics of the analogue output according to the standard IEC 60947-5-7 1: Output voltage 2: Volumetric flow quantity 3: Temperature 4: Display range 5: Measuring range 6: Range between analogue start point and analogue end point 7: The unit is in the error state (FOU = OFF) or the process value transmitted in an ana- logue way is below the display range�...
  • Page 14: 4�9 Volumetric Flow Monitoring / Frequency Output

    4.9 Volumetric flow monitoring / frequency output FrEP Output curve frequency output 1: Frequency output 2: Volumetric flow quantity Q 3: The unit is in the error state (FOU = OFF) or the process value transmitted in an ana- logue way is below the display range� 4: The unit is in the error state (FOU = ON)�...
  • Page 15 2� The volumetric flow increases slowly and does not reach the set point /good range within dST� > Outputs are reset� 3� Volumetric flow quantity falls below LFC within dST� > Outputs are reset at once; dST is stopped� Example: dST for hysteresis function Condition Reaction 1 Volumetric flow quantity Q reaches LFC dST starts, output becomes active...
  • Page 16: 4�11 Low Flow Cut-Off (Lfc)

    Example: dST for window function Condition Reaction 1 Volumetric flow quantity Q reaches LFC dST starts, output becomes active� 2 dST elapsed, Q reached good range output remains active 3 Q above SP (leaves good range) output is reset 4 Q again below SP output becomes active again 5 Q below rP (leaves good range) output is reset again...
  • Page 17: Installation

    During the simulation the original totaliser value remains saved without any changes even if there is a real flow� 5 Installation ► Avoid deposits, accumulated gas and air in the pipe system� 5.1 Recommended installation position Example of an optimised installation: ►...
  • Page 18 ► Install in front of or in a rising pipe: F = flow direction With empty pipe detection: ► Install the unit according to figure 1, 4 or 5�...
  • Page 19: 5�2 Not Recommended Installation Position

    5.2 Not recommended installation position ► Avoid the following installation positions: Directly in front of a falling pipe� In a falling pipe� At the highest point of the pipe Directly in front of the spout of the system� pipe� On the suction side of a pump� F = flow direction...
  • Page 20: 5�3 Grounding

    The unit can be installed independently of the orientation if the following is ensured: - No air bubbles can form in the pipe system� - The pipes are always completely filled� 5.3 Grounding If installed in an ungrounded pipe system (e�g� plastic pipes), the unit must be grounded (functional earth)�...
  • Page 21: Electrical Connection

    In case of horizontal installation: As a result of design requirements a small quan- tity of the medium always remains in the measuring channel after switching off the pump� 6 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to�...
  • Page 22: Operating And Display Elements

    Pin 1 Pin 3 • Switching signal: limit values for volumetric flow • Pulse signal: 1 pulse every time the defined volumetric flow quantity is reached� Pin 4 • Switching signal: quantity meter reached preset value (OUT1) • Frequency signal for volumetric flow quantity • Switching signal: empty pipe detection • IO-Link • Switching signal: limit values for volumetric flow...
  • Page 23: Menu

    10: [Enter] button • Selecting the parameters • Reading the set values • Confirming the parameter values Representation in → 8 Menu: 11: Buttons up [▲] and down [▼] • Selection of the parameters • Activation of the setting functions • Changing the parameter values • Change of the display unit in the normal operating mode (Run mode) • Locking / unlocking Representation in → 8 Menu: and 8 Menu...
  • Page 24: 8�2 Main Menu

    8.2 Main menu ↑ Process value display                             ↓ Extended functions * The parameters are only displayed when selected at OU1� ** The parameters are only displayed when selected at OU2�...
  • Page 25: 8�2�1 Explanation Main Menu

    8.2.1 Explanation main menu Maximum limit value for the set process value Minimum limit value for the set process value ImPS Pulse value ImPR Pulse reset Frequency output of the end point of the flow value FrEP Frequency output of the end point of the frequency Output function for OUT1 (volumetric flow or consumed quantity) Output function for OUT2 (volumetric flow or temperature) As an alternative: configure OUT2 (Pin2) as input for external reset signal:...
  • Page 26: 8�3 Extended Functions - Basic Settings

    8.3 Extended functions – Basic settings ↑ Main menu                * The parameters are only displayed when selected at OU1� ** The parameters are only displayed when selected at OU2�...
  • Page 27: 8�3�1 Explanation Extended Functions

    8.3.1 Explanation extended functions (EF) Restore the factory setting Counter reset: manual reset / time-controlled reset Submenu basic settings Submenu min/max memory Submenu empty pipe Submenu simulation 8.3.2 Submenu basic settings (CFG) FOU1 Behaviour of output 1 in case of an error FOU2 Behaviour of output 2 in case of an error Start-up delay of volumetric flow monitoring...
  • Page 28: 8�4 Extended Functions - Min/Max Memory - Emtpy Pipe - Simulation

    8.4 Extended functions – Min/max memory – Emtpy pipe – Simulation ↑ Main menu                      * Parameters are only displayed for the selection EP�On = On�...
  • Page 29: 8�4�1 Explanation Extended Functions

    8.4.1 Explanation extended functions (EF) Restore the factory setting Counter reset: manual reset / time-controlled reset Submenu basic settings Submenu min/max memory Submenu empty pipe Submenu simulation 8.4.2 Submenu min/max memory (MEM) HI�F Max� value flow LO�F Min� value flow HI�T Max�...
  • Page 30: Set

    9 Set-up After power on and expiry of the power-on delay time (approx� 5 seconds) the unit is in the normal operating mode� It carries out its measurement and evaluation functions and generates output signals according to the set parameters� • During the power-on delay time the outputs are switched as programmed: - ON with normally open function (Hno / Fno) - OFF with normally closed function (Hnc / Fnc)�...
  • Page 31: 10�1 Io-Link

    10.1 IO-Link 10.1.1 General information This unit has an IO-Link communication interface which requires an IO-Link-capa- ble module (IO-Link master) for operation� The IO-Link interface enables direct access to the process and diagnostic data and provides the possibility to set the parameters of the unit during operation� In addition communication is possible via a point-to-point connection with a USB adapter cable�...
  • Page 32: 10�2 Parameter Setting In General

    10.2 Parameter setting in general Select the parameter 1� Press [Enter] briefly� 2� Press [▲] or [▼] until the requested parameter is displayed. Changing the parameter value 3� Press [Enter] briefly� > The currently set value is displayed� 4� Keep [▲] or [▼] pressed for 1 s > Display flashes first, then permanent� 5�...
  • Page 33: 10�2�1 Switching Between The Menu Levels

    10.2.1 Switching between the menu levels Change to the Switching to the next submenu via the parameters [EF], [CFG], submenu [MEM], [EPD] or [SIM]� ► Select a submenu with [▲] or [▼] and switch to the submenu by pressing [Enter]� Back to the process ► Wait for 30 seconds value display ►...
  • Page 34: 10�3�2 Settings For Limit Value Monitoring With Out2

    10.3.2 Settings for limit value monitoring with OUT2 ► Select [SEL2] and set [FLOW]� ► Select [OU2] and set the switching function� - [Hno] = hysteresis function/NO, - [Hnc] = hysteresis function/NC, - [Fno] = window function/NO, - [Fnc] = window function/NC� ►...
  • Page 35: 10�4�2 Settings For Quantity Monitoring Via The Preset Counter

    10.4.2 Settings for quantity monitoring via the preset counter ► Select [OU1] and set [ImP]� ► Select [ImPS] and set the volumetric flow quantity at which output 1 switches (→ 10.4.3). ► Select [ImPR] and set [no]� > Pulse repetition is not active� The output switches ON if the value set in [ImPS] is reached�...
  • Page 36: 10�4�5 Time-Controlled Counter-Reset

    10.4.5 Time-controlled counter-reset ► Select [rTo] and set the requested value (intervals of hours, days or weeks)� > The counter is reset automatically with the value now set� 10.4.6 Deactivation of the counter reset ► Select [rTo] and set [OFF]� >...
  • Page 37: 10�6 User Settings (Optional)

    10.6 User settings (optional) 10.6.1 Setting of the standard unit of measurement for volumetric flow ► Select [Uni] and set the unit of measurement: [Lmin] or [m3h]� The setting only has an effect on the volumetric flow value� The counter values (consumed quantity) are automatically displayed in the unit of measurement providing the highest accuracy�...
  • Page 38: 10�6�7 Setting The Error Behaviour Of The Outputs

    10.6.7 Setting the error behaviour of the outputs ► Select [FOU1] and set the value: 1� Switching output: - [On] = output 1 switches ON in case of an error� - [OFF] = output 1 switches OFF in case of an error� - [OU1] = output 1 switches irrespective of the error as defined with the parameters�...
  • Page 39: 10�6�11 Setting Of The Empty Pipe Detection

    10.6.11 Setting of the empty pipe detection ► Select [EP�Pr] to display the current value of the empty pipe detection in percent� ► Select [EP�SP] and set the switch point of empty pipe detection� 10.6.12 Setting the counting method of the totaliser ►...
  • Page 40: 10�7�3 Simulation Menu

    10.7.3 Simulation menu ► Select [S�FLW] and set the flow value to be simulated� ► Select [S�TMP] and set the temperature value to be simulated� ► Select [S�Tim] and set the time of the simulation in minutes� ► Select [S�On] and set the function: - [On]: The simulation starts�...
  • Page 41: Operation

    11 Operation 11.1 Reading the process value The LEDs 1-6 signal which process value is currently displayed�The process value to be displayed as standard (temperature, flow velocity or meter reading of the totaliser) can be preset → 10.6.2 Configuration of the standard display. A standard unit of measurement can be defined for the flow velocity (l/min or m /h → 10.6.1).
  • Page 42: 11�2 Reading The Parameter Value

    11.2 Reading the parameter value To display the currently set parameter value, take the following steps: Select the parameter 1� Press [Enter] briefly� 2� Press [▲] or [▼] until the requested parameter is displayed. Display the parameter value 3� Press [Enter] briefly� > The currently set value is displayed for 30 s�...
  • Page 43: 11�3 Error Indications

    11.3 Error indications Warning message [SC1] Short circuit in OUT1� LED8 for OUT1 flashes (→ 7 Operating and display elements). [SC2] Short circuit in OUT2� LED7 for OUT2 flashes (→ 7 Operating and display elements). [SC] Short circuit in both outputs� LED7 and LED8 flash (→ 7 Operating and display elements). [OL] Detection zone of volumetric flow or temperature exceeded� Measured value between 120 % and 130 % of the final value of the measuring range�...
  • Page 44: Factory Setting

    13 Factory setting Factory setting User setting 20 % * 19.5 % * ImPS ImPR SP2 (FLOW) 40 % * rP2 (FLOW) 39.5 % * SP2 (TEMP) 20 °C rP2 (TEMP) -19.6 °C ASP2 (FLOW) 0 % * AEP2 (FLOW) 100 % * ASP2 (TEMP) -20 °C...
  • Page 45 Lmin SELd FLOW SEL2 FLOW EP.On dEP.E dEP.F EP.SP 75 % S.FLW 20 % S.TMP 20 °C S.Tim 3 min * of the final value of the measuring range More information at www�ifm�com...
