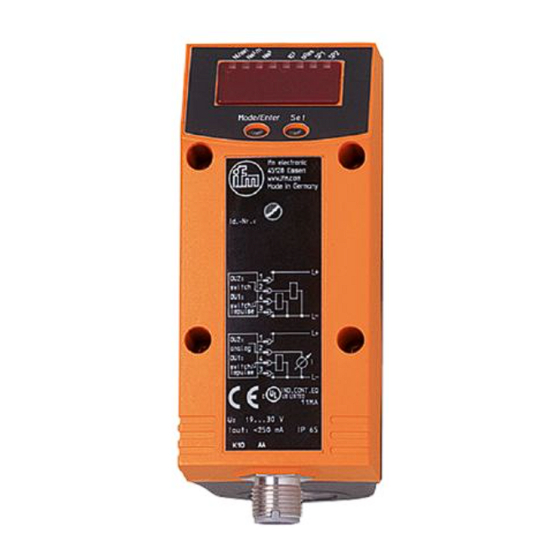

IFM Electronic efector300 SD6050 Operating Instructions Manual

IFM Electronic efector300 SD6050 Operating Instructions Manual

Compressed air meter
Table of Contents

Advertisement

Quick Links

Operating instructions
Compressed air meter
UK
SD6050

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the efector300 SD6050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM Electronic efector300 SD6050

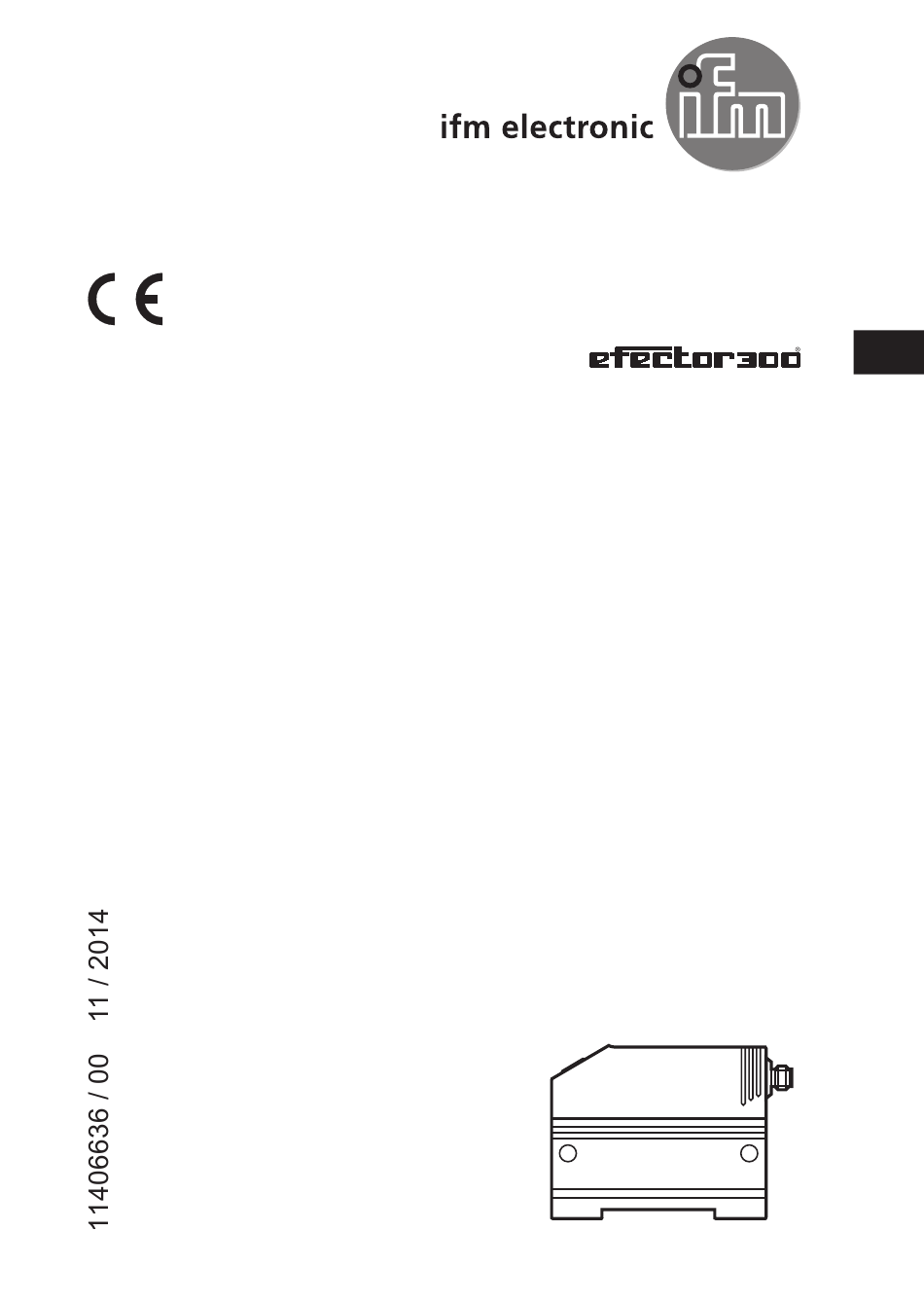

  • Page 1 Operating instructions Compressed air meter SD6050...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 3 Functions and features ����������������������������������������������������������������������������������������4 4 Function ���������������������������������������������������������������������������������������������������������������5 4�1 Processing of the measured signals ��������������������������������������������������������������5 4�2 Volumetric flow monitoring �����������������������������������������������������������������������������5 4�3 Consumed quantity monitoring (totalizer function) ����������������������������������������6 4�3�1 Consumed quantity monitoring with pulse output ���������������������������������6 4�3�2 Consumed quantity monitoring with preset counter �����������������������������6 4�4 Temperature monitoring ���������������������������������������������������������������������������������7...
  • Page 3 9�2 General parameter setting ���������������������������������������������������������������������������16 9�3 Settings for volumetric flow monitoring ��������������������������������������������������������18 9�3�1 Settings for limit value monitoring with OUT1 �������������������������������������18 9�3�2 Settings for limit value monitoring with OUT2 �������������������������������������18 9�3�3 Setting the analogue value for volumetric flow �����������������������������������19 9�4 Settings for consumed quantity monitoring �������������������������������������������������19 9�4�1 Settings for quantity monitoring via pulse output ��������������������������������19 9�4�2 Settings for quantity monitoring via the preset counter ����������������������19 9�4�3 Settings for program-controlled counter reset ������������������������������������19...
  • Page 4: Preliminary Note

    1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunction or interference� Information Supplementary note� 2 Safety instructions • Please read this document prior to set-up of the unit� Ensure that the product is suitable for your application without any restrictions�...
  • Page 5: Function

    It detects the 4 process categories flow velocity, volumetric flow quantity, con- sumed quantity, medium temperature� • Applications: compressed air systems in industrial use� • All indications apply for standard volume flow to DIN ISO 2533, i�e� volume flow at 1013 hPa, 15 °C and 0 % relative air humidity� • The unit can be set to different standard conditions (→ 9.5.5 and 9.5.6).
  • Page 6: 4�3 Consumed Quantity Monitoring (Totalizer Function)

    • 2 switching signals for volumetric flow limit values can be provided (output 1 and output 2). Switching functions → 4.5. • An analogue signal which is proportional to the volumetric flow (4���20 mA) can be provided on output 2. Analogue functions → 4.6. 4.3 Consumed quantity monitoring (totalizer function) The unit has an internal quantity meter which continuously totals the volumetric flow quantity�...
  • Page 7: 4�4 Temperature Monitoring

    - If the quantity x is reached during the time t, output 1 switches and remains switched until the meter is reset via the digital input or [rTo] = [rED�T]� 4.4 Temperature monitoring • A switching signal for temperature limit values can be provided on output 2� Switching functions → 4.5.
  • Page 8: 4�5�2 Window Function

    4.5.2 Window function Normally open: [OUx] = [Fno] Normally closed: [OUx] = [Fnc] The width of the window can be set by means of the difference between SPx and rPx� SPx = upper value rPx = lower value Example of volumetric flow monitoring FE = window 4.6 Volumetric flow or temperature monitoring / analogue function...
  • Page 9: 4�7 Setting Of The Standard Conditions Of The Volume Flow

    7: Error message [OL] is displayed (= overload) 8: Analogue end point (AEP): determines at which measured value the output signal is 20 mA� 9: Curve of the analogue signal with shifted analogue start point 10: Curve of the analogue signal at factory setting 11: Analogue start point (ASP): determines at which measured value the output signal is 4 mA�...
  • Page 10: Installation

    5 Installation The rules and regulations for the installation and operation of compressed air equipment must be observed� 5.1 Installation location • Behind the cold dryer / near the load� • If compressed air is fed into the main pipe through parallel pipes, the unit should be mounted in the main pipe�...
  • Page 11: 5�3 Installation Position

    5.3 Installation position • Permitted installation positions: - pipe vertical, any unit position (fig� 1, 2); - pipe horizontal, unit vertical (fig� 3, 4), unit on side, pipe left (fig� 5)� • Avoid the installation position in fig� 6 (unit on side, pipe right)� If the flow rate is low, the specified measurement accuracy cannot be adhered to�...
  • Page 12: Electrical Connection

    6 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to� Voltage supply according to EN 50178, SELV, PELV� ► Disconnect power� ► Connect the unit as follows: BK: black BN: brown OUT2...
  • Page 13: Operating And Display Elements

    7 Operating and display elements 1 2 3 4 5 6 7 8 Mode/Enter Set 1 to 8: Indicator LEDs - LED 1 (green) = current volumetric flow in standard litres / minute (Nl/min)� - LED 2 (green) =current volumetric flow in standard cubic metres / hour (Nm /h)�...
  • Page 14: Menu

    8 Menu 8.1 Menu structure Nl/min Nm/s °C = [Mode/Enter] / = [Set] • • Nm = current meter reading in Nm / Nm * = stored meter reading in Nm • The parameter values displayed in the form of numbers are factory settings or random examples�...
  • Page 15: 8�2 Explanation Of The Menu

    8.2 Explanation of the menu SP1/rP1 Upper / lower limit value for volumetric flow� ImPS Pulse value� Pulse repetition active (= pulse output) or not active ImPR (= preset counter function)� Output function for OUT1 (volumetric flow or consumed quantity): - Switching signal for the limit values: hysteresis function or window function, either normally open or normally closed�...
  • Page 16: Parameter Setting

    9 Parameter setting Parameters can be set before installation and set-up of the unit or during opera- tion� If you change parameters during operation, this will influence the function� ► Ensure that there will be no malfunctions in your plant� During parameter setting the unit remains in the operating mode�...
  • Page 17 Setting of the parameter value ► Press [Set] and keep it pressed� > Current setting value of the param- Mode/EnterSet eter flashes for 5 s� > After 5 s: setting value is changed: incrementally by pressing the button once or continuously by keeping the button pressed�...
  • Page 18: 9�3 Settings For Volumetric Flow Monitoring

    ► Make sure that the unit is in the normal operating mode� ► Press [Mode/Enter] + [Set] for 10 s� Mode/EnterSet > [Loc] is displayed� During operation: [LOC] is briefly displayed if you try to change parameter values� For unlocking: ►...
  • Page 19: 9�3�3 Setting The Analogue Value For Volumetric Flow

    9.3.3 Setting the analogue value for volumetric flow ► Select [Uni] and set the unit of measurement (→ 9.5.1). ► Select [SEL2] and set [FLOW]� ► Select [OU2] and set the function� - [I] = current signal proportional to volumetric flow (4…20 mA) ► Select [ASP] and set the value at which the minimum value is provided� ►...
  • Page 20: 9�4�5 Counter Reset Using An External Signal

    9.4.5 Counter reset using an external signal ► Select [OU2] and [InD]� ► Select [Din2] and set the reset signal� - [HIGH] = reset for high signal - [LOW] = reset for low signal - [+EDG] = reset for rising edge - [-EDG] = reset for falling edge LED 7 (→ 7 Operating and display elements) indicates the input status also with an active external reset�...
  • Page 21: 9�6�2 Configuration Of The Standard Display

    9.6.2 Configuration of the standard display ► Select [SELd] and determine the standard measuring unit� - [FLOW] = the current volumetric flow value in the standard unit of measurement is displayed - [TOTL] = the current meter reading in Nm or 1000 Nm is displayed�...
  • Page 22: Play Values For Volumetric Flow Refer

    9.6.6 Setting of the standard temperature to which the measured and dis- play values for volumetric flow refer ► Select [rEF�T] and set the requested standard temperature� Setting range: 0���25 °C in steps of 1 °C� 9.6.7 Setting of the low flow cut-off ►...
  • Page 23 4 + 6 1 0 �0 0 ��� 9 9 �9 9 10 Nm³ 10,000���99,990 Nm³ 4 + 6 1 0 0 �0 ��� 9 9 9 �9 100 Nm³ 100,000���999,900 Nm³ 4 + 6 1 0 0 0 ��� 1 0 0 0 1,000,000 Nm³...
  • Page 24: Operation

    ► Wait 3 s (do The next digit on the right flashes (= becomes active)� not press any 8 1 2� 3 button)� No button pressed; after 3 s 8 1 2� 3 after 3 s 8 1 2� 3 after 3 s 8 1 2�...
  • Page 25: 10�1 Reading Of Set Parameters

    10.1 Reading of set parameters ► Press [Mode/Enter] until the requested parameter is displayed� ► Press [Set] briefly� > The unit displays the corresponding parameter value� After about 15 s (from menu level 1) or 30 s (from menu level 2) it again displays the parameter, then it returns to the Run mode�...
  • Page 26: Factory Setting

    12 Factory setting Factory setting User setting 15.0 14.6 ImPS 0.001 ImPR SP2 (FLOW) 30.0 rP2 (FLOW) 29.6 SP2 (TEMP) 24.0 rP2 (TEMP) 23.8 ASP (FLOW) AEP (FLOW) 75.0 ASP (TEMP) AEP (TEMP) 60.0 DIn2 +EDG FOU1 FOU2 nm3h SELd FLOW SEL2 FLOW...
