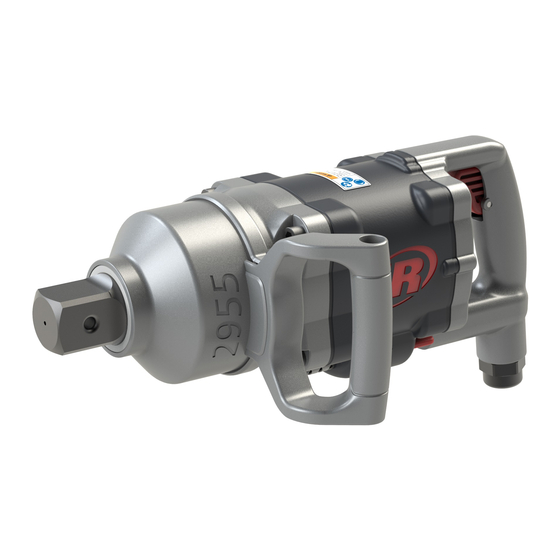

- Page 1 TL-2955-MIM Edition 1 November 2021 Air Impact Wrench 2955B2 Maintenance Information Save These Instructions...
- Page 2 WARNING ● Always wear eye protection when operating or performing maintenance on this tool. ● Always turn off the air supply and disconnect the air supply hose before installing, removing or adjusting any accessory on this tool, or before performing any maintenance on this tool. Note: When reading the instructions, refer to exploded diagrams in Parts Information Manuals when applicable (see under Related Documentation for form numbers).
- Page 3 3. Lift Motor Clamp Washer(s) (16) off Housing. 4. Move Reverse Lever (12) to center position and using a drift pin to push from below, grasp Lever and lift Reverse Valve Assembly (13) out of Housing. NOTICE ● Make certain the Lever is in the center position to avoid jamming the Reverse Lock Plunger (30) when the Reverse Valve Assembly is removed.
-
Page 4: Assembly Of The Motor
Assembly of the Motor 1. Lightly clamp Motor Housing (26) in leather-covered or coppercovered vise jaws with handle end upward. NOTICE ● Excessive clamping pressure will distort the Motor Housing and make motor installation extremely difficult. Do not insert the hammer case end of the Motor Housing more than 1"... -
Page 5: Troubleshooting Guide
1. Coat Hammers (37) with a light film of Ingersoll Rand Impactool Grease No. 170. 2. Replace Hammers in Hammer Frame (35) exactly as they were when you marked them prior to disassembly. NOTICE ● If you are installing new Hammers, or want to change the location of the existing Hammers to utilize both impacting surfaces, slide the Hammers in the Hammer Frame so that the half-round notch on one Hammer is located on one side of the Frame and the half- round notch on the other Hammer is located on the other side of the Frame. - Page 6 Notes:...
- Page 7 Notes:...
- Page 8 ingersollrand.com © 2021 Ingersoll Rand...
