Operating and
Maintenance Manual
CR 9-II Hd E
CR 9-II Hd CCD
0116830
0116831

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR 9-II Hd E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weber mt CR 9-II Hd E

Summary of Contents for Weber mt CR 9-II Hd E

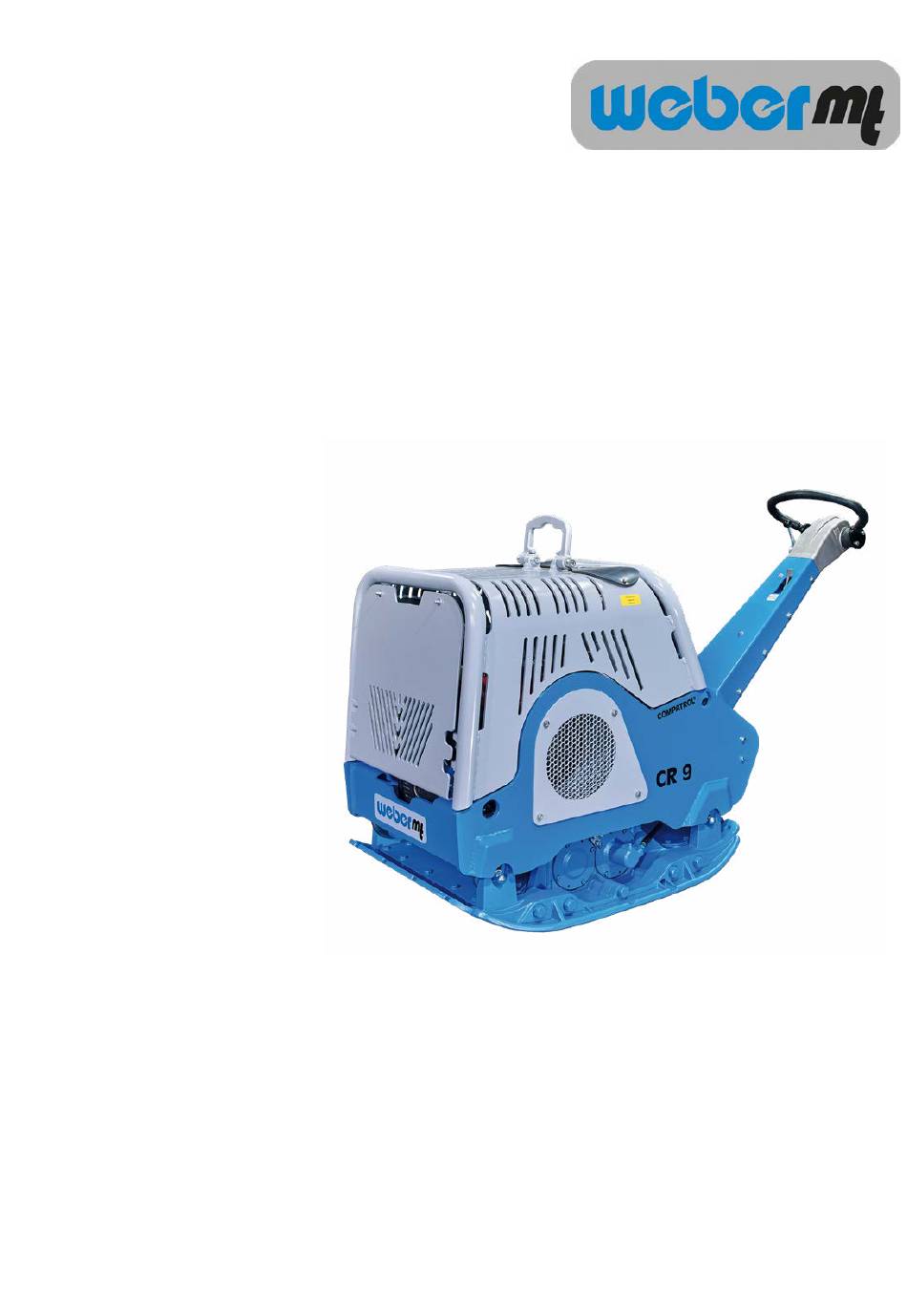

  • Page 1 Operating and Maintenance Manual CR 9-II Hd E CR 9-II Hd CCD 0116830 0116831...
  • Page 2 Attached to the machine is a rating plate. Note down the information given on this plate so that you can recreate the rating plate should the plate be lost. 1 Designation 2 Type ....................... 3 Serial no. 4 Year of construction ............

  • Page 3: Table Of Contents

    Contents 1. Introduction ........................4 2. Description ........................5 3. Technical data ......................... 6 4. Safety ..........................7 4.1. Information and safety stickers ................12 5. Operation........................13 6. Transport ........................21 7. Storage .......................... 21 8. Maintenance ........................22 8.1.

  • Page 4: Introduction

    If you require any additional information, turn to your Weber MT dealer. Found on the last page of this manual is a QR code. Scan it to acquire the current contact addresses of all Weber MT branches. You can obtain information on the assembled Honda gasoline...

  • Page 5: Description

    2. Description The machine The machine is a hand-guided, reversible soil compactor. The machine is composed of a bottom and a top section. The bottom section houses the exciter, while the top section contains the engine and the required controls. An air-cooled Honda gasoline engine makes the exciter vibrate via a centrifugal clutch.

  • Page 6: Technical Data

    3. Technical data CR 9-II Hd E CR 9-II Hd CCD Weight Operating weight CECE [kg] Dimensions Overall length [mm] 1867 1867 Overall width/with attachment plates 650/750/900 650/750/900 [mm] 1167 1167 Height with folded guide bar [mm] Base plate length [base in mm]...

  • Page 7: Safety

    4. Safety General All safety instructions must be read and complied with, as non-compliance will result in - Danger to life and limb of the user, - Impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with.
  • Page 8 Changes and conversions are prohibited unless made with conversions original Weber MT spare parts. If the machine is modified with other accessories without the approval of Weber MT, the manufacturer will not assume liability for any resulting personal injury or property damage. All maintenance and repairs must be carried out with original Weber MT spare parts. Untested spare parts may affect the...
  • Page 9 Start-up procedure Do not disperse any sprays or other agents into the air intake while the machine is starting up. They may lead to overheating in the combustion chamber and result in damage to the engine. There is danger of suffocation if the operator starts up the machine in closed rooms or in deep and tight trenches. Operating the machine in closed rooms is prohibited.
  • Page 10 When coming into contact with fuels, the rubber-bonded metal buffers of the machine may become damaged or ineffective. Therefore, wipe spilled fuel carefully off the rubber-bonded metal buffers. Fuel vapors are easily flammable. Do not smoke and keep away from open fire while refueling the machine. The machine must not be fueled unless the engine is switched off. Cleaning work Use clear water for cleaning. Do not use flammable solvents. The vapors of the solvents may ignite upon contact with hot components or other sparks.
  • Page 11 Safety instructions and A variety of safety instructions and warnings are used warnings throughout this operating manual. The following explains the meaning of signal words and symbols. ATTENTION warns of the danger of material ATTENTION damage. CAUTION warns of the danger of slight injury.

  • Page 12: Information And Safety Stickers

    4.1. Information and safety stickers Sticker Meaning All threaded unions must be checked for firm seat on a regular basis and, particularly, after initial use. The fuel tank may only be fueled with regular gasoline. Turn the cap to open and close it. Use the designated lifting ring to lift the machine.

  • Page 13: Operation

    5. Operation Preparing the machine for Remove all packaging material. initial use Check all components for visible damage. Do not start the machine if detecting visible damage. Contact the responsible dealer. Check if the shipment of the machine and its components is complete.
  • Page 14 Operating positions on the machine Figure 1 Overall view CR 9-II Hd Base plate with exciter Engine Mounting bracket Key switch Gas lever Start module Handle 10* Compaction control system Compatrol Guide bar Choke lever Lifting ring *Only units equipped with COMPATROL compaction control.
  • Page 15 The start module MS 15 Figure 2 1 Operational status indicator This indicator signals that the ignition of the machine is (LED) switched on. It comes on as soon as the key switch (5) is set to position “1”. 2 Oil pressure indicator (LED) This indicator warns of insufficient oil pressure.
  • Page 16 The COMPATROL compaction control system Figure 3 1 Operational status indicator This indicator comes on as soon as the proper operating (Green) frequency has been reached and signals that the compaction control system is operational. If the indicator flashes constantly, the machine is operating with the wrong operating frequency. 2 Compaction indicator The LEDs 1-7 indicate the achieved level of soil compaction.
  • Page 17 Possible indicator states Function test of the LEDs A function test of the LEDs is performed when the ignition is turned on, but the engine has not yet been started. The operational status indicator (1) and the warning light (3) light up permanently.
  • Page 18 Before starting work Perform the following tasks before starting to work in order to prevent failures or excessive wear. Visual inspections Hydraulic line for leaks Fuel system for leaks Rubber buffers for crack formation Other damage Check and, if necessary, Engine oil correct the fill levels Hydraulic oil Fuel Other inspections...
  • Page 19 Working with the machine Starting the engine ATTENTION Risk of engine damage if start procedures take too long. One start procedure must not be longer than 5 seconds. Pause for at least 10 seconds before repeating the start procedure. ATTENTION Risk of engine damage.
  • Page 20 Compacting CAUTION There is a crushing hazard between the machine and the wall during work in close proximity to walls. Use extra caution when working close to obstacles CAUTION Risk of injury if the machine is guided improperly. Guide the machine safely with both hands on the handle. ATTENTION Danger of material damage or excessive wear if V-belt slips through.

  • Page 21: Transport

    3 months. Another option is to use a permanent charger / battery maintainer. If the machine is to be stored for longer than six months, contact the Weber MT’s service organization to discuss additional measures.

  • Page 22: Maintenance

    8. Maintenance General information The section below contains instructions that need to be observed for regular maintenance. Read these instructions carefully and follow them in order to prevent downtimes of the machine caused by excessive wear or damage to the machine. Also read the safety instructions relevant to machine maintenance before you begin with the maintenance work.

  • Page 23: Maintenance Overview

    8.1. Maintenance overview Frequency Activity Change the engine oil 8.2.2 Check the valve play of the engine, Honda adjust if necessary instructions Re-tighten all accessible threaded connections Clean the air filter 8.2.4 Check the oil level of the 8.2.6 transmission Change the oil in the exciter 8.2.5 Adjust / replace the spark plug 8.2.7...

  • Page 24: Description Of The Maintenance Operations

    8.2. Description of the maintenance operations 8.2.1. Check the engine oil WARNING level If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Wear protective gloves. If skin contact has occurred, wash the affected areas thoroughly. Park the machine on a horizontal subsurface. Switch off the engine and wait for several minutes until the oil has collected in the crankcase.

  • Page 25: Change The Engine Oil Filter

    Unscrew the oil drain pipe. Attach the cover cap to the oil drain valve. If you wish to change the oil filter as well, follow the instructions in the section “Change the engine oil filter” before filling fresh oil into the engine. Open the maintenance cover of the machine. Fill fresh oil into the oil filler neck (3) in accordance with the specification. Check the oil level and top off to the maximum oil level. Close the maintenance cover. Install the air intake. 8.2.3.

  • Page 26: Clean The Air Filter

    8.2.4. Clean the air filter Open the air filter cover (1). To do so, pull both latches and take the cover off towards the top. Remove the air filter insert. Loosen the wing nut (2) to do Separate the non-woven material (3) from the air filter insert (4). Blow out the non-woven material and the air filter insert from the inside to the outside. Check for damage. Use a new air filter insert in case of damage or excessive clogging. Use a damp cloth to wipe off the dirt on the inside of the air filter enclosure. Pull the non-woven material over the air filter insert. Install the air filter insert using the corresponding wing nut. Install the air filter cover. Make sure both latches are closed. 8.2.5. Change the oil in the Start the engine and allow the engine to warm up for a few exciter minutes.

  • Page 27: Check The Hydraulic Oil Level

    8.2.6. Check the hydraulic oil level Lock the guide bar in place in the transport position. Check the hydraulic oil level. The oil level is correct when the oil is in the middle of the view glass. 8.2.7. Adjust / replace the CAUTION spark plug Danger of burn injuries at the hot engine and its attachments.

  • Page 28: Check V-Belt

    8.2.8. Check V-belt Shut down the machine. Remove the V-belt guard (1). Check the V-belt (2) for cracks and wear. Replace the V-belt if it shows signs of extensive wear or other damage. Fit the V-belt guard. 8.2.9. Replace the fuel filter Open the maintenance cover.

  • Page 29: Change The Fuses

    8.2.10. Change the fuses Take off the dashboard (1). To do so, remove the 4 screws (2). ATTENTION! The instruments are connected to the ma- chine via cables. Remove the dashboard towards the rear carefully so as not to damage the cables. Remove the protective caps (3) of the fuse holder. Replace defective fuses.

  • Page 30: Operating Fluids And Fill Levels

    8.3. Operating fluids and fill levels Quantity Assembly Operating material Engine Engine oil SAE 10 W 40 1.9 l (-10 ~ + 50 °C) API - CD CE-CF-CG or SHPD or CCMC - D4 - D5 - PD2 Fuel tank Unleaded gasoline 7.5 l Fully-synthetic transmission fluid...
  • Page 32 facebook.com/WeberMT youtube.com/MyWeberMT Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085101407-104 / CR 9-II Hd _2023-02 Original instructions...
