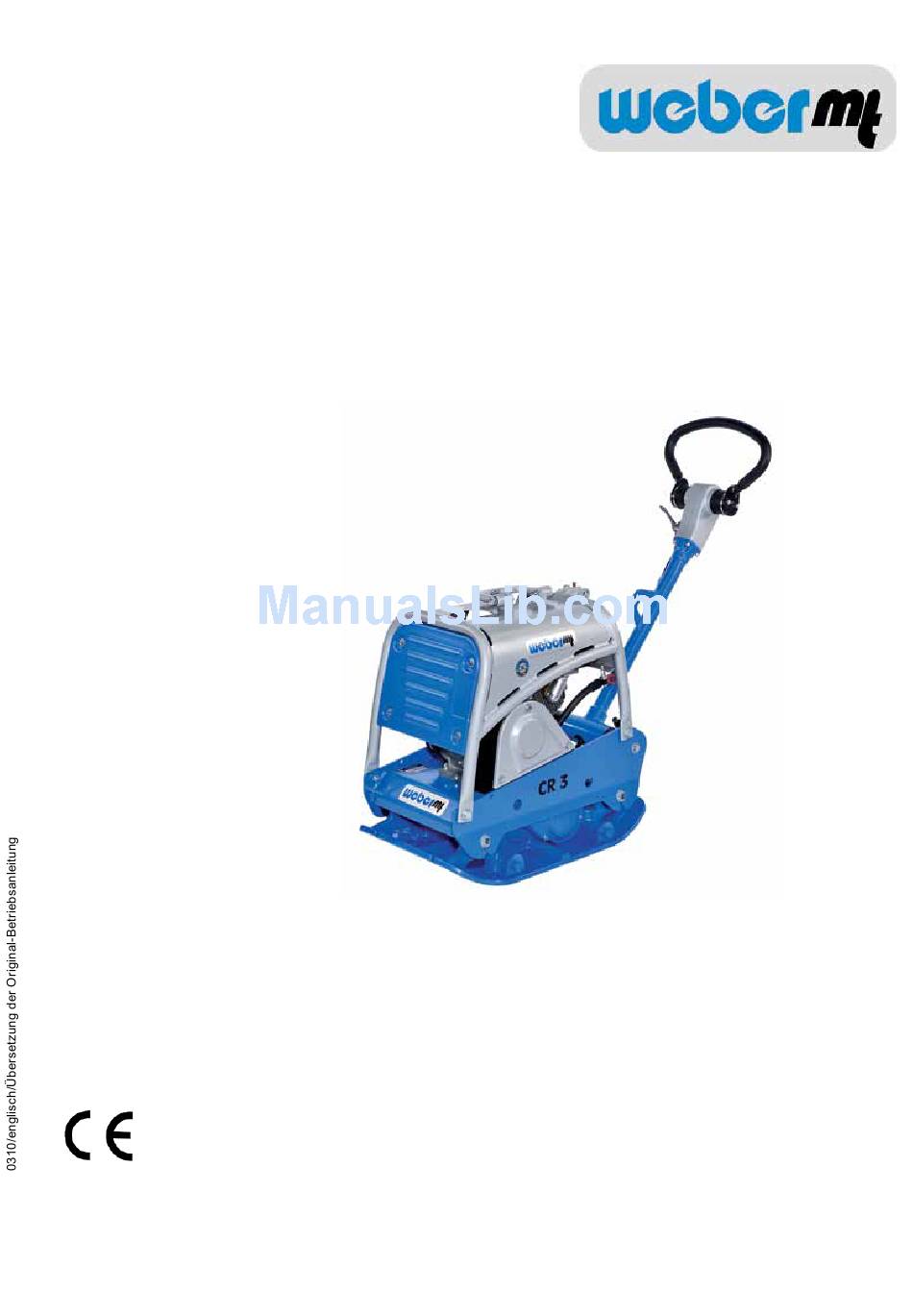

- Page 1 Operating and Maintenance Manual CR 3 HD Honda GX 270 Weber Maschinentechnik GmbH Im Boden 5 - 8, 10 57334 Bad Laasphe-Rückershausen / Germany Telephone +49 (0) 27 54 / 398-0 Fax +49 (0) 27 54 / 398-101 E-Mail: info@webermt.de Web: www.webermt.de...
- Page 2 CR 3 HD...
-
Page 3: Table Of Contents
Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Measures to be taken if stored for long periods Contact addresses CR 3 HD... -
Page 4: Introduction
You can obtain information on the assembled Honda petrol engine and find a spare-part list for it at www.honda-engines-eu.com The valid conformity declaration is enclosed with every machine delivery. CR 3 HD... -
Page 5: Safety Guidelines
This machine is capable of exceeding the permissible sound level of 80 dB(A). The owner might also face additional dangers when using the machine. Precautionary action must, therefore, be taken. Protective equipment includes: Ear protection Hard hat Safety shoes Protective gloves CR 3 HD... - Page 6 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. CR 3 HD...
- Page 7 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CR 3 HD...
-
Page 8: Graphic Presentation

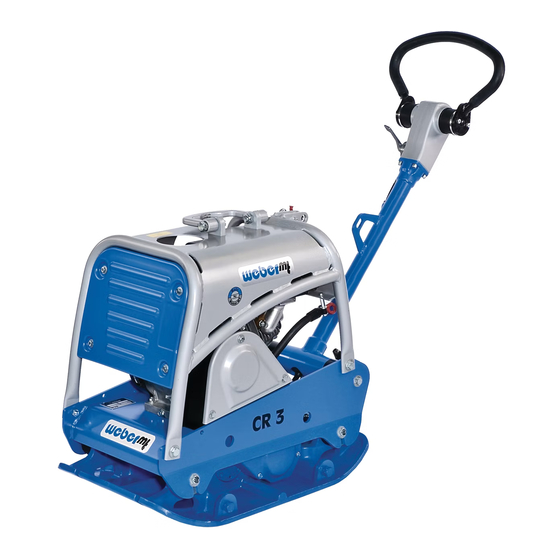

Graphic presentation Overall view CR 3 HD 1 Engine 2 Drive lever 3 Hand guidance rod 4 Lifting ring 5 Base plate 6 Protective frame 7 Exciter 8 Gas lever 9 Attachment plates 10Wear ear protection (Stickers) CR 3 HD... -
Page 9: Device Description
After starting, vibration is switched on via the centrifugal clutch attached to the engine. Use the gas lever to vary the engine speed between idle and full throttle. Forward and reverse id variably controlled via the handle attached to the hand guidance rod. CR 3 HD... -
Page 10: Technical Data
Technical data CR 3 HD Weight Operating weight CECE in kg (basic device) Dimensions 1350 Overall length in (in mm) 500/600/700 Overall width/with attachment plates (in mm) 1060 Height with folded manual guidance rod (in mm) Base plate length (base in mm) - Page 11 1Description 2 TYPE ....................... 3 Serial-Number 4 Year of construction ......................5 Mass 6 Rated power KW CR 3 HD...
-
Page 12: Activities Prior To Starting Work
Engage the retaining pin (1) in the retaining element (2) of the undercarriage. The retaining pin must be correctly engaged in the re- taining element, otherwise there is danger of injury due to the compactor sliding off. CR 3 HD... - Page 13 For work at the fuel system, have a suitable fire-extin- guishing agent at the ready. Fire, naked light, and smoking is forbidden! CR 3 HD...
-
Page 14: Starting
Turn the short-circuit button to the „ON position. Slide the lever of the fuel cock (1) to the right. Slide the choke lever (2) to the left (close). After the engine has warmed up, slide the choke lever (2) to the right (open). CR 3 HD... - Page 15 Slowly tighten the handle (1) of the reversing starter (2) until resistance is noticeable. Allow the handle (1) to slide back into the initial position, and then forcefully and completely pull it through with both hands. Allow the engine warm up for a few minutes. CR 3 HD...
-
Page 16: Compacting
Push the fuel cock (1) to the left (close). Turn the short-circuit button to the „0“ - OFF position. During breaks—even if they are short—the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against conspicuously. CR 3 HD... -
Page 17: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CR 3 HD... -
Page 18: Maintenance Work
Clean the air filter insert in accordance with theguidelines provided by the engine manufacturer, or replace if there is extreme fouling. Dispose of oils, oil-soaked cloths, and parts replaced and smeared with oil in an environmentally friendly manner. CR 3 HD... - Page 19 Checking the V-belt Remove the V-belt guard (1). Check the V-belt (1) for cracks, damaged flanks, and wear. If there is excessive wear - replace the V-belt as specified in the repair manual. CR 3 HD...
-
Page 20: Operating Fluids And Fill Levels
Operating fluids and fill levels Subassembly Operating material Quantity Summer Winter CR 3 HD Quality Engine Engine oil SAE 10 W 40 0.9 l (-10 ~ + 50 °C) API - CD CE-CF-CG or SHPD or CCMC - D4 - D5 - PD2... -
Page 21: Measures To Be Taken If Stored For Long Periods
Check fuel filter, change if necessary All bare parts/accelerator/accelerator - Oil/grease control cable/fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organi- zation to discuss additional measures. CR 3 HD... - Page 22 CR 3 HD...
-
Page 23: Contact Addresses
South - WEBER Maschinentechnik do Brasil Telefon + 55 (0) 51- 587 3044 America Rua João Werno Erhart, 4691 Telefax + 55 (0) 51- 587 2271 Bairro Rincão 93310-405 Novo Hamburgo /RS E-Mail webermt.@webermt.com.br Brasil CR 3 HD... - Page 24 > Vibration rollers > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe - Rückershausen Telephone + 49 27 54 / 398 0 - Fax +49 27 54 / 398 101 CR 3 HD...
