Operating and
Maintenance Manual
CR 9 CCD 2.0
Hatz 1 D 90
Weber Maschinentechnik GmbH
Im Boden 5 – 8, 10
D-57334 Bad Laasphe-Rückershausen / Germany
Tel.: +49 (0) 27 54 / 398 0
Fax: +49 (0) 27 54 / 398 101
E-mail: info@webermt.de
Web: www.webermt.de
CR 9 CCD 2.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR 9 CCD 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Weber mt CR 9 CCD 2.0

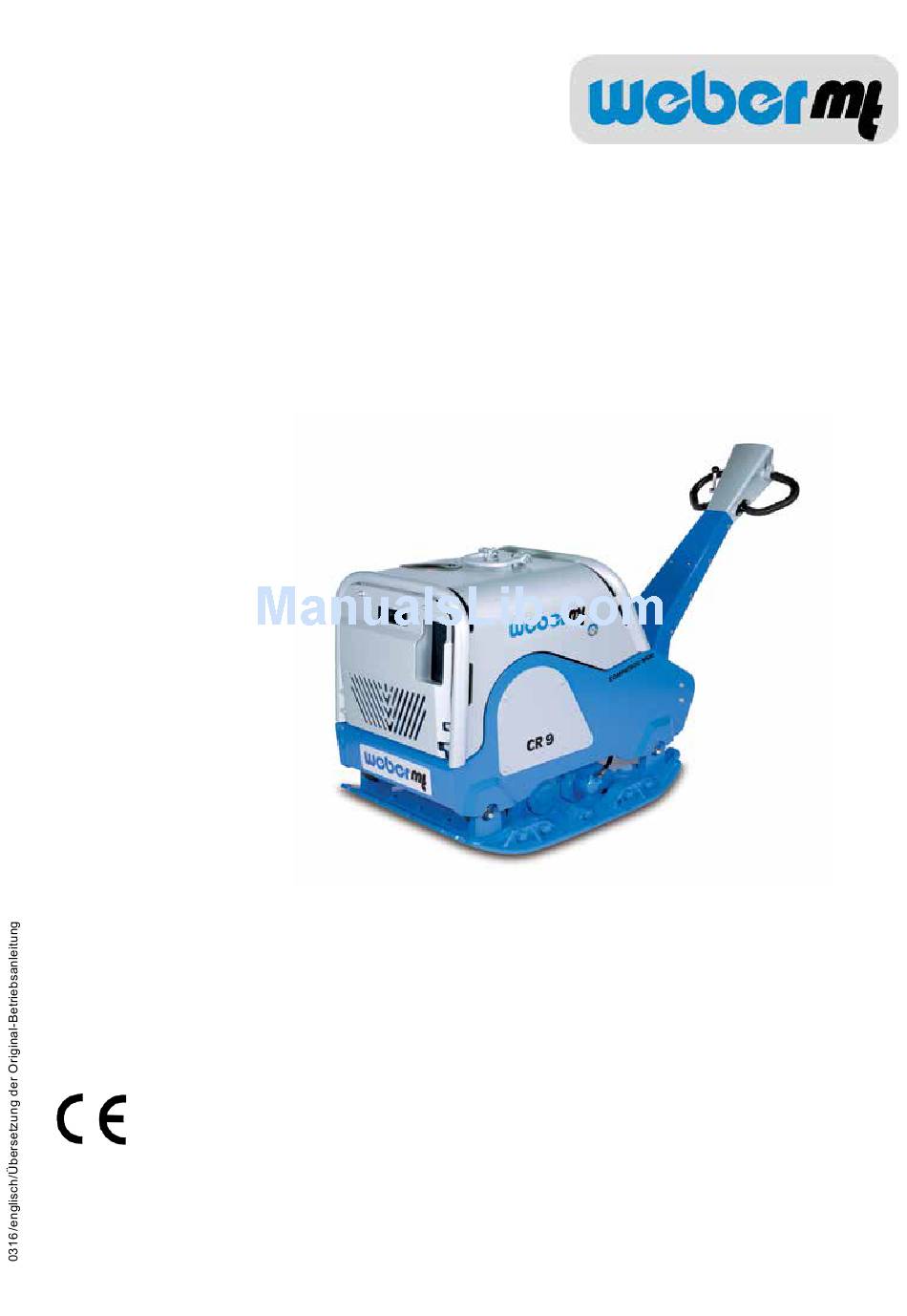

  • Page 1 Operating and Maintenance Manual CR 9 CCD 2.0 Hatz 1 D 90 Weber Maschinentechnik GmbH Im Boden 5 – 8, 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: +49 (0) 27 54 / 398 0 Fax: +49 (0) 27 54 / 398 101 E-mail: info@webermt.de...
  • Page 2 CR 9 CCD 2.0...
  • Page 3: Table Of Contents

    Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses CR 9 CCD 2.0...
  • Page 4: Introduction

    If necessary you can obtain additional information from your authorized WEBER dealer, or you can obtain information from one of the contact addresses on the last page. You can obtain information on the assembled Hatz diesel engine at www.hatz-diesel.com The valid conformity declaration is enclosed with every machine delivery. CR 9 CCD 2.0...
  • Page 5: Safety Guidelines

    The soil compactor should only be used if it is in a technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The CR 9 CCD 2.0 compactor is designed exclusively for compacting – Sand – Gravel –...
  • Page 6 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. CR 9 CCD 2.0...
  • Page 7 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CR 9 CCD 2.0...
  • Page 8: Graphic Presentation

    11 Fuse holders (no image) 4 Lifting ring 12 Hearing protection (sticker) 5 Handle 13 Maintenance cover 6 Base plate 14 Side panel 7 Protective frame 15 Engine start module MDM 8 Exciter 16 COMPATROL ® CR 9 CCD 2.0...
  • Page 9 The LED display (1) lights up, indicating that the engine is in operation. Oil pressure indicator (1) is illuminated. Oil level too low. Engine shuts down immediately. Error must be corrected prior to restart. CR 9 CCD 2.0...
  • Page 10 Engine temperature too high. The engine is shut down 3 minutes after the LED comes on. Air filter LED (1) is illuminated. Air filter is fouled up. The engine is shut down 10 minutes after the LED comes on. CR 9 CCD 2.0...
  • Page 11: Device Description

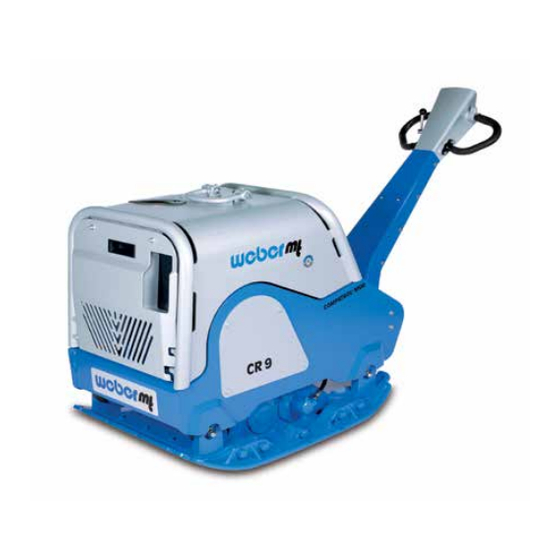

    Device description The CR 9 CCD 2.0 compactor is used for road building and landscaping compaction tasks. Drive The compactor is propelled by an air-cooled Hatz diesel engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Hatz diesel engine via the electrical start device.
  • Page 12: Technical Data

    Technical data CR 9 CCD 2.0 Weight Operating weight CECE in kg Dimensions 1867 Overall length (in mm) Working width – basic device (in mm) Working width – basic device 750 / 900 with attachment plates (in mm) 1167 Height with folded manual guidance rod (in mm)
  • Page 13 1 Description 2 TYPE ..........................3 Serial number 4 Year of construction ..........................5 Mass 6 Rated power kW ..........................CR 9 CCD 2.0...
  • Page 14: Activities Prior To Starting Work

    Do not step under suspended loads. Arrest the manual guidance rod (1) with the spring bolt (2). Adjusting the manual guidance rod Adjust the desired work height of the manual guidance rod with the set screw (1). CR 9 CCD 2.0...
  • Page 15 For work at the fuel system, have a suitable fire- extinguishing agent at the ready. Fire, naked light, and smoking is forbidden! CR 9 CCD 2.0...
  • Page 16: Starting

    If the engine does not start after two start processes, seek cause in fault table. Once the ignition is switched on, the COMPATROL ® compaction system will perform a function test. All LEDs (1) light up. CR 9 CCD 2.0...
  • Page 17: Compacting

    Close the vandalism flap (1) and lock with a padlock. During breaks – even if they are short – the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against through conspicuous measures. CR 9 CCD 2.0...
  • Page 18: Maintenance Overview

    If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CR 9 CCD 2.0...
  • Page 19: Maintenance Work

    Screw the oil drain pipe (1) onto the engine drain valve (2) and drain off the oil. After emptying completely, unscrew the oil drain pipe from the drain valve and screw the cover cap back onto the drain valve. Fill with oil in accordance with specifications. CR 9 CCD 2.0...
  • Page 20 Battery acid is extremely caustic. Protect hands and eyes with suitable protective goggles and gloves. Remove the cover cap (1). Check the acid level; if it is too low top off with distilled water until the max. mark is reached. CR 9 CCD 2.0...
  • Page 21 The fuses are housed behind the side panel on the left in the direction of travel. Check the hydraulic fluid level Remove the instrument panel (1). Remove the oil dip stick (1). The correct oil level is between the min. and max. marks. CR 9 CCD 2.0...
  • Page 22 Checking the V-belt Remove the V-belt guard (1). Check the V-belt (1) for cracks, damaged flanks, and wear. If there is excessive wear – replace the V-belt as specified in the repair manual. CR 9 CCD 2.0...
  • Page 23: Operating Fluids And Fill Levels

    Operating fluids and fill levels Assembly Operating material Quantity Summer Winter CR 9 CCD 2.0 Quality Engine SAE 10 W 40 1.9 l Engine oil (–10 ~ + 50 °C) API – CD CE-CF-CG or SHPD or CCMC – D4 – D5 – PD2...
  • Page 24: Troubleshooting

    No vibration / Vibrator V-belt defective Change vibrator V-belt no forward motion or insufficient forward motion Unit switches Air trapped in the hydraulic Bleed the transmission with a delay transmission system system CR 9 CCD 2.0...
  • Page 25: Storage

    – Store above freezing in a storage room – Attach permanent charger If the machine is to be stored for longer than six months, then contact the Weber service organi- zation to discuss additional measures. CR 9 CCD 2.0...
  • Page 26 Comply with the device manufacturer’s operating manual for use of the battery charger. The operating manual of the charger is enclosed in the packaging of the battery charger. The battery charger BA 200 can be purchased using order no. 021000603. CR 9 CCD 2.0...
  • Page 27: Contact Addresses

    WEBER Maschinentechnik do Brasil Telephone +55 (0) 51 - 587 3044 South Rua João Werno Erhart, 4691 +55 (0) 51 - 587 2271 America Bairro Rincão 93310-405 Novo Hamburgo / RS E-mail webermt@webermt.com.br Brazil CR 9 CCD 2.0...
  • Page 28 > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe-Rückershausen Telephone + 49 (0) 27 54 / 398 0 – Fax +49 (0) 27 54 / 398 101 CR 9 CCD 2.0...
