Hioki SP7002 Instruction Manual

Hioki SP7002 Instruction Manual

Non-contact sensor, can interface, signal probe
Hide thumbs Also See for SP7002:
Table of Contents

Advertisement

Quick Links

Download this manual
SP7001
SP7002
NON-CONTACT CAN SENSOR
SP7100
SP7150
CAN INTERFACE
SP9200
SP9250
SIGNAL PROBE
Be sure to read this manual before using the instrument.
When using the instrument for the
first time
Part Names and Functions
Preparing Before Use
Functionality
July 2021 Revised edition 1
SP7001A961-01 21-07H
p.10
p.15
p.27
HIOKI SP7001A961-01
Instruction Manual
Visit us at www.TestEquipmentDepot.com
Troubleshooting
Maintenance and Service
5 Commonwealth Ave
Woburn, MA 01801
Phone 781-665-1400
Toll Free 1-800-517-8431
 p.7
p.43
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP7002 and is the answer not in the manual?

Questions and answers

Related Manuals for Hioki SP7002

Summary of Contents for Hioki SP7002

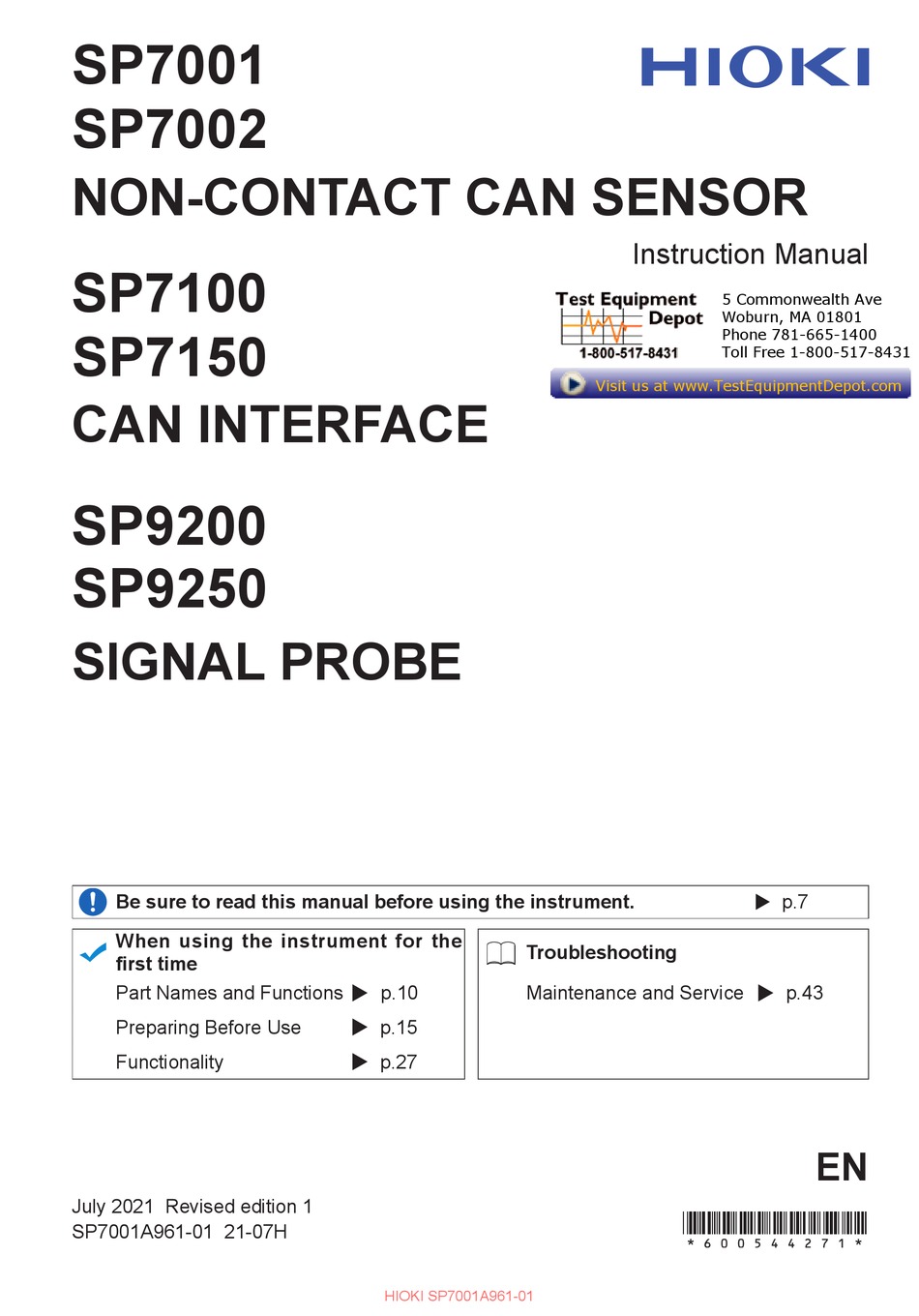

  • Page 1 SP7001 SP7002 NON-CONTACT CAN SENSOR Instruction Manual SP7100 5 Commonwealth Ave Woburn, MA 01801 SP7150 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com CAN INTERFACE SP9200 SP9250 SIGNAL PROBE Be sure to read this manual before using the instrument.
  • Page 2 HIOKI SP7001A961-01...

  • Page 3: Table Of Contents

    SP9250 Signal Probe ......41 Product Overview and Features ...9 SP9900 Split Cable Part Names and Functions ....10 (dedicated option for SP7100) ....42 SP7001/SP7002 Non-Contact CAN Sensor .............10 Maintenance and Service ......11 SP7100 CAN Interface ......12 SP7150 CAN Interface Troubleshooting ........45 SP9200 Signal Probe ........13...
  • Page 4 Contents HIOKI SP7001A961-01...

  • Page 5: Introduction

    Introduction Introduction Thank you for choosing the Hioki SP7001/SP7002 Non-Contact CAN Sensor, SP7100/SP1750 CAN Interface, and SP9200/SP9250 Signal Probe. Keep this manual accessible so that you can take full advantage of the product’s functionality throughout its service life. Be sure to review the following documentation before using the product:...

  • Page 6: About The Notations Used In This Manual

    Indicates compliance with the Waste Electrical & Electronic Equipment (WEEE) Directive in EU member countries. Indicates compliance with EU directives. Other symbols Instructs the reader to see below for more information. (p. ) Indicates the page number to reference. Bold Operation keys are printed in bold. HIOKI SP7001A961-01...

  • Page 7: Verifying Package Contents

    Before using the product, inspect it for any damage that may have occurred during shipment. Exercise particular care with regard to accessories, panel switches, and terminals. Contact your authorized Hioki distributor or reseller if you find any damage or if the product fails to operate to its specifications.
  • Page 8 Refer to p. 18. Spiral tube ×1 (For securing the power cable in place) Ground connection cable (1.5 m) ×1 Refer to p. 21. Refer to p. 18. SP9200 Signal Probe Signal Probe ×2 SP9250 Signal Probe Signal Probe ×2 HIOKI SP7001A961-01...

  • Page 9: Options

    The following options are available for the product. To purchase an option, please contact your Hioki’s distributor or reseller. Options are subject to change. Please check Hioki’s website for the latest information.  SP7001 Non-Contact CAN Sensor Refer to p. 17.
  • Page 10  L9510 USB Cable (for SP7150 only) (Type-A Type-C; for power supply; 1 m long) Refer to p. 21.  SP9900 Split Cable (for SP7100 only) Refer to p. 20.  C1013 Carrying Case Options can be purchased via authorized Hioki distributor or reseller. HIOKI SP7001A961-01...

  • Page 11: Operating Precautions

    • The product complies with EN 61326 Class A. Use in residential settings such as neighborhoods may cause radio or television interference. If you encounter such interference, take appropriate steps to prevent it. • When transporting the product, take care to avoid subjecting it to vibration or mechanical shock. HIOKI SP7001A961-01...
  • Page 12 50 Hz or 60 Hz. To prevent damage to the product or an electric accident, never use the adapter with any other voltage. • To prevent electric shock and ensure safety, connect the included power cord to a grounded two-prong outlet. HIOKI SP7001A961-01...

  • Page 13: Overview

    Overview 1.1 Product Overview and Features The SP7001/SP7002 Non-Contact CAN Sensor can detect CAN communications signals, which are used in control communications in automobiles and in a variety of devices, from outside cables’ insulation. Captured CAN signals can be connected to analyzers, loggers, and other measuring instruments with a CAN interface.

  • Page 14: Part Names And Functions

    Part Names and Functions 1.2 Part Names and Functions SP7001/SP7002 Non-Contact CAN Sensor Front Rear : SP7001 : SP7002 (Pictured: SP7001) Name Function HIGH Signal Probe Connect a Signal Probe. p. 16 connector Connect the other end of Signal Probe to the CAN bus’s CAN_H line.

  • Page 15: Sp7100 Can Interface

    Ground terminal (ground or body ground connected to the vehicle battery’s negative p. 18 terminal). Non-Contact CAN Connect the SP7001/SP7002 Non-Contact CAN Sensor’s output p. 17 Sensor connector connector. Indicates the status of the Non-Contact CAN Sensors by mirroring CAN SENSOR...

  • Page 16: Sp7150 Can Interface

    Connect to the CAN signal source ground or to the automobile’s body Ground terminal (ground or body ground connected to the vehicle battery’s negative p. 18 terminal). Non-Contact CAN Connect the SP7001/SP7002 Non-Contact CAN Sensor’s output p. 17 Sensor connector connector. STATUS Indicates the status of the Non-Contact CAN Sensor.

  • Page 17: Sp9200 Signal Probe

    Connector with lock p. 16 the lock is engaged when connecting to the sensor. Place the cable under test into the slit in the guard hook and Guard hook p. 22 clamp it in place with the detection electrode. HIOKI SP7001A961-01...

  • Page 18: Led Lighting/Flashing Specifications

    LED Lighting/Flashing Specifications 1.3 LED Lighting/Flashing Specifications SP7001/SP7002 Non-Contact CAN Sensor Product status STATUS LED Self-test error (failure) Steady red Signal not detected Steady green Signal detected Flashing green Probe high/low reverse connection Flashing red warning SP7100/SP7150 CAN Interface SP7100...

  • Page 19: Preparing Before Use

    “2.6 Supplying Power” (p. 21) “2.5 Connecting the CAN Interface” (p. 20) Connect the SP7100 CAN Interface’s CAN signal output connector to the CAN interface-equipped analyzer, logger, instrument, or other device with which you wish to use it. HIOKI SP7001A961-01...

  • Page 20: Connecting The Signal Probes

    Connecting the Signal Probes 2.2 Connecting the Signal Probes Connect to the Non-Contact CAN Sensor. Connect the SP9200/SP9250 to the SP7001/SP7002 Non-Contact CAN Sensor’s signal probe connector. IMPORTANT • Leave the Signal Probe connected to prevent deterioration of the Signal Probe and Non- Contact CAN Sensor's connector’s contacts and to keep out dirt.

  • Page 21: Connecting The Non-Contact Can Sensor

    Connecting the Non-Contact CAN Sensor 2.3 Connecting the Non-Contact CAN Sensor Connect the SP7001/SP7002 Non-Contact CAN Sensor’s output connector to the SP7100/SP7150 CAN Interface’s Non-Contact CAN Sensor connector. CAUTION Handle each connector of the product. Do not use tools. Subjecting the connectors to excessive force could damage them.

  • Page 22: Connecting The Ground Terminal

    Example: SP7100 CAN Interface SP7001/SP7002 Non-Contact CAN Sensor ground terminal If connecting the CAN interface’s ground terminal to the ground cannot reduce the noise, connect to the Non-Contact CAN Sensor’s ground terminal to the CAN signal source’s ground or to the body of a vehicle in the vicinity of the CAN signal source (ground connected to the vehicle battery’s...
  • Page 23 Note that there is no AC coupling between the Signal Probe and the sensor ground, as illustrated in the equivalent circuit diagram, and exercise caution to avoid creating a short-circuit. Short-circuit protection provided by AC coupling functions only for DC voltages. HIOKI SP7001A961-01...

  • Page 24: Connecting The Can Interface

    CH1 CAN Low CH2 CAN Low CH1 GND CH1 GND CH2 GND N.C. N.C. N.C. Shield Shield Shield CH2 GND N.C. N.C. CH1 CAN High CH1 CAN High CH2 CAN High CH2 CAN High N.C. N.C. N.C. N.C. N.C. HIOKI SP7001A961-01...

  • Page 25: Supplying Power

    30 V DC and maximum rated power of 3.0 VA. The product can be connected to a DC power supply such as a vehicle’s 12 V or 24 V system. Wire the cable so that the center of the plug is positive (+). Red cable Black cable HIOKI SP7001A961-01...

  • Page 26: Connecting The Signal Probes To The Can Bus

    • Position the probe so that the cable under test is in contact with the back of the detection electrode. • Proper detection will be impossible if the cable under test is positioned too shallowly or angled in the guard hook. HIOKI SP7001A961-01...
  • Page 27 The probe is designed so that while it is locked in place, the grip will be locked so that it cannot be rotated (to prevent inadvertent loosening). Rotate the grip while pulling it towards you. The guard hook will open. Remove the cable under test. HIOKI SP7001A961-01...

  • Page 28: When Using The Sp9250

    • Position the probe so that the cable under test is in contact with the back of the detection electrode. • Proper detection will be impossible if the cable under test is positioned too shallowly or angled in the guard hook. Cable under test HIOKI SP7001A961-01...

  • Page 29: Inspecting The Product Before Use

    2.8 Inspecting the Product Before Use Before using the product, inspect it for any damage that may have occurred during storage or shipment. If you find any damage, contact your authorized Hioki distributor or reseller. Inspect all parts. Is there any cracking or damage Send back the product for repair.
  • Page 30 Inspecting the Product Before Use HIOKI SP7001A961-01...

  • Page 31: Functionality

    Situations where it may be necessary to use high-sensitivity mode • When the differential voltage of the CAN communications signals on the CAN bus is low • When the CAN bus cable has thick insulation • When the CAN bus cable has rigid insulation HIOKI SP7001A961-01...

  • Page 32: Probe Setting Function (Automatic Polarity Selection)

    Probes are connected to the CAN bus in reverse, it will switch the high and low detected signals via its internal circuitry. This function will operate in approximately 2 seconds as long as the CAN bus load factor is approximately 5% or greater. Probe setting selector HIOKI SP7001A961-01...

  • Page 33: Output Bus Error Detection Function

    CAN Interface will determine that the output bus has encountered an error due to an inability to output the CAN signals. SP7100 or SP7150 CAN signal output Customer device CAN signal from device SP7100 or SP7150 CAN signal output Customer device HIOKI SP7001A961-01...
  • Page 34 Output Bus Error Detection Function HIOKI SP7001A961-01...

  • Page 35: Specifications

    Specifications 4.1 SP7001/SP7002 Non-Contact CAN Sensor 1. General specifications Operating environment Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.) Temperature: −40°C to 85°C (−40°F to 185°F) Operating temperature −40°C to 60°C (−40°F to 140°F), 80% RH or less (no condensation)
  • Page 36 AVS/AVSS-compliant cables Compatible cable φ1.2 mm to 2.0 mm diameter Compatible CAN: 125 kbit/s to 1 Mbit/s (SP7001, SP7002) communications speeds CAN FD: 125 kbit/s to 3 Mbit/s (SP7001) Total delay time Combined with SP7100 or SP7150 CAN Interface 130 ns (typical)
  • Page 37 SP7001/SP7002 Non-Contact CAN Sensor 3. Function specifications Signal detection Operates when the CAN bus load factor is 5% or greater. function Probe HIGH/LOW Operates when the CAN bus load factor is 5% or greater. reverse connection Detects when the Signal Probe connections to the CAN bus’s CAN_H and CAN_L lines detection function are reversed.

  • Page 38: Sp7100 Can Interface

    D-sub connector cable: Approx. 0.3 m Product warranty period 3 years Accessories Refer to p. 3. Options SP7001 Non-Contact CAN Sensor SP7002 Non-Contact CAN Sensor L9500 Power Cable (for connecting an external battery; terminates in wires; approx. 2 m long) SP9900 Split Cable Z1008...
  • Page 39 SP9900 Split Cable. CAN transceiver TCAN1051GV (SP7100 does not have receiver function and communications arbitration function.) Total delay time In combination with SP7001/SP7002 Non-Contact CAN Sensor 130 ns (typical) (from detection of CAN signal to output) Ω...
  • Page 40 CAN sensor connected Steady (on) Reflects CAN sensor STATUS (according to STATUS) Output bus error Steady (on) Flashes, alternately quickly between the red and green detection function LEDs for the channel on which the output bus error was detected. HIOKI SP7001A961-01...

  • Page 41: Sp7150 Can Interface

    Approx. 100 g (3.5 oz.) (including cables) Cable length D-sub connector cable: Approx. 0.3 m Product warranty period 3 years Accessories Refer to p. 4. Options SP7001 Non-Contact CAN Sensor SP7002 Non-Contact CAN Sensor L9510 USB Cable Z1013 AC Adapter C1013 Carrying Case HIOKI SP7001A961-01...
  • Page 42 Connect CAN signal output connector directly to target device CAN transceiver TCAN1051GV (SP7150 does not have receiver function and communications arbitration function.) Total delay time In combination with SP7001/SP7002 Non-Contact CAN Sensor 130 ns (typical) (from detection of CAN signal to output) Ω...
  • Page 43 CAN sensor connected Steady (on) Reflects CAN sensor STATUS (according to STATUS) Output bus error Steady (on) Flashes, alternately quickly between the red and detection function green LEDs for the channel on which the output bus error was detected. HIOKI SP7001A961-01...

  • Page 44: Sp9200 Signal Probe

    Approx. 26 g (0.9 oz.) (weight of 1 Signal Probe, including cable) Cable length Approx. 0.5 m Options SP7001 Non-Contact CAN Sensor SP7002 Non-Contact CAN Sensor C1013 Carrying Case 2. Input, output, and detection specifications (1) Basic specifications Detection method...

  • Page 45: Sp9250 Signal Probe

    Approx. 44.6 g (1.6 oz.) (weight of 1 Signal Probe, including cable) Cable length Approx. 0.8 m Options SP7001 Non-Contact CAN Sensor SP7002 Non-Contact CAN Sensor C1013 Carrying Case 2. Input, output, and detection specifications (1) Basic specifications Detection method...

  • Page 46: Sp9900 Split Cable (Dedicated Option For Sp7100)

    CH1 CAN Low CH2 CAN Low CH1 GND CH1 GND CH2 GND N.C. N.C. N.C. Shield Shield Shield CH2 GND N.C. N.C. CH1 CAN High CH1 CAN High CH2 CAN High CH2 CAN High N.C. N.C. N.C. N.C. N.C. HIOKI SP7001A961-01...

  • Page 47: Maintenance And Service

    Do not leave the C1013 Carrying Case in locations where it would be subject to direct sunlight or high temperatures, for example inside a vehicle. High temperatures may deform the shape of the inside of the case. Stow the product in the C1013 Carrying Case with connectors connected. HIOKI SP7001A961-01...
  • Page 48 IMPORTANT When shipping the product, do not disconnect the SP9200/SP9250 Signal Probe from the SP7001/SP7002 Non-Contact CAN Sensor. Doing so may soil or degrade the connectors’ contacts, adversely impacting signal detection. When sending the product to be repaired, attach a description of the issue.

  • Page 49: Troubleshooting

    Troubleshooting 5.1 Troubleshooting If damage is suspected, contact your authorized Hioki distributor or reseller after reviewing the contents below. CAN signal detection is unstable. Check/consider Solutions • Verify that the cable (CAN bus) under test has been properly inserted between the detection electrode and guard hook.

  • Page 50: You Are Unable To Detect Can Signals Stably When Using The Product In An Environment Where It Is Exposed To Vibrations, For Example In Road Testing

    (CAN bus) under test? • Fix the Signal Probes and cable (CAN bus) under p. 22 test in place so that they do not vibrate. p. 24 • Are the Signal Probes or the cable (CAN bus) under test unstable? HIOKI SP7001A961-01...
  • Page 51 HIOKI SP7001A961-01...
