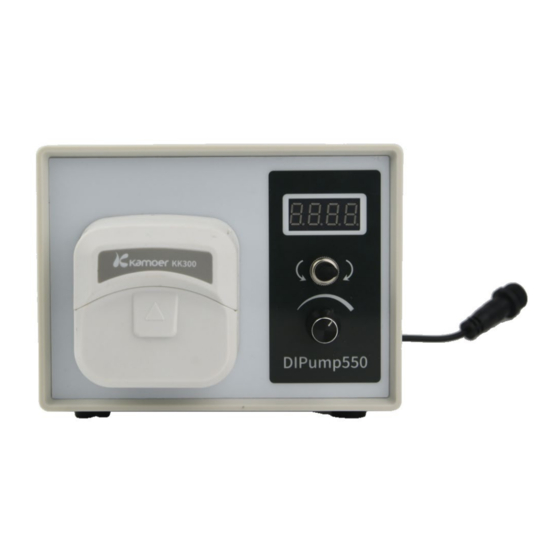

- Page 1 DIPump-KK300 V2 Intelligent Peristaltic Pump User Manual 2023/02/13 V2.0 Kamoer Fluid Tech (Shanghai) Co., Ltd. www.kamoer.com...
-
Page 2: Warranty & Service
Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual Warranty service 1. Warranty Conditions The warranty service is only valid for users who have correctly installed, used and maintained in accordance with the manual, and all man-made faults or damages are not covered by the warranty. -
Page 3: Main Features
Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual 1. Main features Speed range 0.1- 400RPM Speed adjustment resolution 0.1RPM Flow range ≤300ml/min Direction control Support clockwise and counterclockwise operation Display mode LED 4-digit digital tube Rotary encoder, Foot switch, External analog,... -
Page 4: Appearance Description
Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual 3. Appearance Description Digital display Used to display information such as speed, flow, flow rate, time, etc.; When all numbers are: current speed/current set speed; When there are all numbers and the overall beating is flashing: the numbers indicate the currently... - Page 5 Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual Directional control buttons It is used to control the rotation direction of the pump; to the left, the pump rotates counterclockwise; to the right, the pump rotates clockwise. Switching directions while the pump is running has no effect, the state will only switch when the pump is stopped and started again.
- Page 6 Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual 4. Working mode - speed mode Set the working mode to speed mode through the function menu, and the factory default is speed mode. The parameters set in speed mode include speed (unit is rev/min), running time (unit is second), stop time (unit is second).
- Page 7 Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual 5. Working mode - flow mode Set the working mode to the flow mode through the function menu, and the parameters set in the flow mode include the flow rate (in milliliters per minute), the amount added (in milliliters), and the stop time (in seconds).
-
Page 8: Function Menu Introduction
Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual 6. Function menu introduction Parameters can be customized through the menu, which includes the following functions: C001. Running mode C002. Running direction C003. Foot switch setting C004. Calibration C005. Running state saving C006. -
Page 9: Function Setting
Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual 7. Function setting "C001" working mode On the function selection interface, when the rotary encoder displays "C001" and the corresponding function is "running mode", short press the rotary encoder to enter the setting interface, and the "speed mode"... - Page 10 Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual Function Display Setting Description 0 means trigger mode (press the foot switch once, the pump starts to work, press it again, the pump stops working) 1 means low level trigger (long press the foot...
- Page 11 Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual "C005" running state save On the function selection interface, rotate the encoder, when the corresponding function of "C005" is displayed as "Save Running State", short press the rotary encoder to enter the setting interface, and you can set whether to save the current running state.
- Page 12 Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual "C007" suction function On the function selection interface, rotate the encoder, when "C007" is displayed, the corresponding function is "back suction setting". Short press the rotary encoder to enter the setting interface.
- Page 13 Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual "C011" restore factory settings On the function selection interface, rotate the encoder, when the corresponding function of "C011" is displayed as "restore factory settings", short press the rotary encoder to enter the setting interface.
-
Page 14: External Control
Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual indicates the baud rate index, the index is as follows: (the baud rate set here is the same as the baud rate set in 485 Modbus) 0: 1200 1: 2400 2: 4800... - Page 15 Kamoer Fluid Tech(Shanghai) Co., Ltd. DIP-KK300 V2 User Manual 10. Pump Tubing Flow Reference Note: The maximum flow rate in the above chart is obtained at room temperature (about 25°C), using a new pump tube that has been aged for 30 minutes and tested water at 400 rpm, for reference only.
- Page 16 Addr: Building 4, No. 79 XiangJing Road, Songjiang District, Shanghai, China Phone: +86-021-67742578 Website: www.kamoer.com Kamoer is a registered trademark of Kamoer Fluid Tech (Shanghai) Co., Ltd. The company reserves the right to improve and change product appearance and technical specifications without prior notice.
