- Page 1 LLS Plus Peristaltic Pump User Manual Version: A/0 KAMOER fluid tech (shanghai) Co.,Ltd. www.kamoer.com...
-
Page 2: Table Of Contents
LLS Plus Peristaltic Pump User Manual Contents CONTENTS.............................. 2 WARRANTY.............................3 NOTICE..............................4 1. GETTING START..........................5 1.1 A ............................... 5 BOUT 1.2 U ............................5 NPACKING 1.3 C ............................6 OMPONENTS 2. OPERATION............................7 2.1 P ............................ 7 OWERING ............................7 2.2 M 2.2.1 Run............................8 2.2.2 Allocate Parameters...................... -
Page 3: Warranty
You will be asked to furnish proof of purchase to confirm that the product is still under warranty. Kamoer text and icon are the registered trademark of KAMOER fluid tech (shanghai) Co.,Ltd. We reserve the right to improve or alter appearance and technical specifications... -
Page 4: Notice
LLS Plus Peristaltic Pump User Manual Notice We have considered the safety of the user in the process of design of the instrument. Please read the manual carefully for installing and use of the instrument. Any improper operation may cause damage or danger. -
Page 5: Getting Start

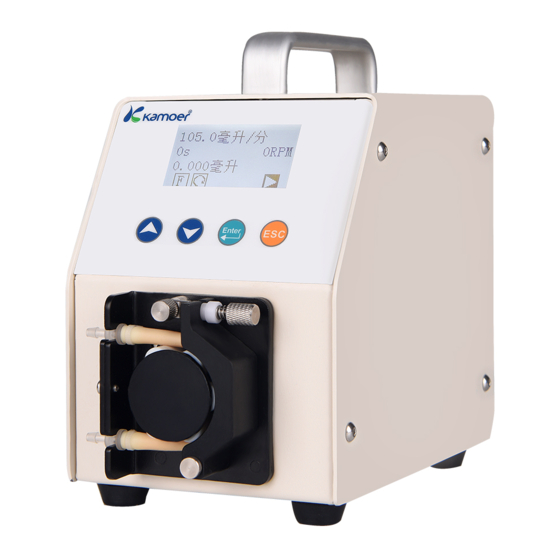

LLS Plus Peristaltic Pump User Manual 1. Getting Start 1.1 About Kamoer LLS Plus Peristaltic Pump is a kind of low flow and high precision stepper peristaltic pump. It can be used in workshops, as well as measuring rooms and laboratories. It has follow advantages: High precision with stepper motor driver. -
Page 6: Components
You can choose other material tube according to actual usage. kamoer Connector Kamoer connector is used to connecting the input or output of pump to the connecting pipe. It is an optional component, for detail information, please visits www.kamoer.com. -
Page 7: Operation
LLS Plus Peristaltic Pump User Manual 2. Operation 2.1 Powering On First place the pump on a smooth horizontal surface, then plug the power cord into the AC-connector of LLS Plus Peristaltic Pump and connect the cord to the main power supply. -
Page 8: Run
LLS Plus Peristaltic Pump User Manual Figure 2.3 2.2.1Run In main menu page, press Esc key to return run page. Run mode includes Flow Mode and Allocation Mode. Figure 2.4 shows Flow Mode. Figure 2.4 The first line shows current flow. -
Page 9: Allocate Parameters
LLS Plus Peristaltic Pump User Manual speed per minute on right. The third line shows current volume. The three icons on the right of the fourth line shows run mode, run direction, run status in turn. Press Up or Down key to switch item and the chosen item will be with inverse color. Press Set Key to change run mode, run direction and run status. -
Page 10: Maintenance
LLS Plus Peristaltic Pump User Manual or Down key to increase or decrease volume quickly. After you set the volume, press Set key to confirm, and allocation volume is the new value. If you press Esc key, the system will cancel the change and use the last value also. - Page 11 LLS Plus Peristaltic Pump User Manual to enter maintenance page. Maintenance includes rinse and calibration. See as Figure 2.11. Figure 2.11 Rinse is used in rinse pipeline and drain pipeline. If the first using or long time not using, please rinse pipeline first. Rinse pipeline is useful for checking leaks. Rinse is completed in manual mode.
-
Page 12: Settings
LLS Plus Peristaltic Pump User Manual Figure 2.14 Press Up or Down key to select a calibration time, and press Set key to start calibrating. See Figure 2.15. Figure 2.15 If you want to stop calibrating, press Esc key at any time. After calibration, the system will enter calibration volume set page. - Page 13 LLS Plus Peristaltic Pump User Manual Figure 2.17 Press Up or Down key to select 2 Language to enter language choose page. See as Figure 2.18. Figure 2.18 Press Up or Down key to select 3 Tube Use Time and press Set key to enter tube usage statistics page.
-
Page 14: Maintenance
LLS Plus Peristaltic Pump User Manual 3. Maintenance 3.1 Chemical Compatibility The standard configuration of the pump tube is silicone tube, it can be apply to most cases. If with application-specific liquid, please contact with the manufacture to confirm the chemical compatibility. -
Page 15: Appendixes
LLS Plus Peristaltic Pump User Manual Appendixes Appendix A Technical Specifications Drive stepper motor Input AC 100-240V Power Requirements Output DC 24V Power Rating 50W Weight 2.5Kg Dimensions 204x115x188 mm Ambient temperature 0℃ to 50℃ Humidity Range 10%–90%, non-condensing Appendix B Packing List...
